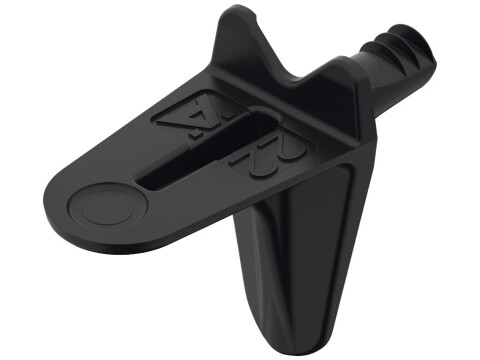

Shelf Support D3mm Plug ZA Blk
Part Number: 282.25.317
With twin grooves, black passivated
Price:
£11.32
Per 100 Pack
Note on load bearing capacity 9.4 kg per pieceTested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test,... Read More
Product Information
Product Details
Note on load bearing capacity
9.4 kg per piece
Tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 37.6 kg load bearing capacity when using 4 shelf supports kg

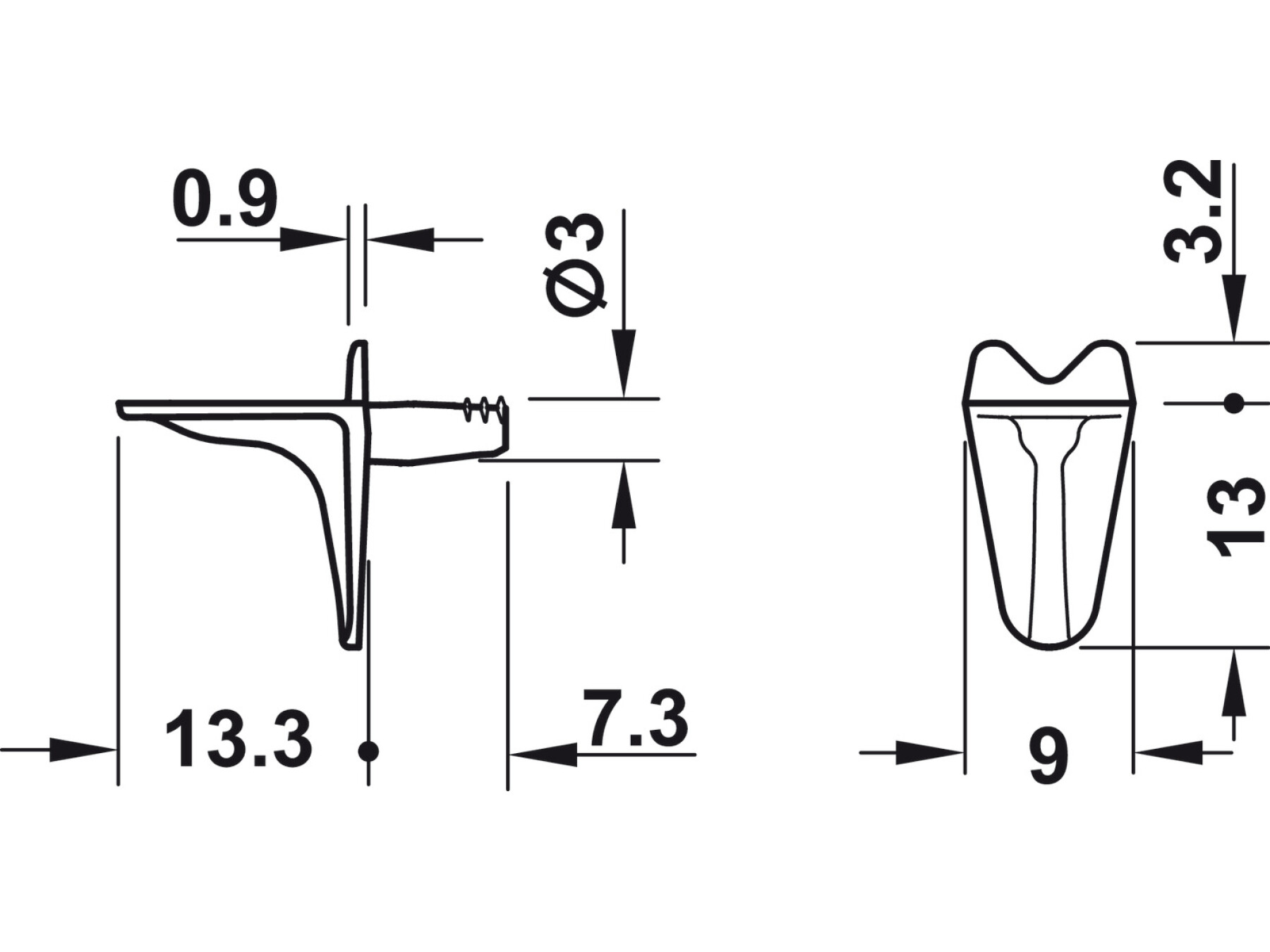

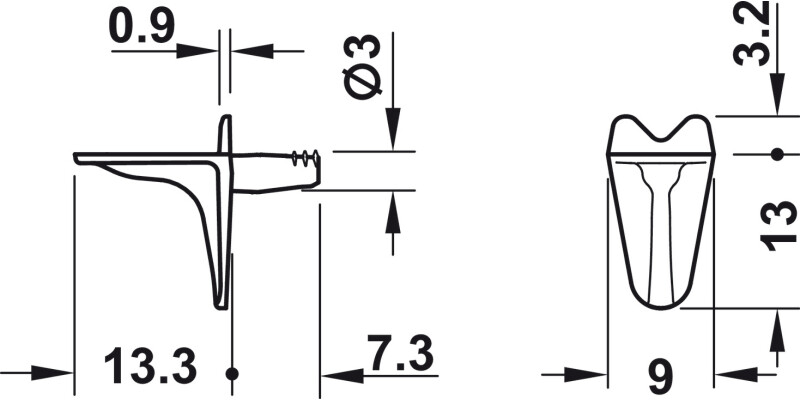

Specifications
Application
For wooden shelves
Installation
For Mounting in drilled hole
For drill hole Ø
3.00 mm
Support size
1.50 mm
Pin length
7.30 mm
Version
With twin groove
Material
Zinc alloy
Load bearing capacity per item
9.40 kg
Load bearing capacity with 4 shelf supports
37.60 kg
