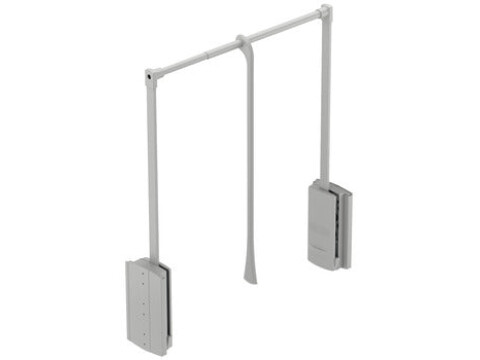

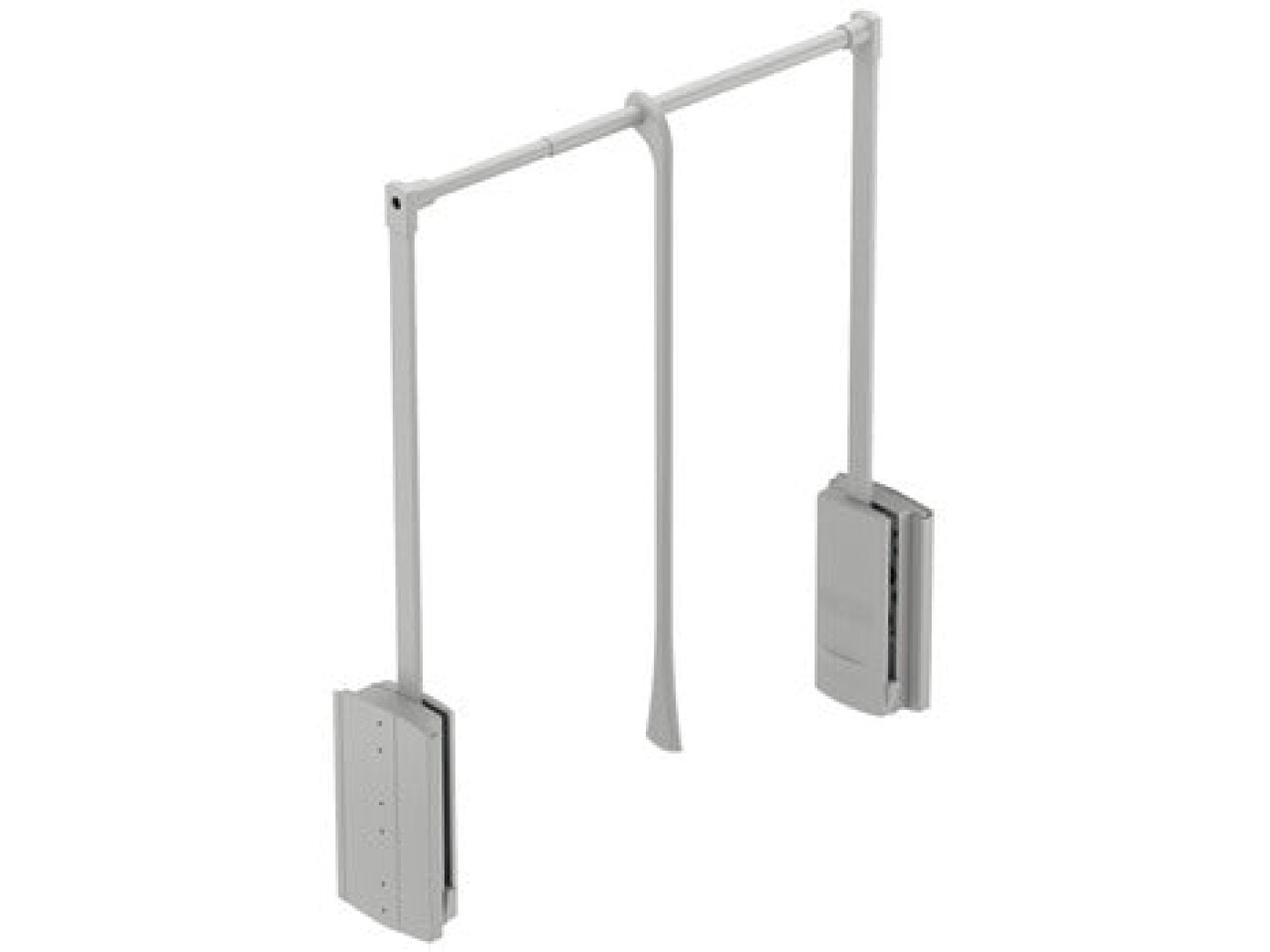

Pull Down Wardrobe Rail, for Internal Wardrobe Width 600-1000 mm, 2004
Part Number: 805.20.081
Installed height 850 mm, Chrome plated steel rail, black plastic housing and connecting parts, chrome plated pull rod
Price:
£60.36
Per Item
Operated by pull rod - slides along railØ 22 mm hanging rail - adjustable for different wardrobe widthsMinimum... Read More
Product Information
Product Details

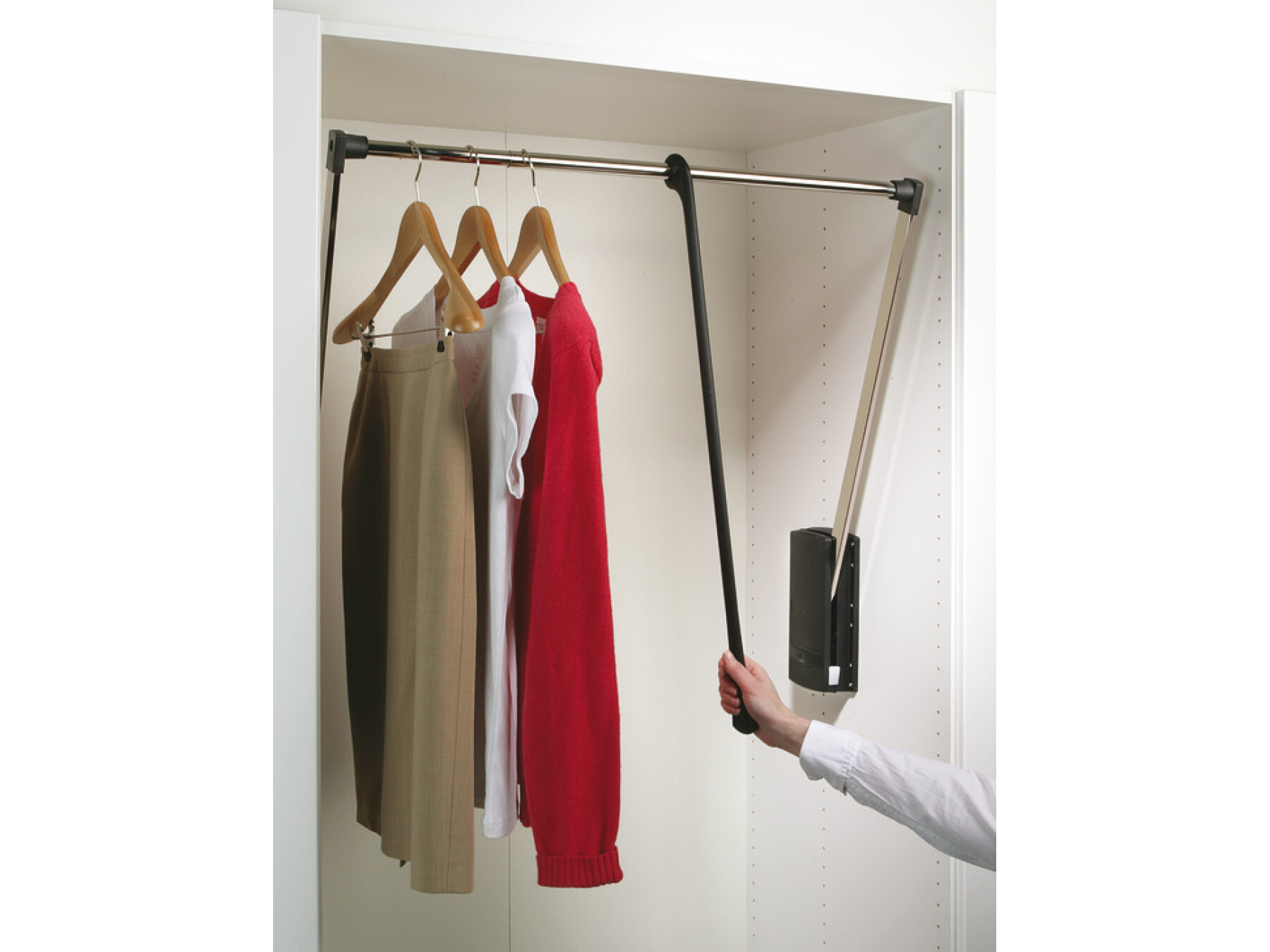

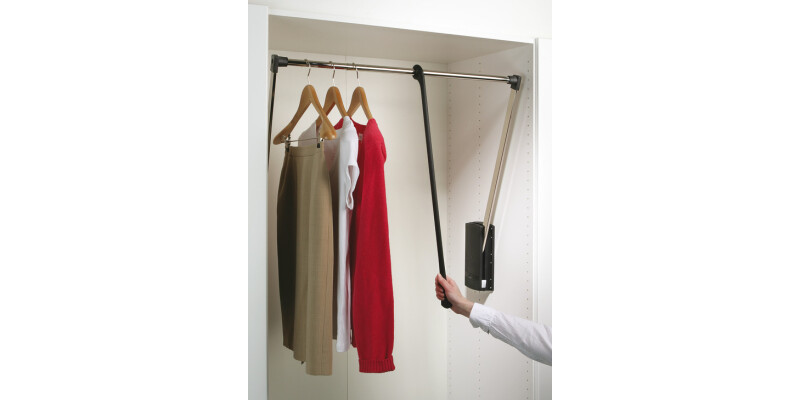

Operated by pull rod - slides along rail
Ø 22 mm hanging rail - adjustable for different wardrobe widths
Minimum load required 1.6 kg, maximum load capacity 10 kg
Screw fixing to side panels - fixing materials included
Please note: All fixings must be used
Important: Tilting device should only be used if fitting installed to rear of the cabinet
Housing width - 68 mm
Housing depth - 140 mm
Order reference
When the wardrobe lift is being used in the Versatile system, the support must also be ordered.
2 pairs of adapter plates must also be ordered when used in frame construction.

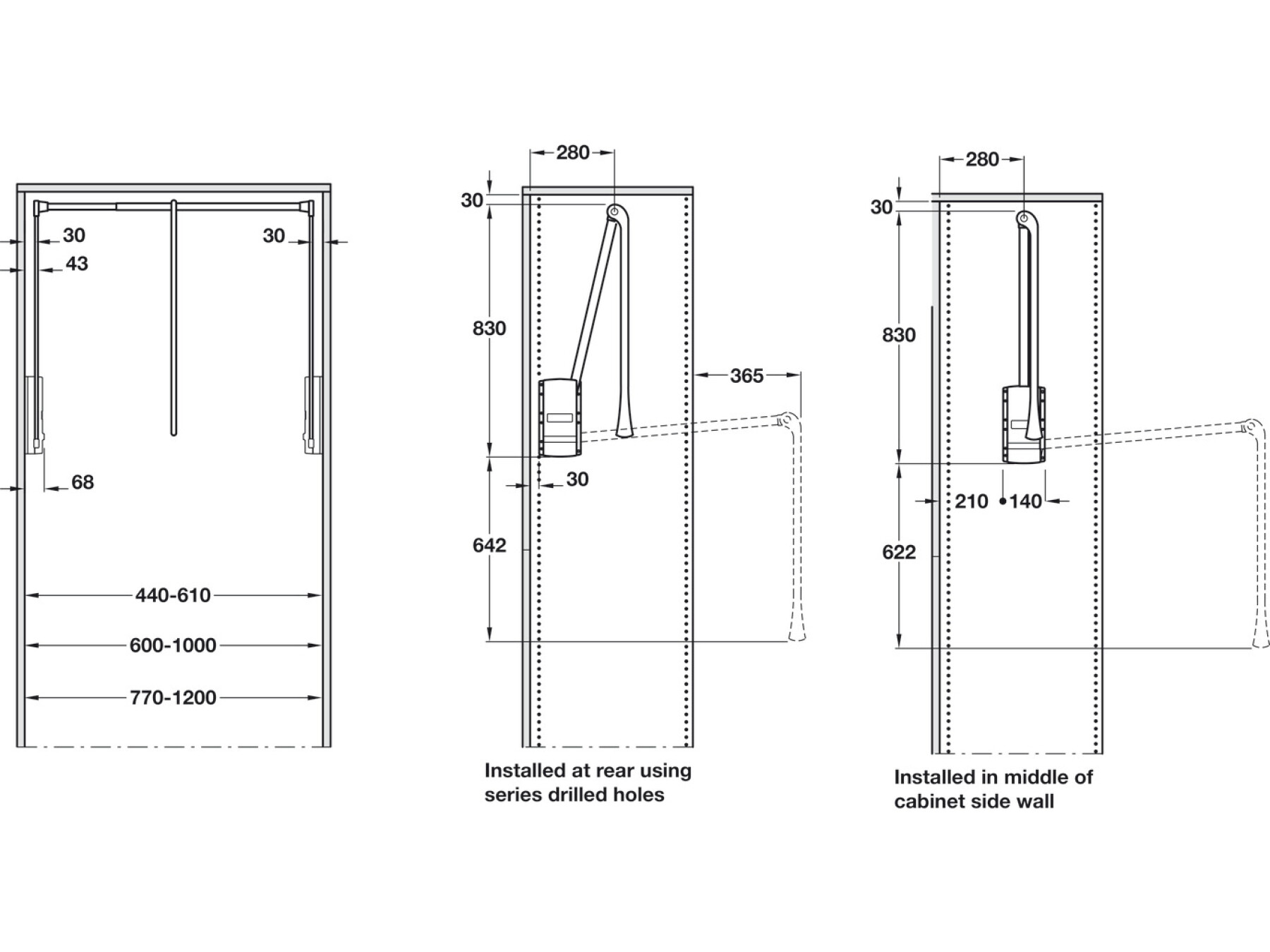

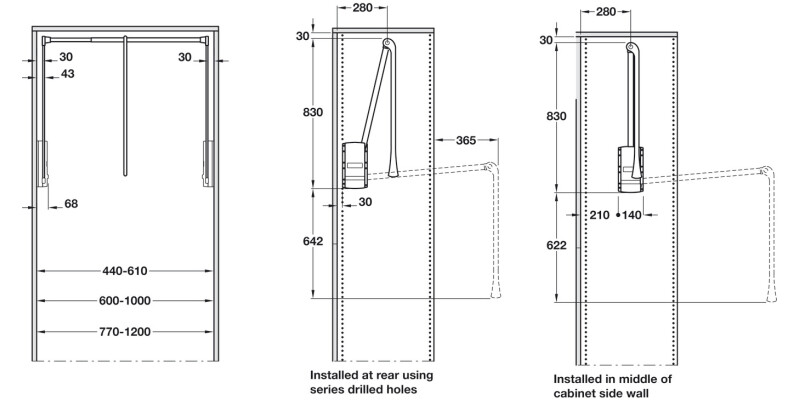

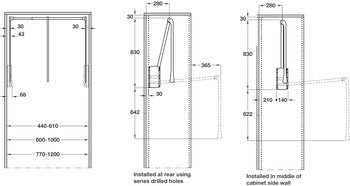

Only use tilting device if the wardrobe lift is fitted in the rear row of series drilled hole
Specifications
Model
2004

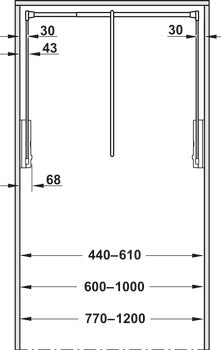

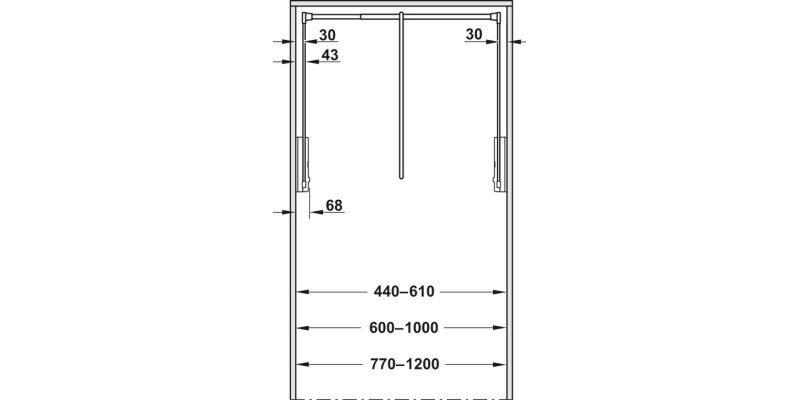

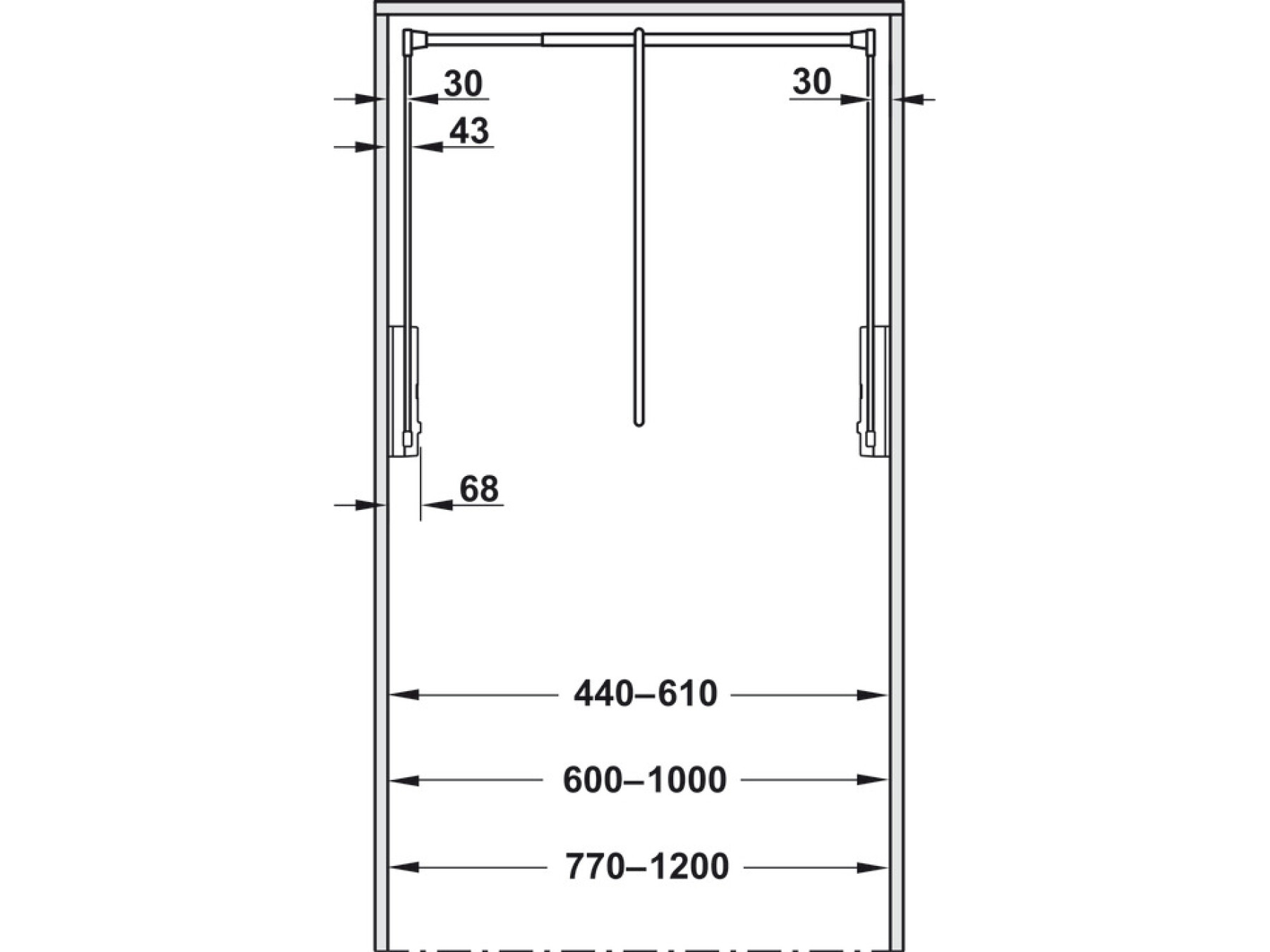

For internal cabinet width
600 – 1,000 mm
Load bearing capacity
1.6 – 10 kg
Colour/finish
Black housing, Chrome plated rail and pull rod
Material
Steel
Plastic
Min. installation height
880.00 mm
Installation
Screw fixing
Supplied with
Fixings and tilting device
