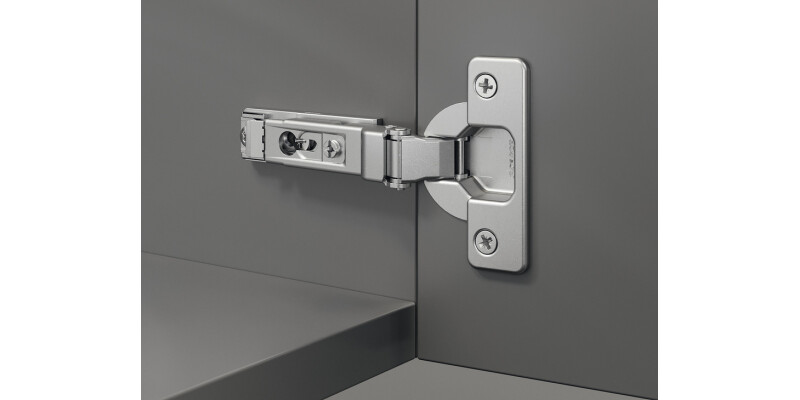

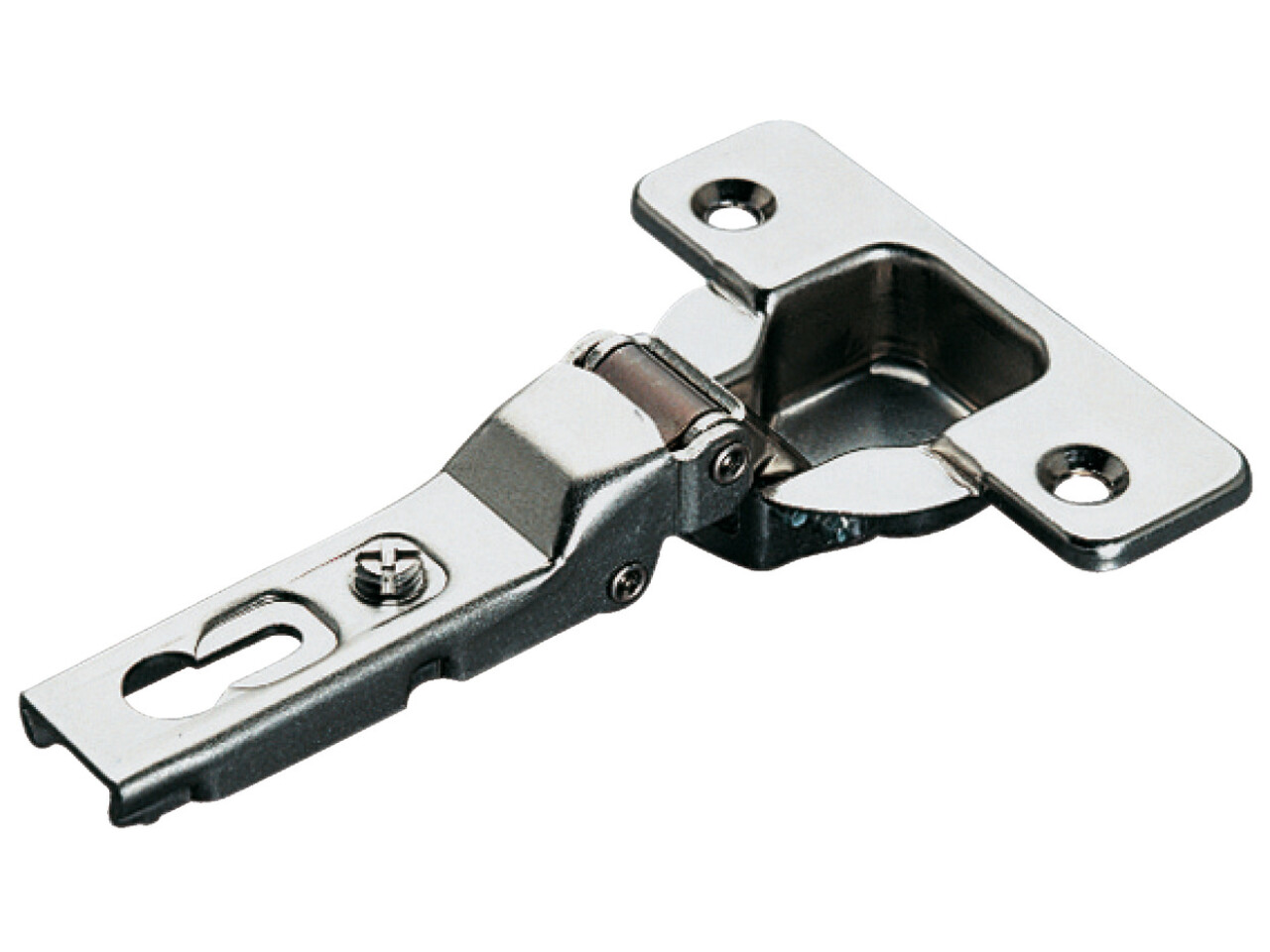

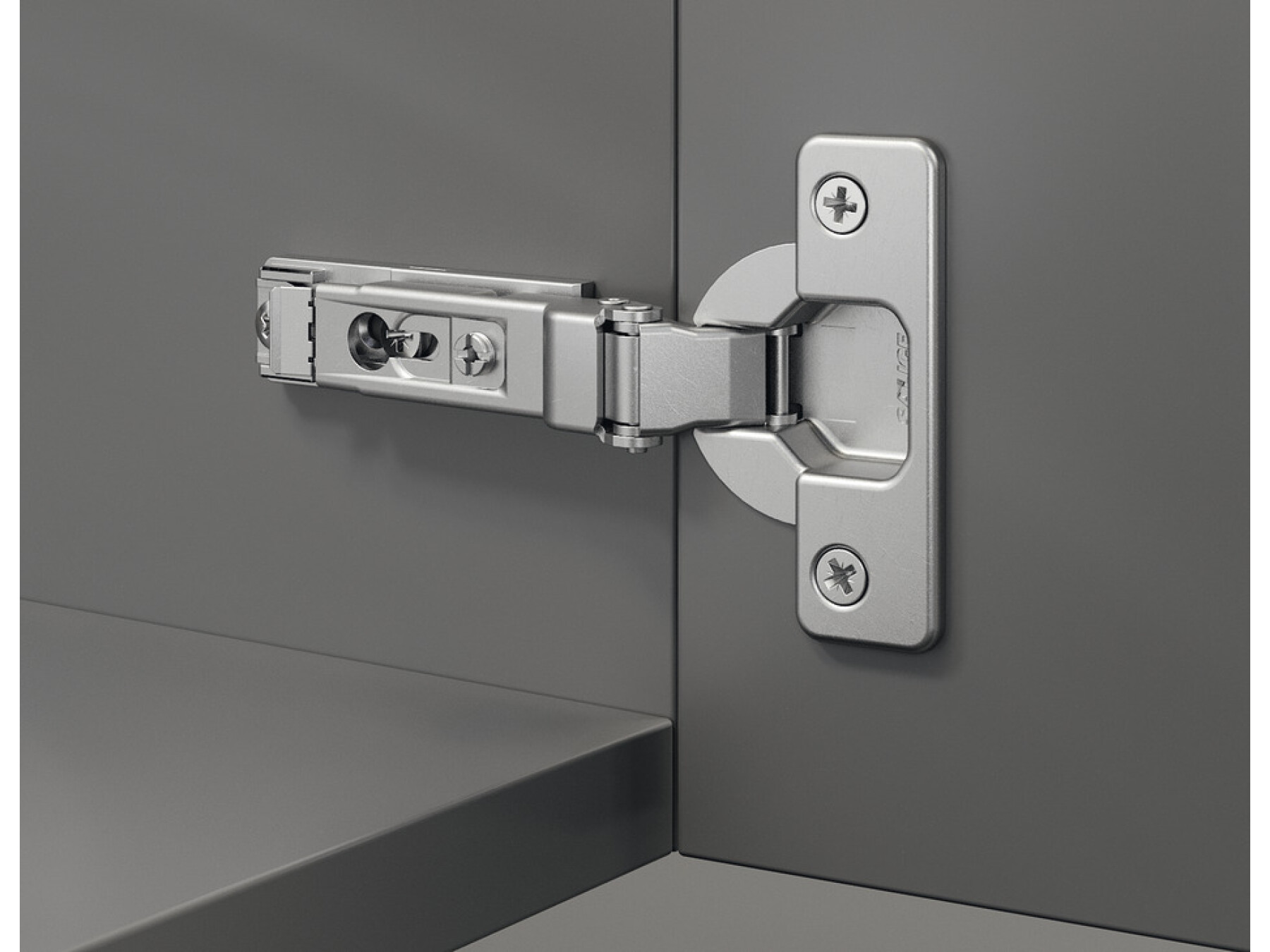

M310 94D Fridge Hinge Std FO Hos
Part Number: 329.36.641
Screw fixing cup, For wooden doors, with automatic closing spring, screw fixing cup, 52/5.5, nickel plated
Price:
£3.22
Per Item
Adjustment facility Side adjustment 4.5 mm, Height adjustment -2 – 2 mm, (height adjustment with cruciform... Read More
Product Information
Product Details
Adjustment facility
Side adjustment 4.5 mm, Height adjustment -2 – 2 mm, (height adjustment with cruciform mounting plates)
Warranty/Guarantee information
his product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

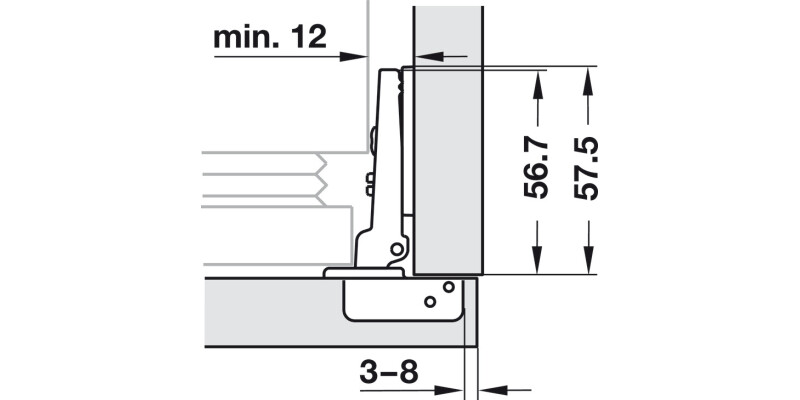

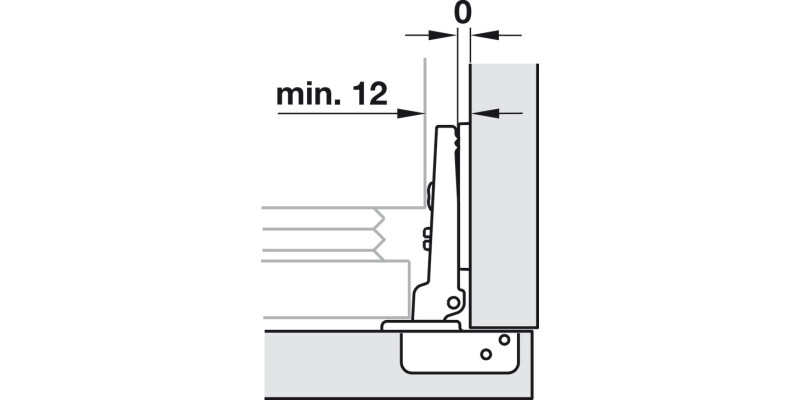

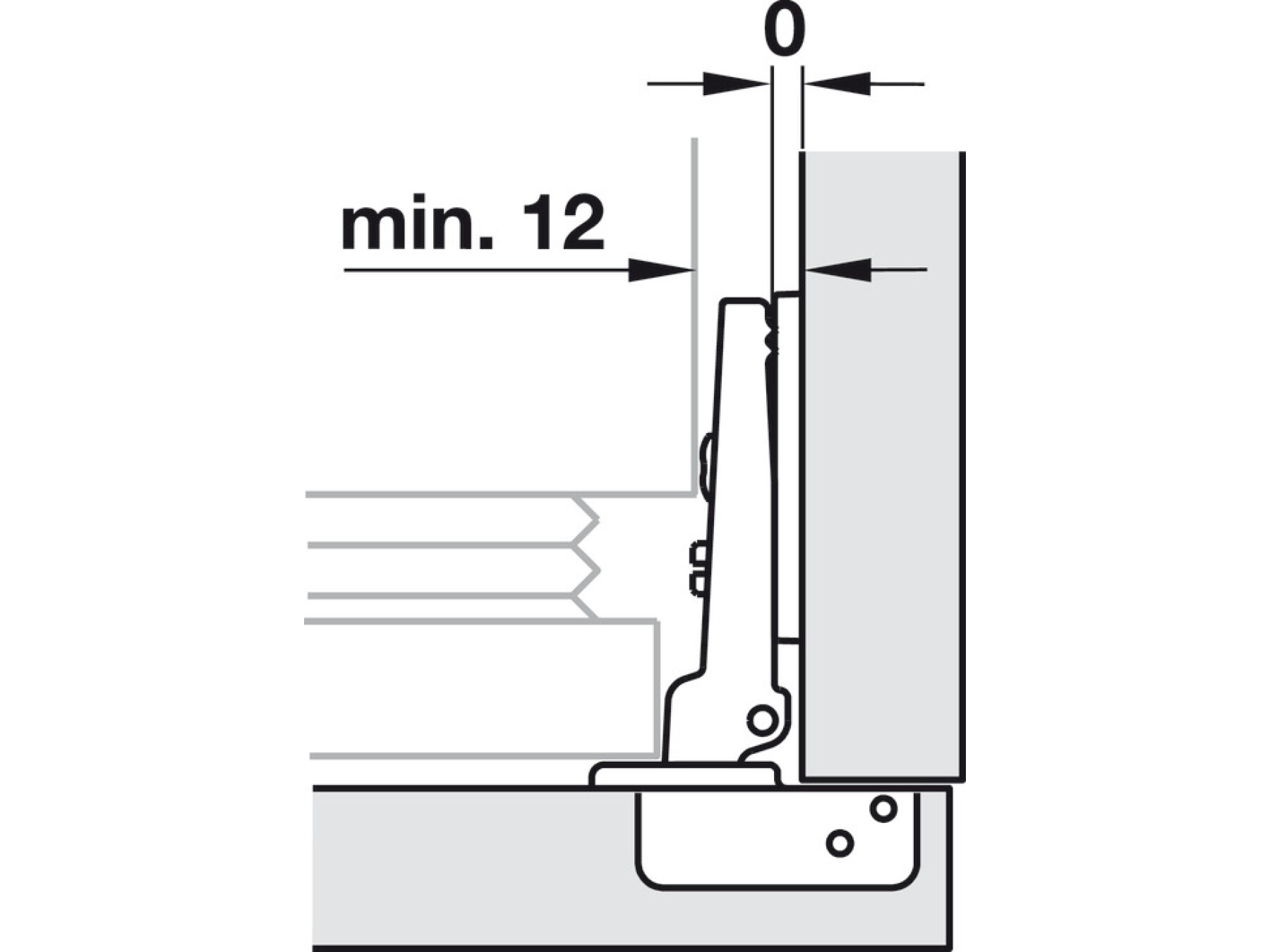

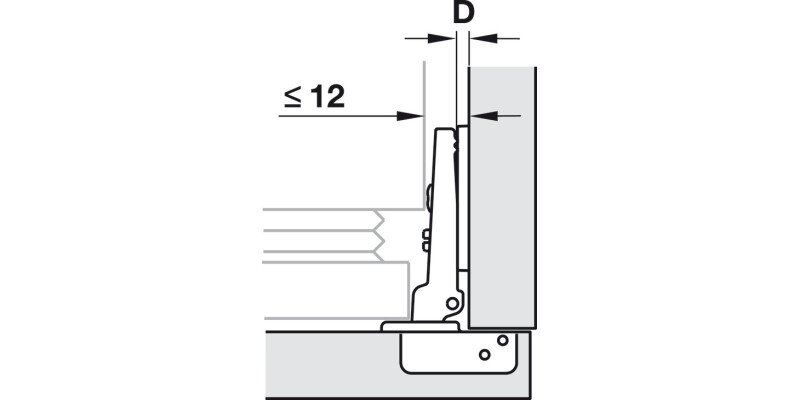

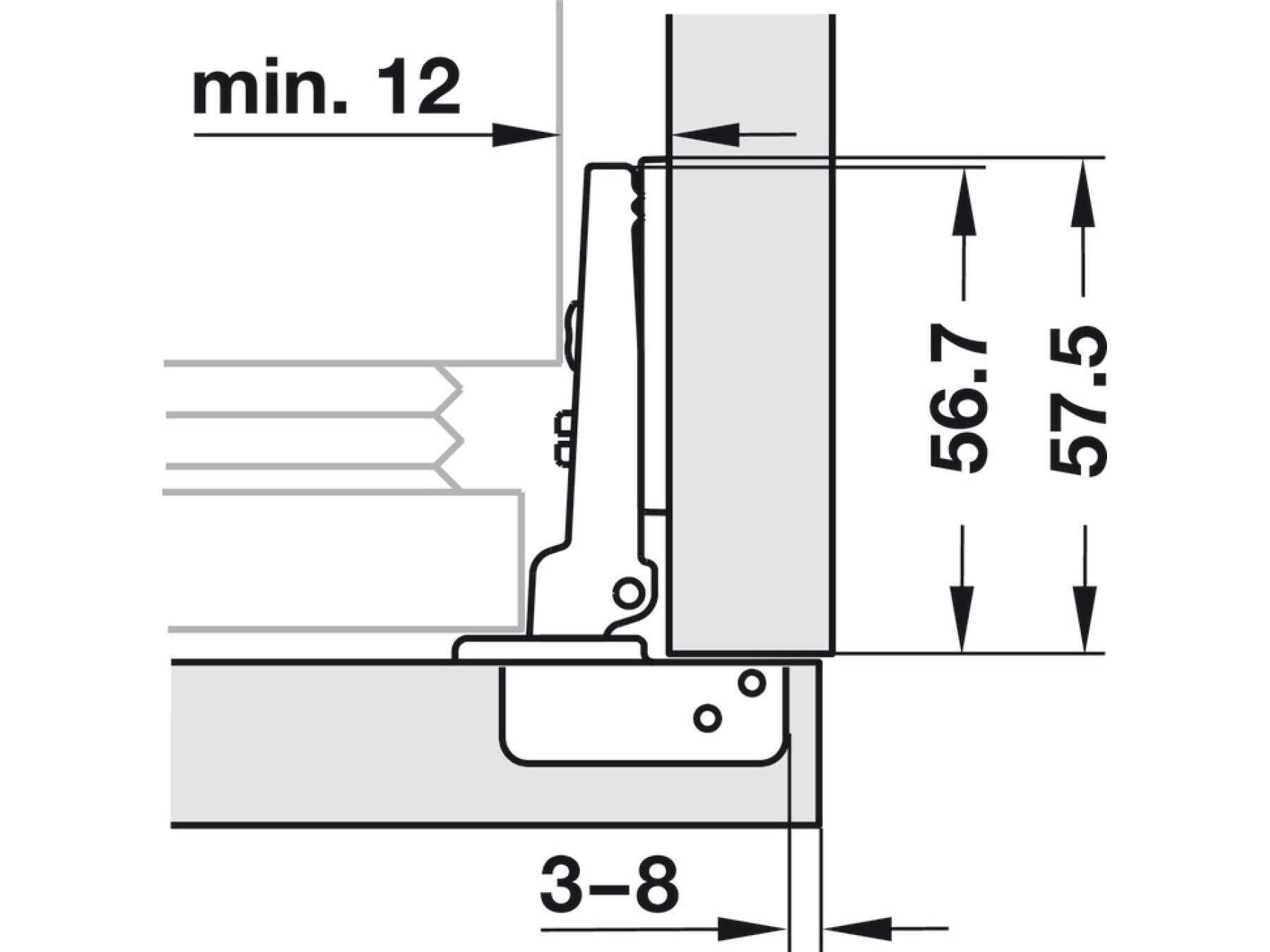

| Door overlay mm | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | |
| 3 | 4 | 5 | 6 | 7 | 8 | 0 | |||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 3 | ||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 6 | ||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 9 | ||||||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||||||||
only suitable for Metalla 510 A mounting plates
Specifications
Area of application
For refrigerator doors
Functionality
With automatic closing spring
Concealed hinge version
Full overlay
Crank type
Cranked
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
94°

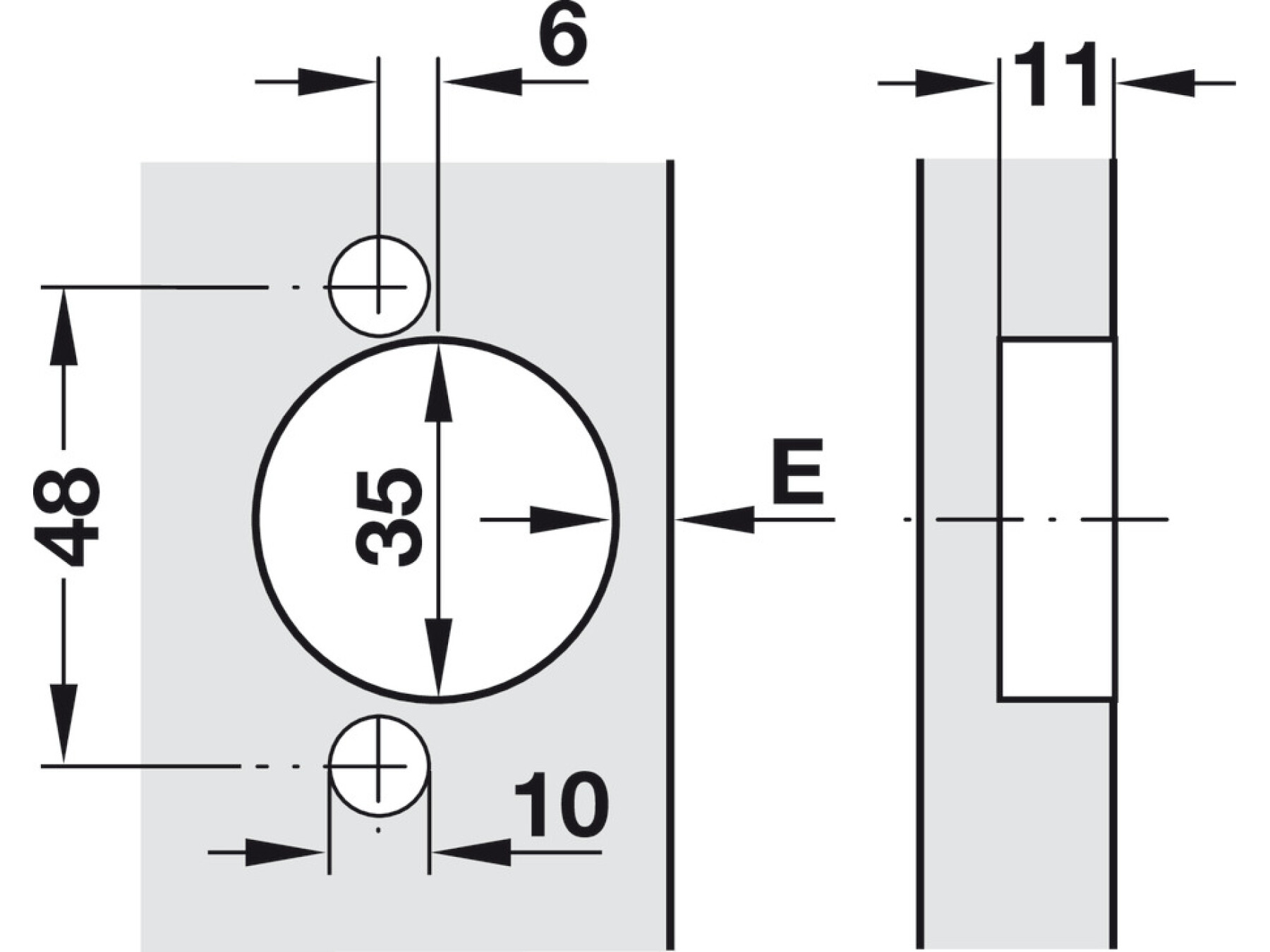

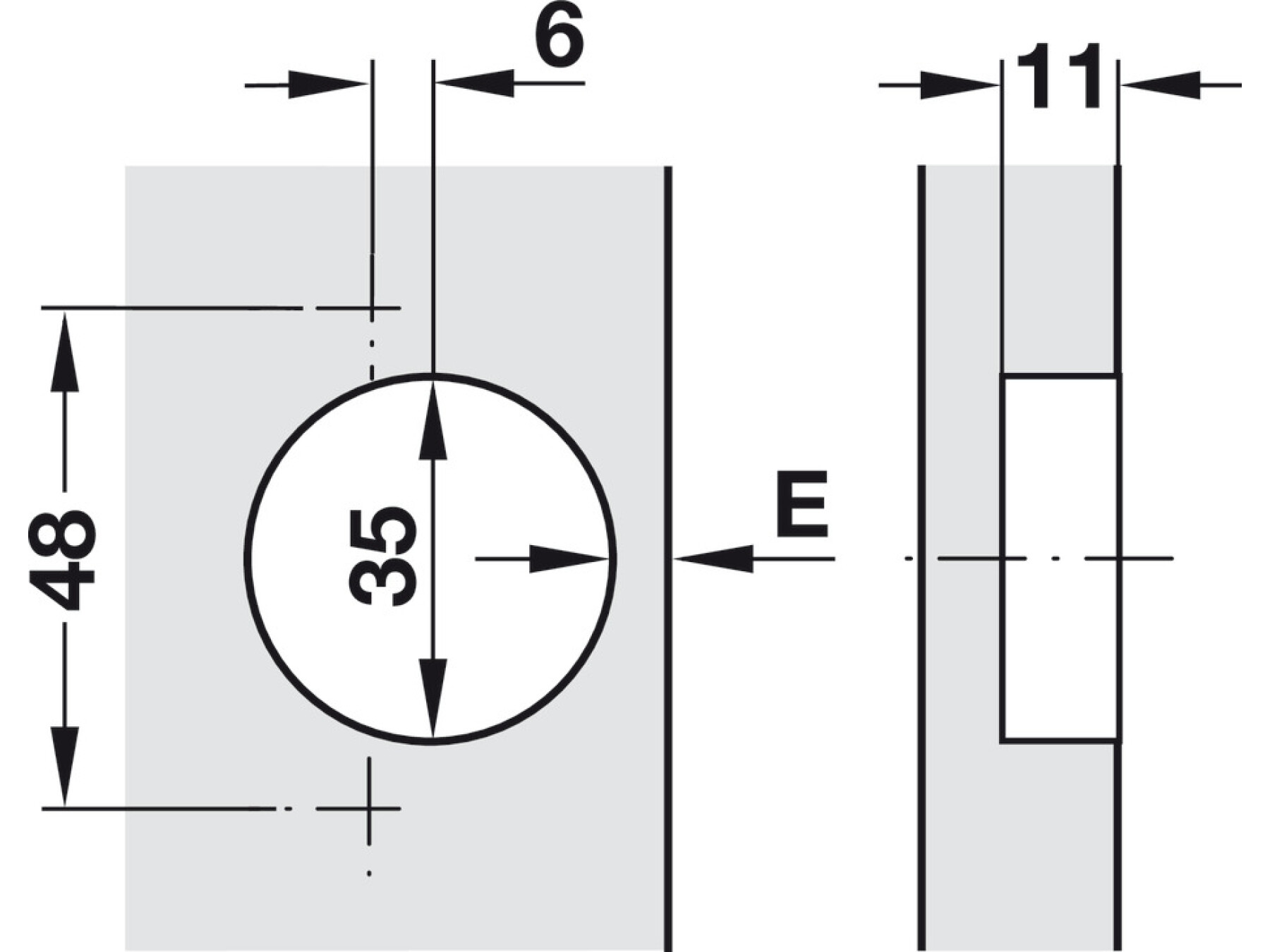

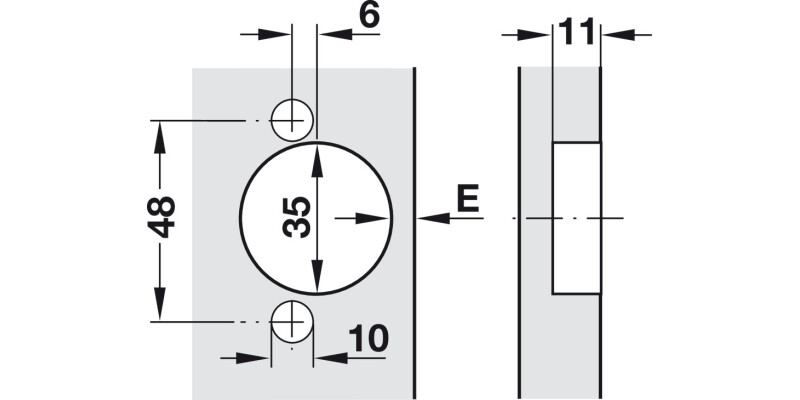

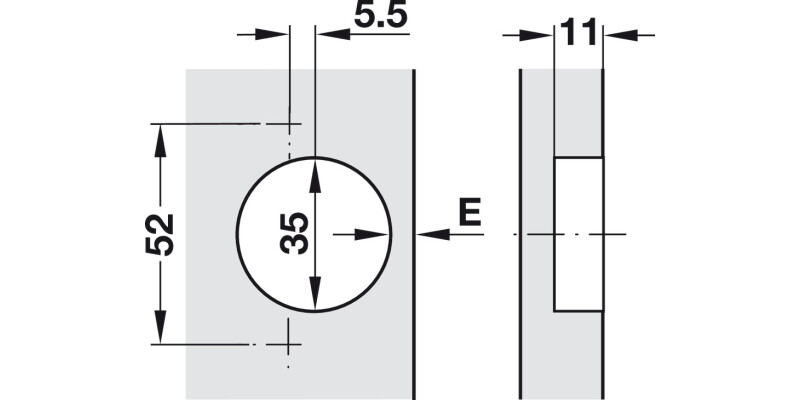

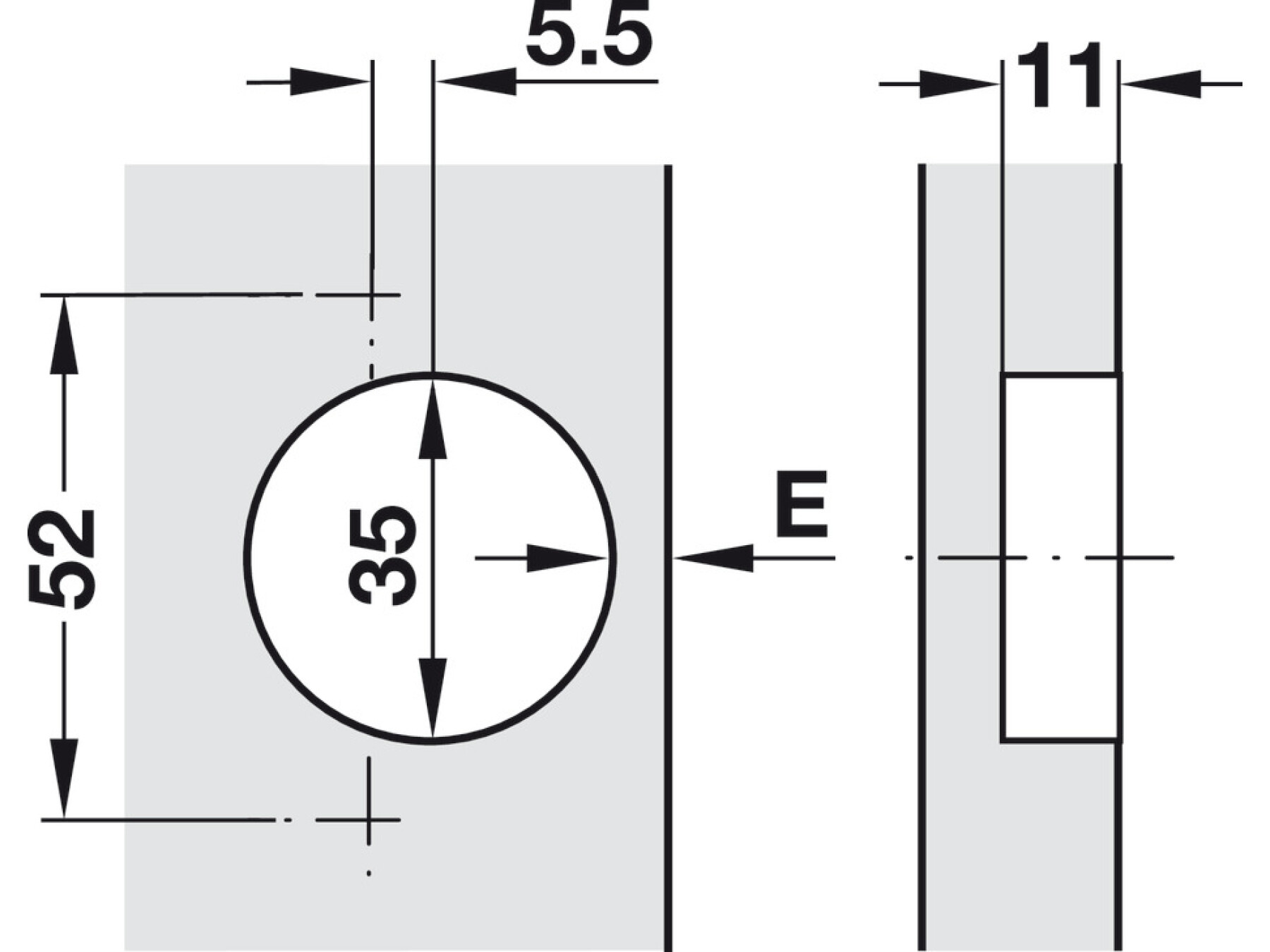

Cup drilling depth
11.00 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

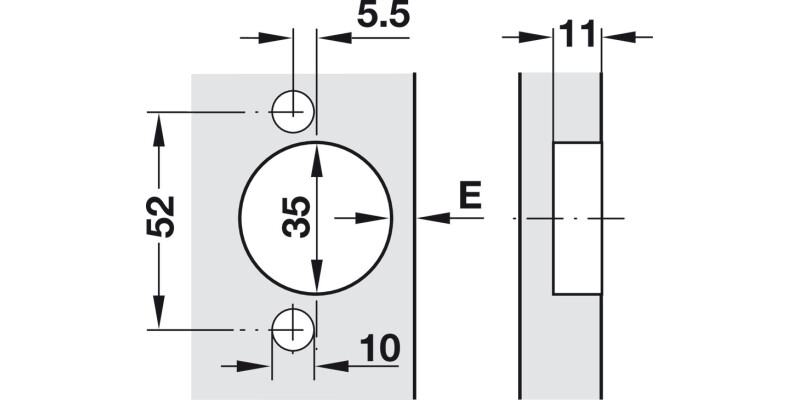

Drilling pattern
52/5.5
Installation
Door to cabinet with slide-on system using Duomatic A mounting plates
Hafele Lifetime Guarantee
25 years
Order reference
Order mounting plate 329.67.040 and Hospa 3.5 mm countersunk screws separately
