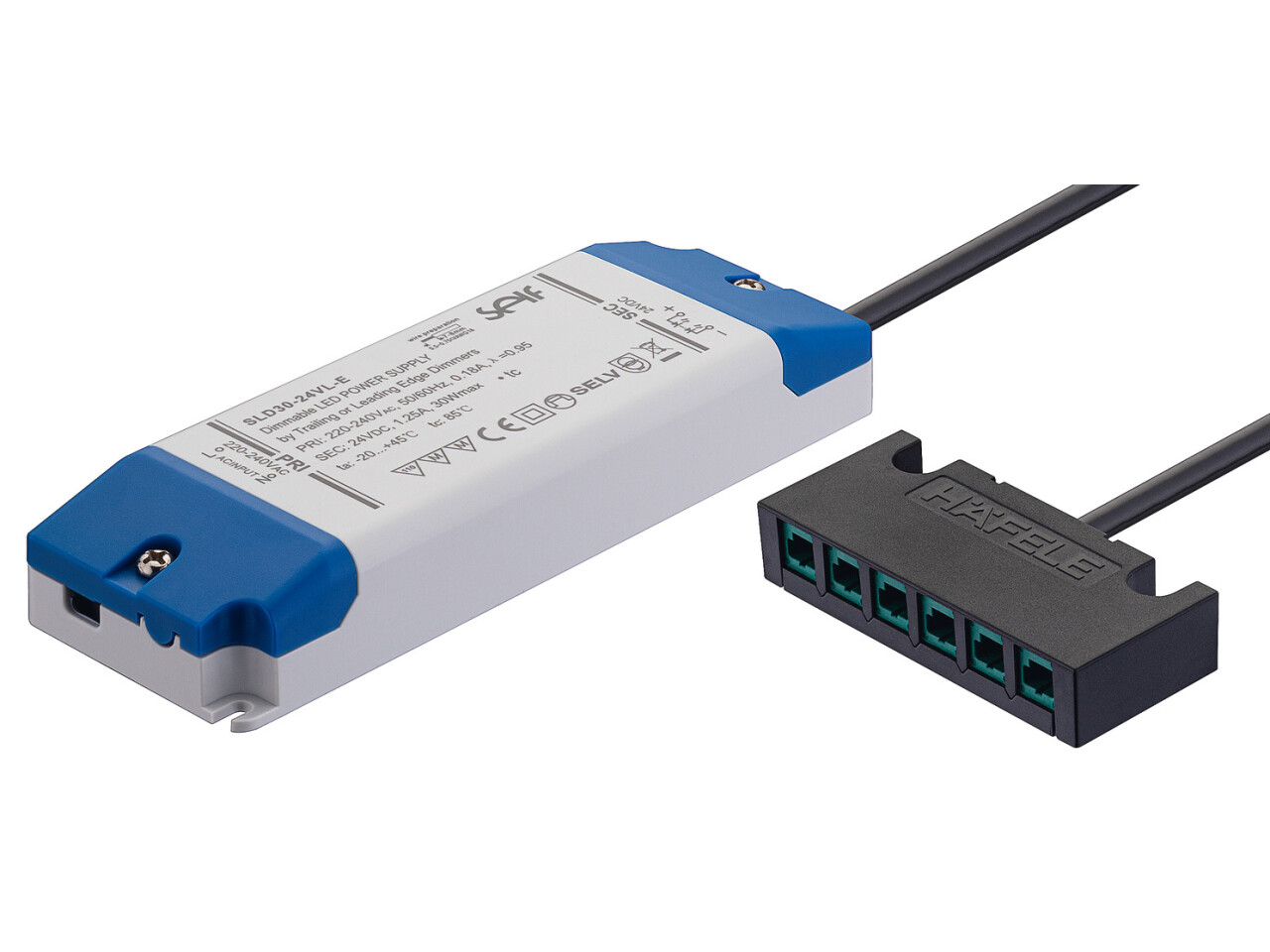

Loox5C LED Driver Dim 24V/30W

Name: Loox5C LED Driver Dim 24V/30W
SKU: 833.77.976
Price: 49.43 GBP
Availability: InStock

Part Number: 833.77.976

With leading-edge phase dimmer or trailing-edge phase dimmer, Length x width x height 145 x 50 x 22 mm, output power 30 W

Price:

£49.43

Per Item

VAT excluded

Easily integrated into house installationCan be dimmed directly at the driver inputVersion Dimmable using... Read More

Product Information

Product Details

Easily integrated into house installation
Can be dimmed directly at the driver input

Version

Dimmable using leading-edge phase dimmer or trailing-edge phase dimmer, with overload protection, short circuit protection, temperature protection and overvoltage protection

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.

All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.

All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:

Services > Customer Support > Häfele Lifetime Guarantee

Mains plug not included - must be fitted by a qualified electrician

Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies)
Mains voltage	220 – 240 V	120 V
Mains frequency	50 – 60 Hz	50 – 60 Hz
Output power	30 W	40 W
Protection class	II	II
Efficiency at 230 V full load	83 %
Power consumption at 230 V no load	1.5 W
Efficiency at 115 V full load		85 %
Power consumption at 115 V no load		1.5 W
Dimming capability	see dimmer list	see dimmer list
Disposal note	Do not dispose of the device in residential waste. Please note the country-specific regulations.	Do not dispose of the device in residential waste. Please note the country-specific regulations.

Max. lead length from Loox5 driver to consumer: 10 m.
Due to long cable lengths, voltage losses occur in the cable in conjunction with large loads (strip light lengths). These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver.
Intended use: Connecting dimmable lights (not for distributors with switching function or Connect Mesh, charging stations or sound systems)
