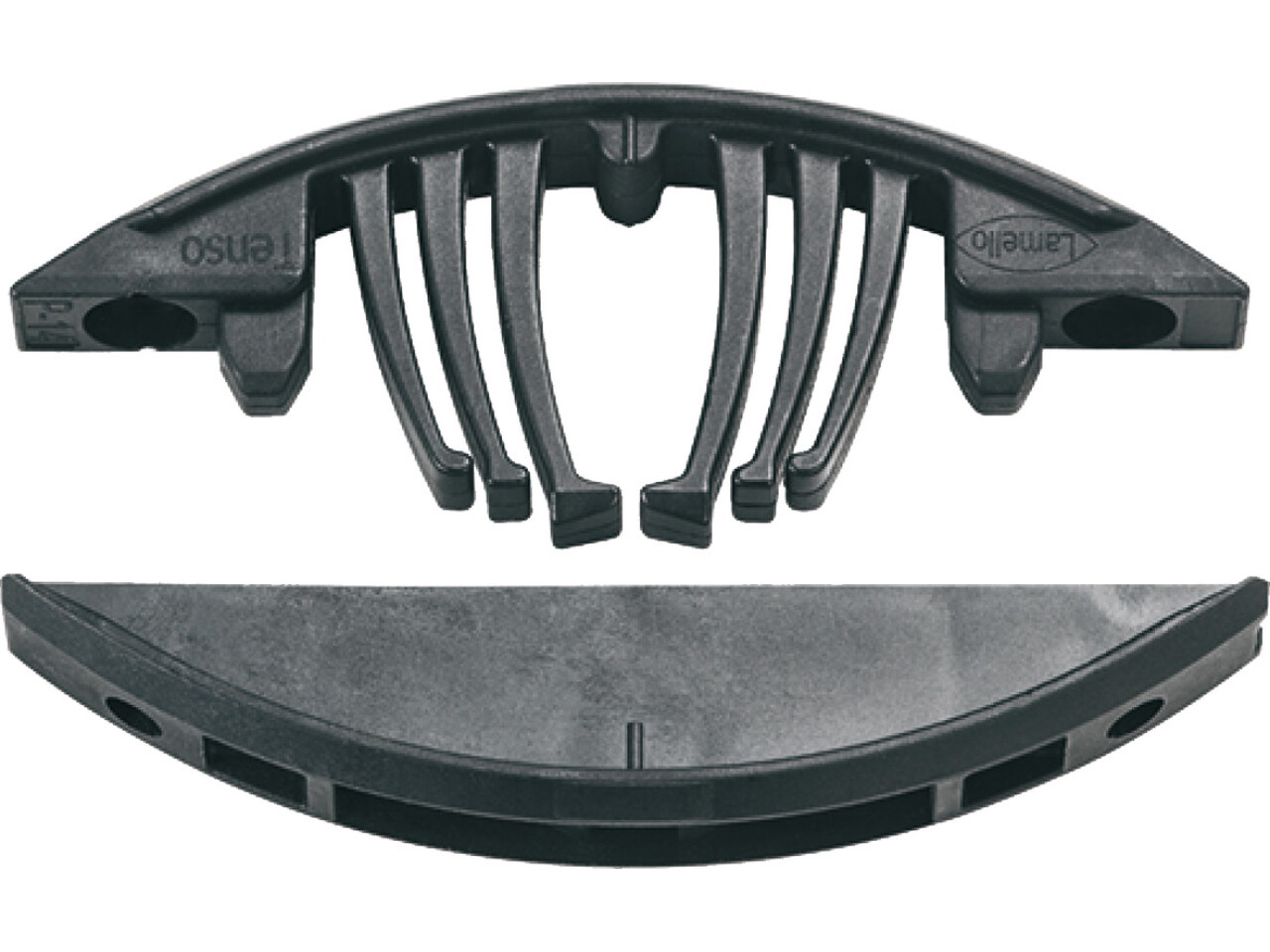

Lamello Tenso P-14 Medius Connector Comp
Part Number: 267.91.152
With pre-stressing facility, For wood thickness from 15 mm
Price:
£389.96
Per 300 Pack
The ideal gluing aid:Without using clamps or pressing devicesCompletely concealed/invisibleFacilitated storage... Read More
Product Information
Product Details
The ideal gluing aid:
Without using clamps or pressing devices
Completely concealed/invisible
Facilitated storage and transport of the work pieces
Little effort: Only briefly applying pressure is needed for engaging the fitting
Easy connection of workpieces, even with several connectors

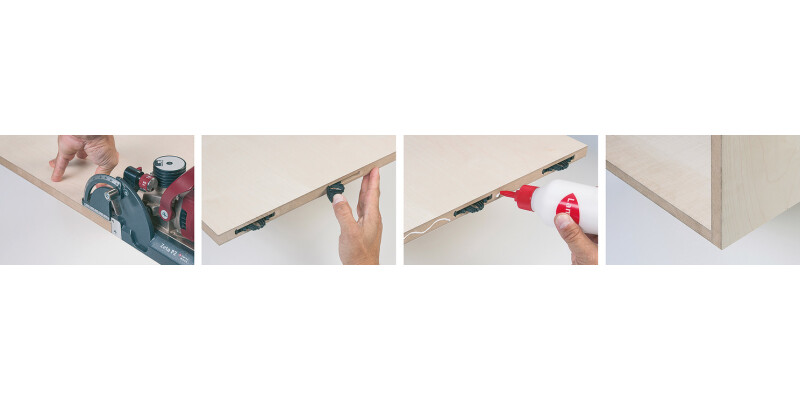

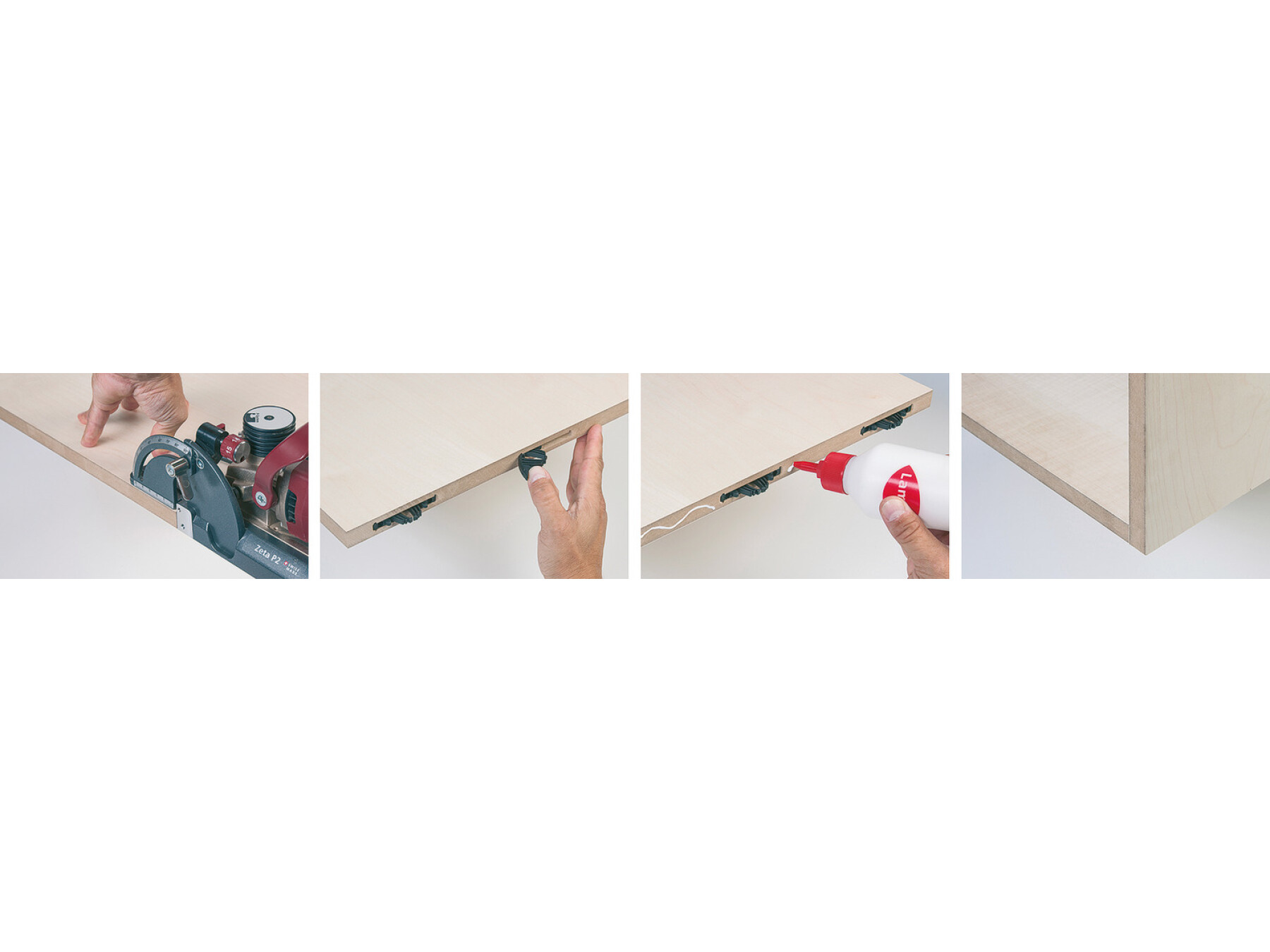

The pre-stress clip is easily pushed in using the installation tool
Area of application
Gluing aid for cabinets with centre panels and intermediate shelves, or column claddings in stores, for drawers, installation of front panels, plug fitting onto plinths, ceiling panels, covers and handle profiles
The connector must always be used in combination with glue.
The connection cannot be separated after engagement of the Tenso P-14

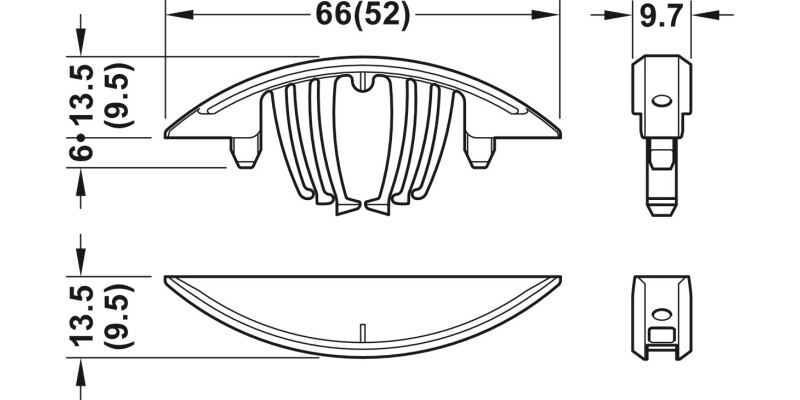

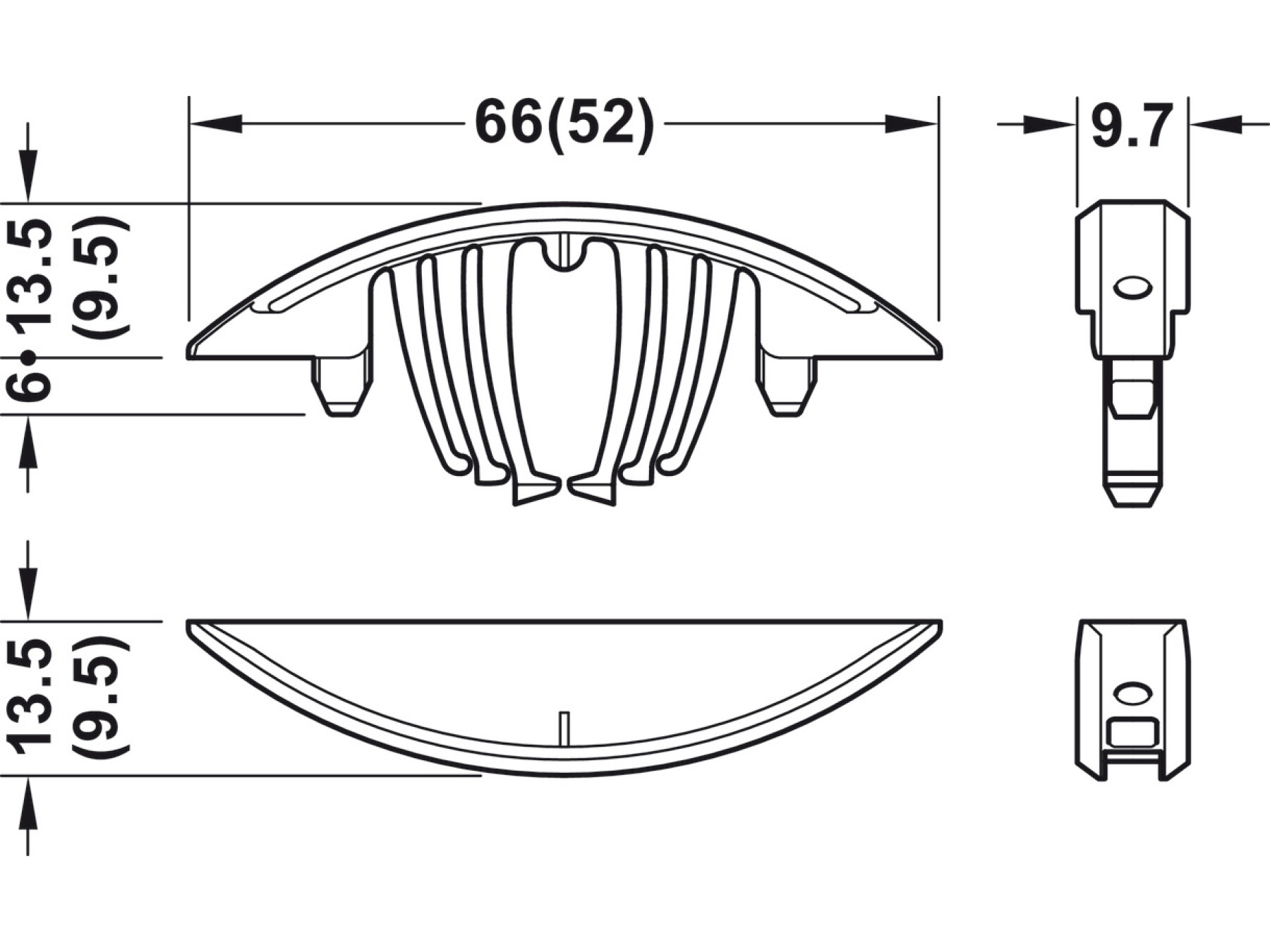

Specifications
Connector model
Tenso P-14

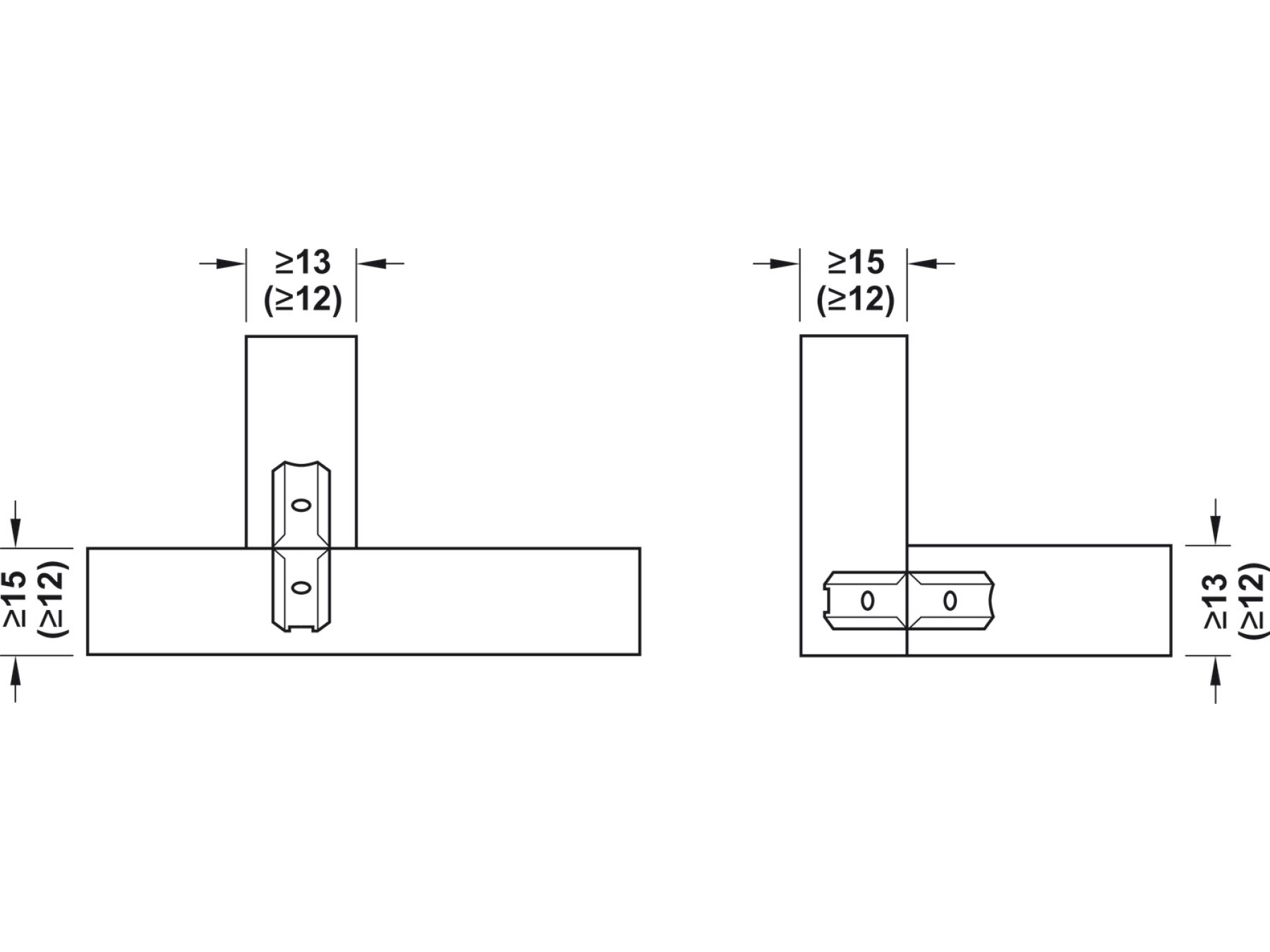

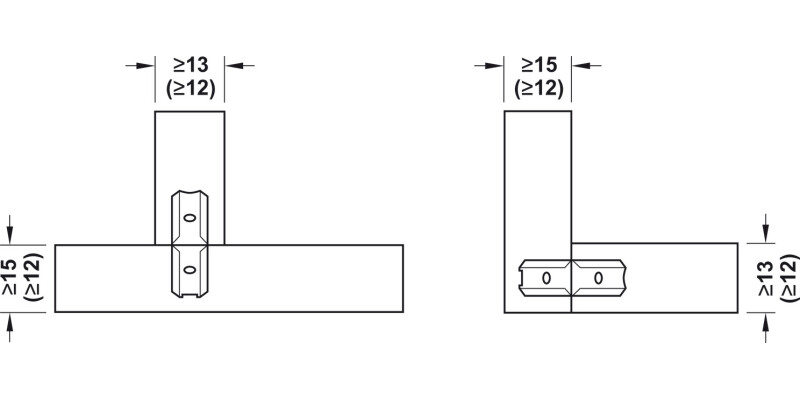

For wood thickness
≥15 mm
Routing depth
14.00 mm
Version
With pre-load function
Material
Plastic
Adjustment facility
lateral: ±1 mm, radial: ±1 mm
Pull force
Pull force: Approx. 25 kg/connector
Tensile strength: Approx. 15 kg/connector
Installation
Pull force: approx. 15 kg/connector
tensile strength: approx. 25 kg/connector
Order reference
Optimised product, also for use with pre-stress clip
