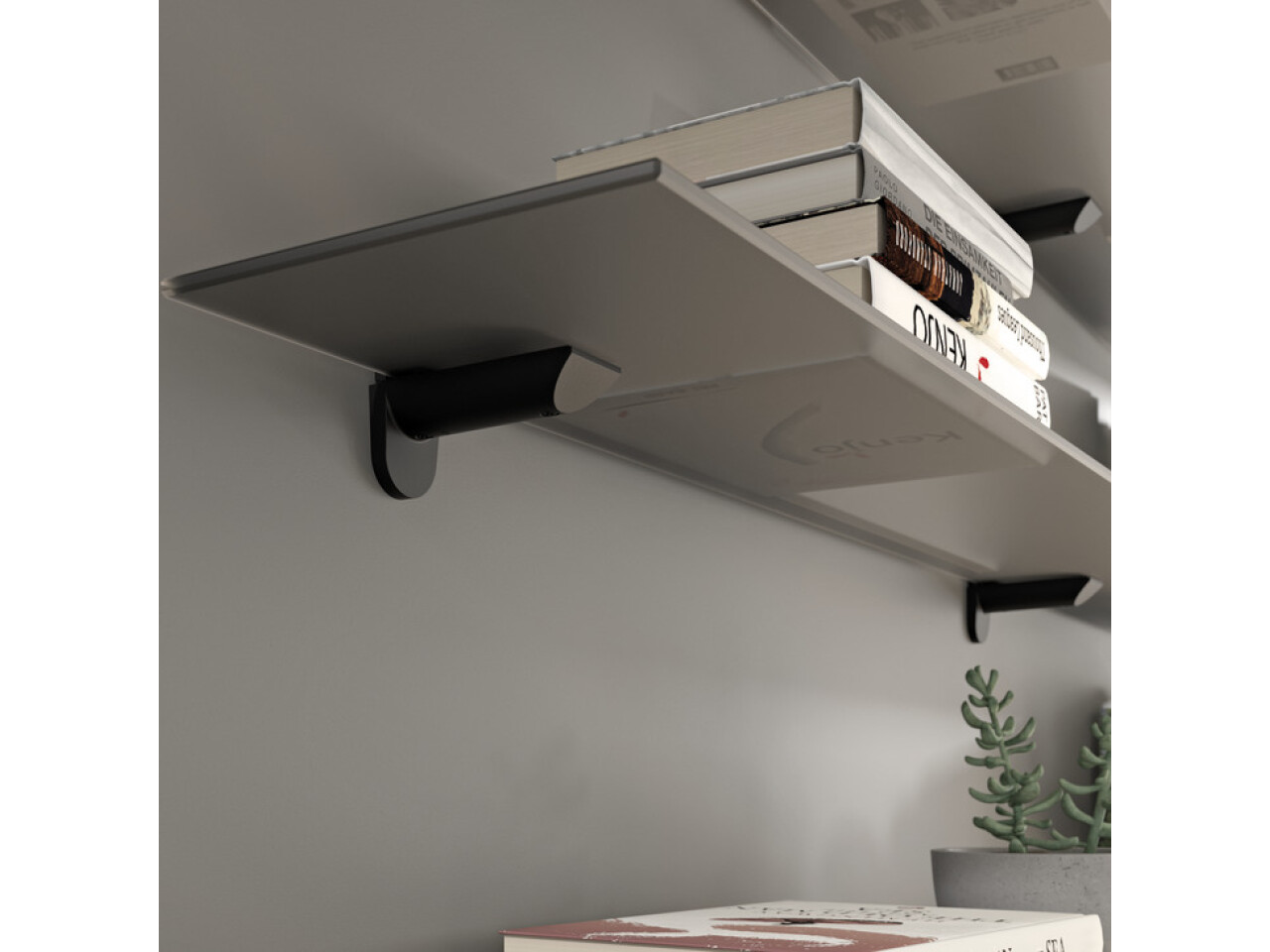

Kaiman Shelf Support 7-41mm ZA/Pl M. Blk
Part Number: 284.04.322
Special fixing method for fine adjustment of bracket height to ensure shelves are level, Matt black
Price:
£23.20
Per Item
Engineering plastic is a high quality plastic with good strength and weight qualities Adjustable shelf support... Read More
Product Information
Product Details
Engineering plastic is a high quality plastic with good strength and weight qualities
Adjustable shelf support
Installation note
Special fixing method for fine adjustment of bracket height to ensure shelves are level
Shelf clamped between a layer of ridged plastic on both the lower and upper side

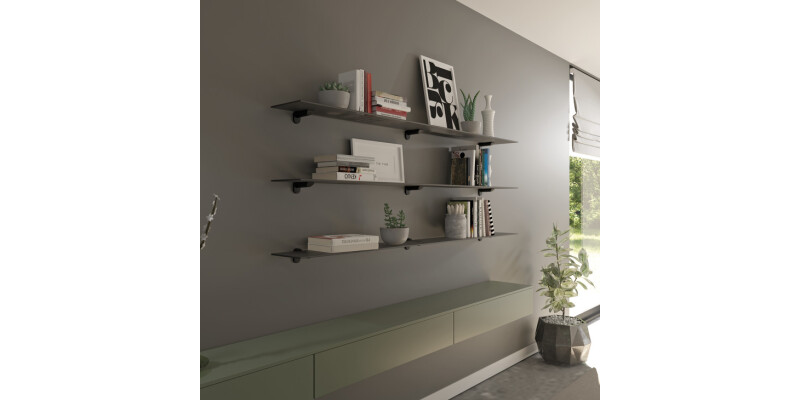

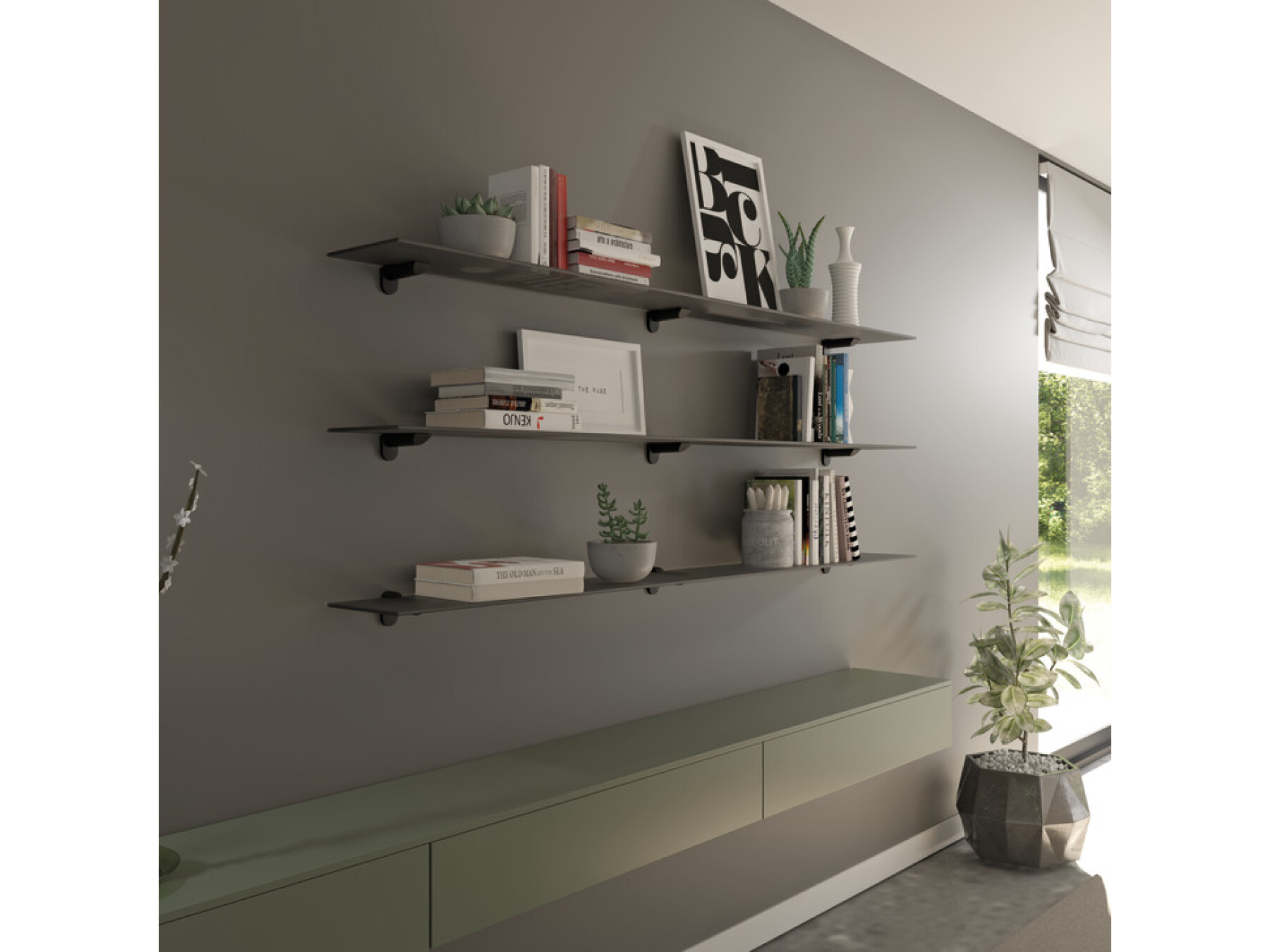

These shelf supports can be spaced every 400-500 mm, depending on the use, load, material and thickness of the shelf
Engineering plastic is a high quality plastic with good strength and weight qualities
The load bearing capacity of the brackets depends on the shelf material, shelf depth and type of wall to which they are being attached.
The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall, use other fixing material if necessary.
Specifications
Application

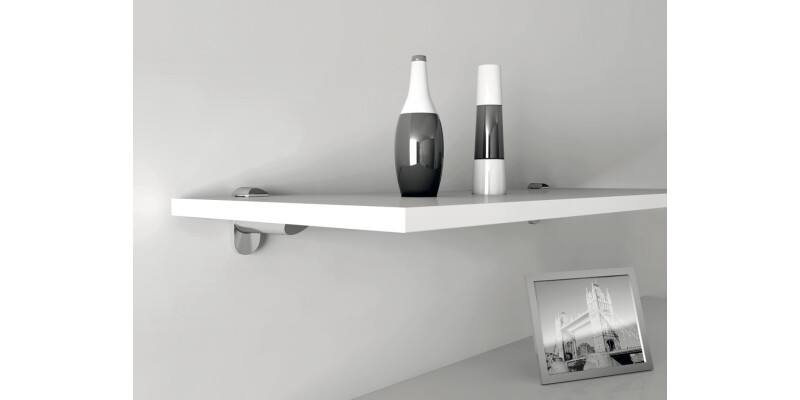

For wooden and glass shelves

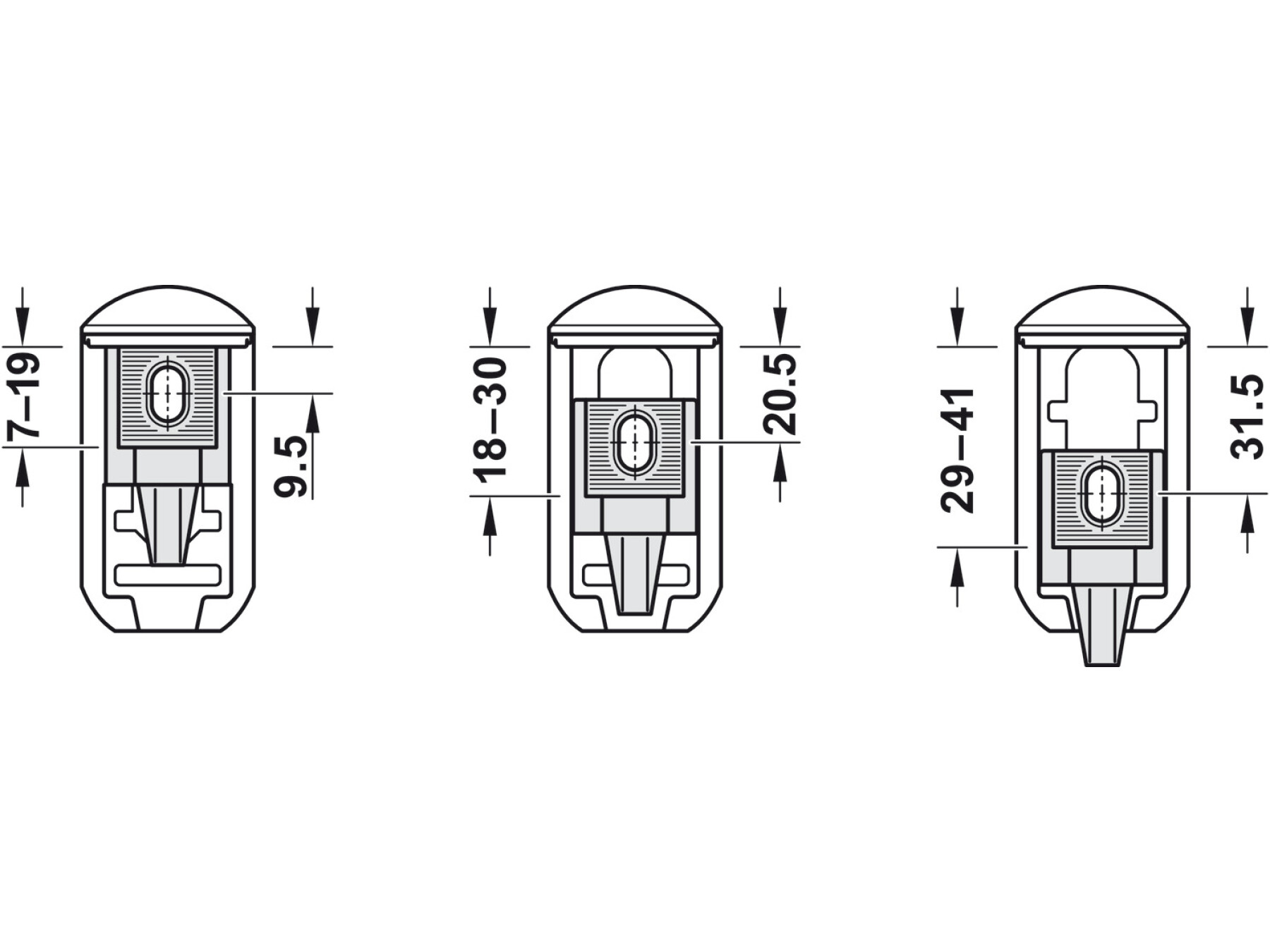

For shelf thickness
7 – 41 mm

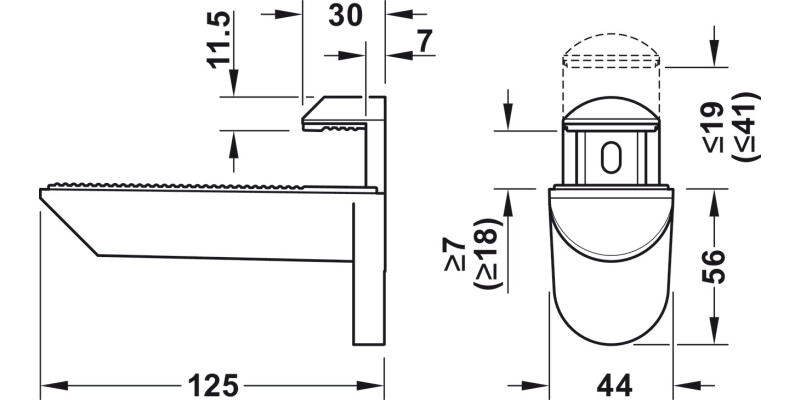

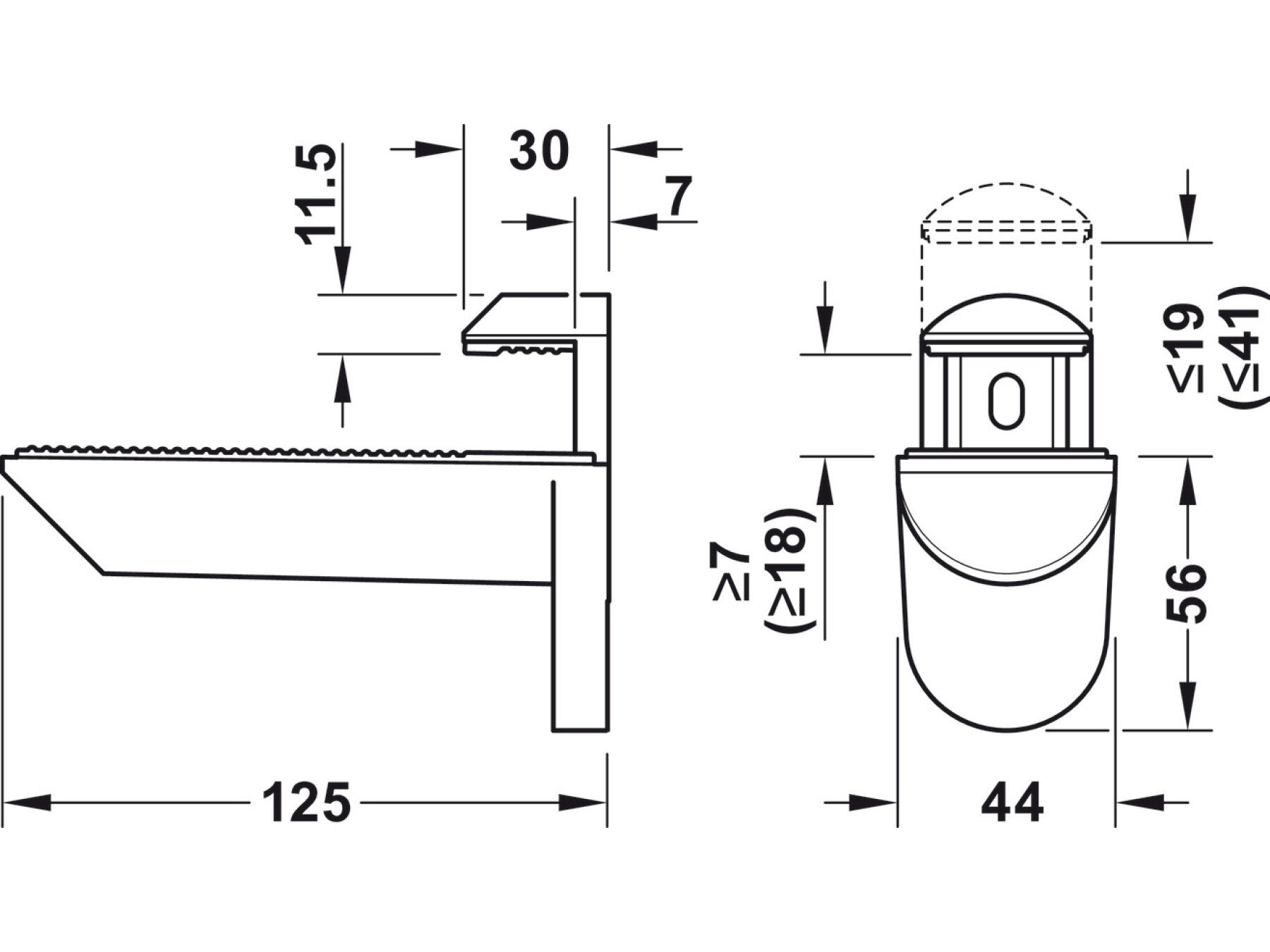

Dim. (W x D x H)
44 x 125 x 56 mm
Version
Kaiman
Material
Zinc alloy
Load bearing capacity per item
25.00 kg
Note on load bearing capacity
For a shelf 320 mm deep
For shelf depth
≤320 mm

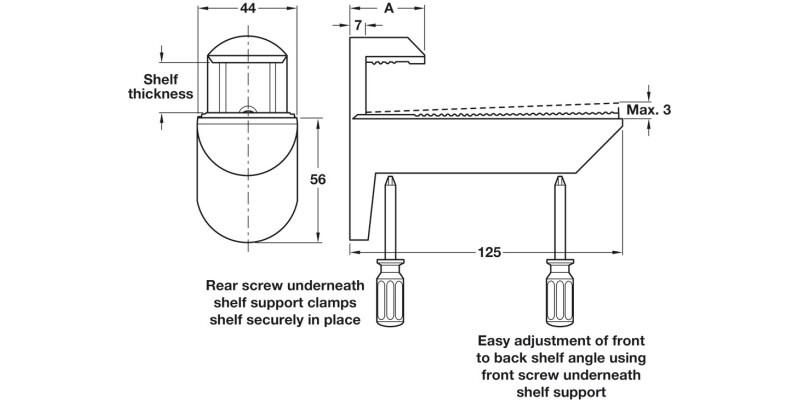

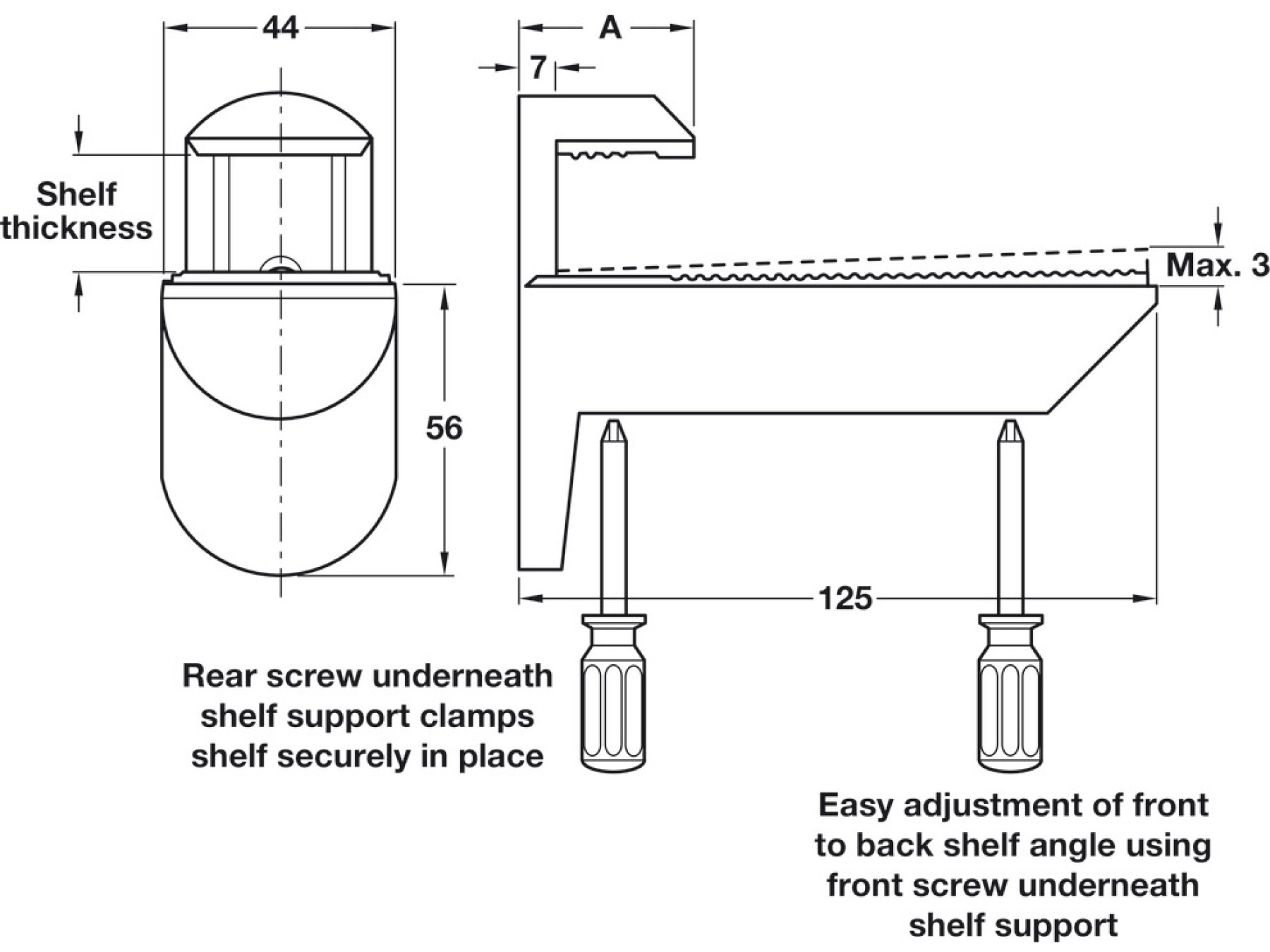

Adjustment facility
Height adjustment: ±2 mm, tilt adjustment: +3 mm via screws
Installation
Wall fixing
Supplied with
Screw fixings for fixing to concrete or brick walls
