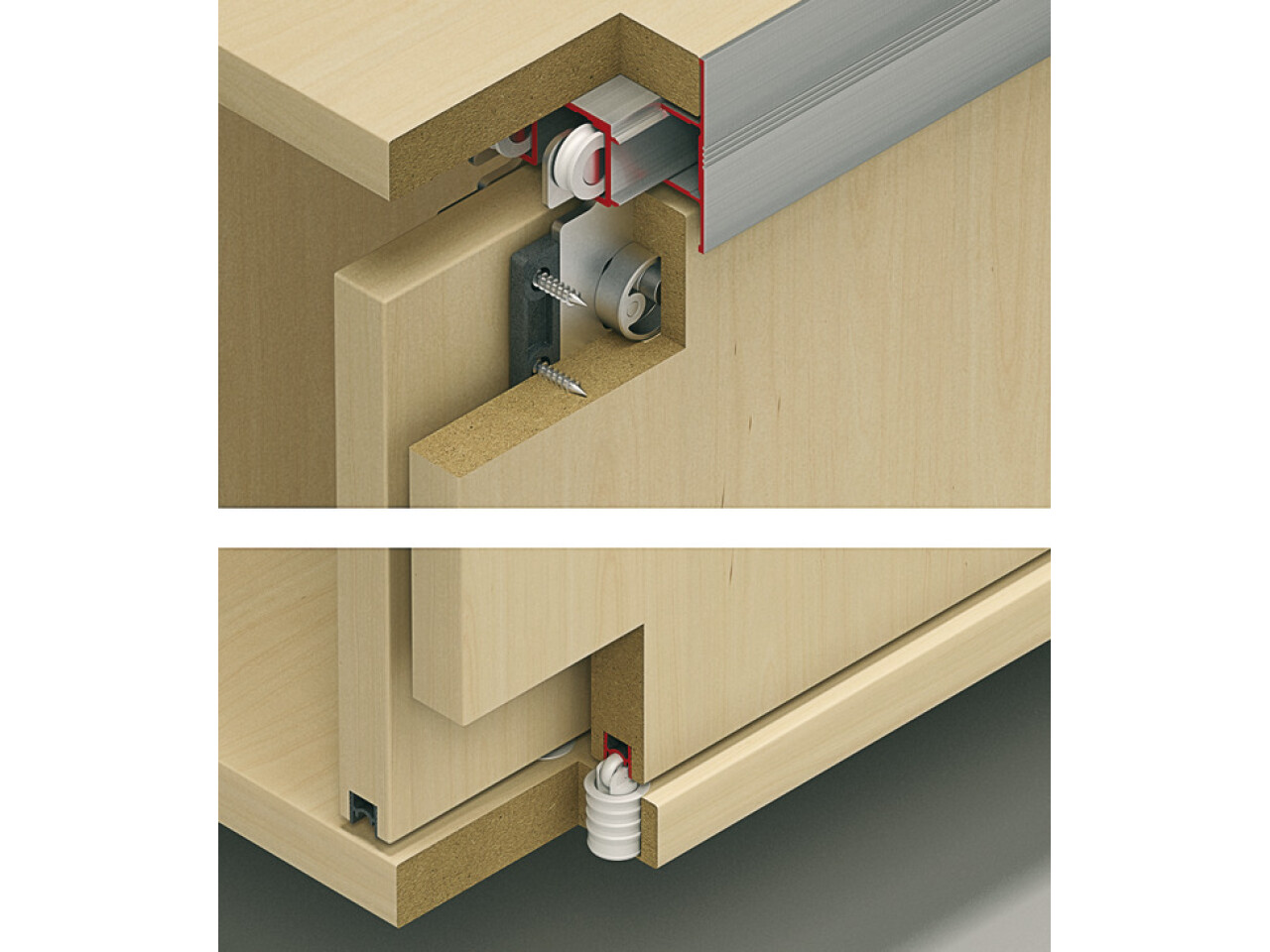

Hawa Combino 35IF FitSet 3Dr
Part Number: 405.91.724

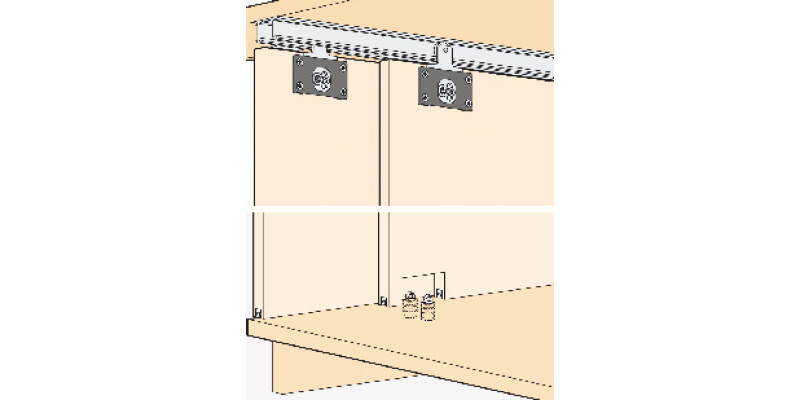

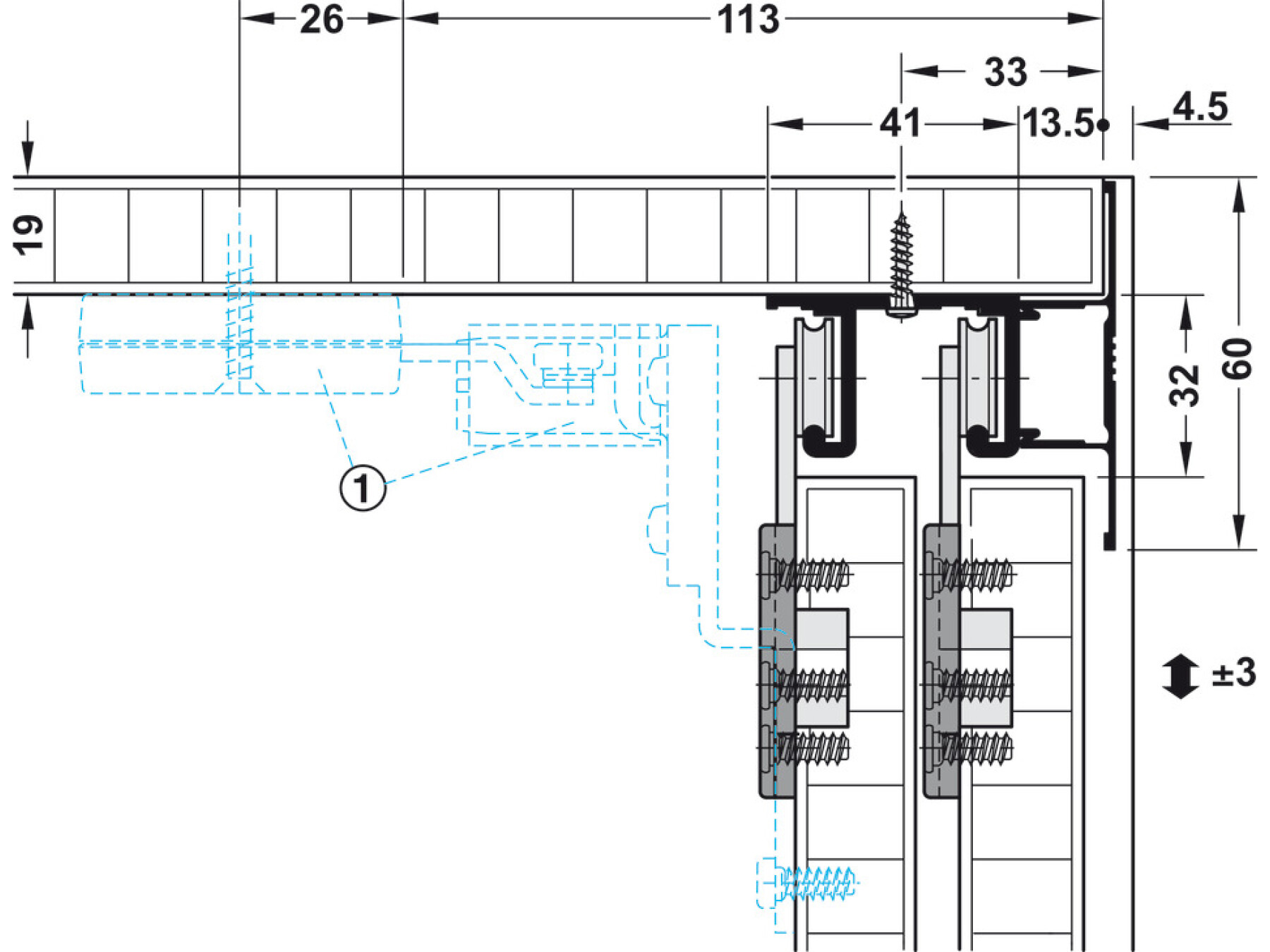

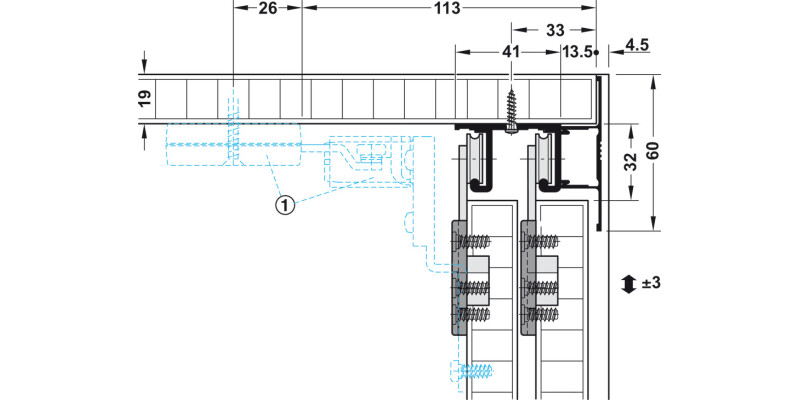

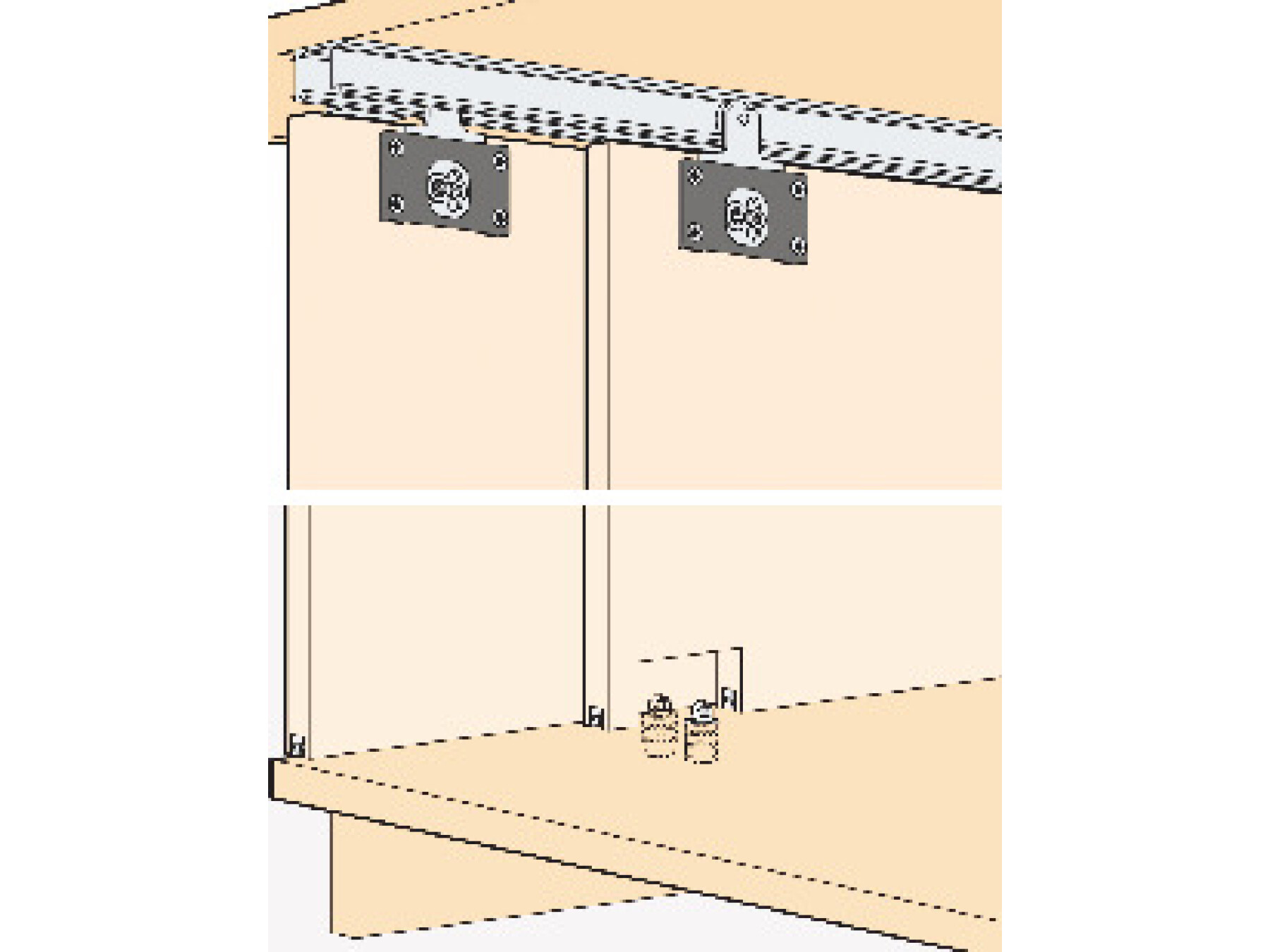

Top hung system, For 3 doors
Price:
£266.88
Per Item
Tool-less door mounting via spring guide boltElegant clip-on aluminium fascia Installation Guide for press... Read More
Product Information
Product Details
Tool-less door mounting via spring guide bolt
Elegant clip-on aluminium fascia
Installation

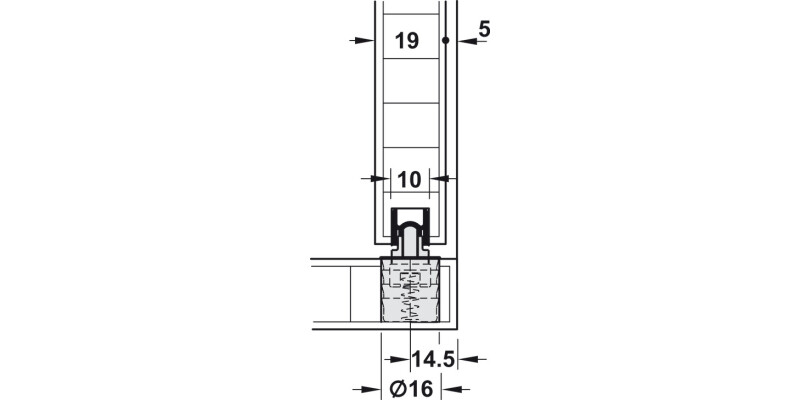

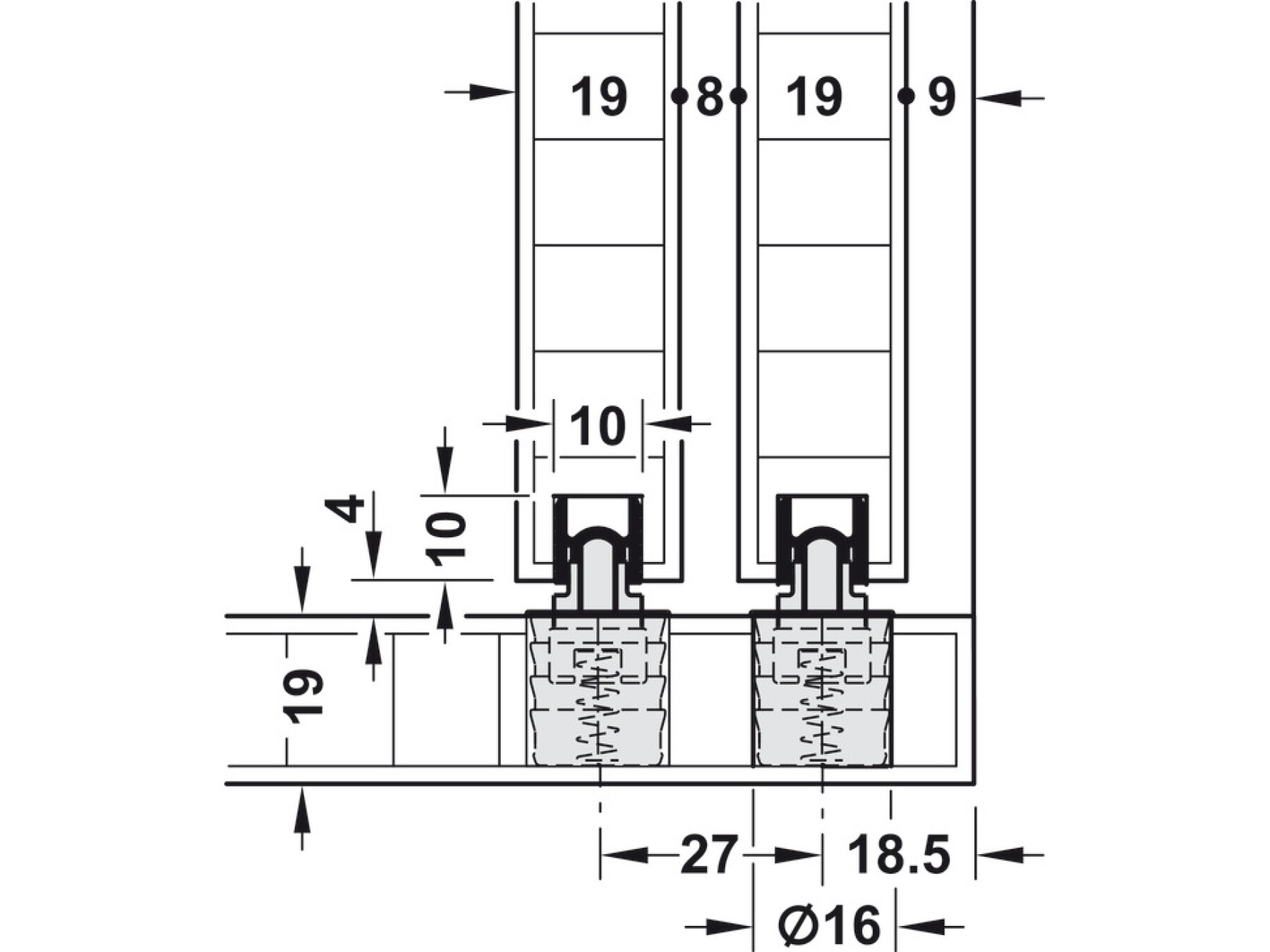

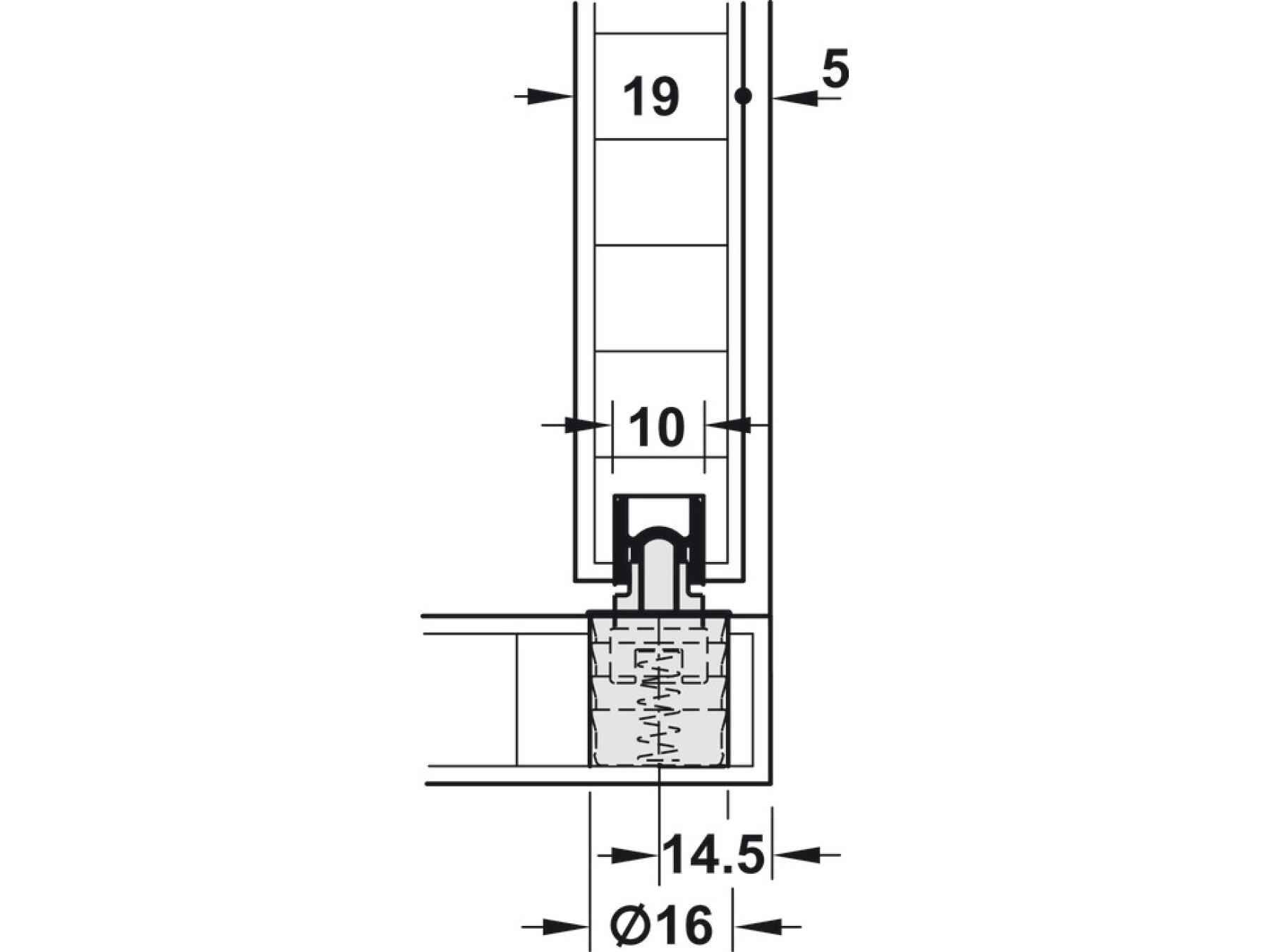

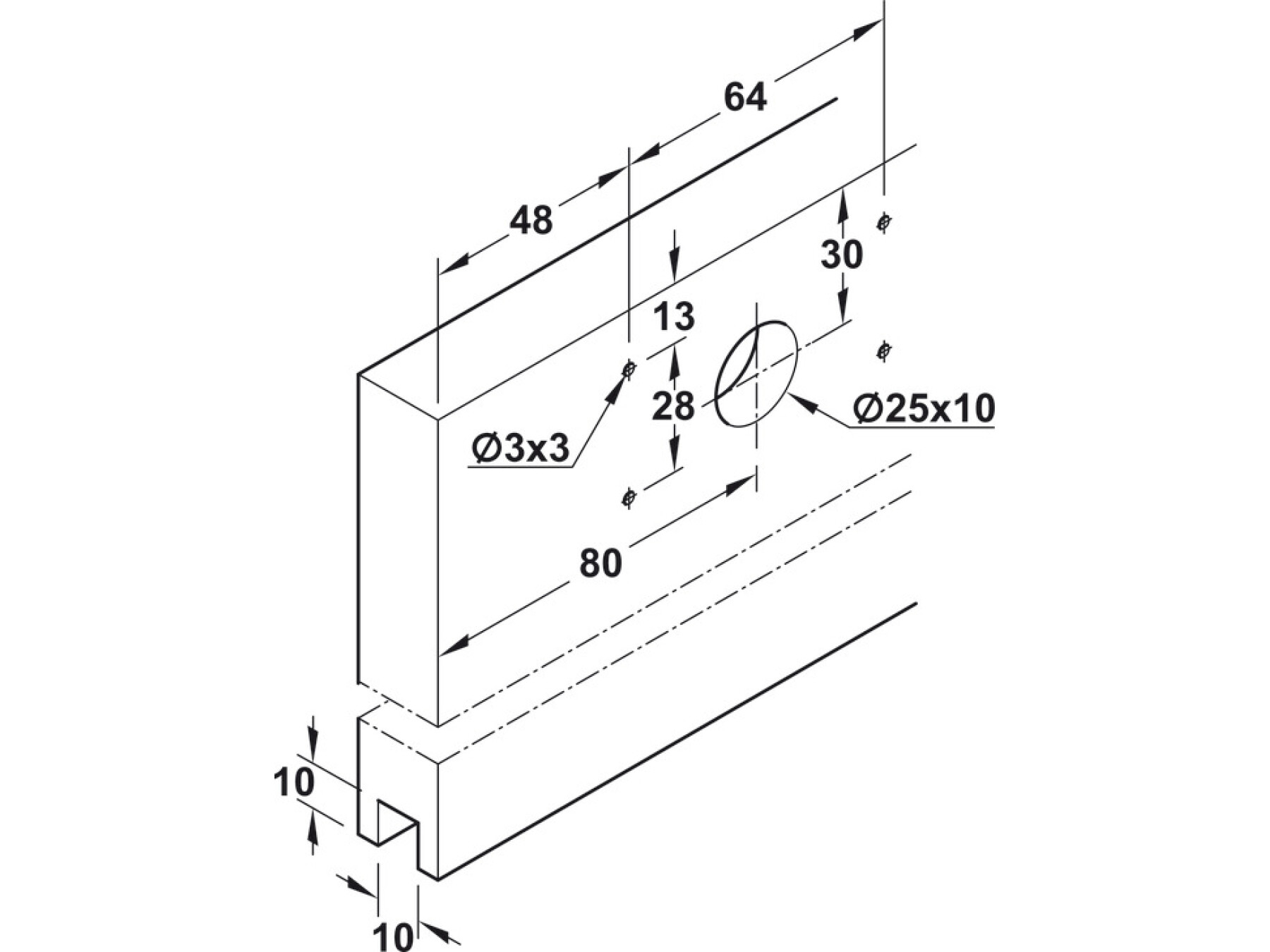

Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing
Supplied with
6 Running gears
4 door stoppers (2 with clip-in door stopper, 2 stoppers)
3 guides
3 intermediate stopper
1 set of mounting material
Specifications
Number of rollers
2.00
Soft closing mechanism
With clip-in door stopper

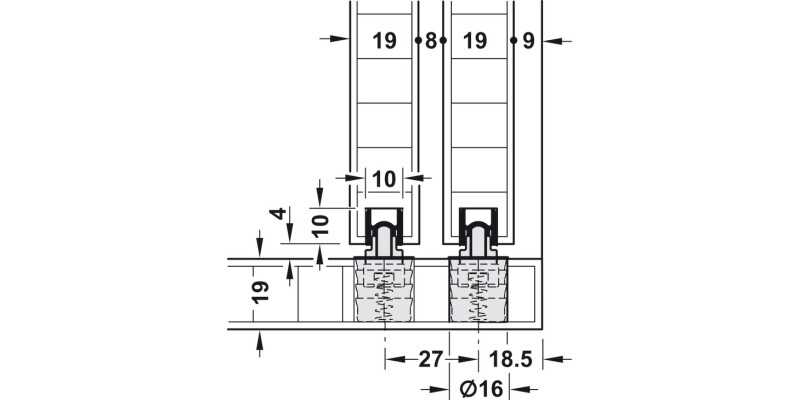

For door thickness
19 mm
For door width
≤1,200 mm
For door weight
≤35 kg
Area of application
Inset cabinet and wardrobe doors
For door height
≤2,200 mm
Door stopper
Top clip-in door stopper, for sliding into double or single running track
Material/finish
Running gear: SteelGuide: PlasticRollers: PlasticAxis: Steel
Running position
Top
Running gear guided by
Ball bearing
Adjustment facility

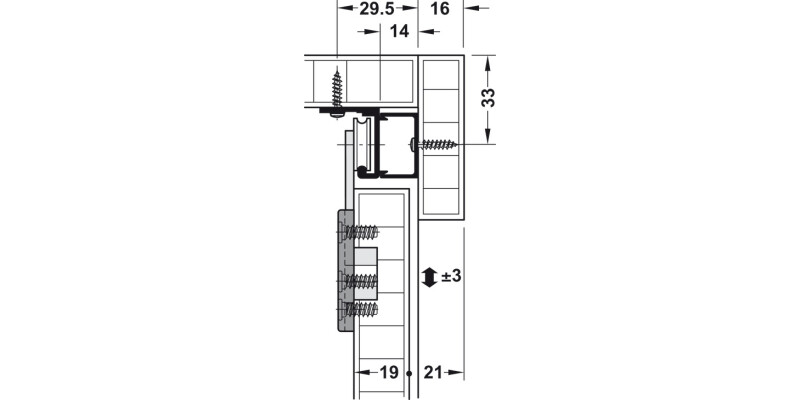

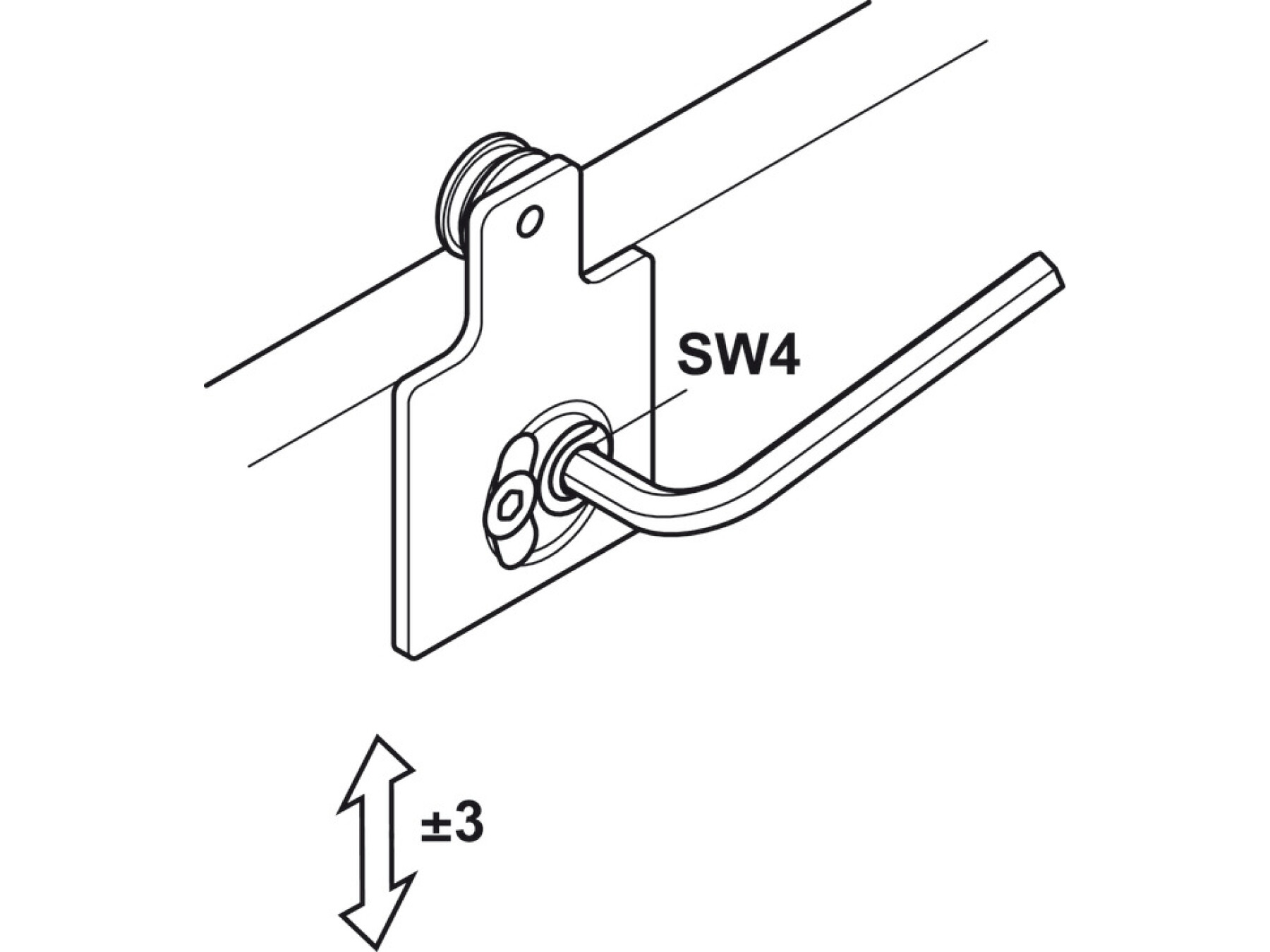

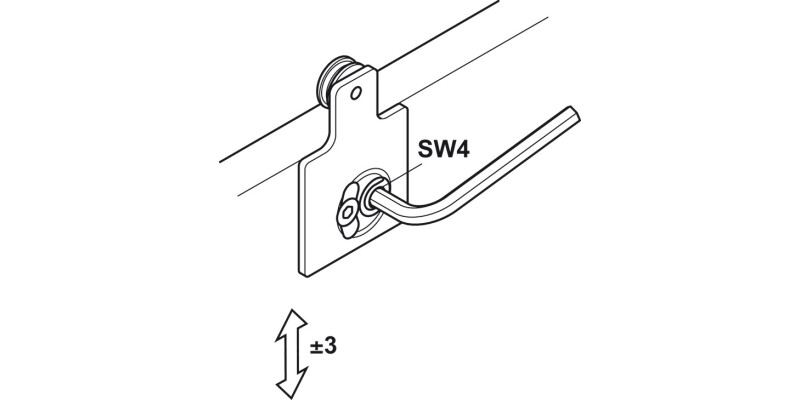

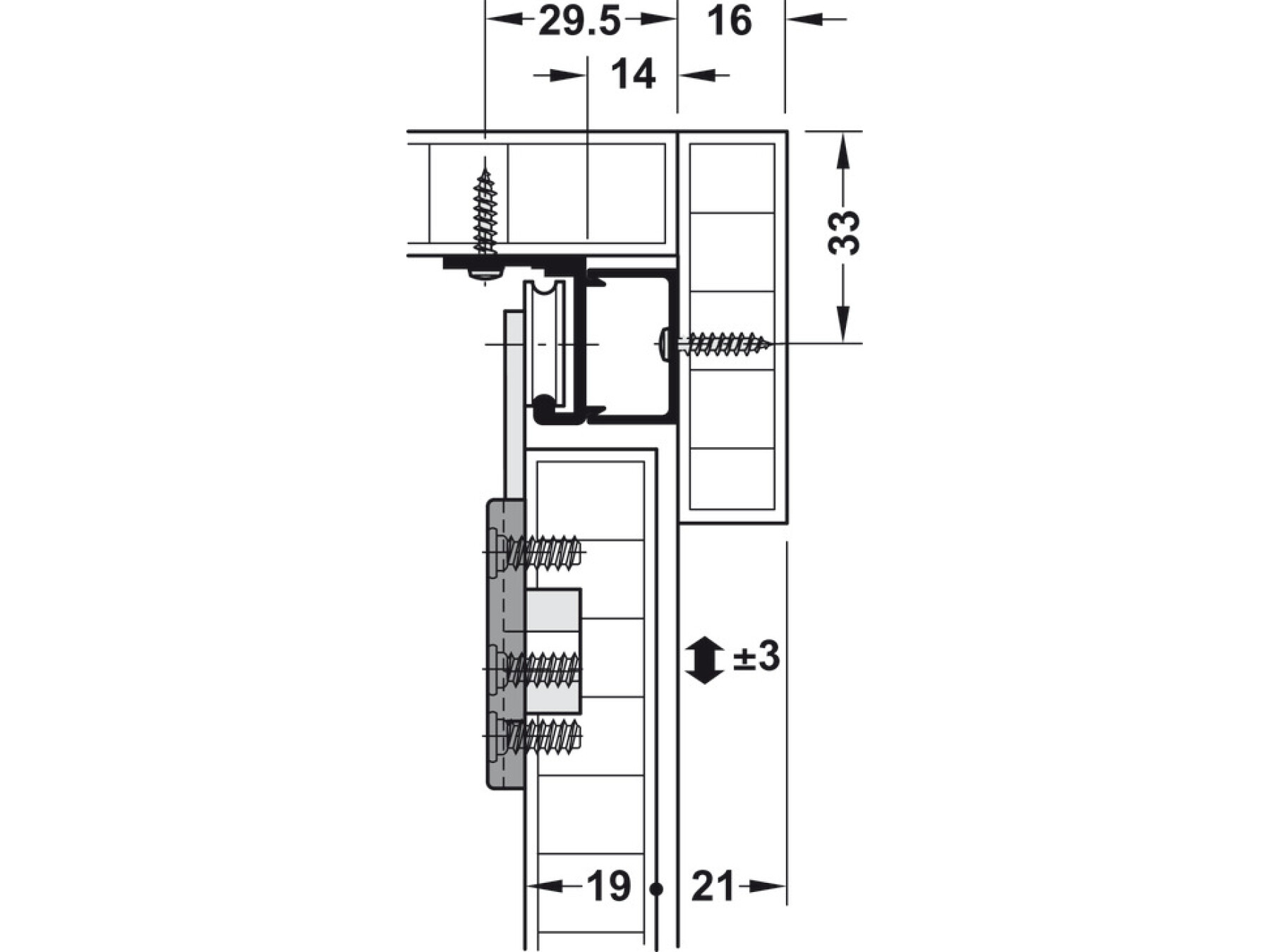

Height adjustment: -3 – 3 mm, on running gear using eccentric screw
Door adjustment via
eccentric screw
Installation note
Floor guide with zero clearance, sprung
Running position
Top
Set
Set without tracks
Type of opening
linear
Number of door wings in a system max.
2 to 3
Order reference
Please order running and guide track separately.
