Hawa Clipo 36H IF FitSet 3Dr
Part Number: 405.02.405
Top hung system, For 3 doors, back fitting
Price:
£282.28
Per Item
Quality furniture where bi-passing sliding doors are requiredRecess mounted back fixing housings (36 H)Hawa-Clipo... Read More
Product Information
Product Details

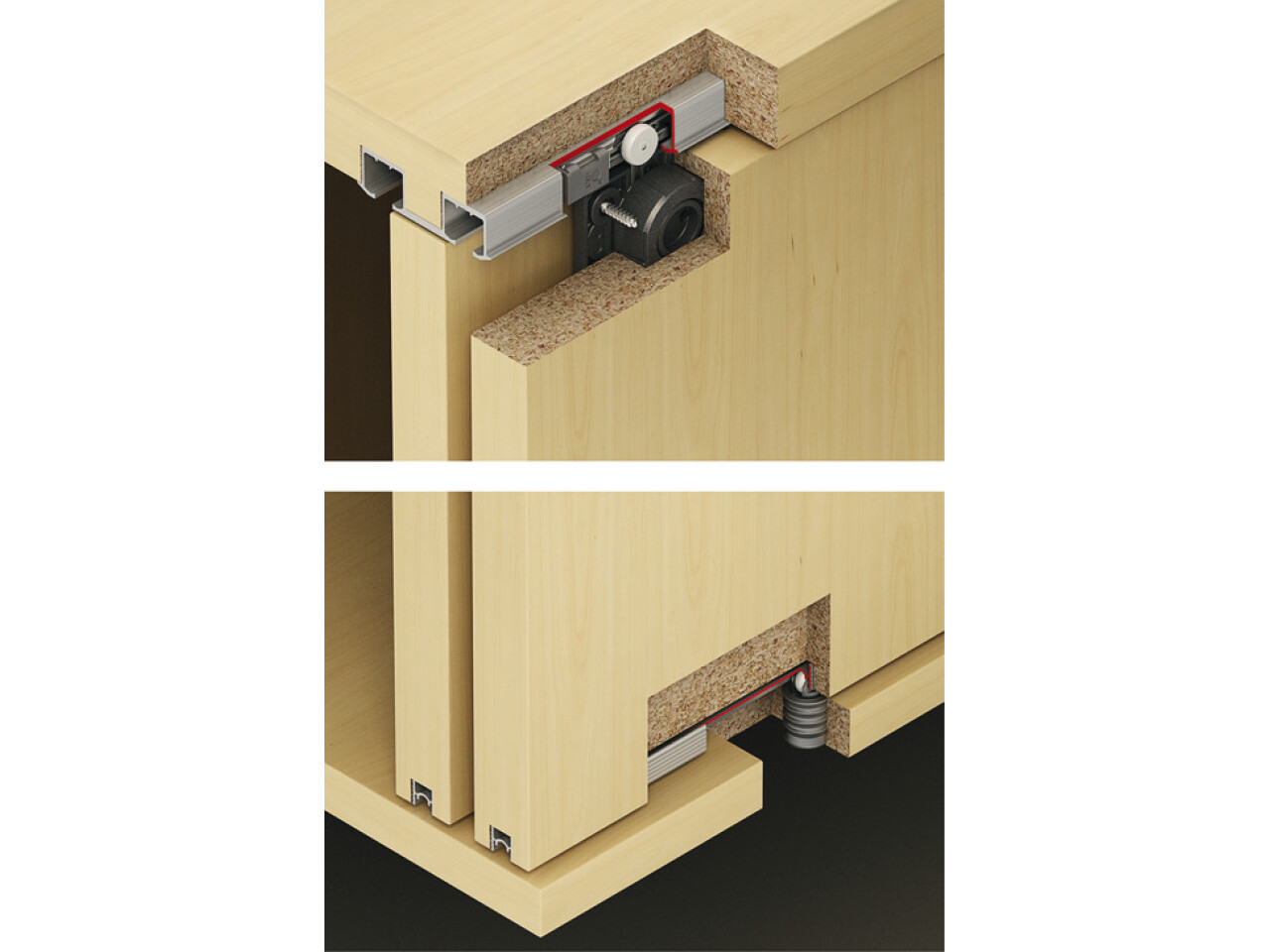

Quality furniture where bi-passing sliding doors are required

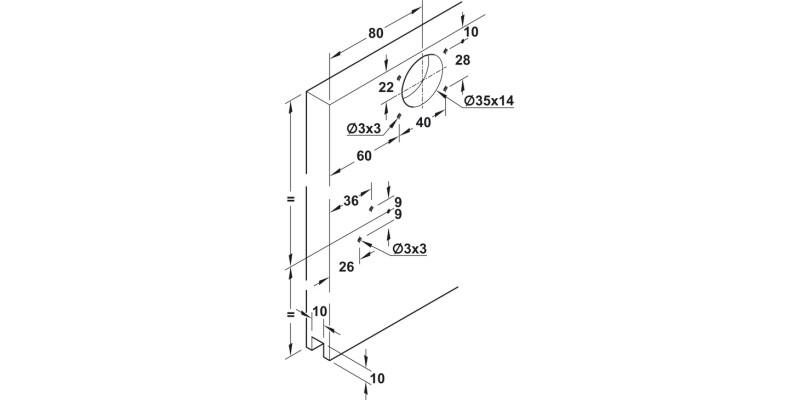

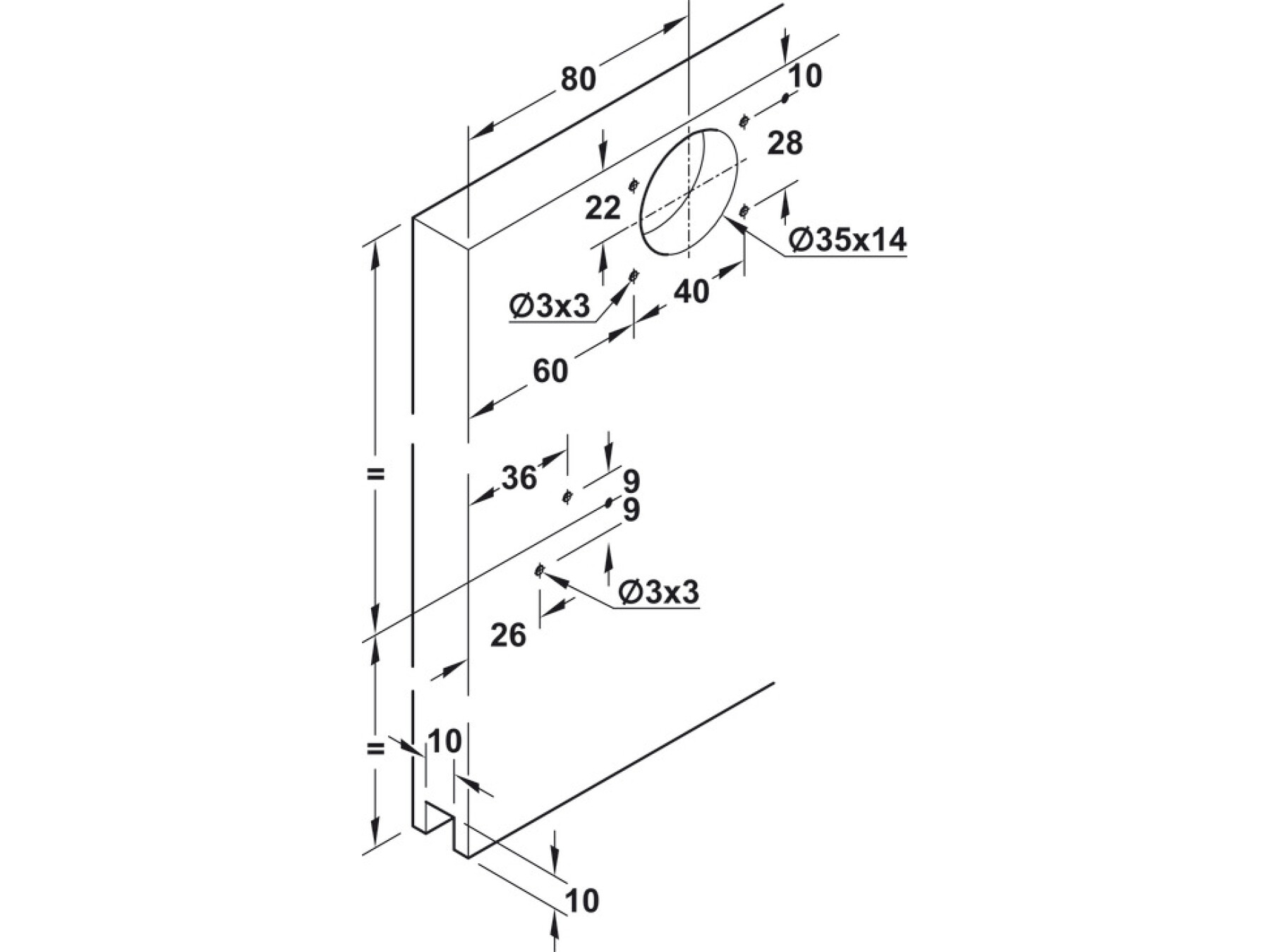

Recess mounted back fixing housings (36 H)
Hawa-Clipo 36 H IF - 4 rollers
Running gear guided by friction bearing mounting plastic roller
Spring loaded rattle proof bottom guide
Hawa soft close mechanism can be ordered separately, information on request
Order reference
Please order running and guide tracks separately.

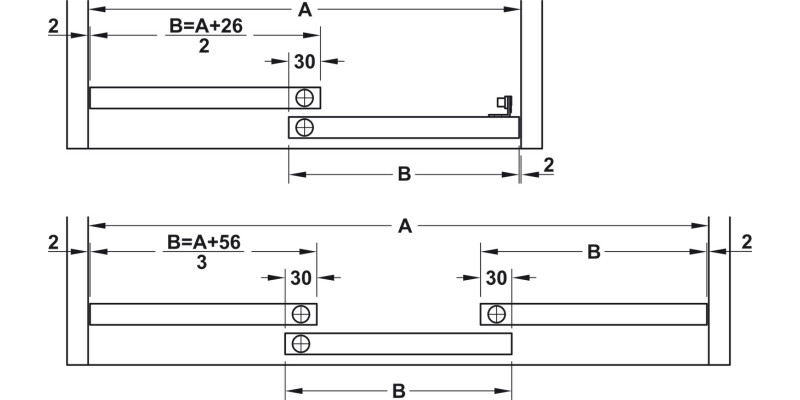

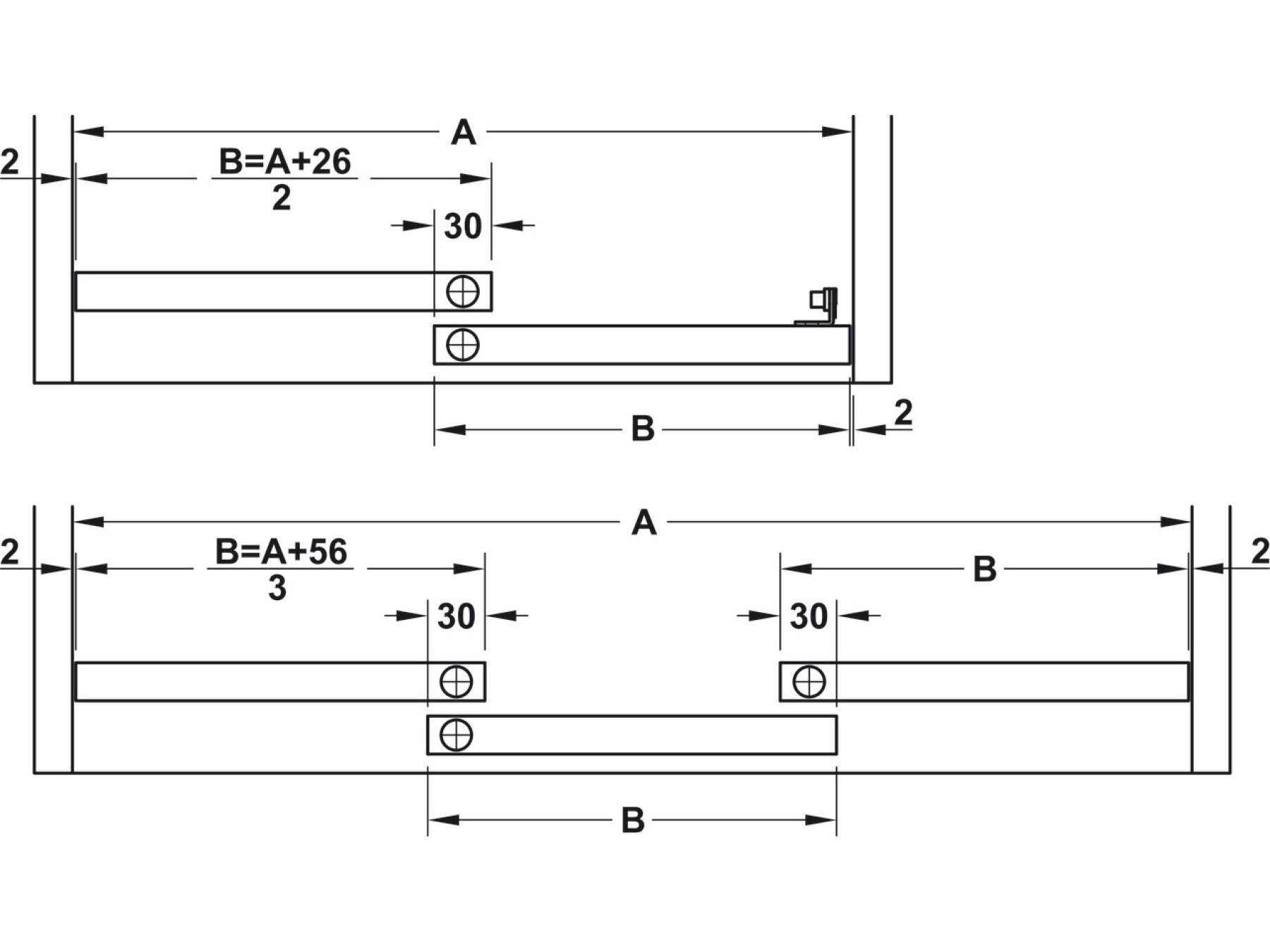

Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
Supplied with
Set includes 4x Track stopper, with retaining screw, grey plastic, 6x Running gear, clip or groove mounting, with +/-2 mm vertical adjustment, bright zinc alloy, 6x Housing, boss-type screw fixing, for use with suspension fitting, anthracite plastic, 3x Bottom roller, guide spring loaded, for mounting drilled holes, grey plastic, 2x Rubber buffer, for Ø 6 mm hole, plug-fit, black rubber and fixings
Specifications
Soft closing mechanism
With clip-in door stopper

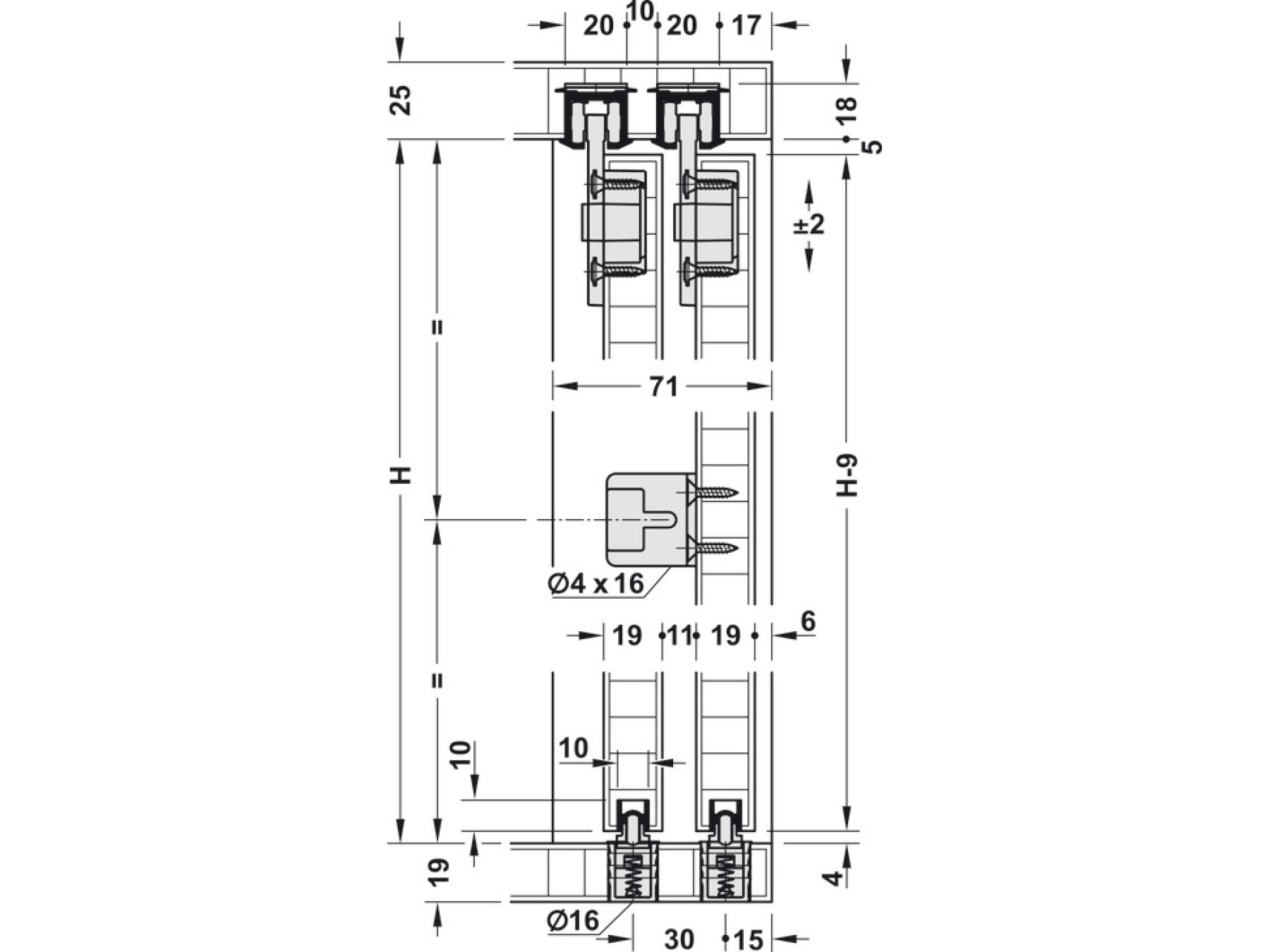

For door thickness
19 – 25 mm
For door width
≤1,000 mm
For door weight
≤36 kg
Running position
Top
Number of rollers
4.00
Height adjustment
-2 – 2 mm
Running gear guided by
Friction bearing
For door material
Wood
Height adjustable
Cabinet version
with sliding doors with zero clearance
Area of application
For 3 doors
For door height
≤2,200 mm
Door stopper
Top clip-in door stopper, for sliding into running track
Material/finish
Housing: PlasticRunning gear: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel
Adjustment facility
Height adjustment: -2 – 2 mm, using eccentric screw on running gear
Door adjustment via
eccentric screw
Set
Set without tracks
Type of opening
linear
Number of door wings in a system max.
2 to 3
