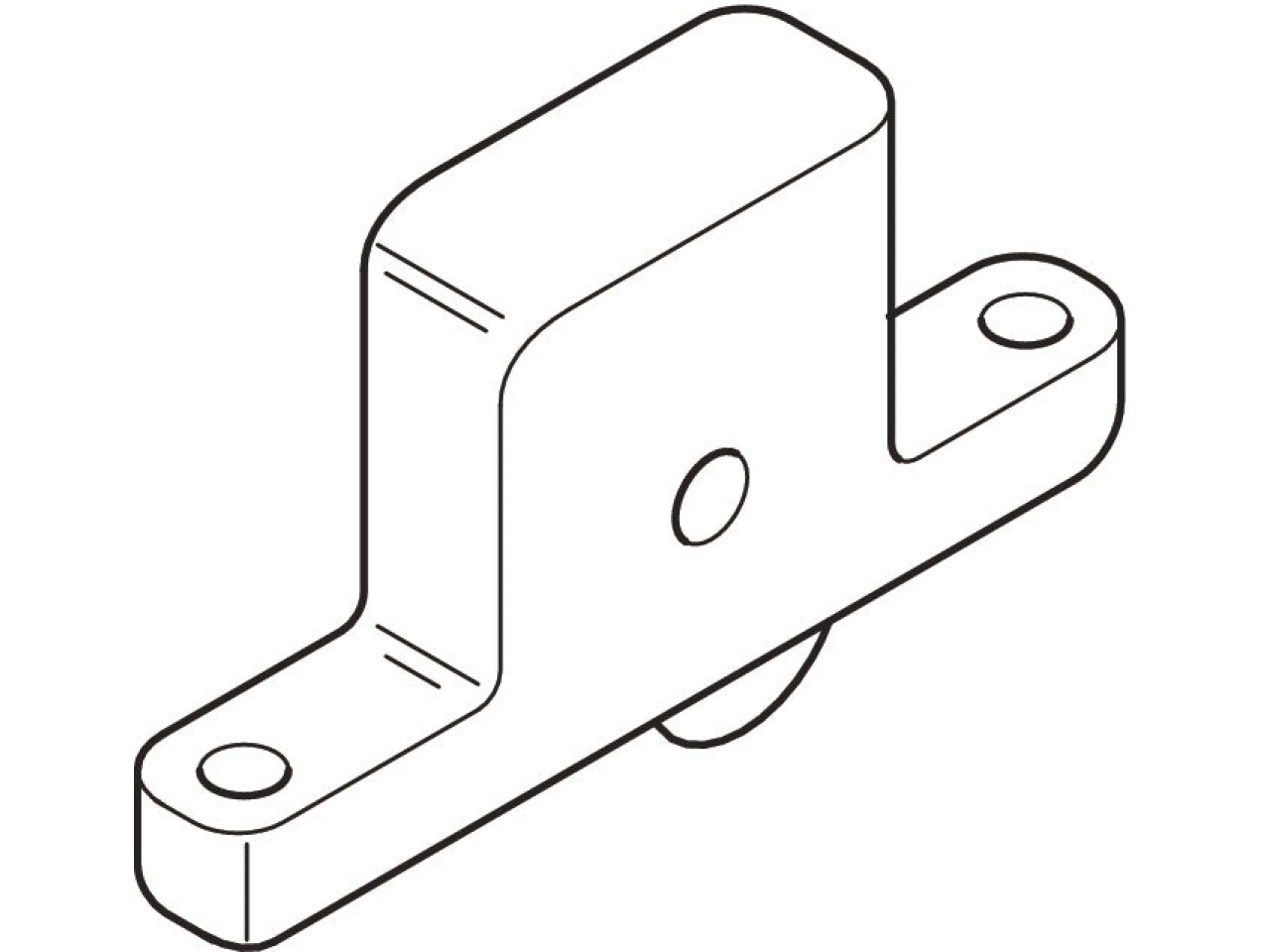

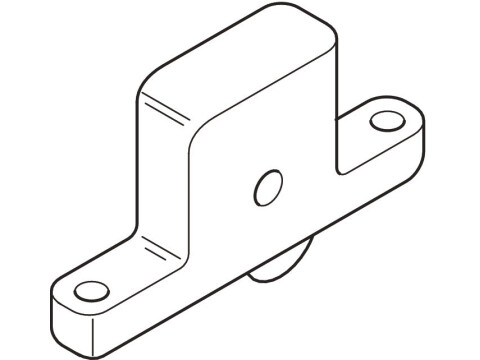

Straightaway 700 Bottom Roller St St/Nyl
Part Number: 943.26.012
Bottom rolling system, Stainless steel casing
Price:
£287.75
Per Item
Produced in 316 grade stainless steelDeveloped to cope with harsh operating environmentsIdeal for applications in... Read More
Product Information
Product Details
Produced in 316 grade stainless steel
Developed to cope with harsh operating environments
Ideal for applications in the food and chemical industries and in areas of extreme climatic conditions as well as hotels, hospitals etc.
Handle height recommended over half way from bottom for best results
The sliding panel when fully open should project a minimum of 65 mm to avoid fingers becoming trapped in between handle and fixed panel
Bottom rail should be sufficient depth to house rolling casing
Specifications
Material
Stainless steel
Nylon
Length
134 mm
Area of application
Interior and exterior doors
For door weight
≤115 kg
Height
57.00 mm
Width
19.00 mm
Installation
Screw fixing
Order reference
Straightaway tracks and guides to be ordered separately
