Hawa Junior 160GP FitSet 1 Dr
Part Number: 941.60.099
Top hung system, For 1 door
Price:
£1,228.18
Per Item
Vertically adjustable sliding door fitting for low and restricted headroom applicationsTandem rollers made of... Read More
Product Information
Product Details
Vertically adjustable sliding door fitting for low and restricted headroom applications
Tandem rollers made of high grade polyamide, mounted in aluminium carriage, ensures exceptionally silent action
All parts are corrosion resistant
Top of glass panel close to underside of top track
Choice of bottom control - either clear threshold or floor channel to provide added stability for wider doors
Supplied with

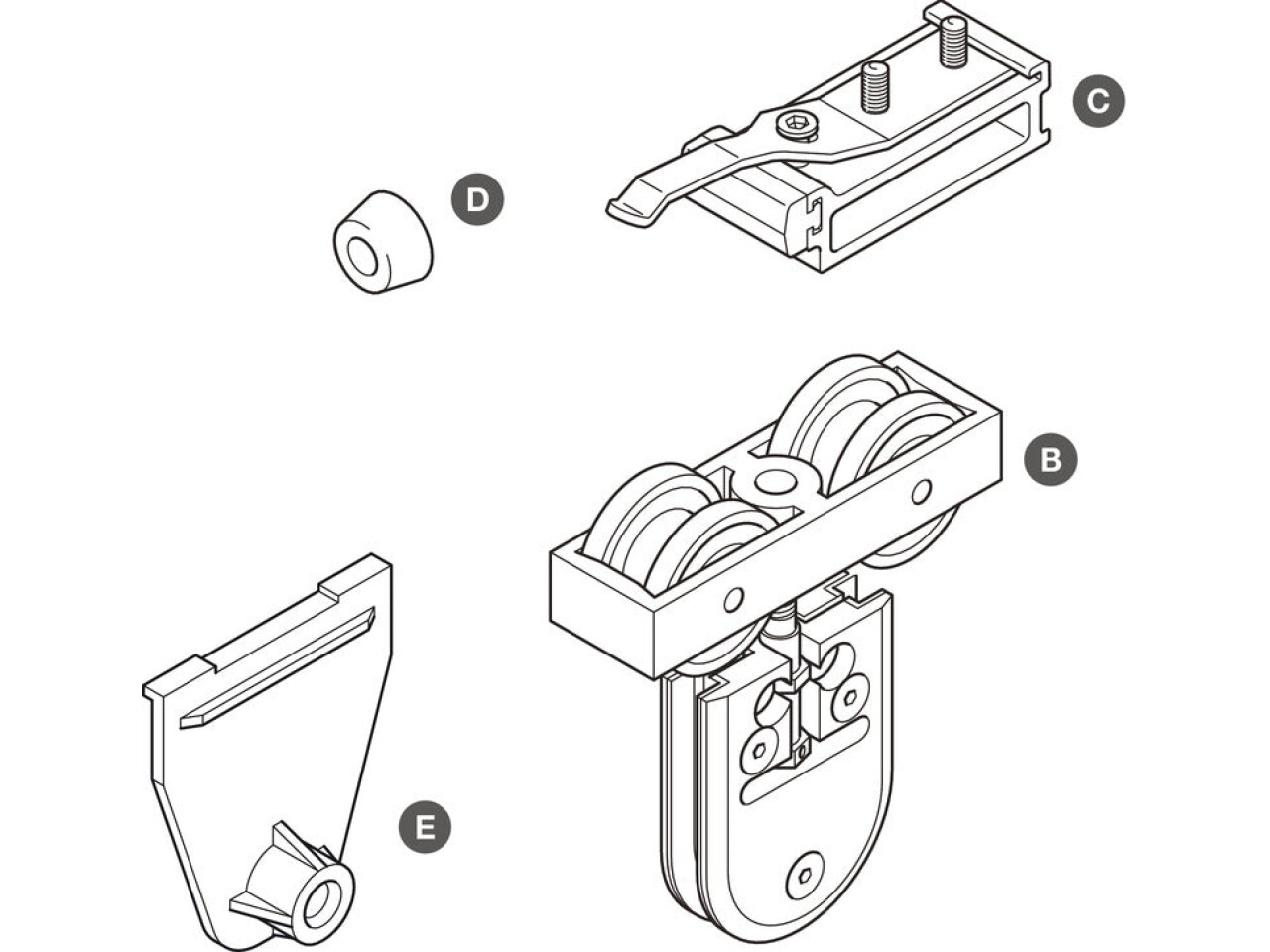

Set consists of 2 x Trolley hangers, ⌀ 54 mm tandem rollers, comprises trolley with M14 suspension bolt and patch suspension unit for clamping glass panel, 2 x Track stoppers, 31 x 94 x 39 mm, for adjustable mounting in top track, zinc alloy housing, adjustable retaining force, 1 x Rubber buffer, ⌀ 20 x 10 mm, screw fixing, 1 x Glass panel drilling jig, to drill correct aperture in glass door panel to fit patch assembly, with drilling bush
Specifications
Product category
Fitting Set
Material
Aluminium
Polyamide
Rubber
Colour/finish
Adjustment facility
height adjustment
Weight
160.00 kg
Order reference
Tracks and fittings to be ordered separately
