Counter Flap Hinge, 114 x 38 mm, Brass

Product Details

Is this counterflap butt hinge suitable for interior or exterior use?

Because it is made from brass and finished with an imitation antique bronze look, it is well suited to many architectural ironmongery applications, particularly where you want an aged appearance. For fully exposed coastal or harsh industrial environments, it is best to check local conditions and existing ironmongery corrosion guidance.

What size door or flap opening is this hinge designed for?

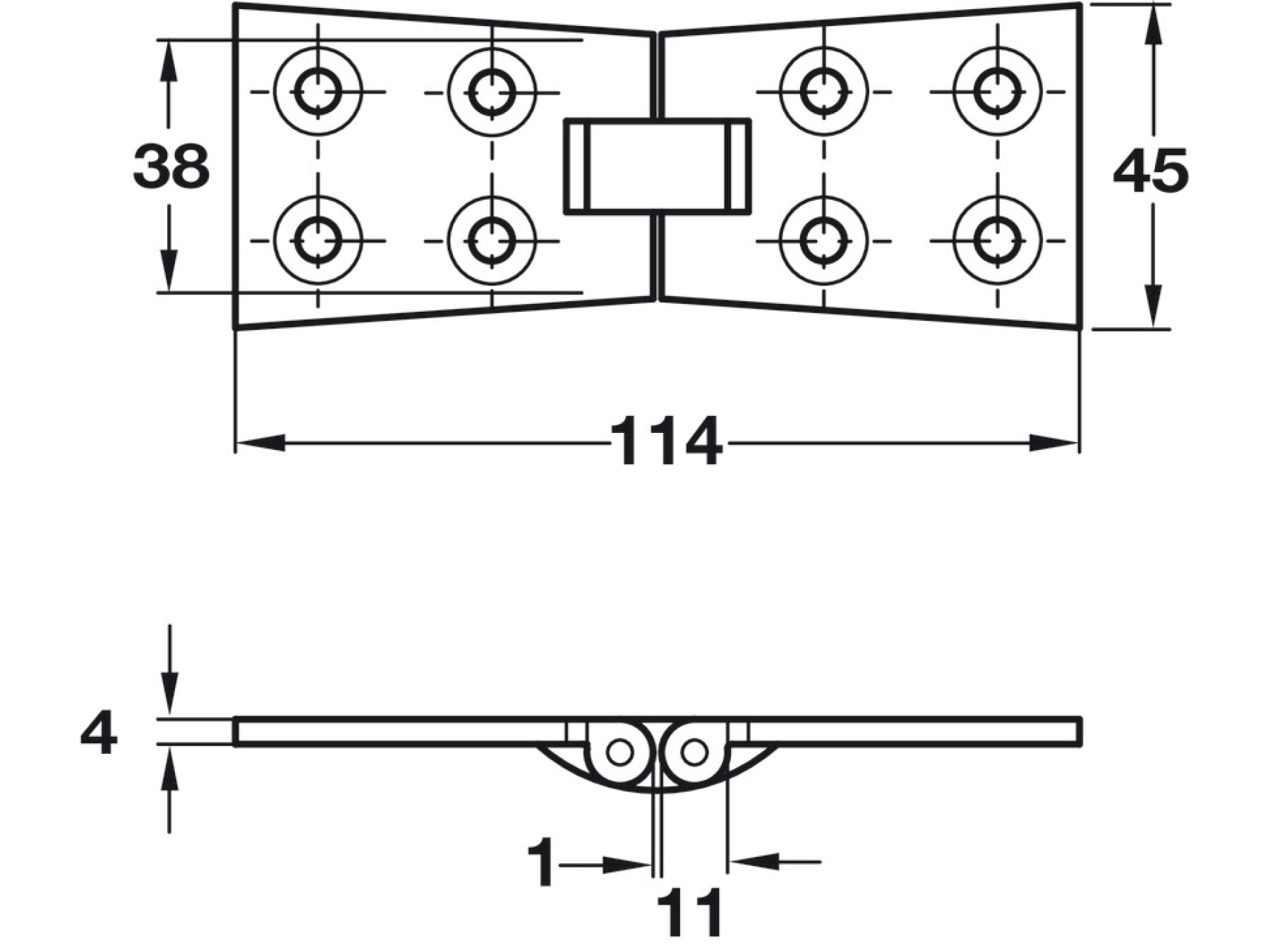

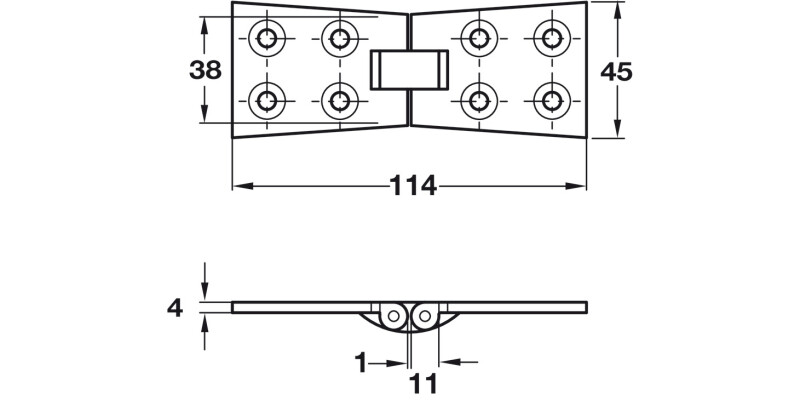

This model is sized at 114 x 38 mm, making it appropriate for installations where that hinge footprint and leaf size are specified. If you are matching existing hinges, confirm your current measurements before ordering to ensure a neat alignment of the flap and door components.

Does it come with the brass pin included?

Yes, this hinge is supplied with a brass pin. The pin helps provide smooth operation and consistent alignment, which is particularly important for counter flap and butt hinge arrangements where movement is frequent.

Which screws do I need, and are they included?

The order reference notes that you should order countersunk screws separately, specifically ⌀ 4.0 countersunk screws. Because fixings vary by door thickness and substrate, supplying the correct screw size helps you install the hinge securely and flush.

Will the antique bronze finish match other architectural ironmongery?

The hinge is finished to create an imitated antique bronze appearance. This is ideal for projects where you want a coordinated, traditional look. As with all aged effect finishes, slight tonal variation can occur, so if you are fitting multiple hinges across the same elevation, ordering together is a good way to maintain consistency.

Is this hinge part of a specific butt hinge model series?

Yes, the hinge belongs to the butt hinge model series and is part of the Counter Flap hinge range. Using the correct series designation helps ensure compatibility with the intended flap and door hardware specification.

How do I confirm I am ordering the correct part for replacement?

For replacements, check the product identifiers on your existing hinge and compare to Part No 926.95.211 and the size 114 x 38 mm. If your current hinge uses countersunk screw fixings, ensure you use ⌀ 4.0 countersunk screws as indicated, so the fit remains secure and tidy.
