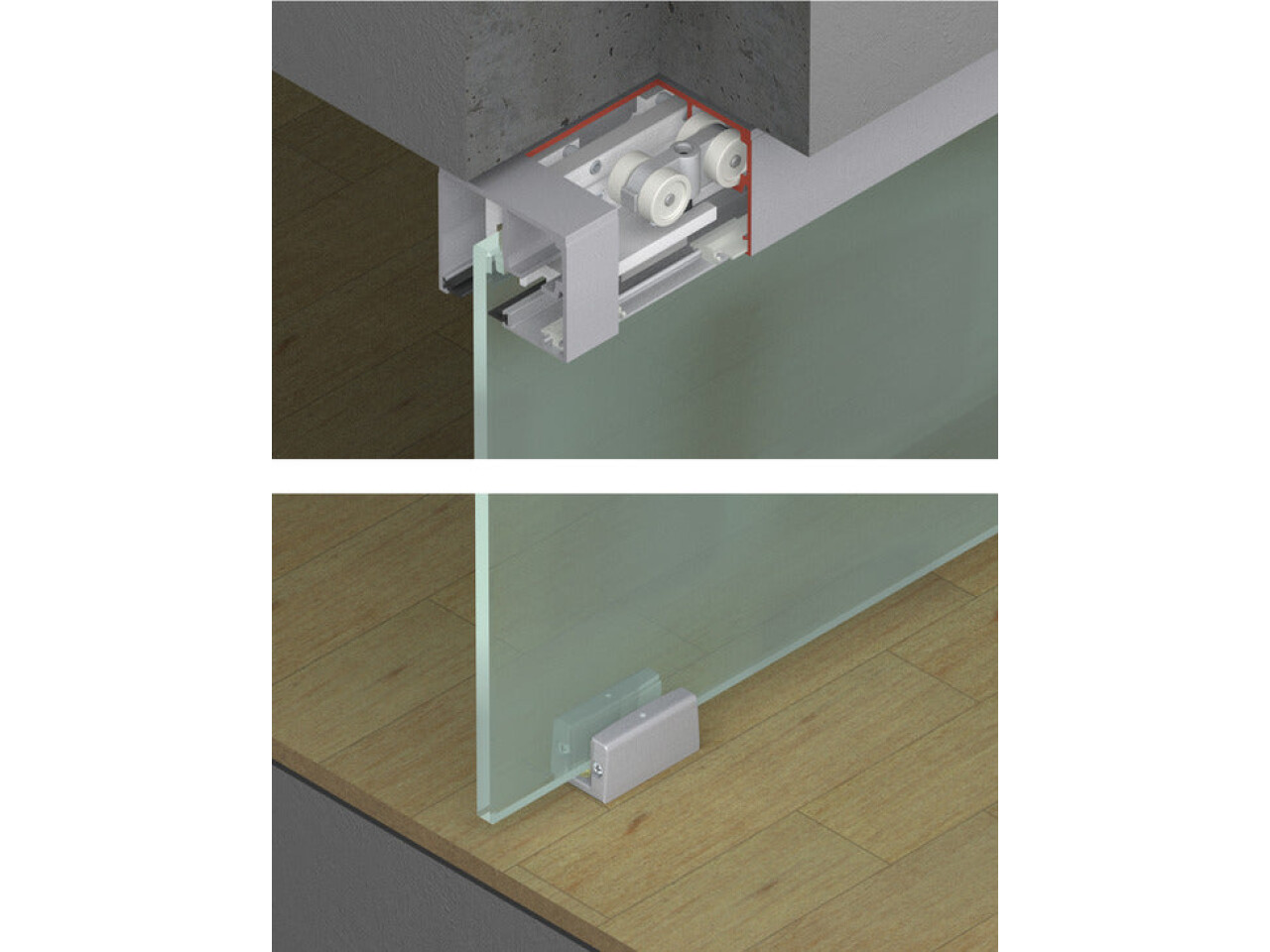

Eku Porta 100GW Fitting/Clamp Shoe Set
Part Number: 941.00.005
Top hung system, For 1 door
Price:
£541.14
Per Item
Supplied with 2 running gears2 suspension screws M8 x 252 clamp shoes2 track buffers (1 with retaining spring,... Read More
Product Information
Product Details
Supplied with

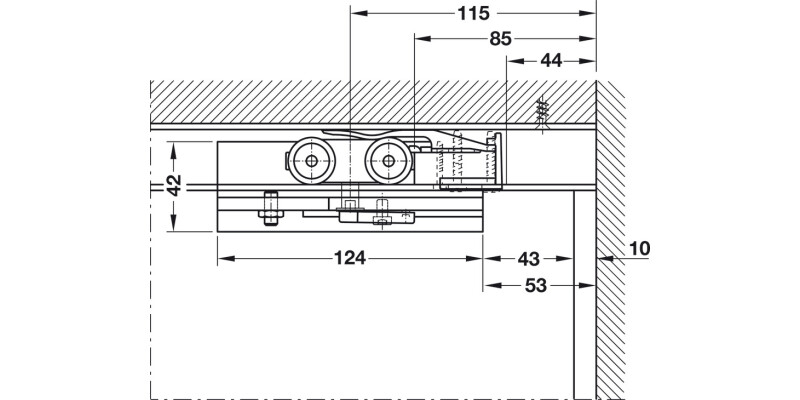

2 running gears
2 suspension screws M8 x 25
2 clamp shoes
2 track buffers (1 with retaining spring, 1 without retaining spring)

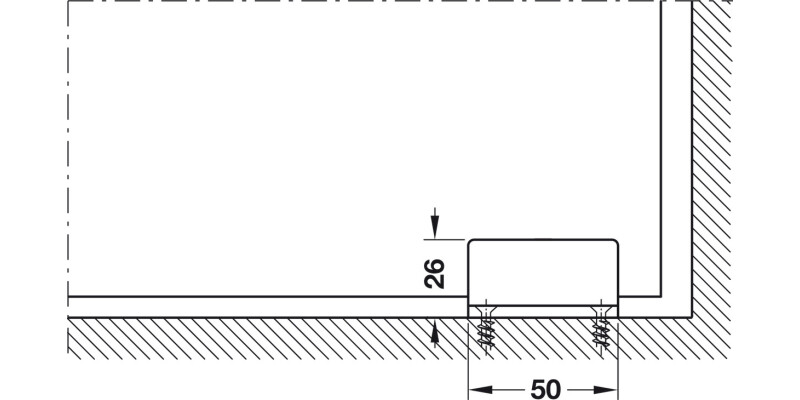

1 wall buffer

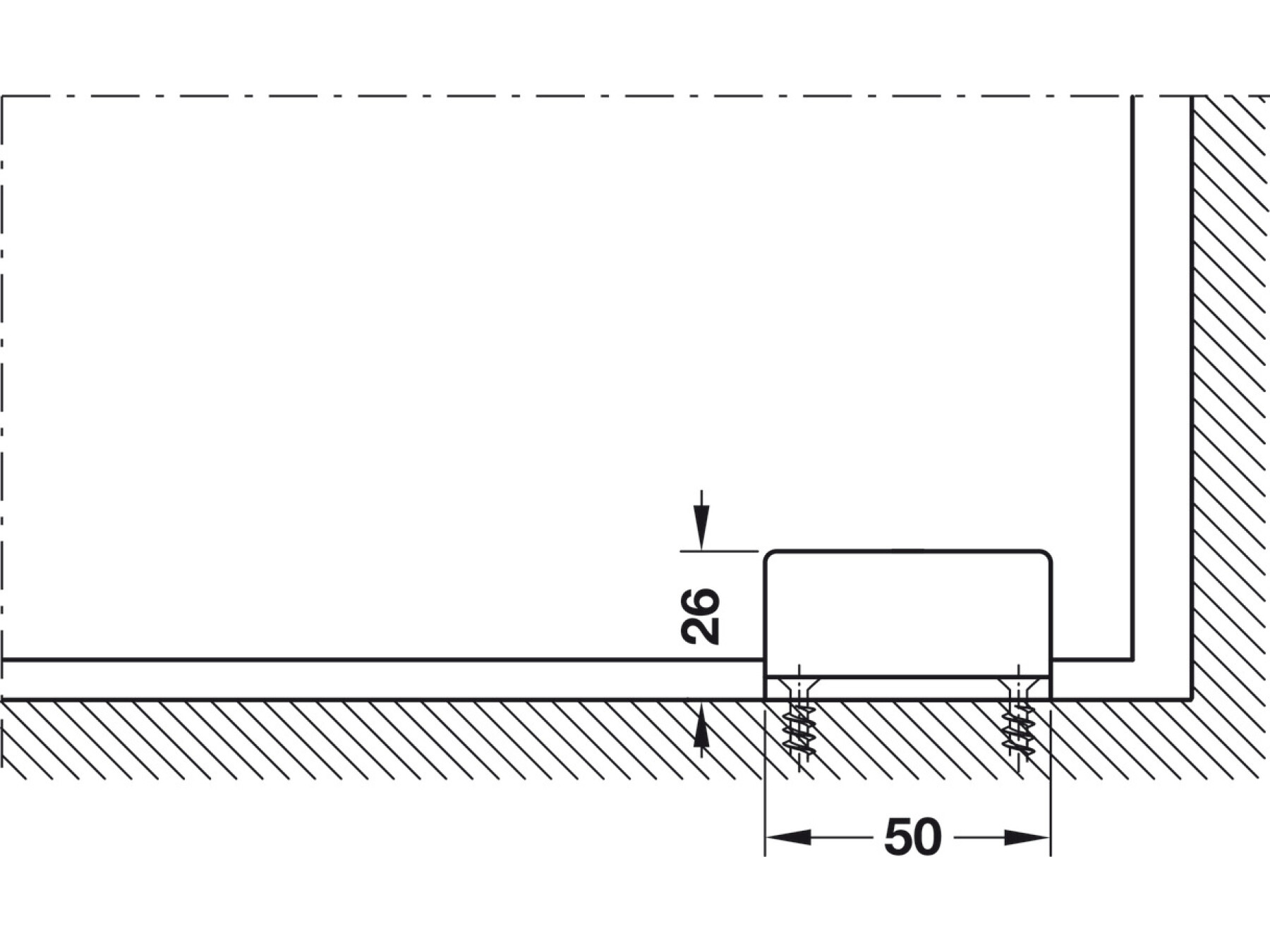

1 clear threshold floor guide
12 panel clips
1 set of fixing screws
Soft and self closing mechanism (optional for Hawa Porta 100 GW/GWF)
Specifications
Number of door wings in a system max.
1
Number of door leaves per set
1.00
For door material
Glass
Model
100 GW/100 GWF
Soft closing mechanism
With soft closing mechanism (optional)
For door weight
≤100 kg
For door width
≤1,600 mm
Mounting type

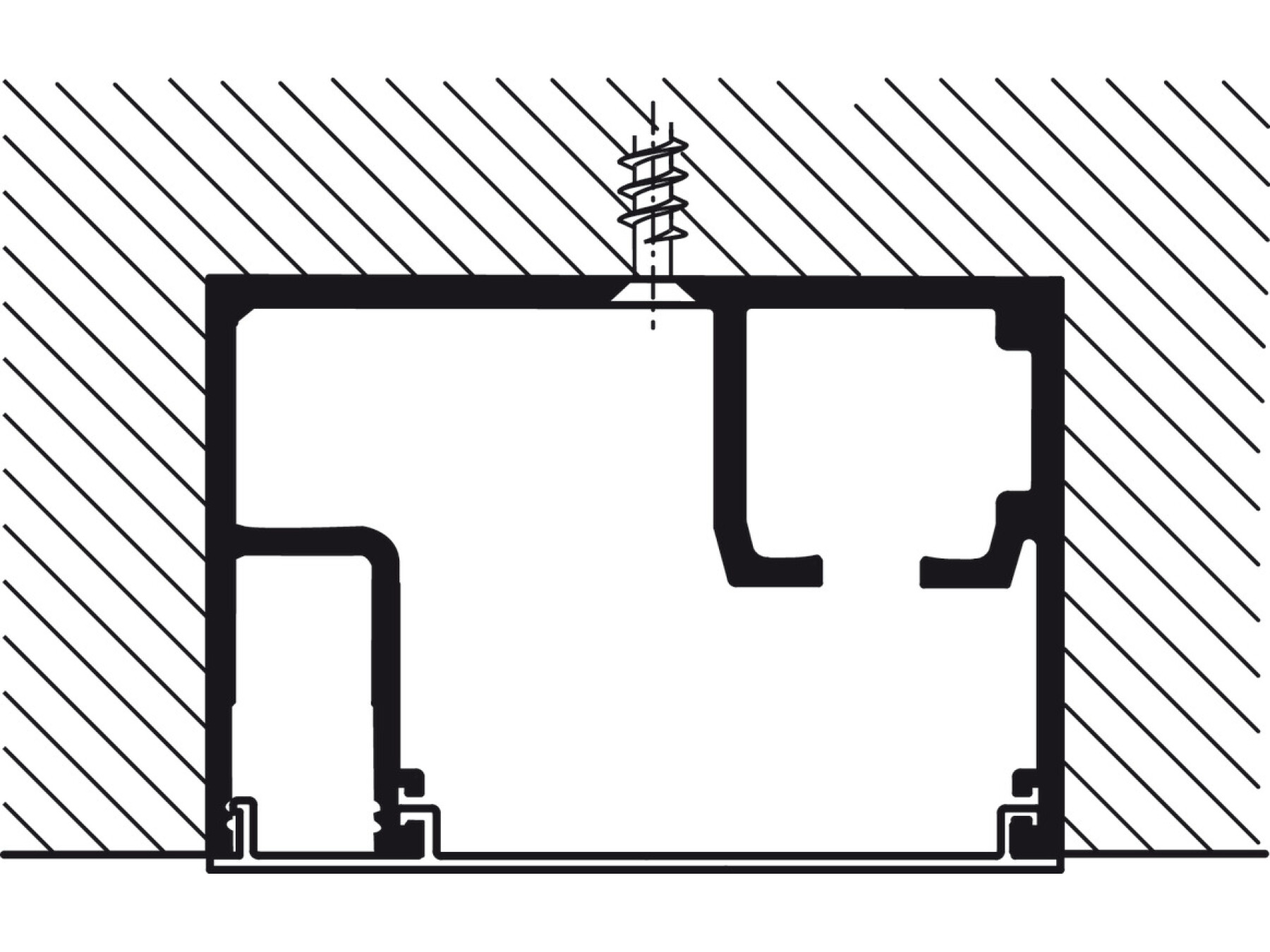

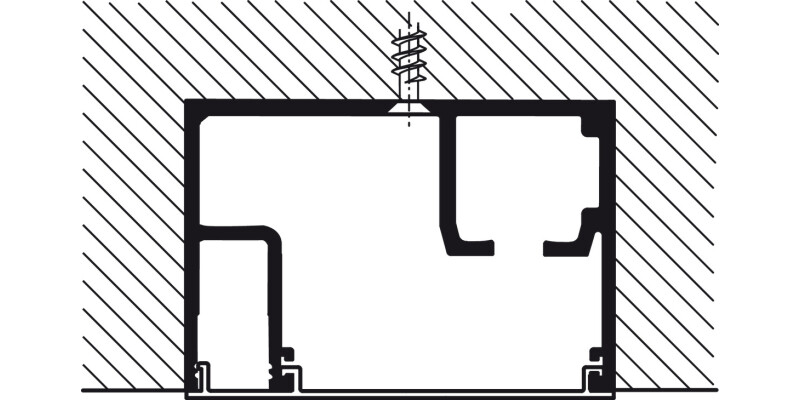

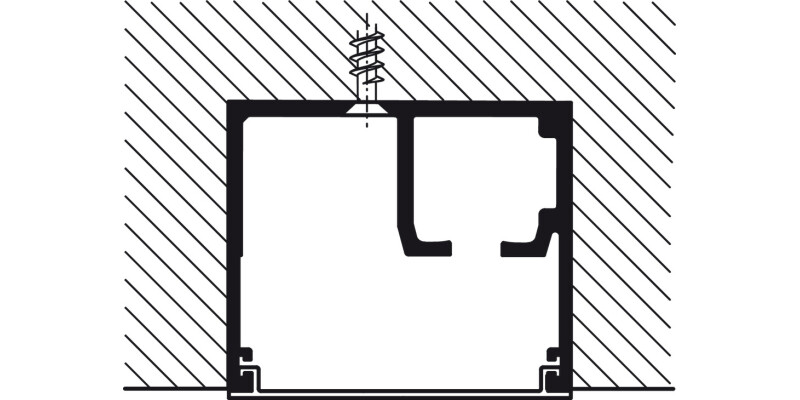

Ceiling installation

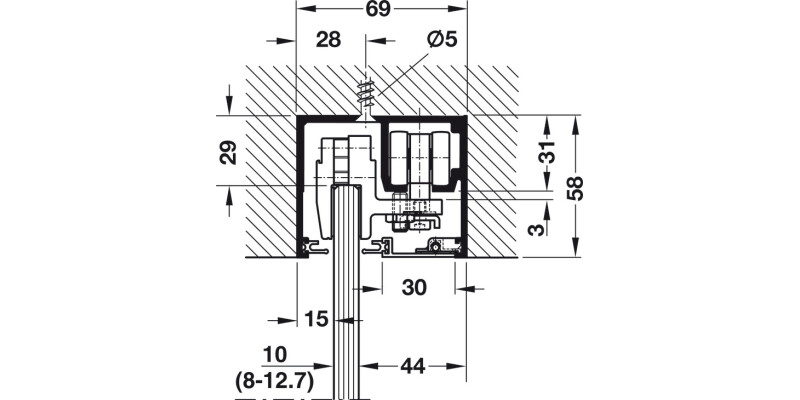

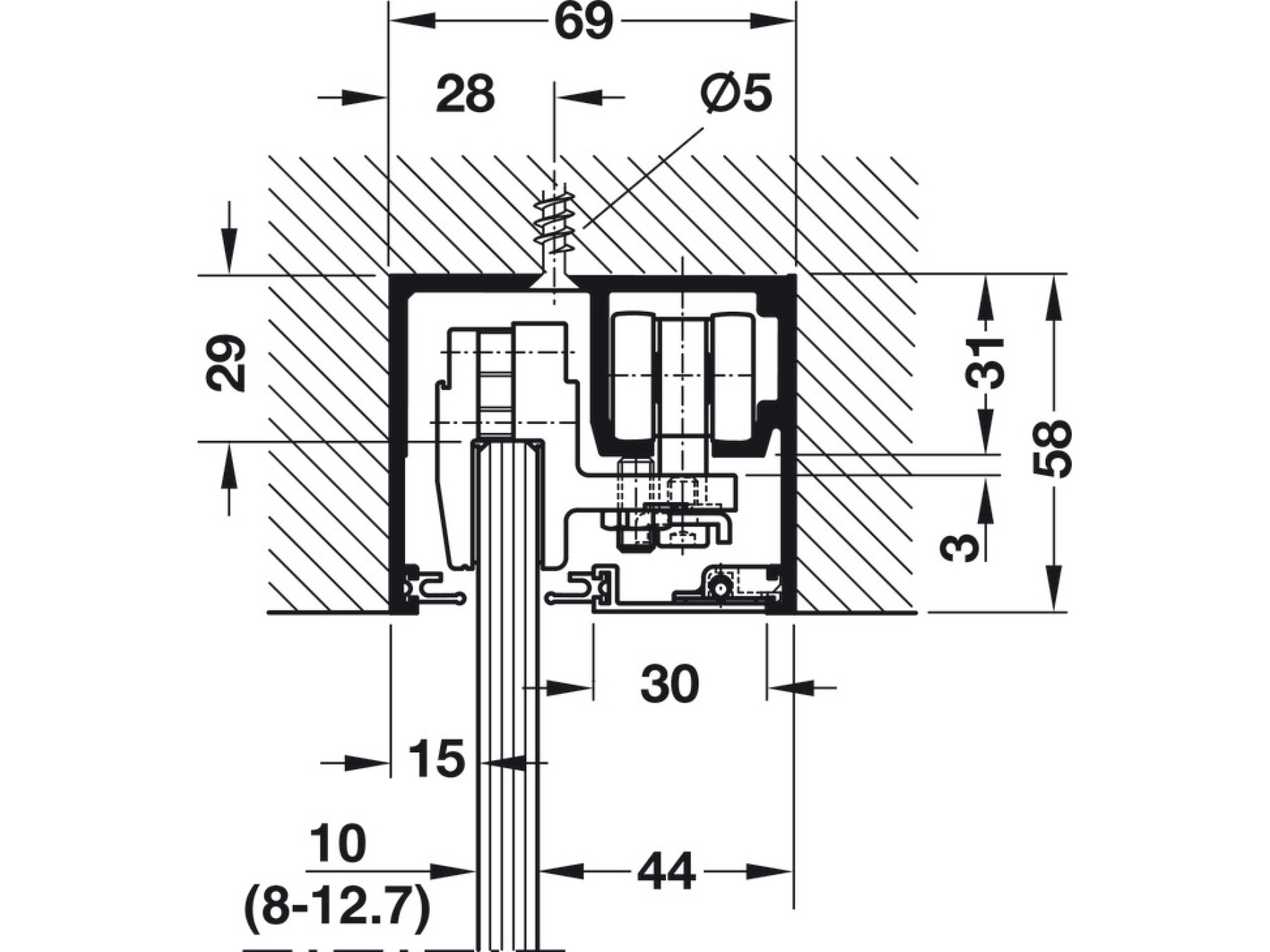

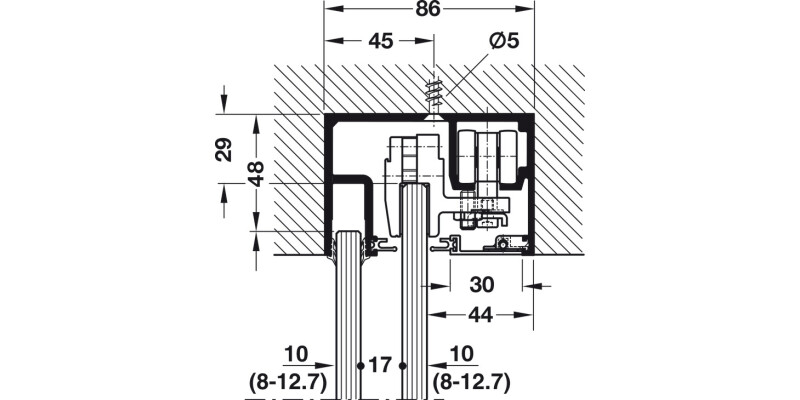

For glass thickness with tempered safety glass

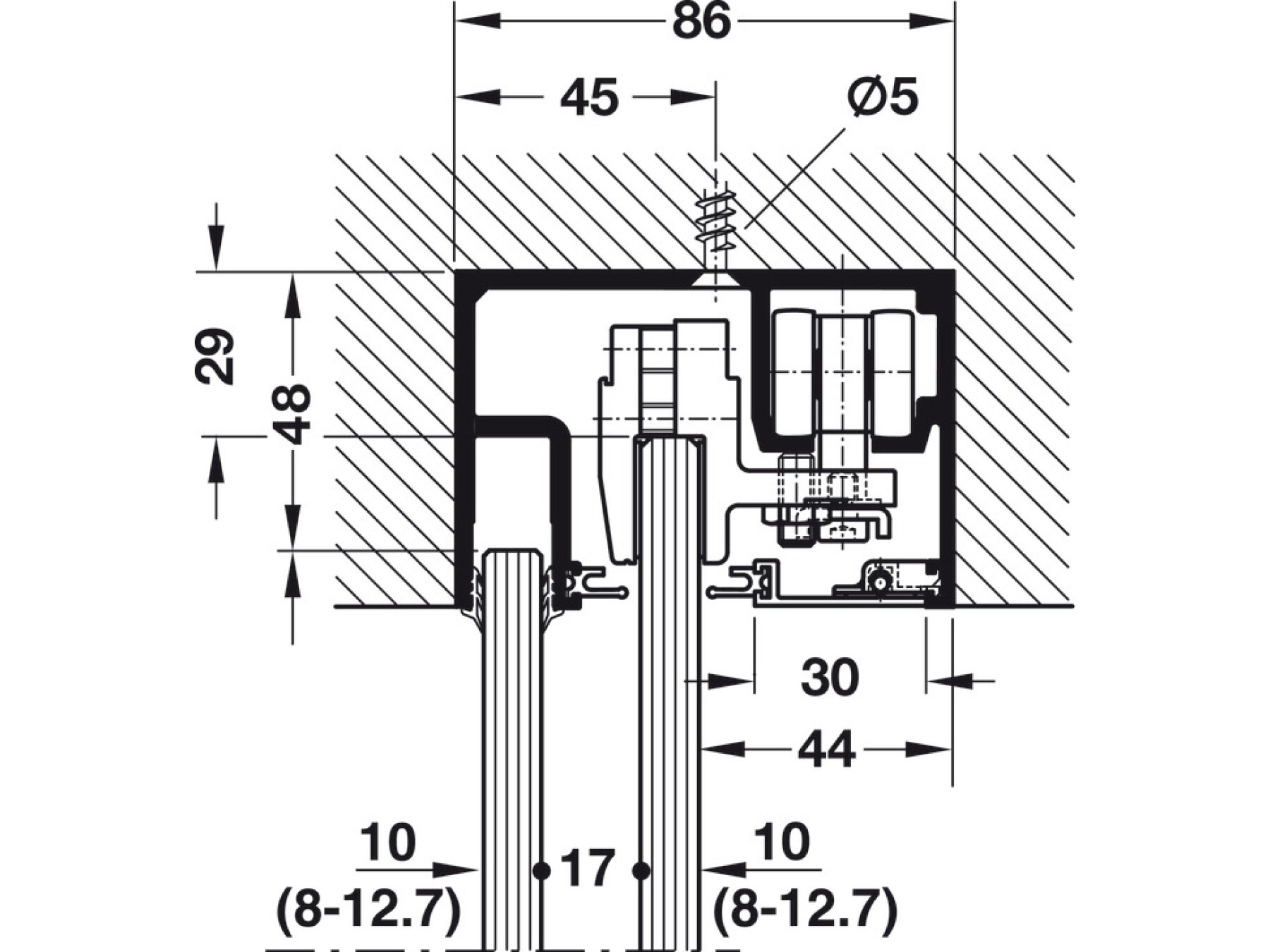

8 mm, 10 mm, 12 mm, 12.7 mm
Adjustment facility

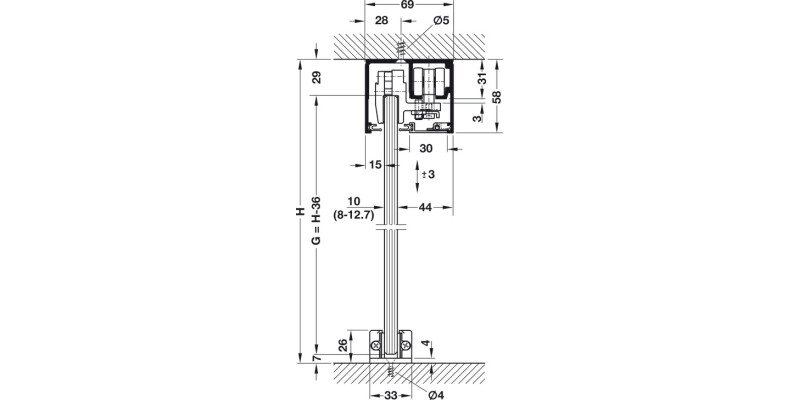

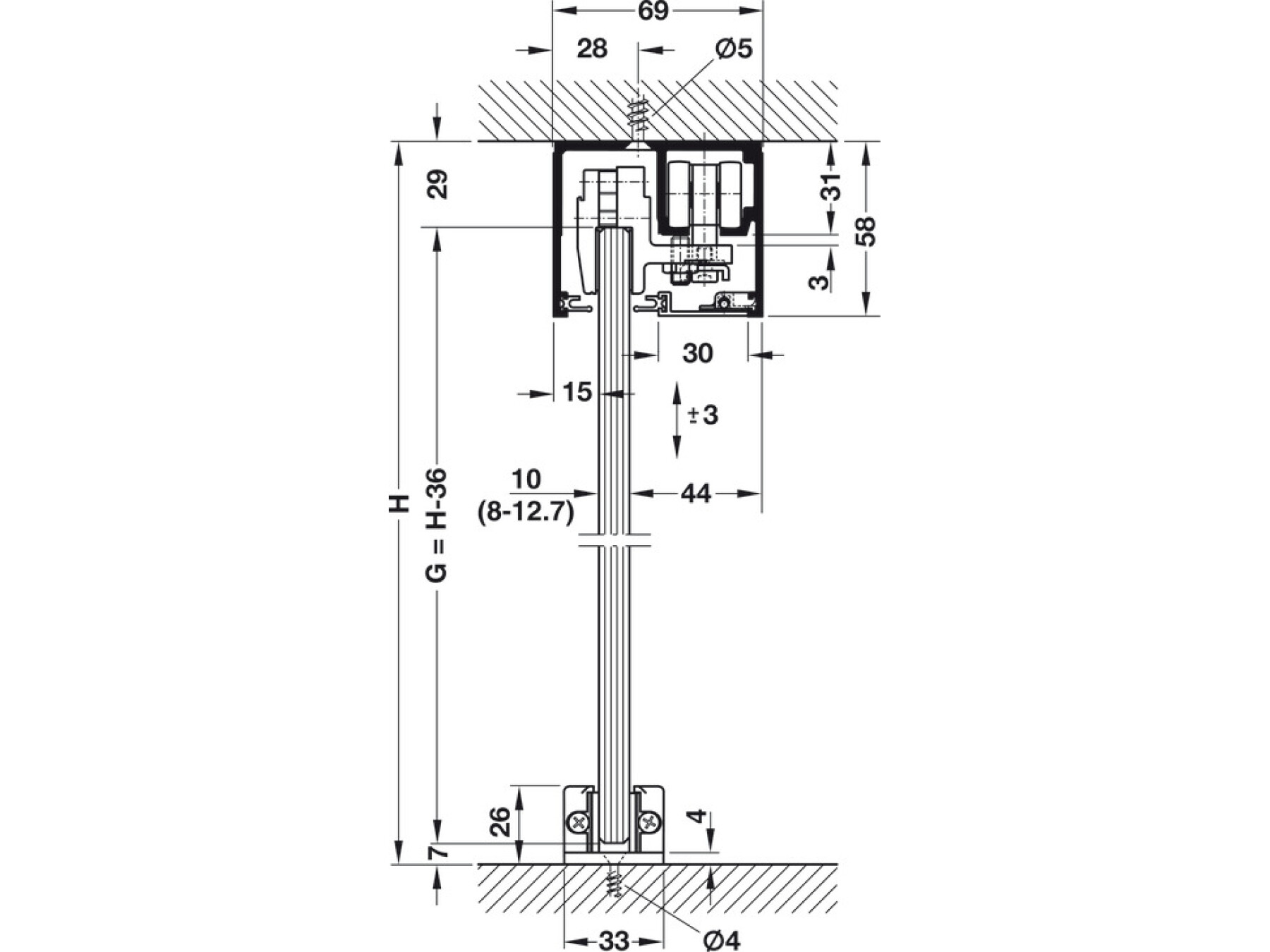

Height adjustment: -3 – 3 mm
Area of application
Glass interior doors
For door height
≤2,700 mm
For glass type
Tempered safety glass
Running position
Top

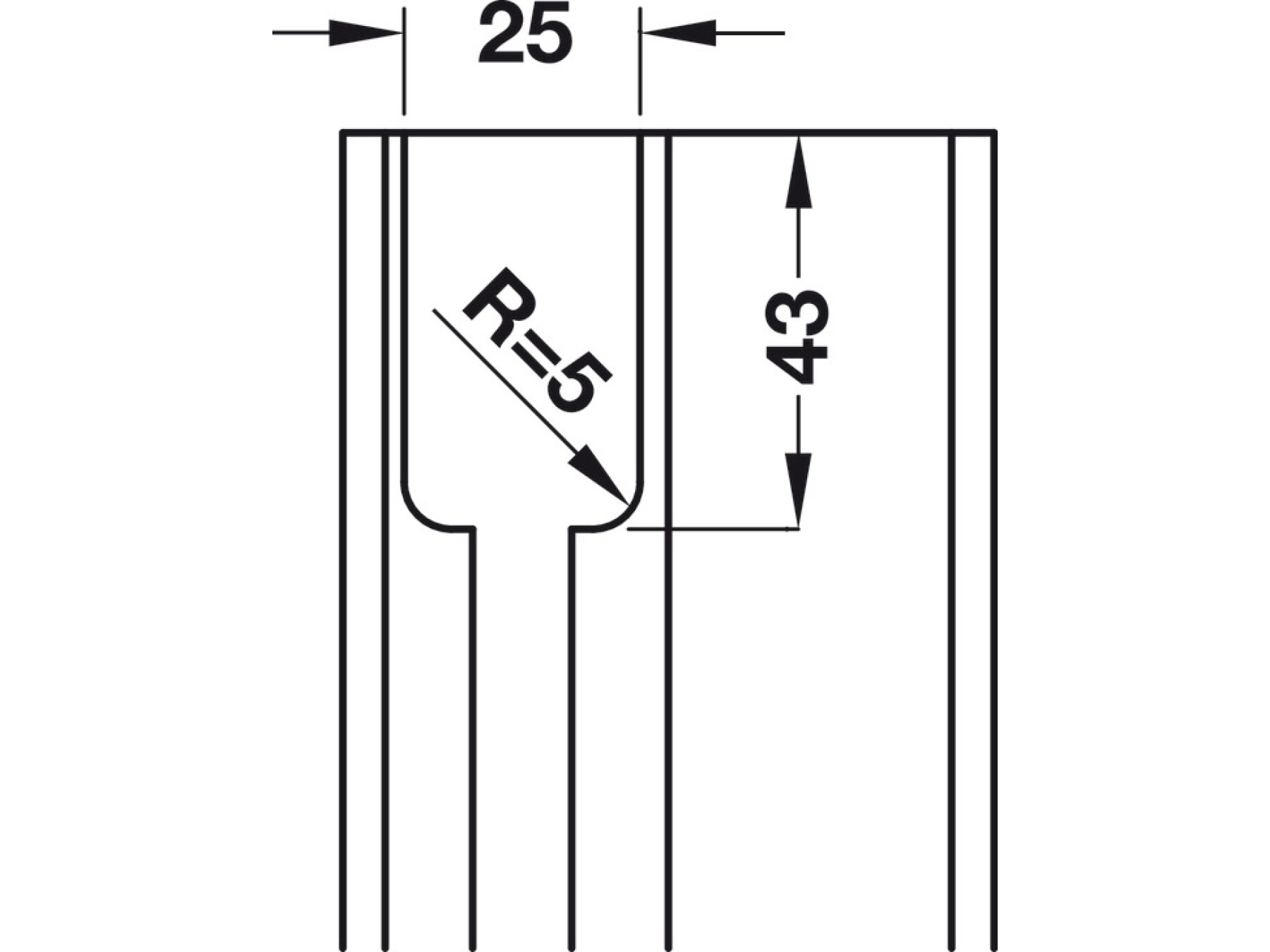

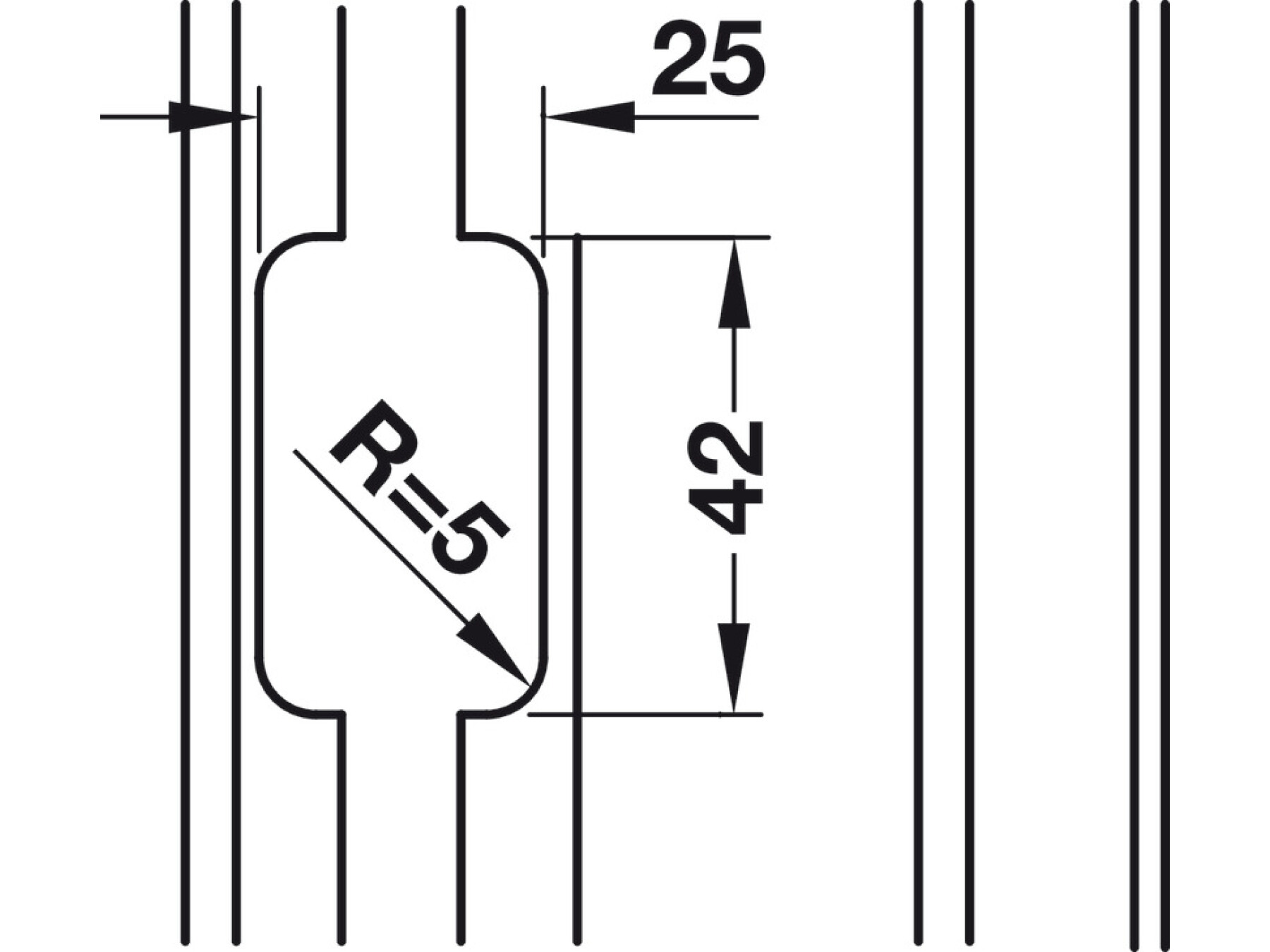

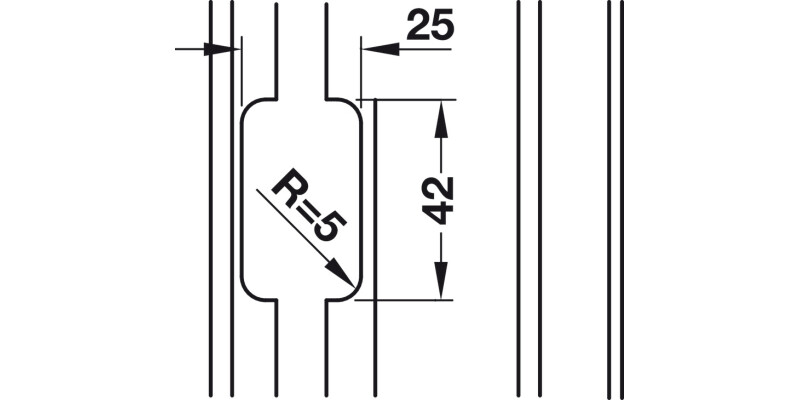

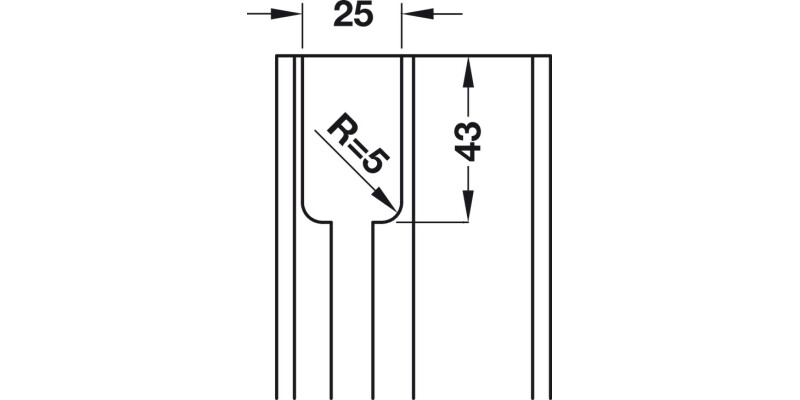

Door processing
With recess
