Dbl Action Pivot Set - Floor 304 SSS

Regular price


(ex. VAT)


(inc. VAT)
  • SKU:
  • Availability: 0
  • Product category: Architectural Ironmongery
  • Vendor: BKSH
  • Visitors:

Suitable for FD30 doors, tested to EN 1634-1Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is floor mounted and does not protrude beyond the door edgeTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years

  • Finish: Satin

  • For door thickness: Min. 44 mm

  • Door weight: Up to 80 kg

  • Door width: Max. 1100 mm

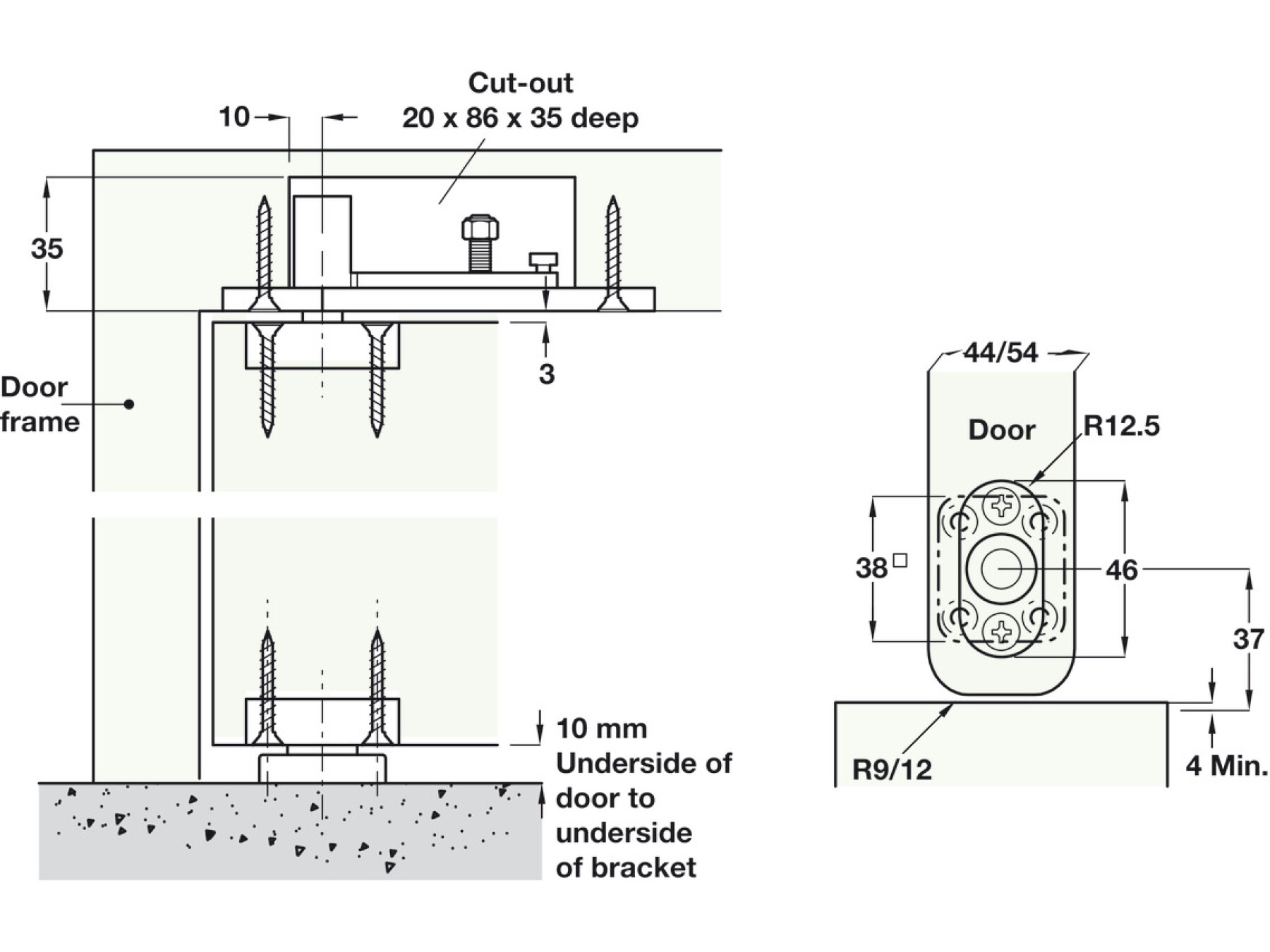

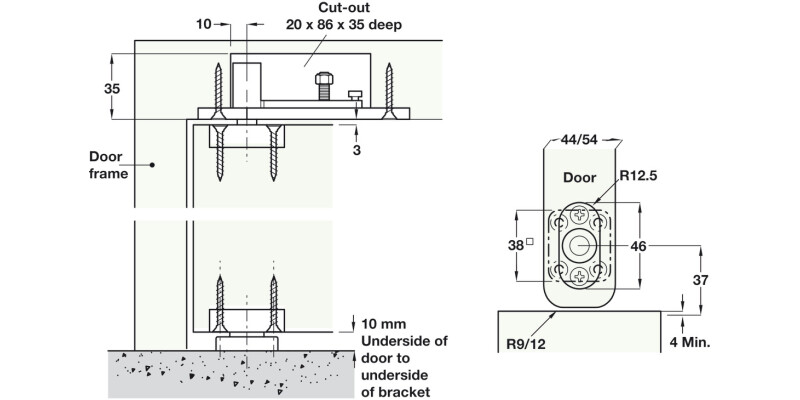

  • Installation: 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R15 radius

  • Material: Grade 304 stainless steel

  • Note: It is recommended that both lock and hinge stiles are brush stripped for privacy

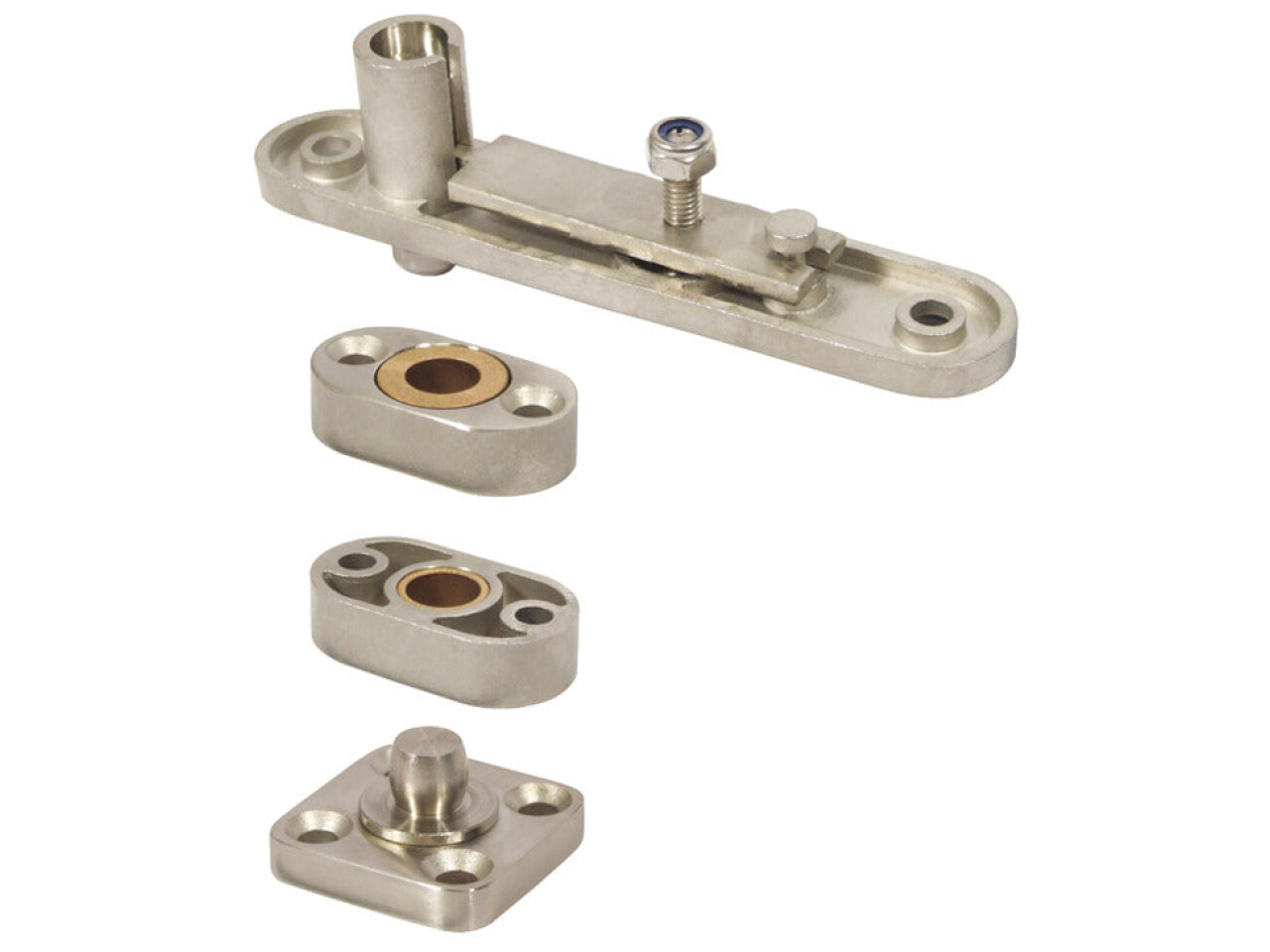

  • Supplied with: Set includes door bottom pivot, top centre and Ø 5 mm door bracketsFixings
