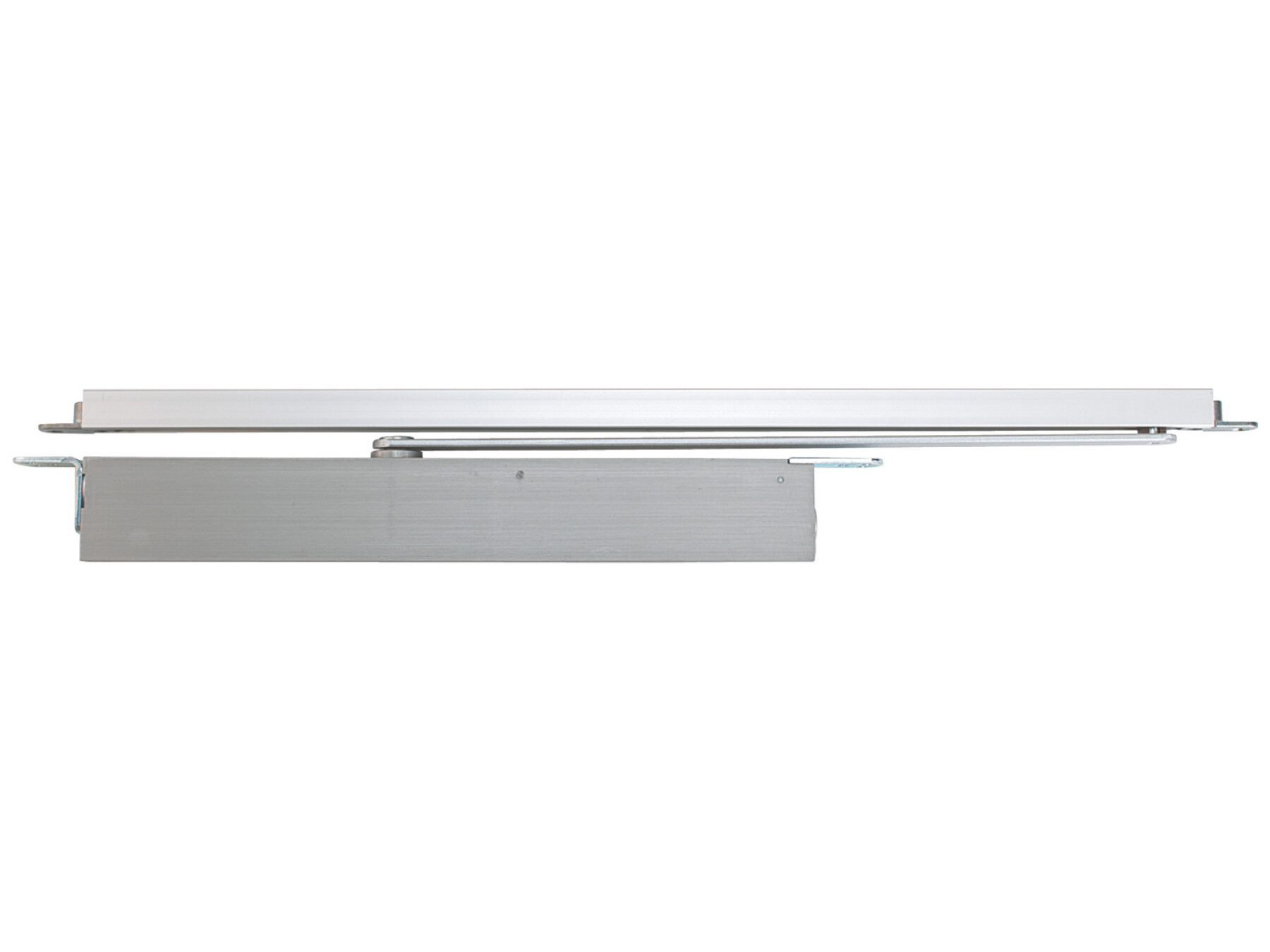

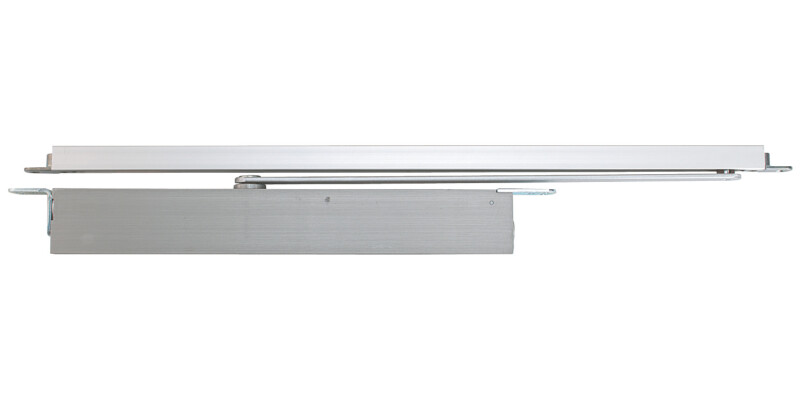

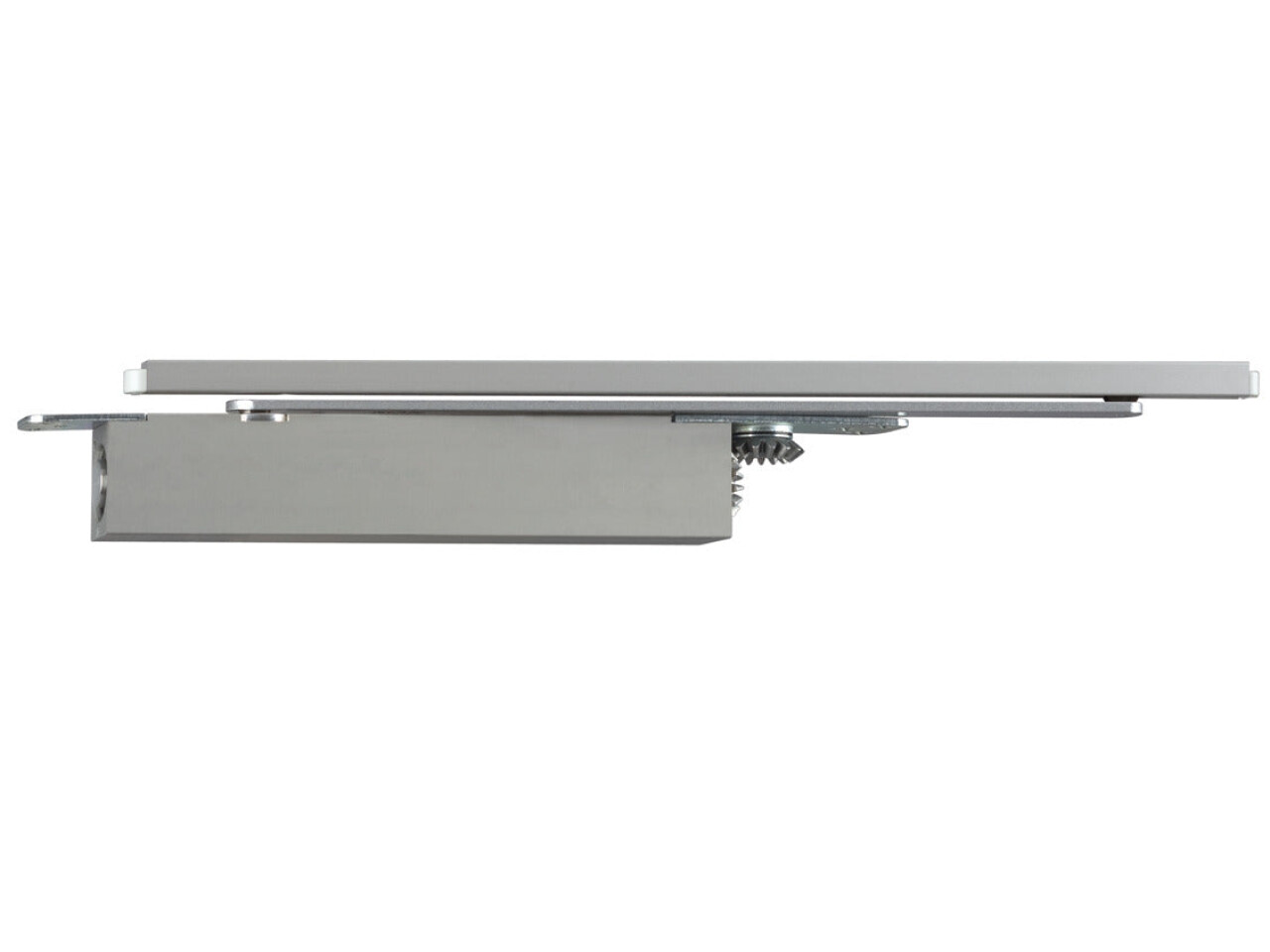

Electromechnical OH Dr Closer 2-4 Silver

Product Details

Specification:Concealed fixing cam action door closer with concealed guide rail arm for doors up to 1100 mm wide with adjustable closing force and latching action closing speed and adjustable hydraulic backcheck

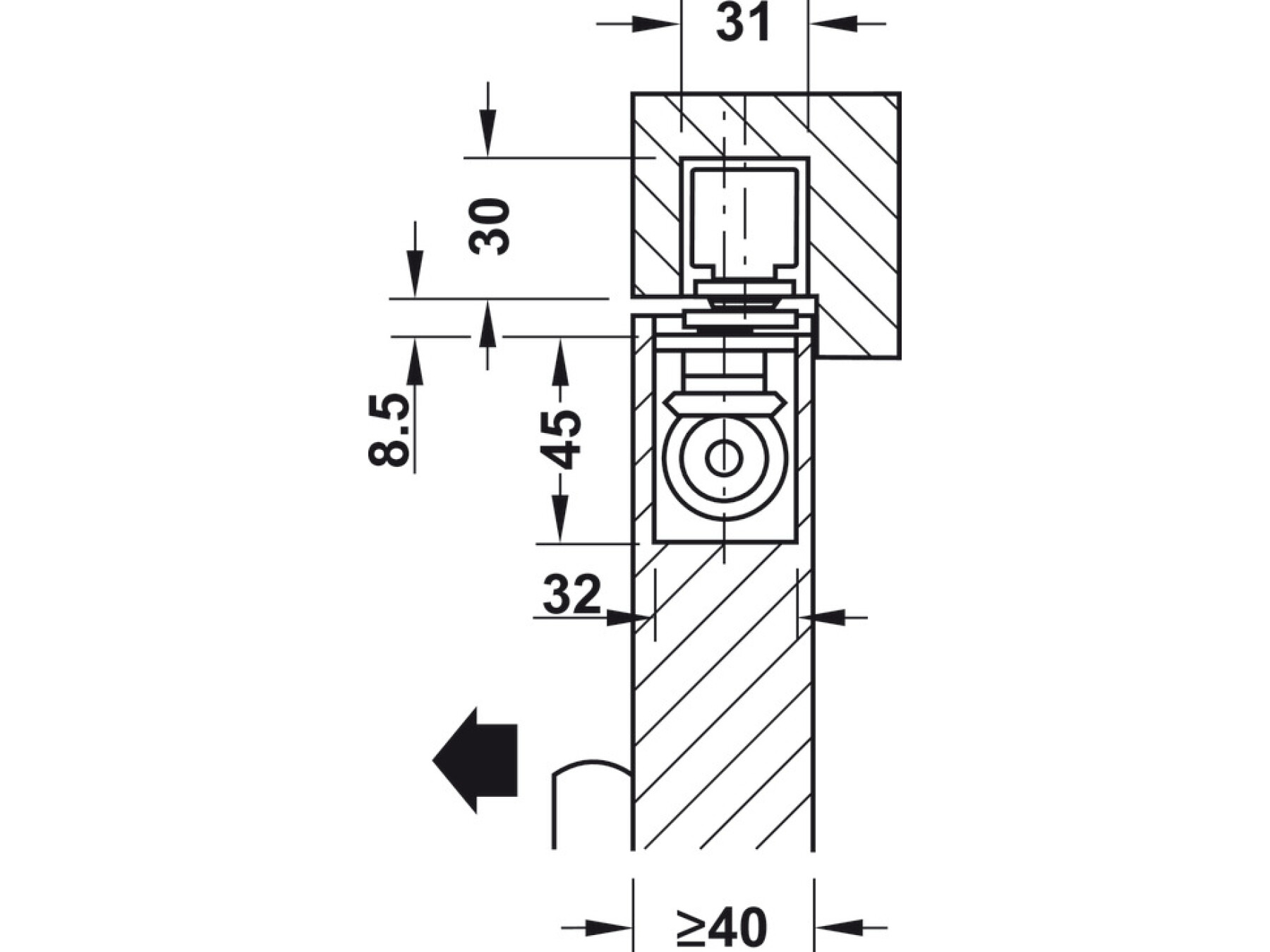

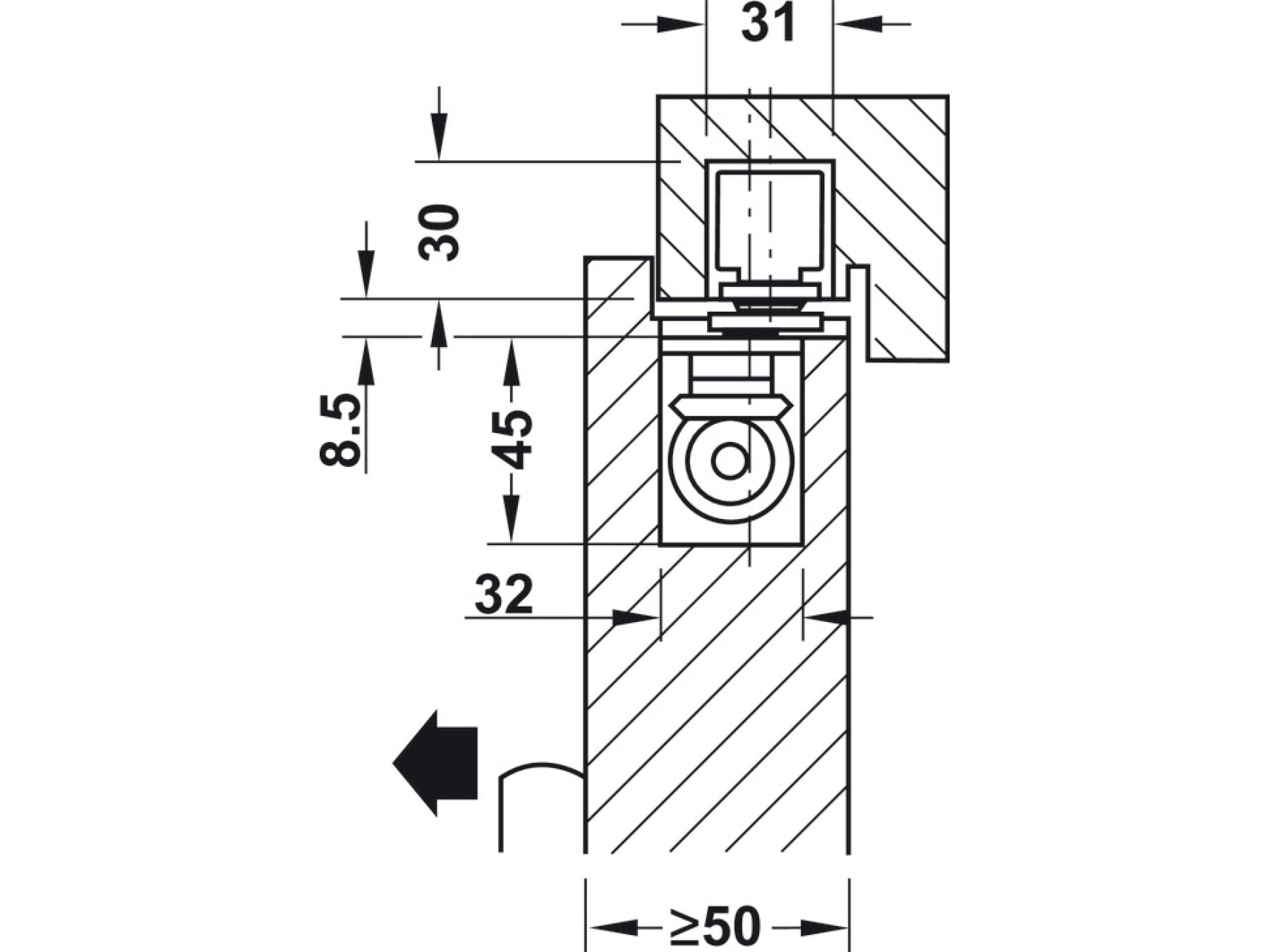

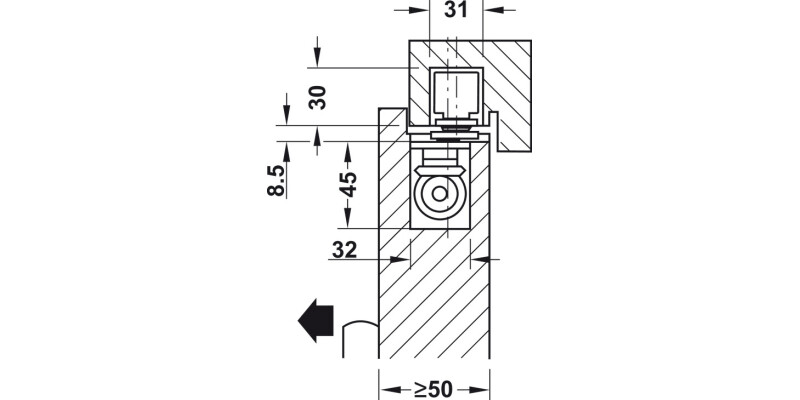

Suitable for doors over 40 mm thick
Hold open angle infinitely variable between 80° and 120°

Features:Cam action closer
Fully concealed guide rail arm
Closing force adjustable (size range EN 2-4)
Adjustable closing speed
Adjustable backcheck
Adjustable latching speed

Certification:Tested and approved to BS EN 1154: 1997
Tested to conform with CE requirements
Certifire approved; certificate no. CF242 60 mins

Electrical data:Operating voltage 24V DC ± 10%
Connecting load 100mA
Max. permissable ripple 20%
Rating 100%
Enclosure rating IP43
A suitable switch should be installed for test purposes

Adjustment facility

Specifications

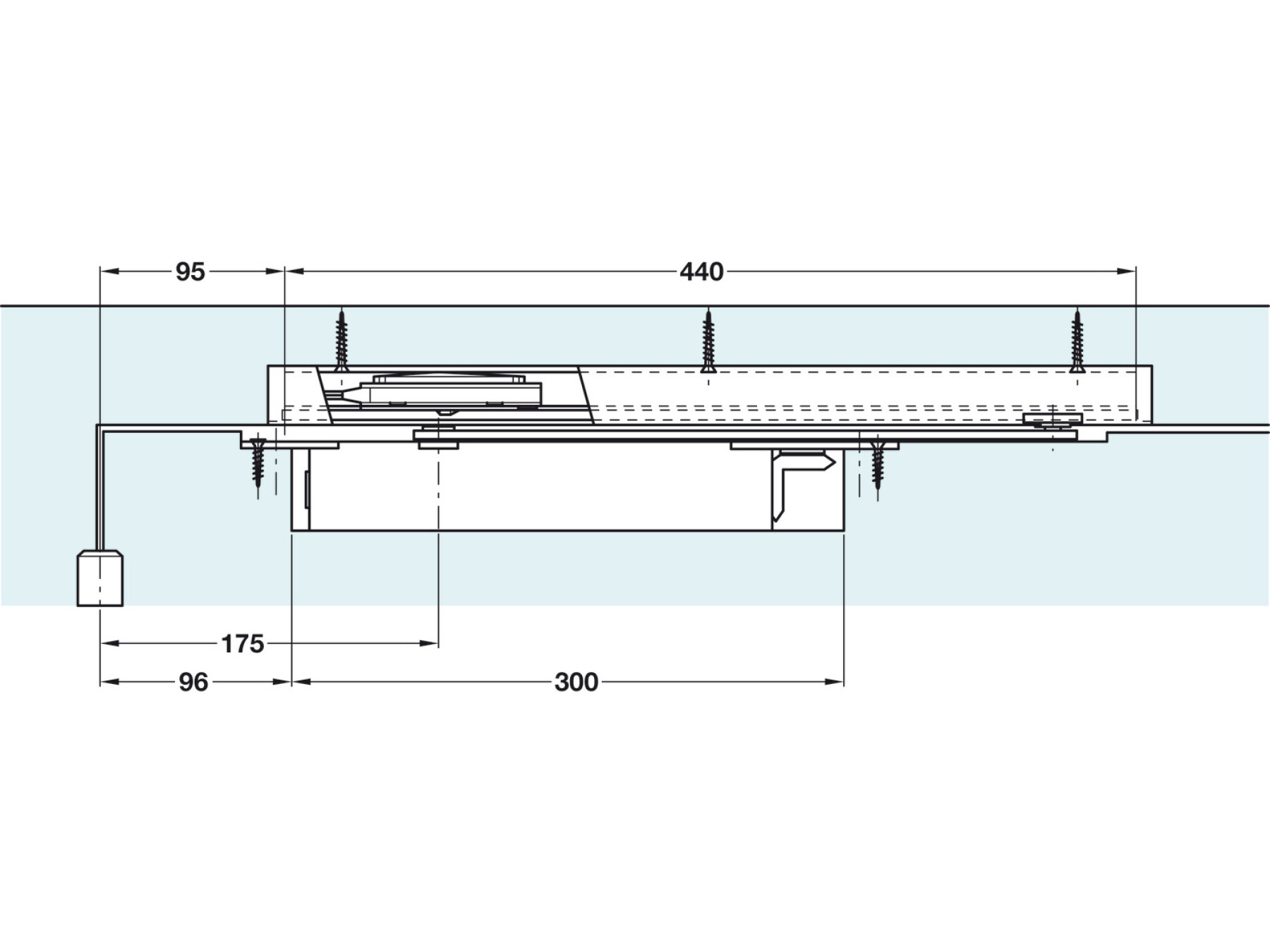

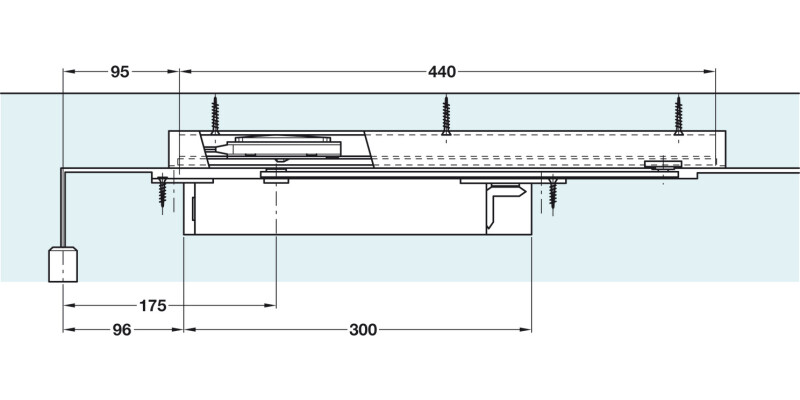

Mounting

Colour/finish

Fire resistance

Area of application

Version

For number of doors

Closing force

For door width

For door thickness

For door weight

Opening angle

Standard

Grade

Supplied with
