Concealed Mortice Hinge Set, for Flush Doors, CIR

Product Details

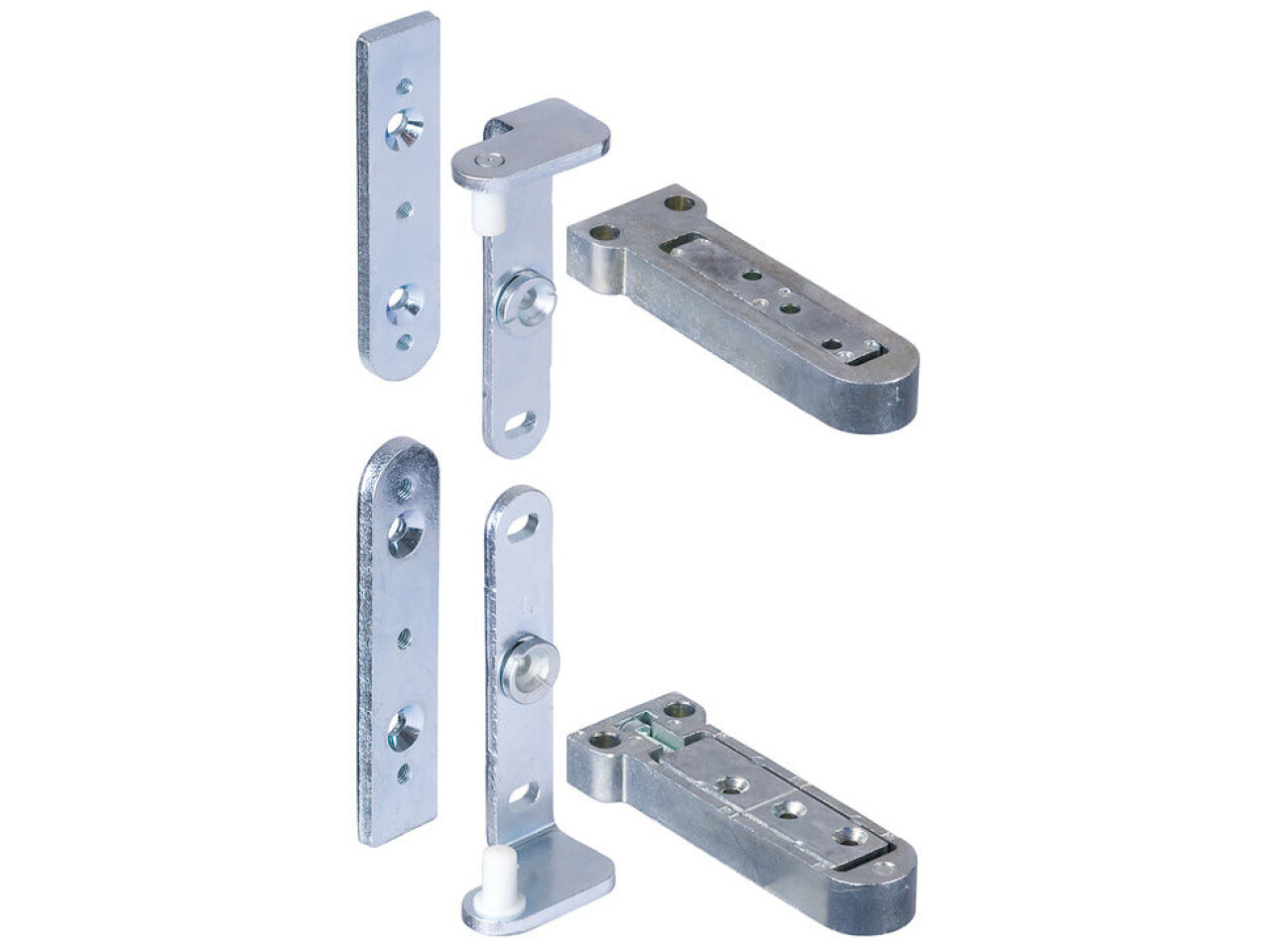

Concealed Mortice Hinge Set, for Flush Doors, CIR. (Part No: 927.54.090) is a premium solution for anyone fitting sleek, flush doors that demand a clean, concealed look. Designed for unhanded installation, this hinge set is suitable for left or right hand use, making it an excellent choice for both straightforward residential projects and demanding commercial interiors.

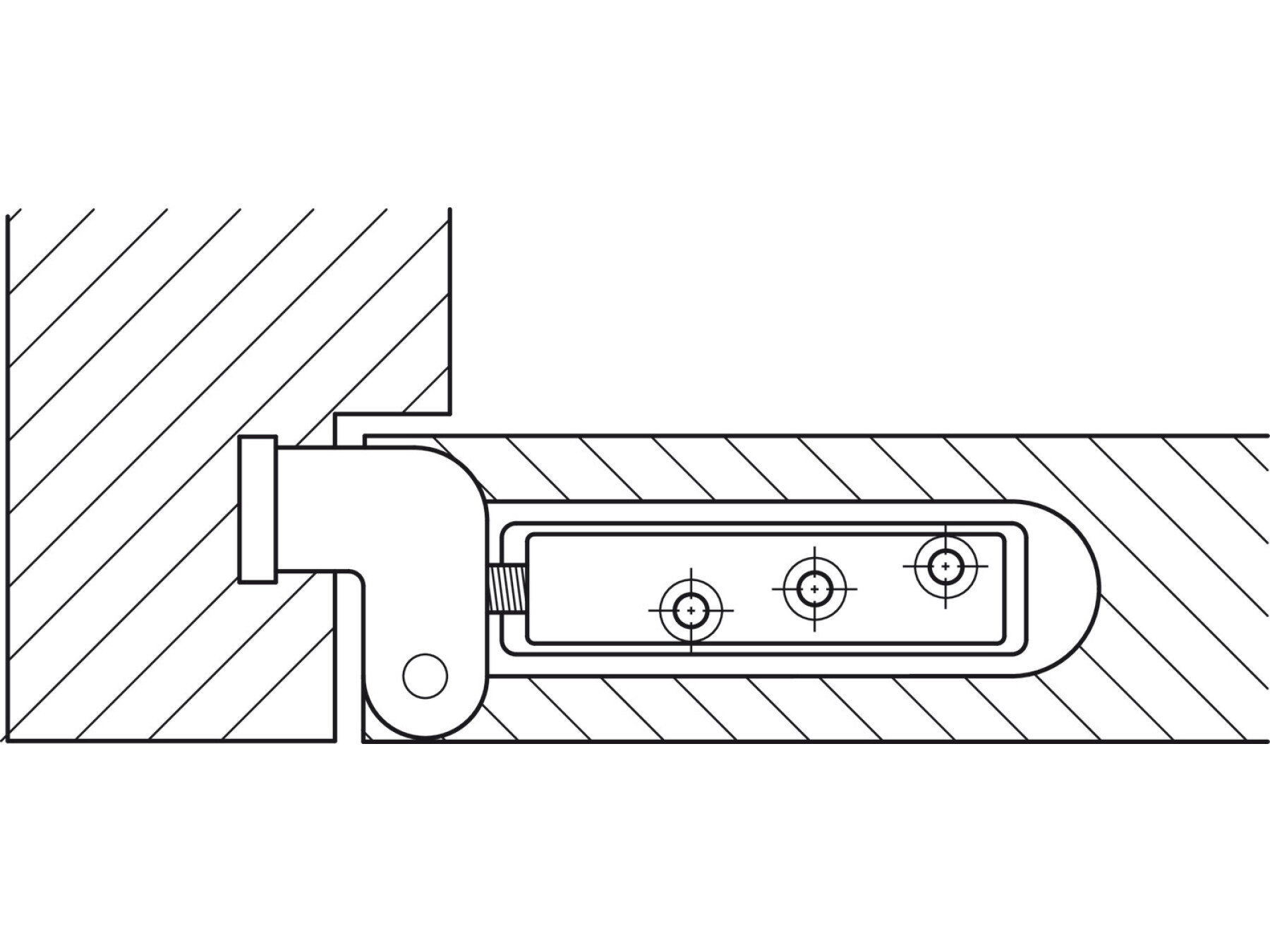

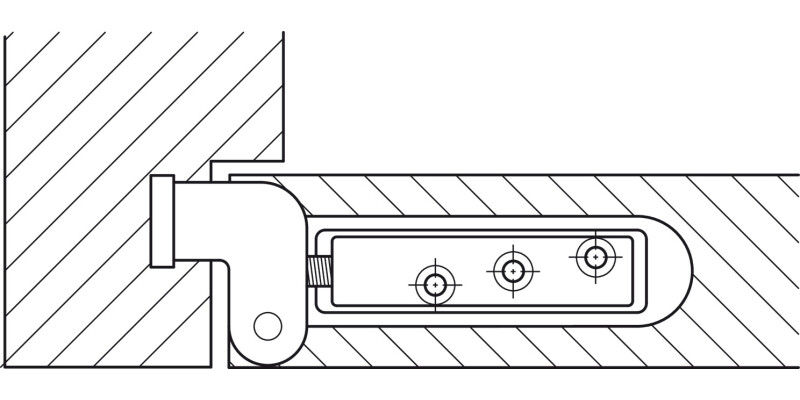

Built around a durable steel core and finished in a zinc plated (galvanized) protective layer, these concealed hinges help resist wear while delivering a refined performance over time. The set is part of the CIR model family and is engineered for concealed mounting of flush doors—so the hardware stays out of sight and the door surface remains uninterrupted.

Smooth, maintenance-free operation is supported by a maintenance-free bearing, helping the hinge action feel consistent day after day. Installation is straightforward: mounting is specified for DIN left and DIN right hand configurations, with the correct fit supported by the hinge’s engineered design.

For performance and longevity, this hinge set includes practical adjustment facilities: 2D adjustment with Side movement of 3 mm and closing pressure tolerance of ±1.5 mm. With a maximum door weight of 70 kg for 2 hinges, it’s suitable for a wide range of flush door applications.

Supplied with fixings included, you’ll have what you need to get started. Please note that order cover caps and a routing jig separately to complete the flush door installation to a professional standard.

Order cover caps and routing jig separately

Fixings included
