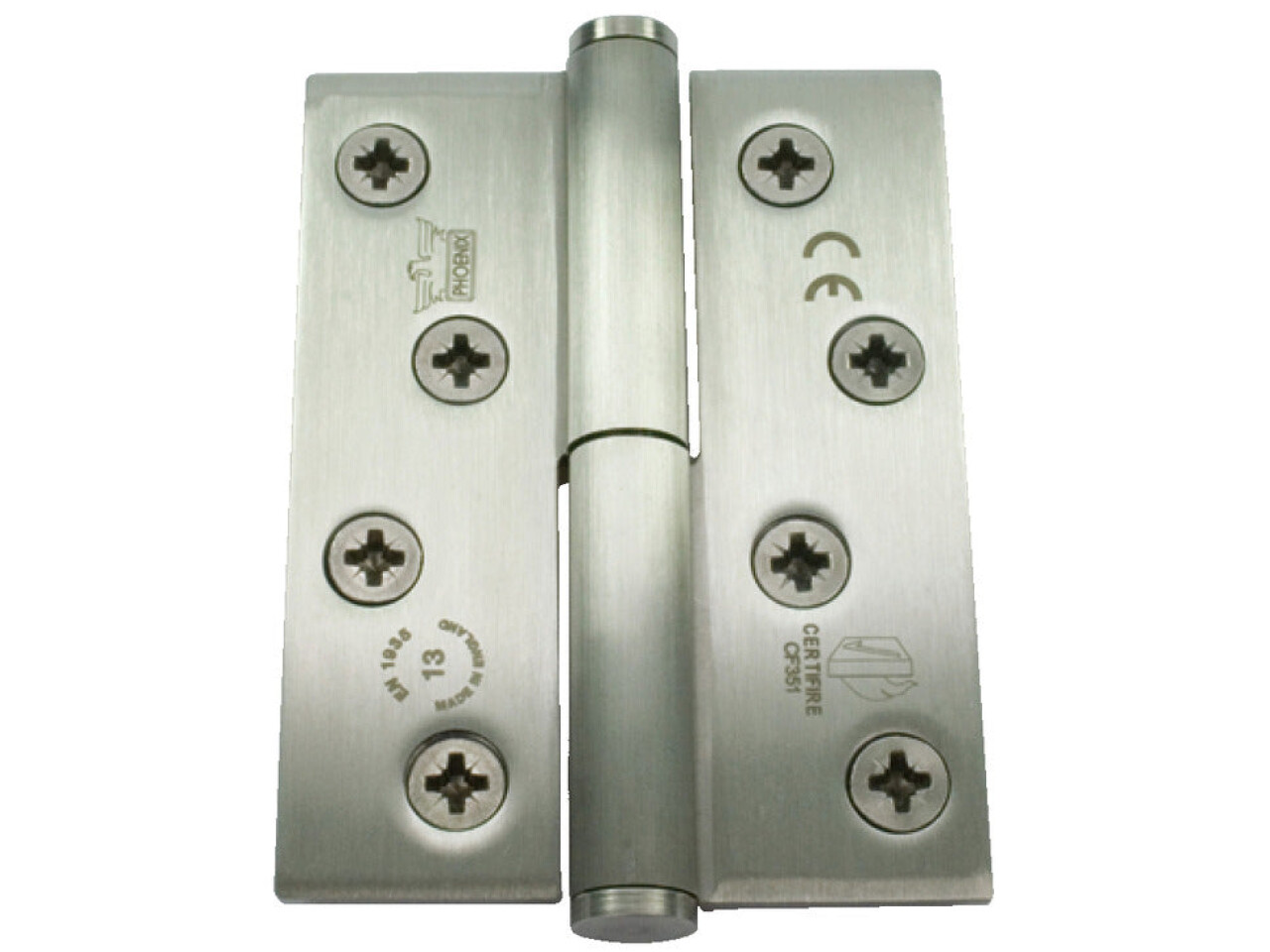

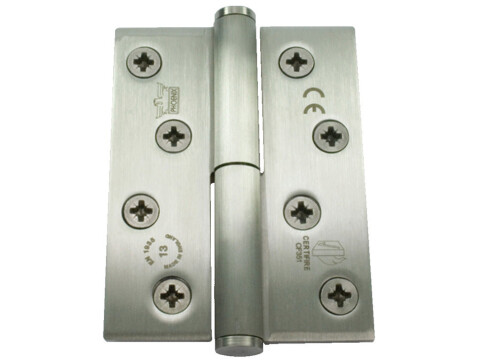

Butt Hinge, Concealed Bearing, Lift Off, 102 x 76 mm, Grade 304 Stainless Steel

Product Details

Which way does the hinge close and what does anti clockwise mean?

The Butt Hinge LiftOff 102x76mm is designed for anti clockwise closing. This refers to the hinge action when installed on the door in the specified handed configuration. If you are matching existing hardware, double check your hinge handedness before fitting to avoid reversing the door swing.

Does the Lift Off design make it easier to remove the door?

Yes. The LiftOff feature is intended to allow the door to be lifted out of the hinge for servicing or cleaning. This can be especially useful for maintenance access and periodic upkeep in commercial and residential settings.

Will it suit my door thickness?

This hinge is suitable for doors with a thickness of at least 35 mm. If your door is thinner than this, the hinge components may not sit correctly or provide the intended alignment.

How does the staggered hole pattern help with installation?

The staggered hole pattern supports accurate positioning during fixing and helps installers line up the hinge leaf with the corresponding door and frame preparations. It is also helpful when fitting to existing architectural ironmongery layouts.

What is the finish and why does it matter?

The hinge is supplied with a satin finish. Satin surfaces are commonly chosen because they help reduce the look of fingerprints and minor surface marks compared with higher gloss finishes, while still providing a neat architectural appearance.

Is the stainless steel grade suitable for everyday corrosion resistance?

It is made from ACW 304 stainless steel (also known as 1.4301/AISI 304). This grade offers good resistance to everyday corrosion and is a popular choice for architectural door hardware, helping it maintain a clean look over time.

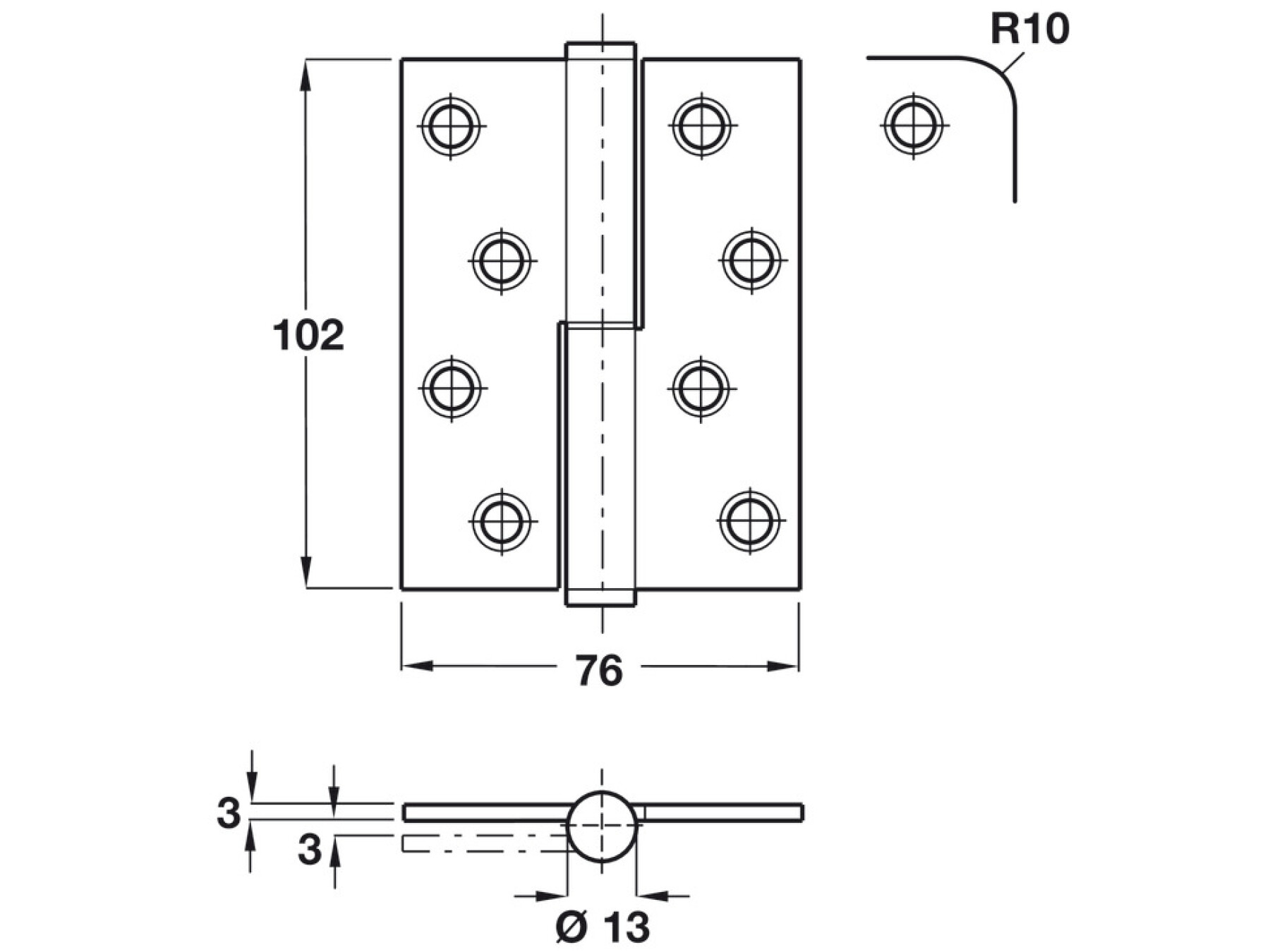

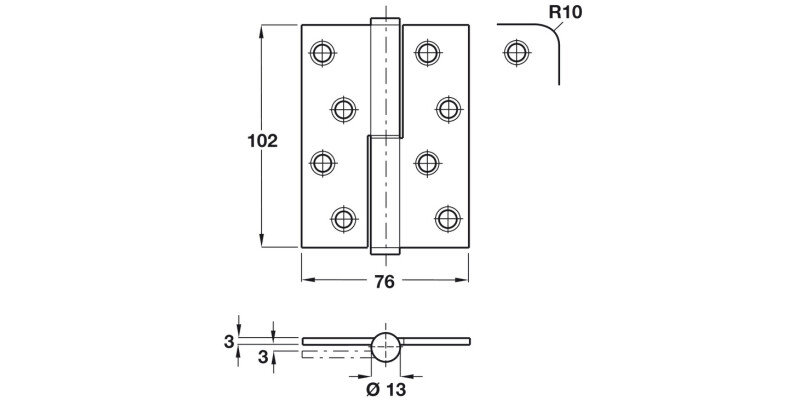

What size hinge is this and where would it typically be used?

The hinge size is 102x76 mm, making it appropriate for many standard butt hinge applications where these dimensions match the door and frame preparation. It is a practical option when you are selecting architectural hinges for a consistent, balanced look.

Is the hinge supplied with fixings and is it ready to install?

It is supplied with fixings. Having the correct fixings included helps you complete the installation more smoothly, especially when replacing or upgrading existing architectural ironmongery.
