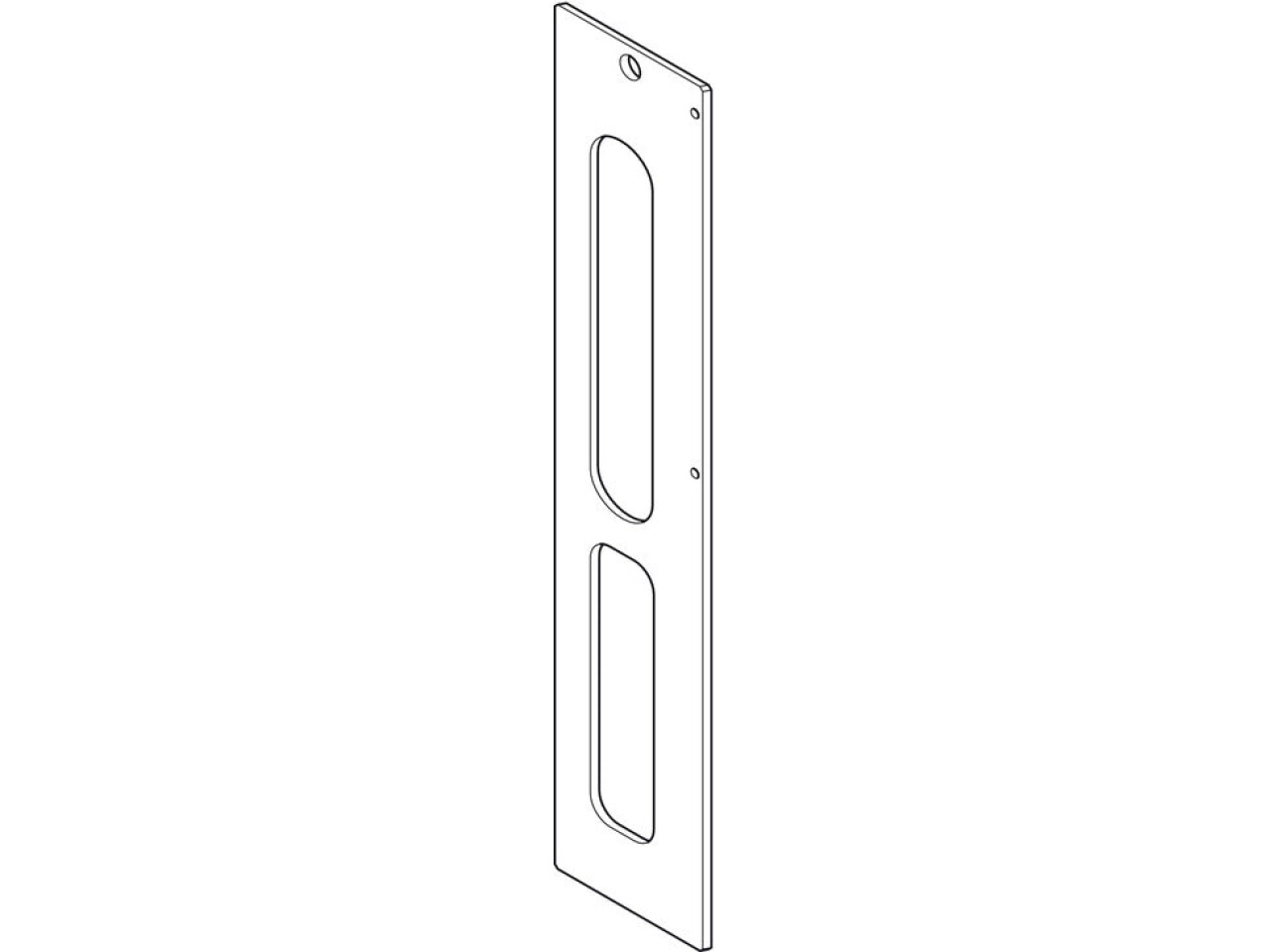

Template Set, Door and Frame, for Tectus TE 540 A8 Hinge
Part Number: 924.17.629
For routing the hinge recess, For Tectus TE 540 3D, includes templates for steps 1 and 2
Price:
£182.82
Per Item
Template Set, Door and Frame, for Tectus TE 540 A8 Hinge (Product Part No: 924.17.629) is an essential solution... Read More
Product Information
Product Details
Template Set, Door and Frame, for Tectus TE 540 A8 Hinge (Product Part No: 924.17.629) is an essential solution for anyone fitting TECTUS TE 540 3D hardware with professional accuracy. Designed to make preparation effortless, this template set guides you in routing the hinge recess correctly—helping you achieve a clean, precise finish on every installation.
The Template Set, Door and Frame, for Tectus TE 540 A8 Hinge subtitle—“For routing the hinge recess, For Tectus TE 540 3D, includes templates for steps 1 and 2”—says it all. You get the right templates for the key stages of the process, supporting efficient work from start to finish and reducing the guesswork that can lead to misalignment or time-consuming corrections.
Product category: Template Set (for Architectural Ironmongery and Door Hinges). It’s purpose-built for use where accuracy matters, especially during recess preparation and hinge fitting on compatible doors and frames.
Area of application: Suitable for TECTUS TE 540 3D FIRE, giving you confidence when working with fire-rated requirements where correct installation is non-negotiable.
Material: Made from Aluminium, the templates provide a durable, reliable guide for consistent results. With a sturdy build designed for workshop or site use, they’re made to support repeatable performance on multiple installations.
Choose the Template Set, Door and Frame, for Tectus TE 540 A8 Hinge to streamline hinge recess routing, improve fit quality, and help you complete your project faster—with the accuracy your customers expect.
Specifications
Product category
Template Set
Area of application
Suitable for TECTUS TE 540 3D FIRE
Material
Aluminium
Colour/finish
FAQ
Product Details
Which hinge recess template does the Tectus TE540 3D Dr/Frm Template Set support?
It is designed for routing the hinge recess for the Tectus TE 540 3D FIRE system. The set includes templates specifically to help you complete the process in step 1 and step 2, making it easier to achieve accurate hinge positioning.
Is this template set compatible with Tectus TE 540 3D FIRE?
Yes. This template set is intended for use with Tectus TE 540 3D FIRE, supporting correct alignment when preparing the door and frame for the hinge.
What is included in the box for part number 924.17.629?
The set includes templates for the hinge recess routing process for step 1 and step 2. These templates are made to help you mark and route recesses in line with the TE 540 3D method, so you can proceed through the fitting stages with less guesswork.
Do I need to use all the templates, or can I use only one?
To follow the intended TE 540 3D fitting sequence, it is recommended to use the templates for the specified steps. Since this set includes templates for steps 1 and 2, using the correct template at each stage helps maintain consistency from marking through routing.
What material are the templates made from, and does it affect use?
The templates are made from aluminium. This provides a rigid, accurate template base for repetitive marking and routing tasks, helping you maintain clean, consistent hinge recesses during installation.
Will this template set help ensure correct alignment during installation?
Yes, when used as part of the TE 540 3D workflow. Template sets like this are commonly used to reduce variation by guiding routing locations, which can help you achieve the correct hinge alignment on the door leaf and frame.
Why choose a TE540 3D specific template set instead of measuring manually?
Using the correct template set helps you route recesses more accurately and consistently. Compared with manual measuring, templates can simplify setup and reduce the risk of misalignment, making this an efficient choice for installers fitting the Tectus TE 540 3D FIRE hinge system.
