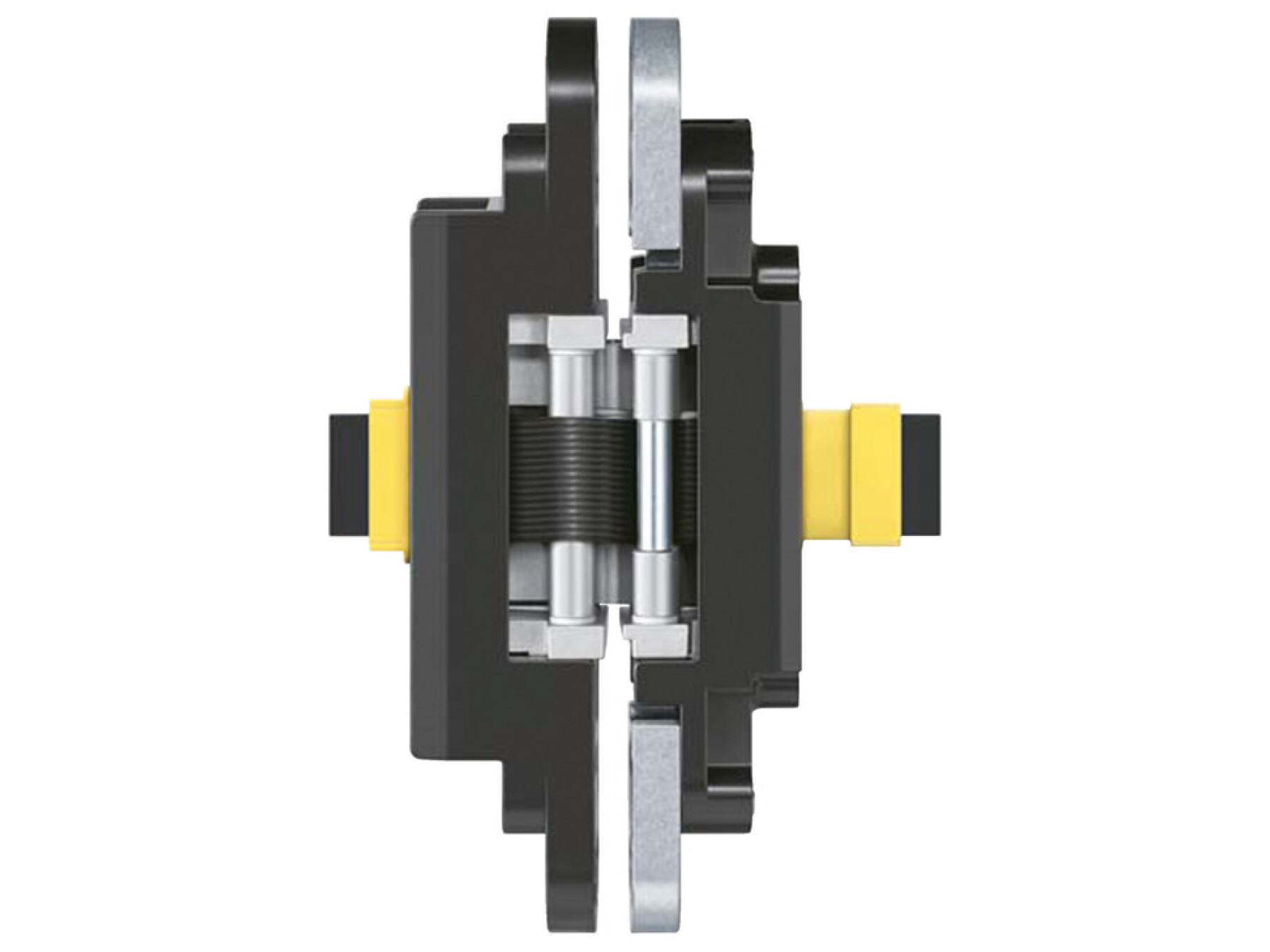

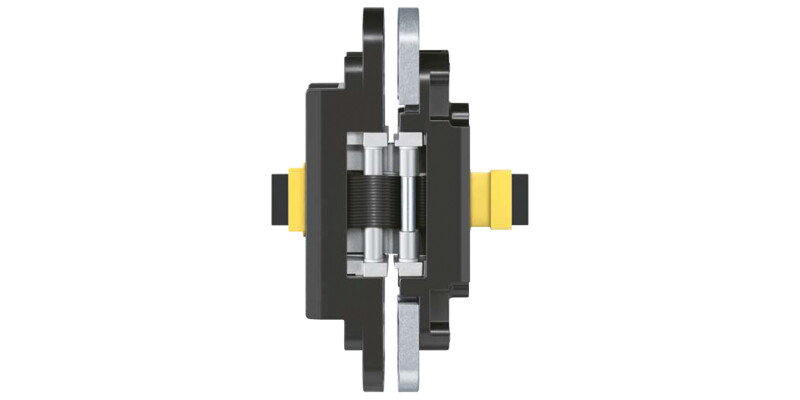

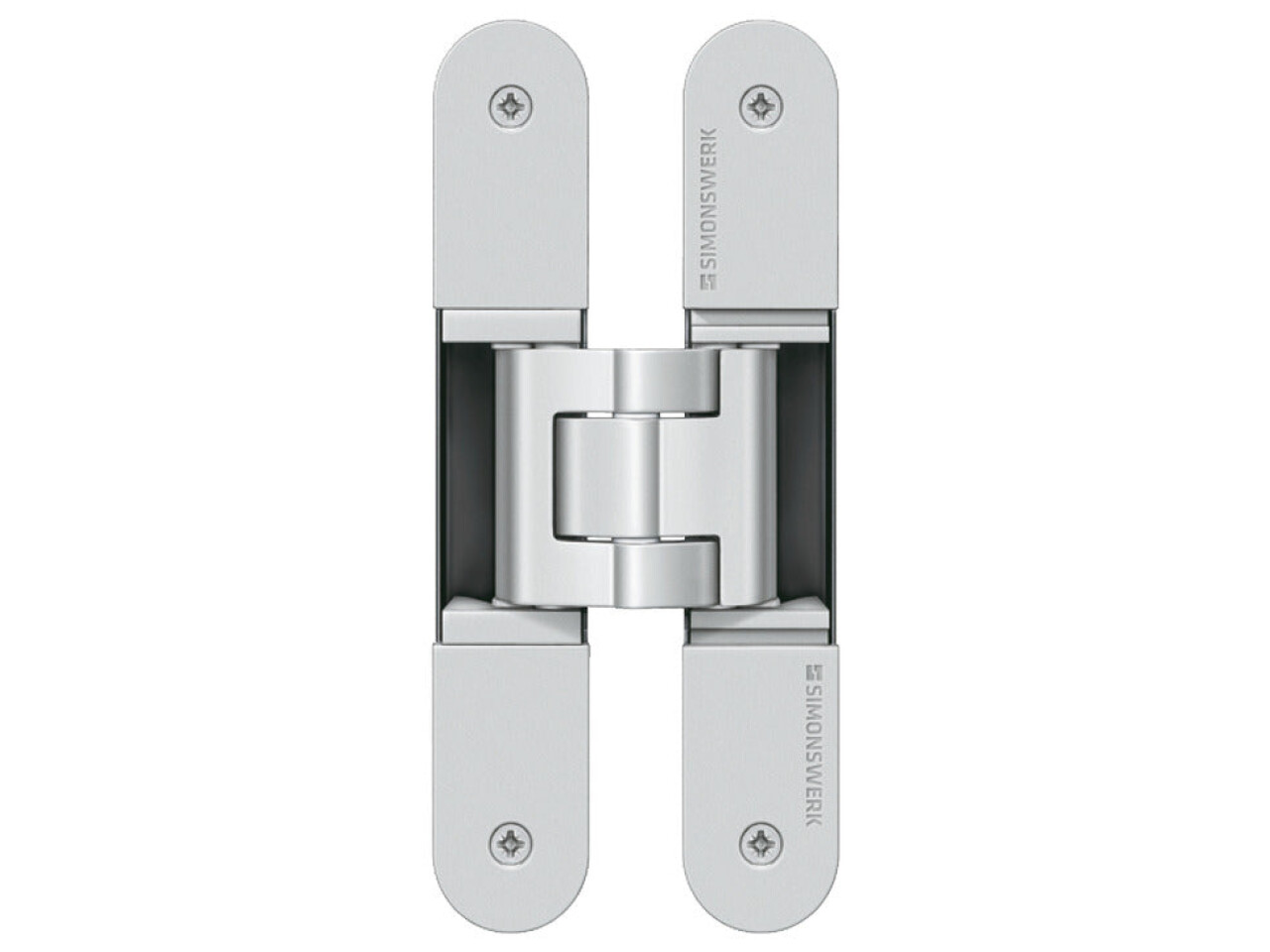

Tectus TE340 3D 180D Energy Hinge SSSE

Part Number: 924.17.245
3-way continuous adjustment, Satin stainless steel effect
Price:
£238.48
Per Item
VAT excluded

With permanent energy transferMaintenance free friction bearingsSuitable for left or right hand applicationsMax.... Read More

Product Information

Product Details

With permanent energy transfer
Maintenance free friction bearings
Suitable for left or right hand applications
Max. adjusted door weight 80 kg
FD 30 fire rated when installed with intumescent kit, cat. no. 924.17.197

Specifications

Material

Aluminium, Steel, Zinc, Die-cast

Area of application

For wooden, steel or aluminium frames
For flush doors

Opening angle

180.00 °

Door thickness

≥40 mm

Adjustment facility

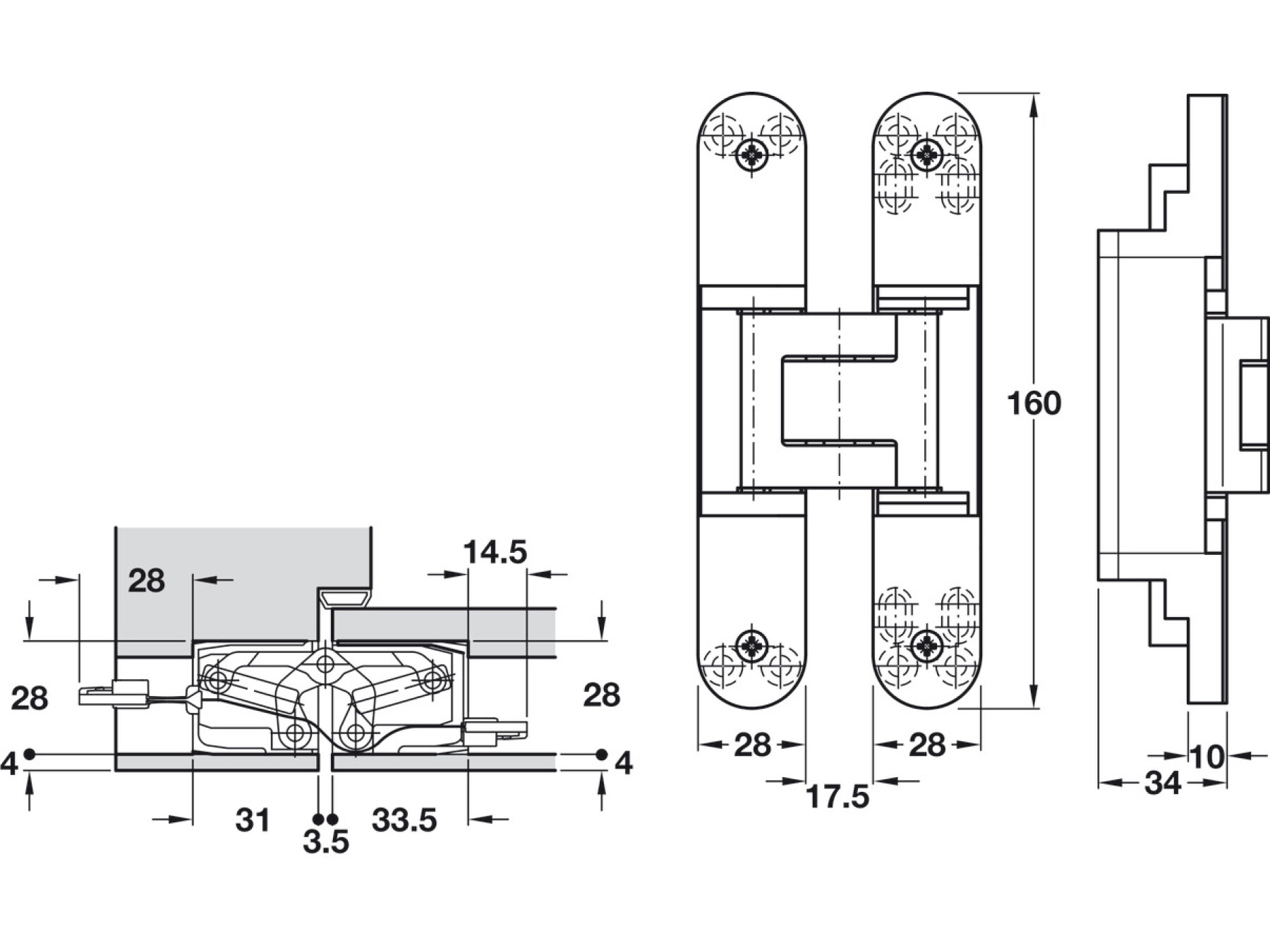

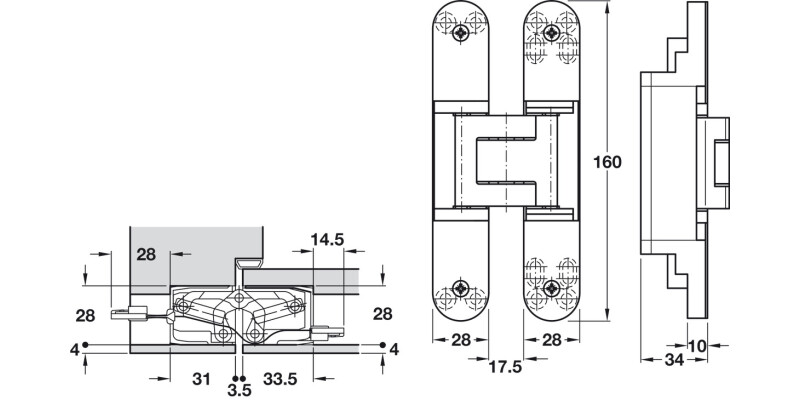

3-way continuous adjustment: Vertical: ± 3 mm, Horizontal: ± 3 mm, Depth: ± 1.0 mm

Supplied with

Fixings
