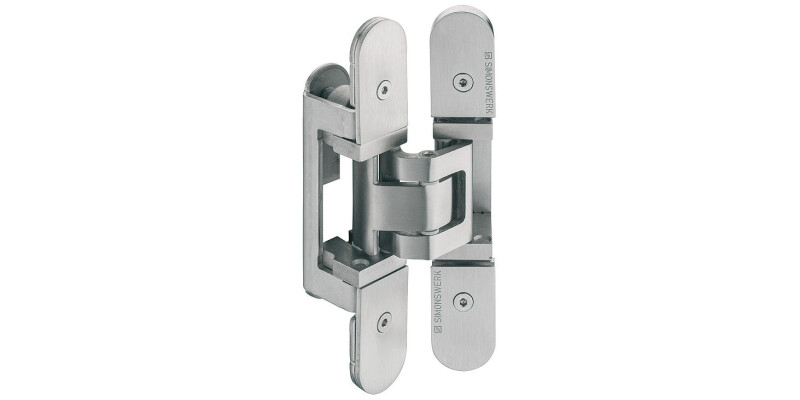

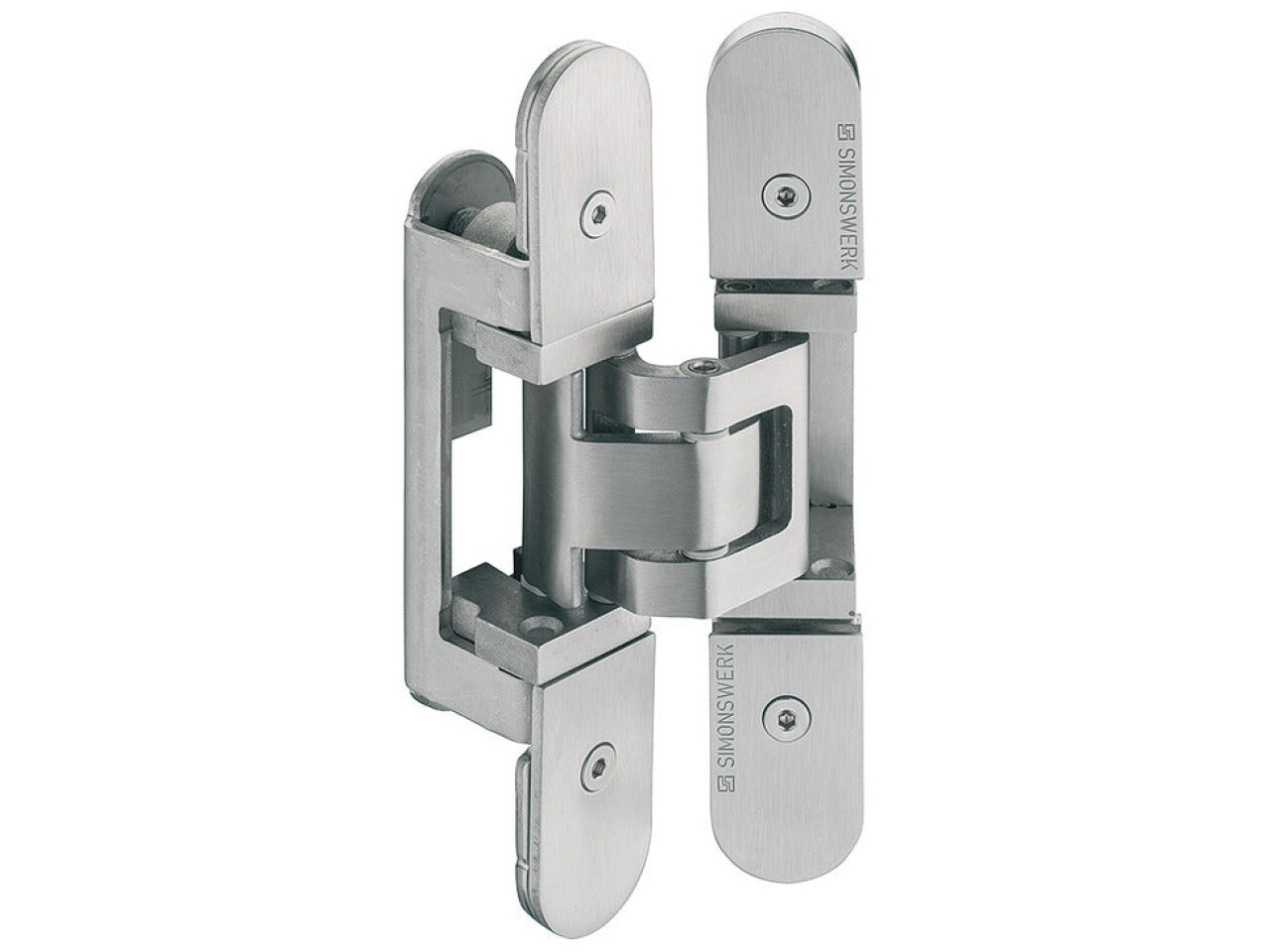

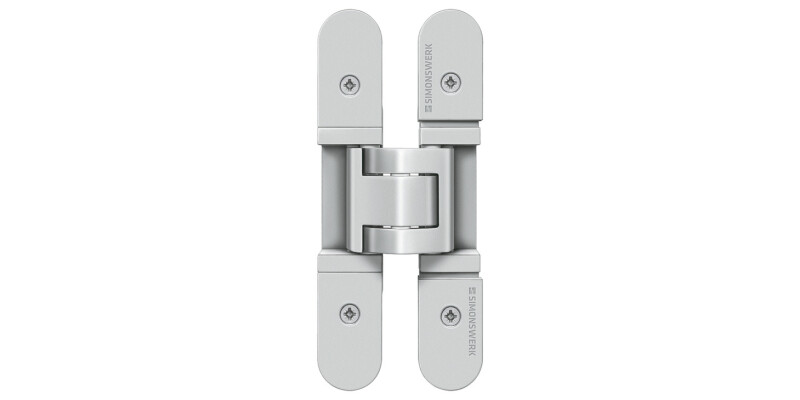

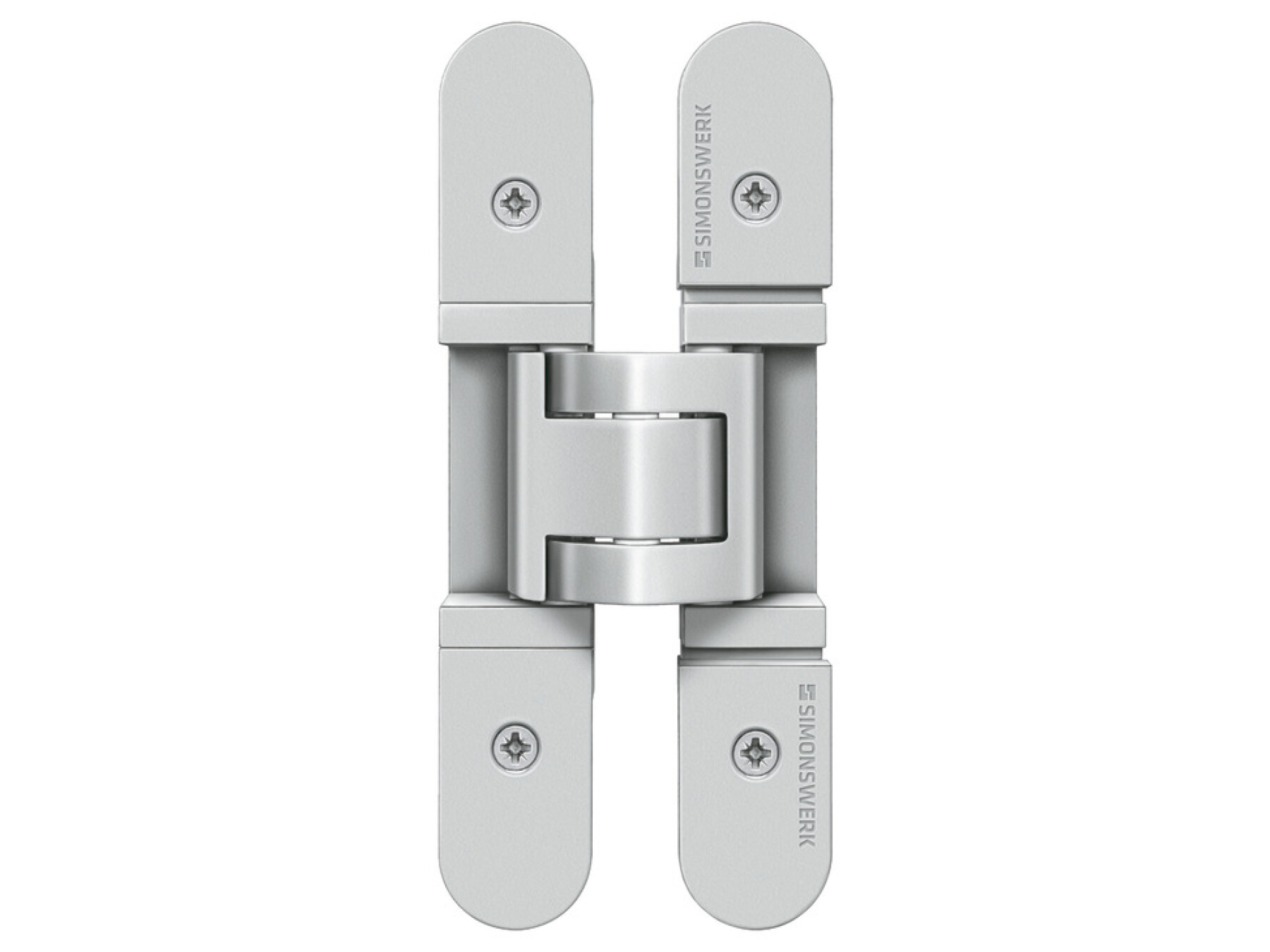

Tectus TE527 3D 180D Hinge SSSE
Part Number: 924.16.403
3-way continuous adjustment, Stainless steel effect
Price:
£266.18
Per Item
Suitable for left or right hand applicationsMaintenance-free friction bearings
Product Information
Product Details
Suitable for left or right hand applications
Maintenance-free friction bearings
Specifications
Colour/finish
stainless steel effect
Material
Stainless steel
Model
TE 527
Model series
Tectus TE 525 3D
Area of application
For wooden, steel or aluminium frames
For flush doors
Opening angle
180.00 °
Door thickness
≥40 mm
Adjustment facility
3D
Order reference
FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately
Supplied with
Fixing screws included for frame and door part
