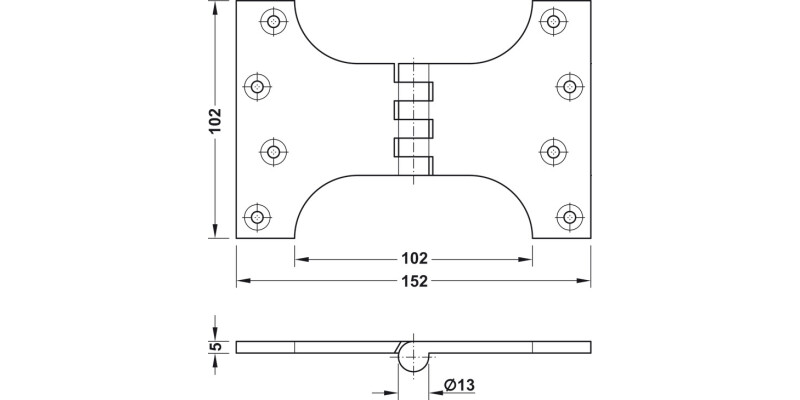

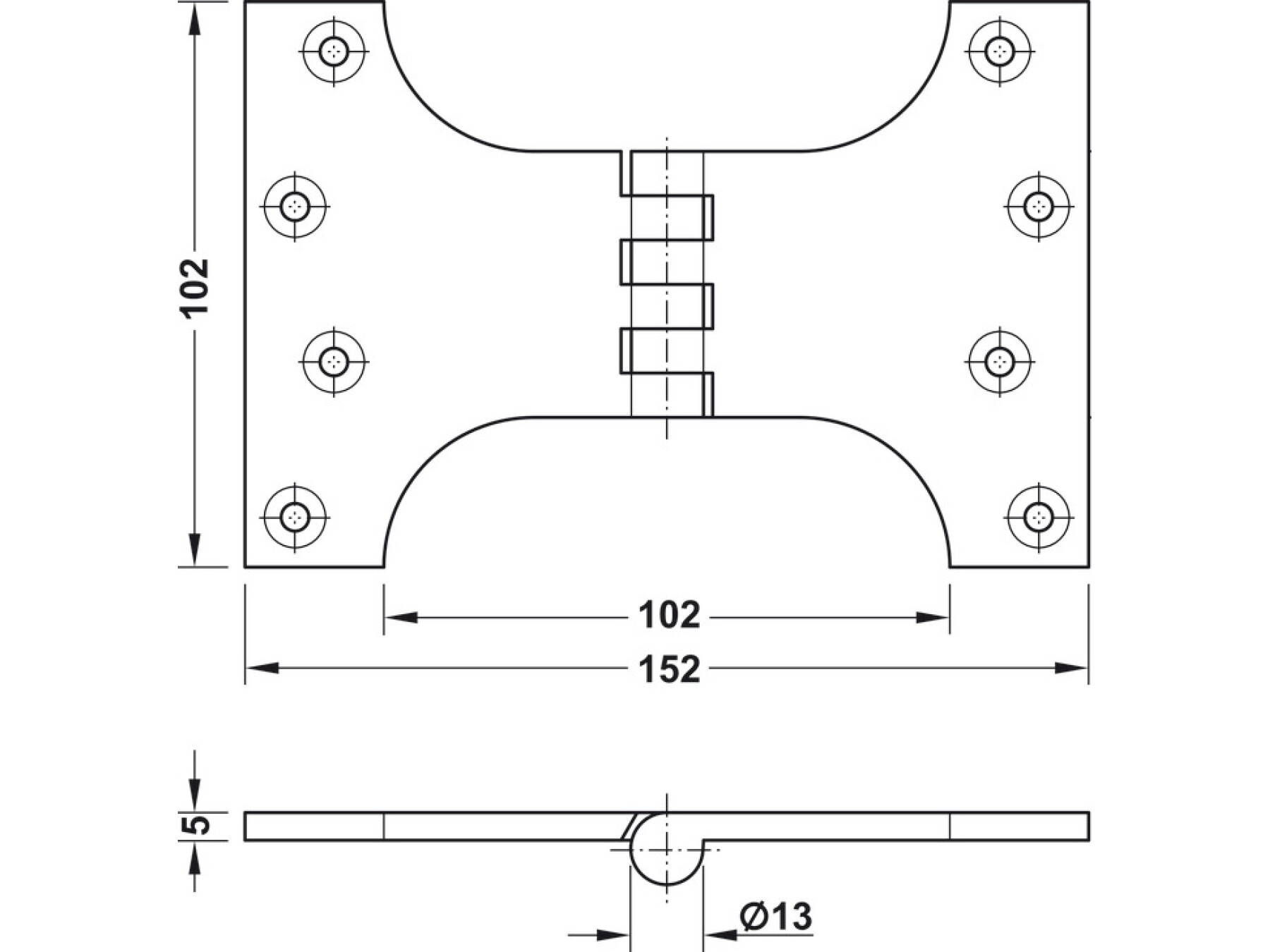

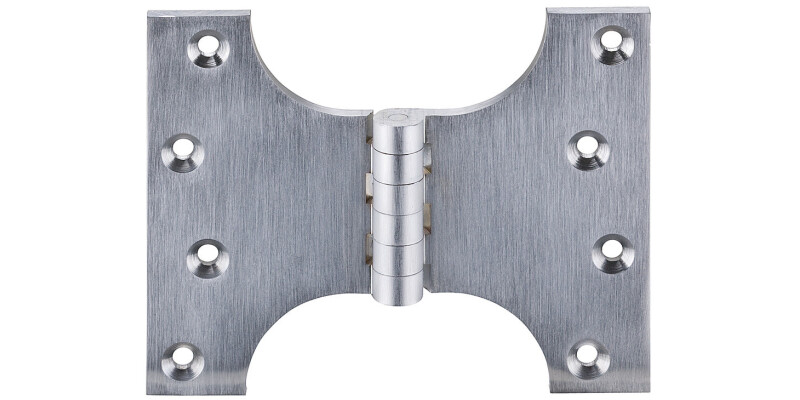

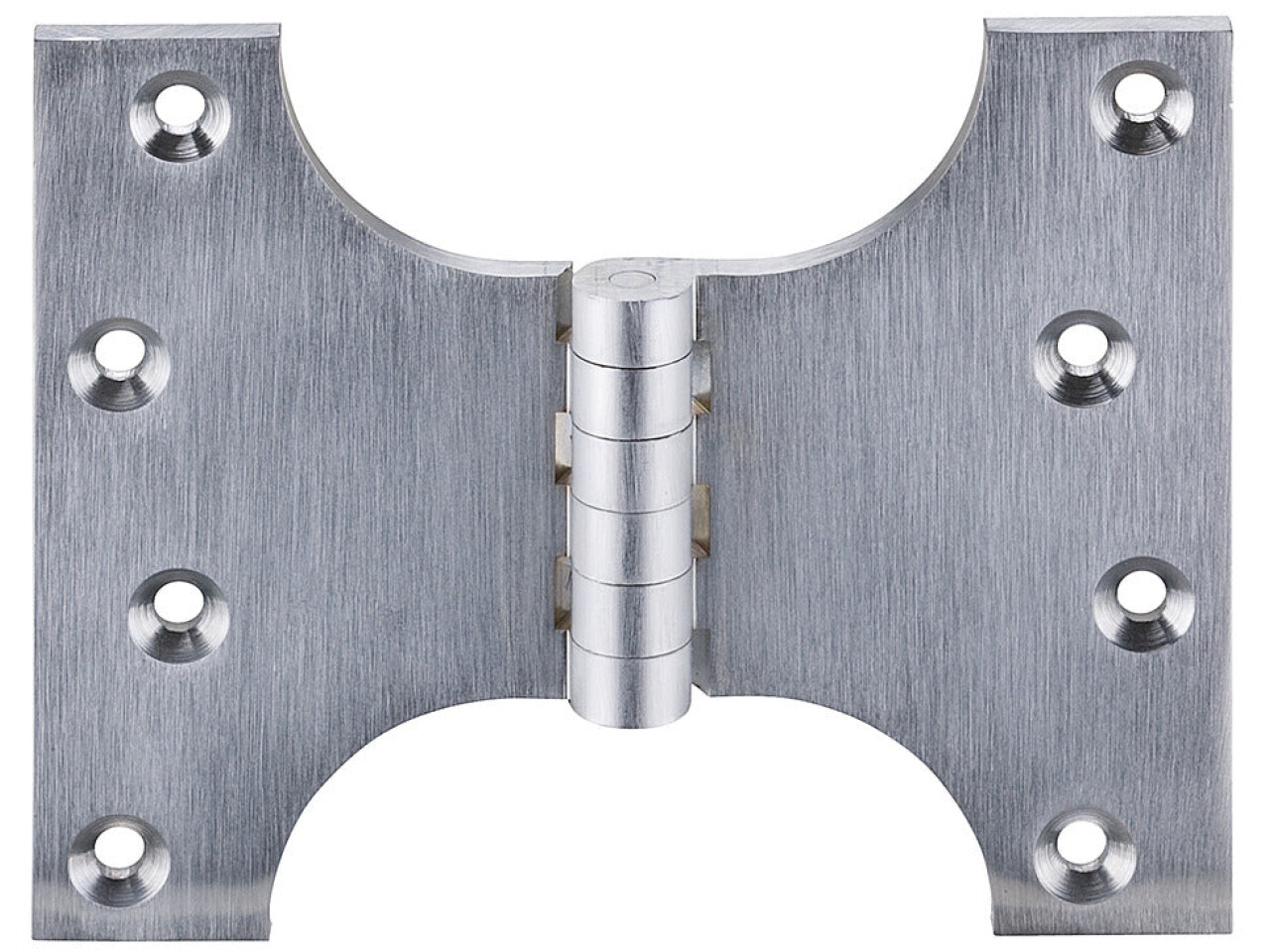

Parliament Hinge 102x152mm Brass SC
Part Number: 921.08.614
Brass pin, Length x width: 102 x 152 mm, satin chrome
Price:
£110.48
Per Item
Brass pinBecause of the short hinge knuckle this hinge can not sustain excessive loads or extra wide doors. If in... Read More
Product Information
Product Details
Brass pin
Because of the short hinge knuckle this hinge can not sustain excessive loads or extra wide doors. If in doubt please consider extra wide projection hinges
Specifications
Mounting
For DIN left and DIN right hand use
Door width max.
1,000.00 mm
Flange shape
square
Material
Brass
Knuckle diameter
13.00 mm
Flange thickness
5.00 mm
Flange height
102 mm
Model series
Butt hinge
Area of application
Suitable for lightweight applications only
For door type
Wooden door leaf, metal door
For frame type
Wooden frame, Metal frame
Max. door weight for 3 hinges
35.00 kg
Door thickness
≤1,000 mm
Bearing type
With fixed pin
Supplied with
Fixing screws
