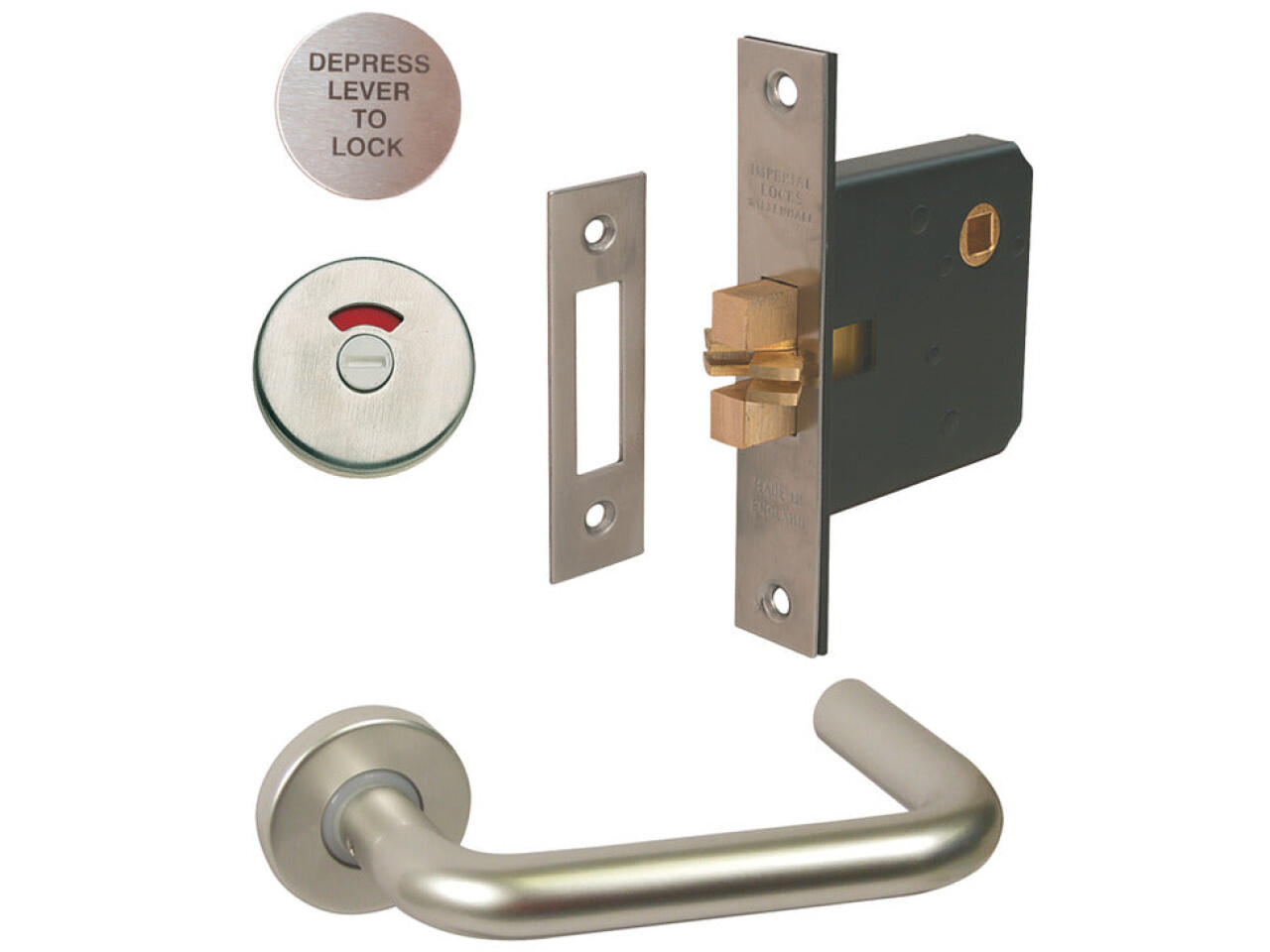

Disabled WC Lever Handle+Lock Set UH SSS
Part Number: 911.78.019
Satin stainless steel finish
Price:
£90.11
Per Item
This set is designed for use on swing, pivot, straight sliding and leaf and a half sliding/folding door setsWith... Read More
Product Information
Product Details

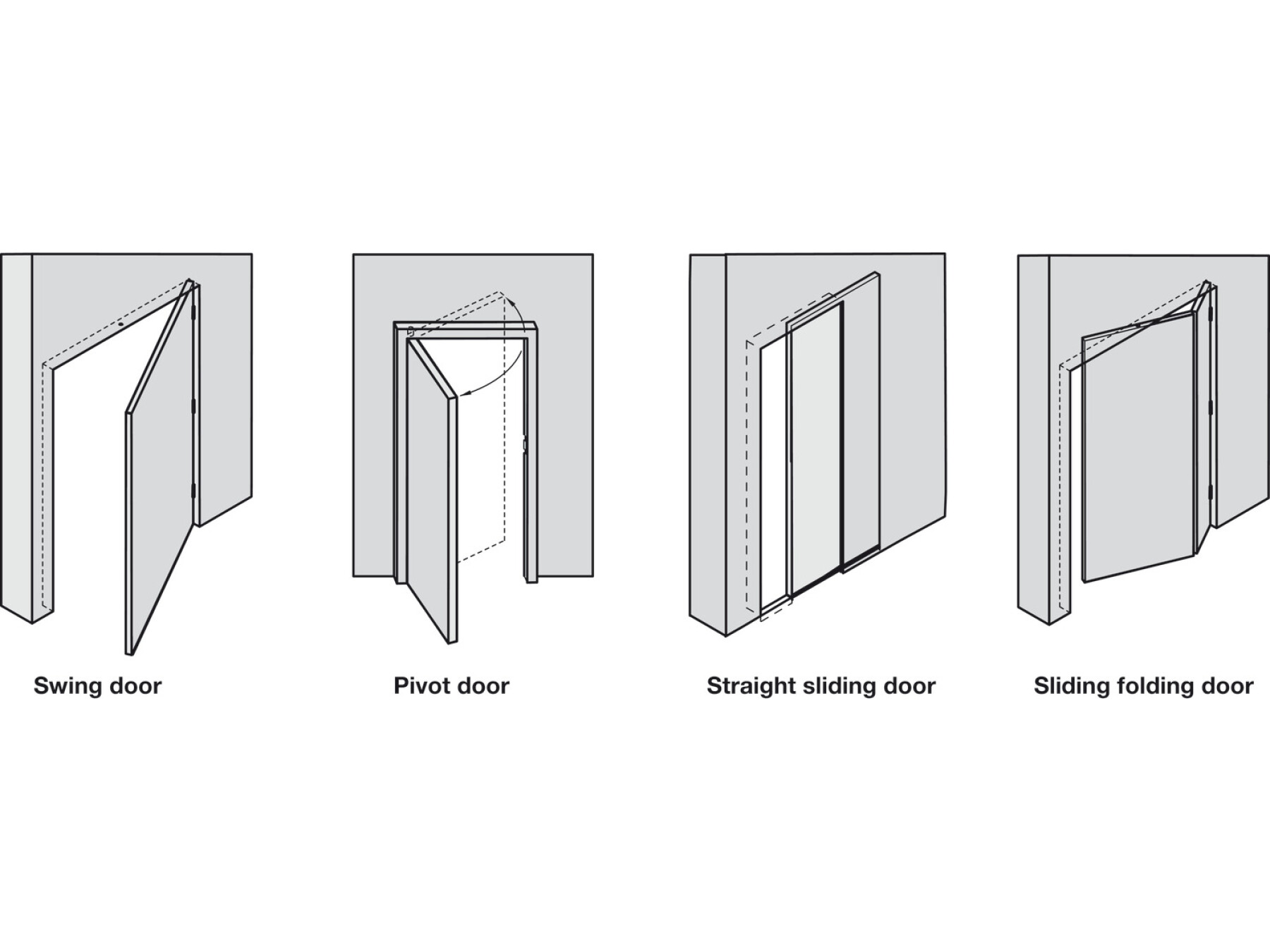

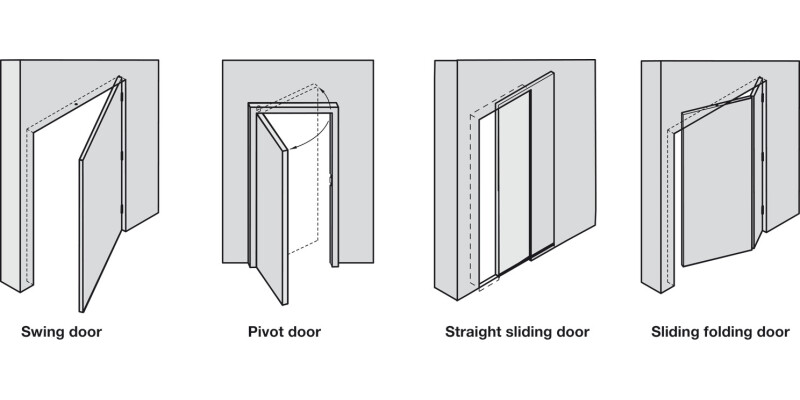

This set is designed for use on swing, pivot, straight sliding and leaf and a half sliding/folding door sets

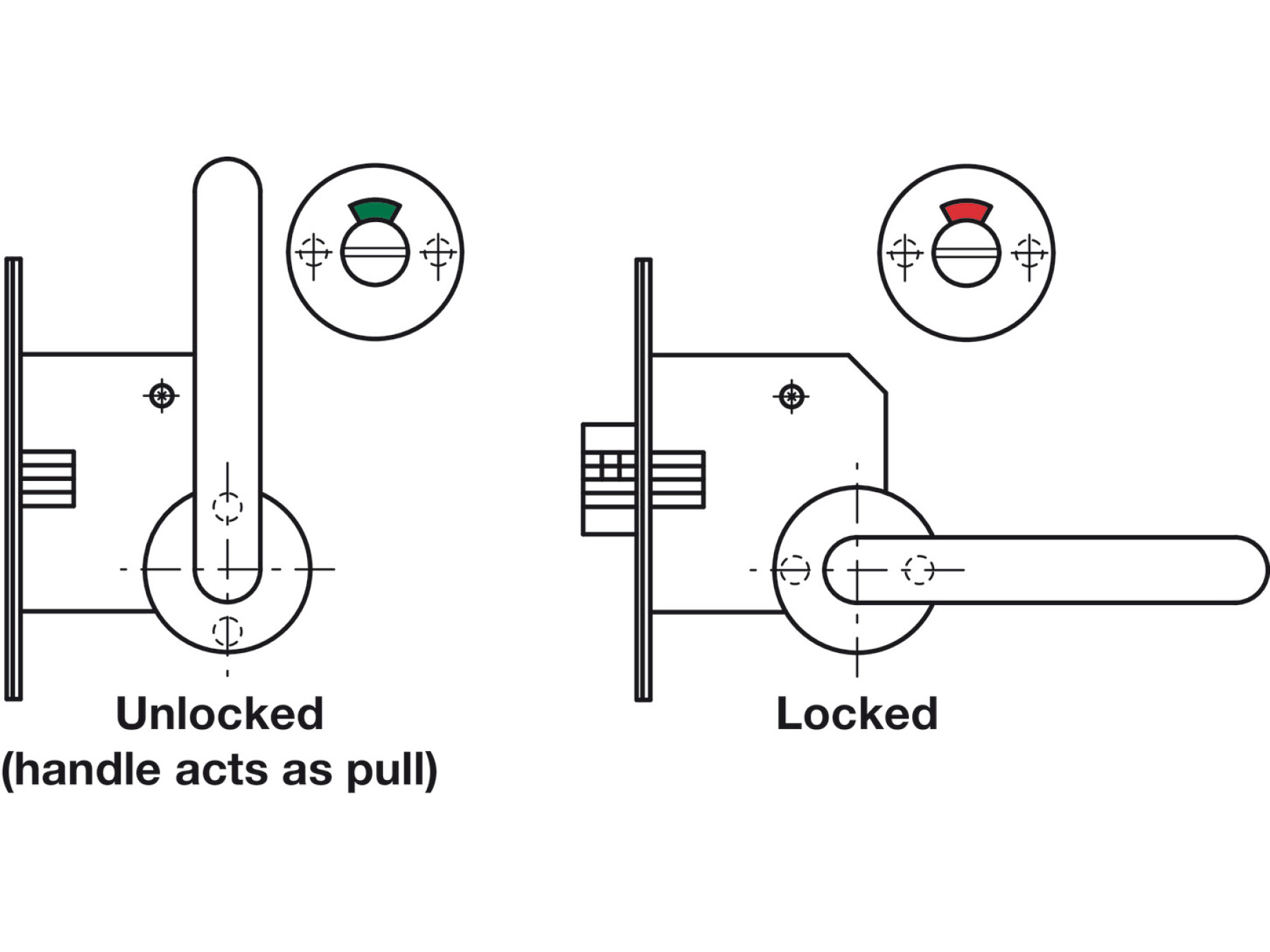

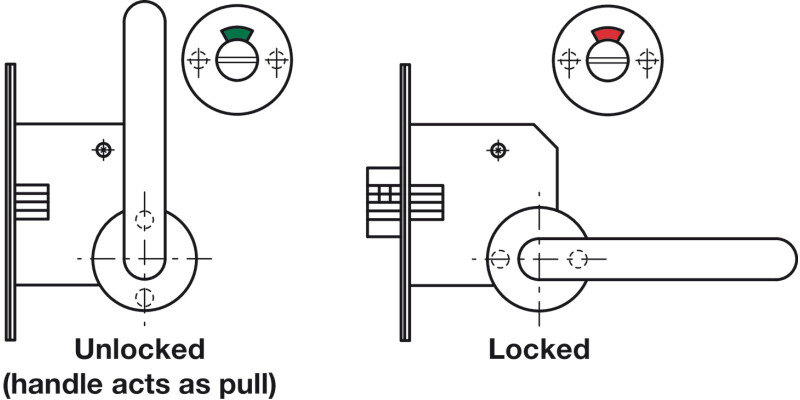

With the door in the unlocked position the handle will be upright with the indicator will show green
When locked the handle is moved to the horizontal position and the indicator will show red
Image shown is for anti-clockwise operation - for clockwise operation the lock will need to be installed upside down.

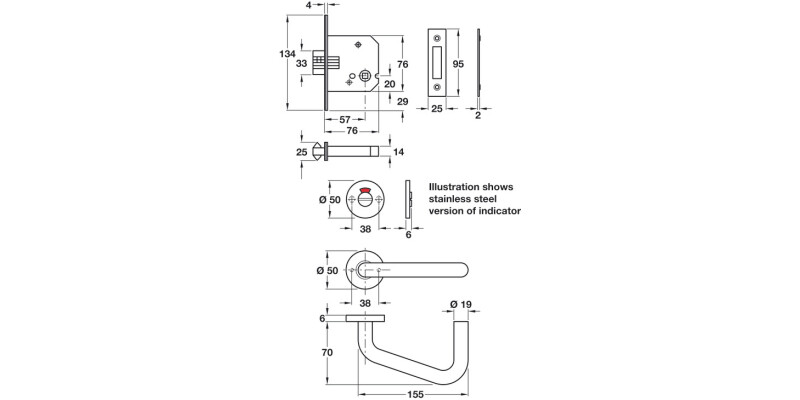

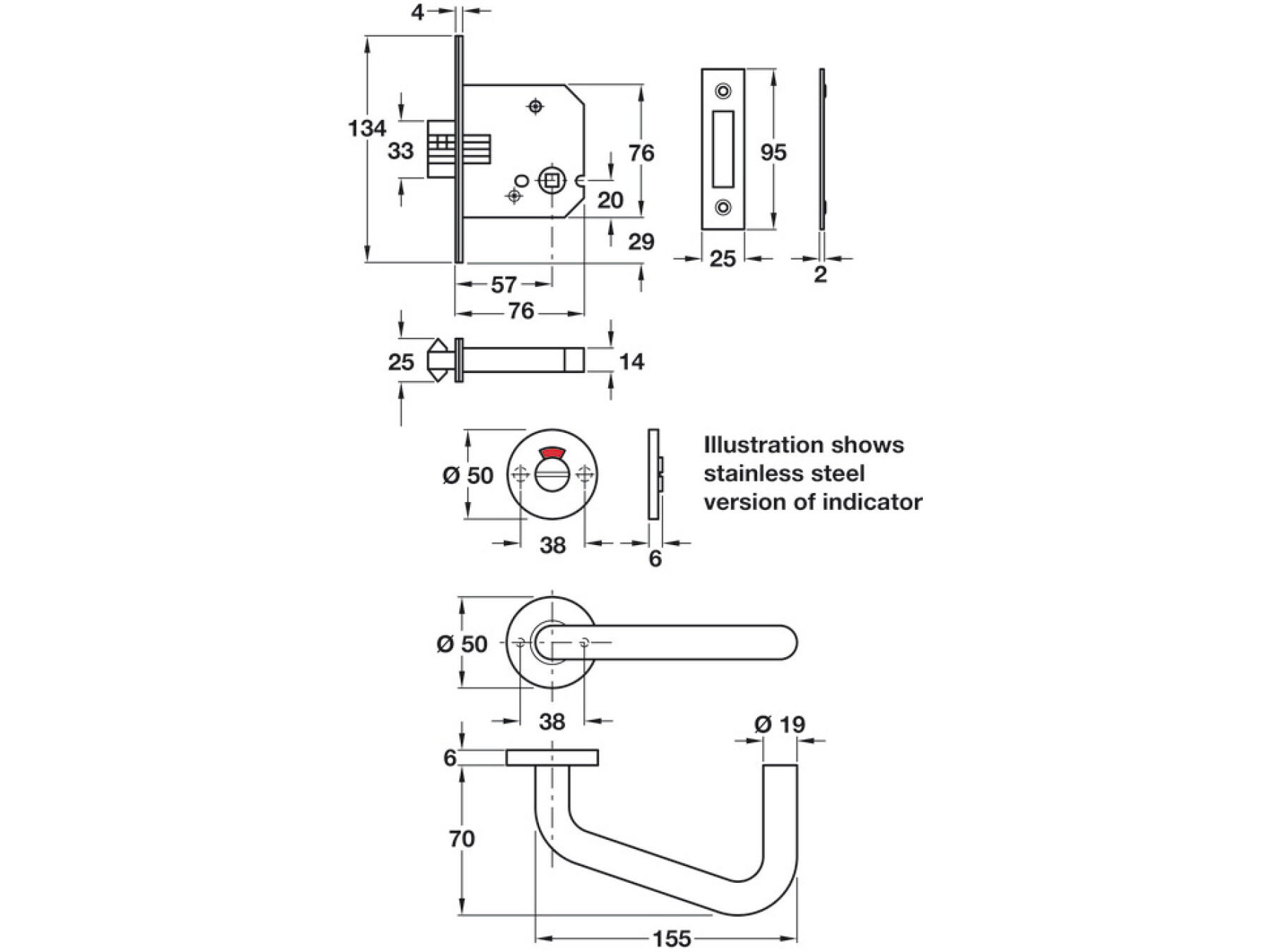

Specifications
Lever handle length
155.00 mm
Lever handle depth
70.00 mm
Material
Stainless steel
Rose/escutcheon Ø
50.00 mm
Installation
Bolt through fixing
