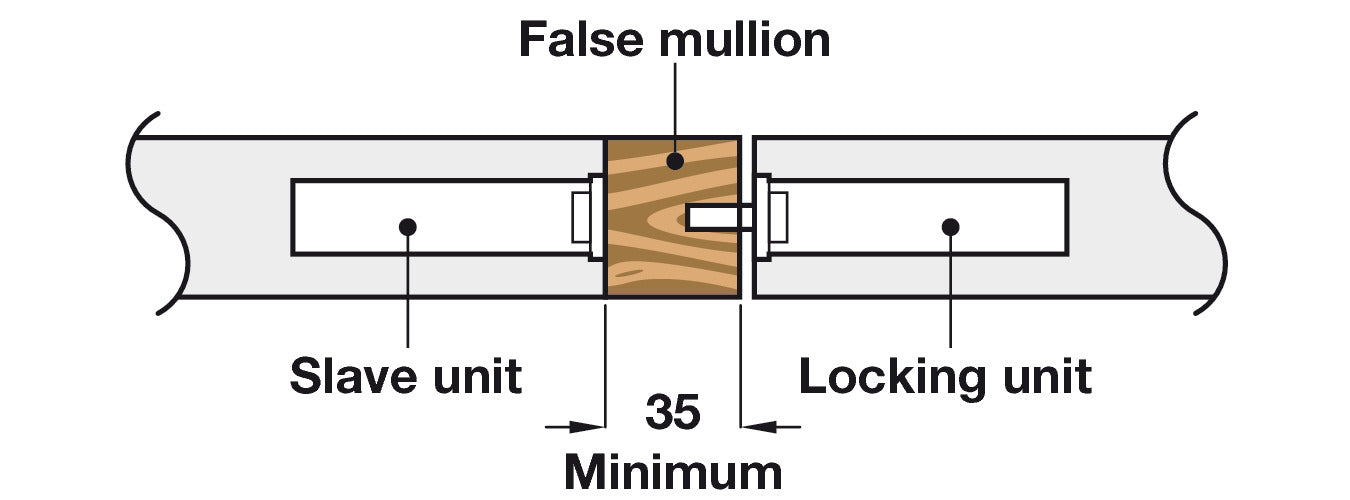

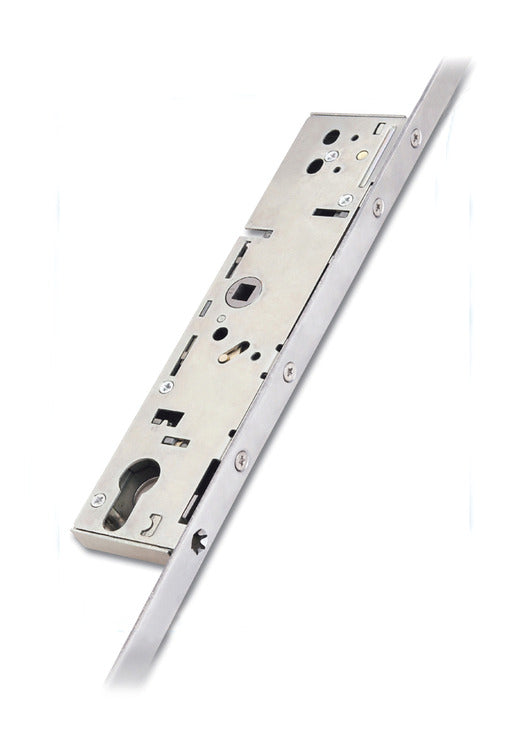

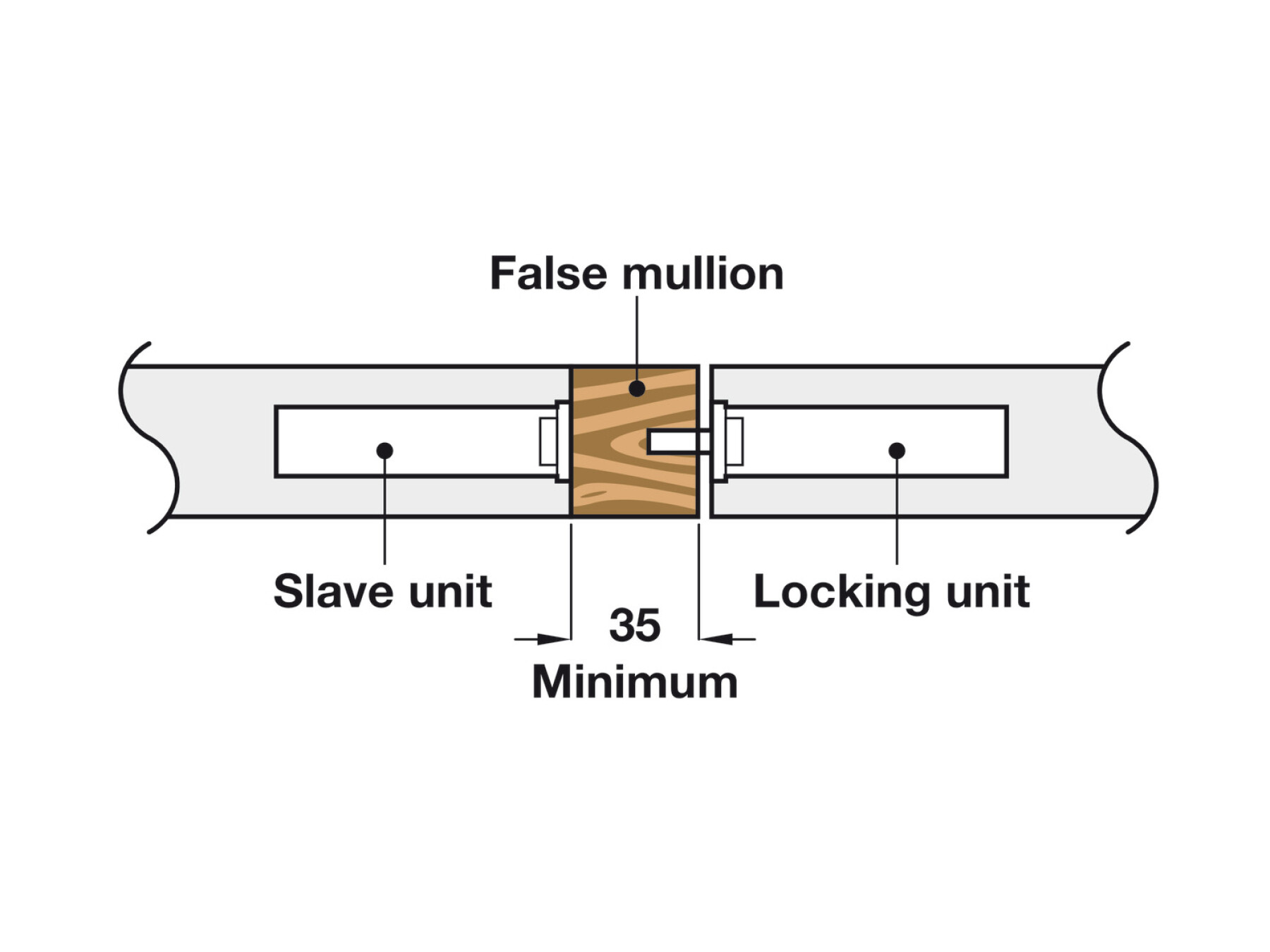

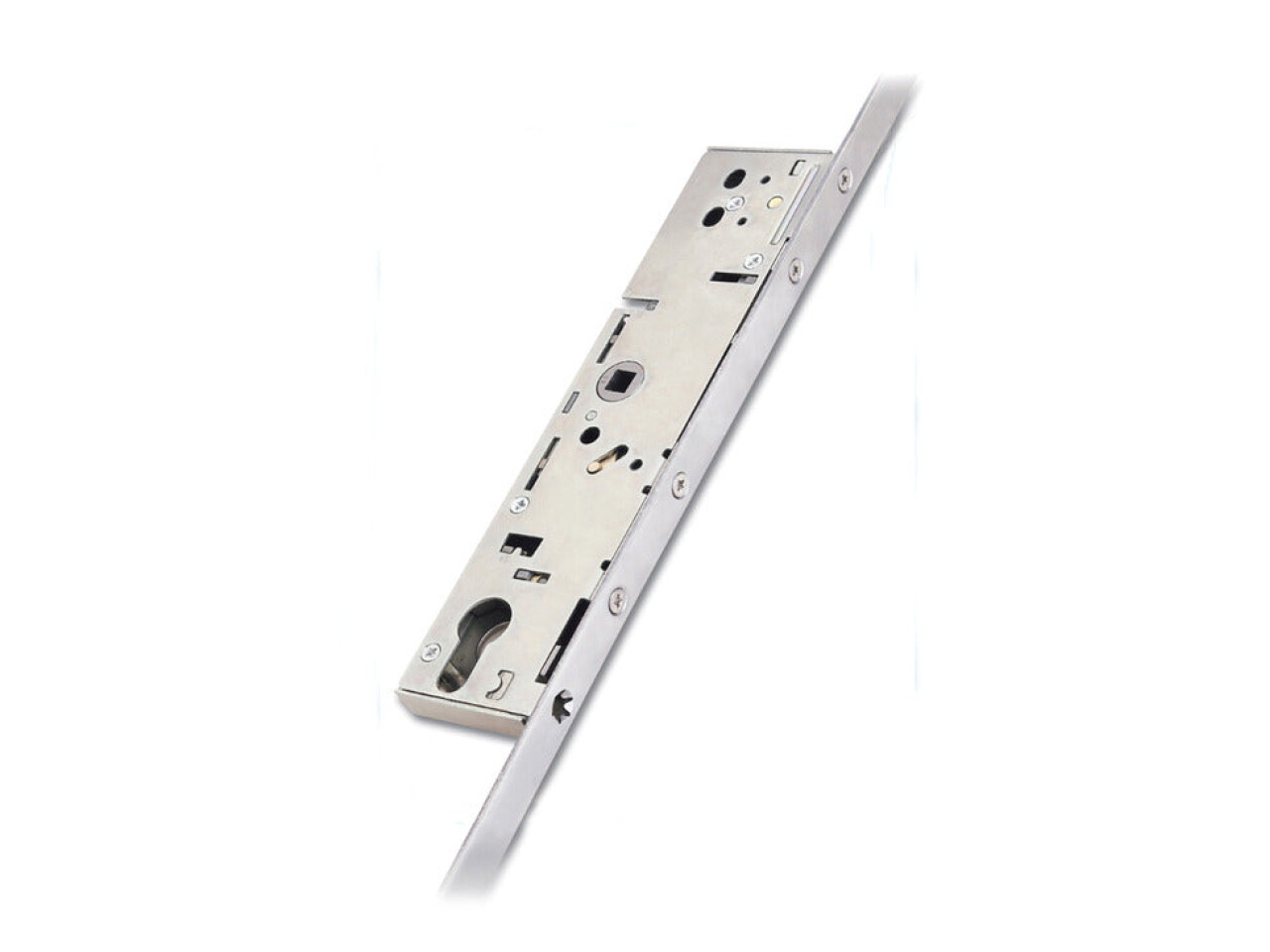

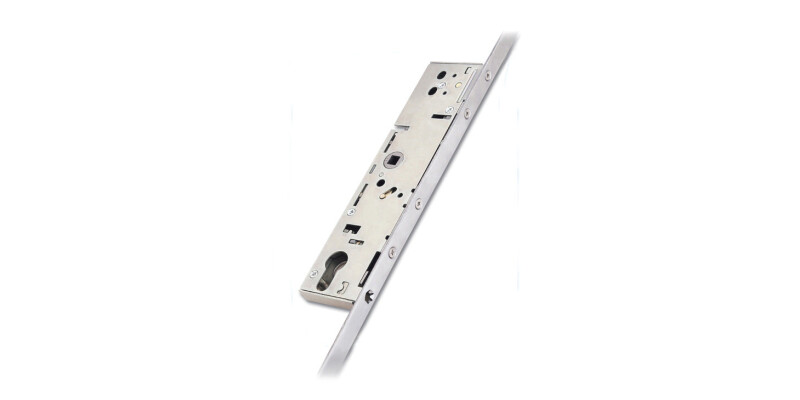

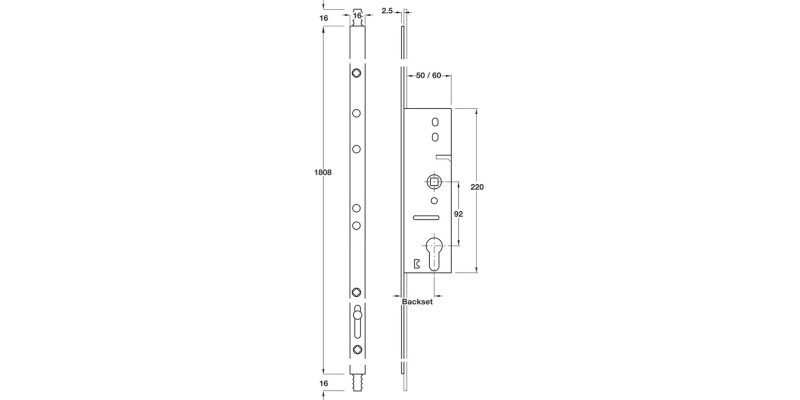

Mortice Cyl Slave Unit 45mm 1810x16mm
Part Number: 911.50.791
Backset 45 mm
Price:
£56.04
Per Item
Shoot bolts operated by lever handles. Deadlock by cylinderCase: BZP CR3 passivate. 14.5 mm thickFront plate:... Read More
Product Information
Product Details
Shoot bolts operated by lever handles. Deadlock by cylinder
Case: BZP CR3 passivate. 14.5 mm thick

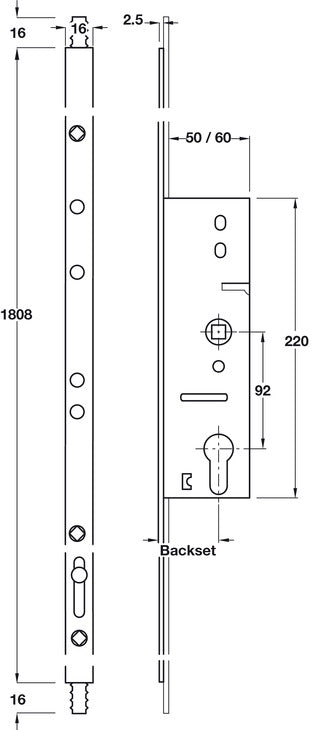

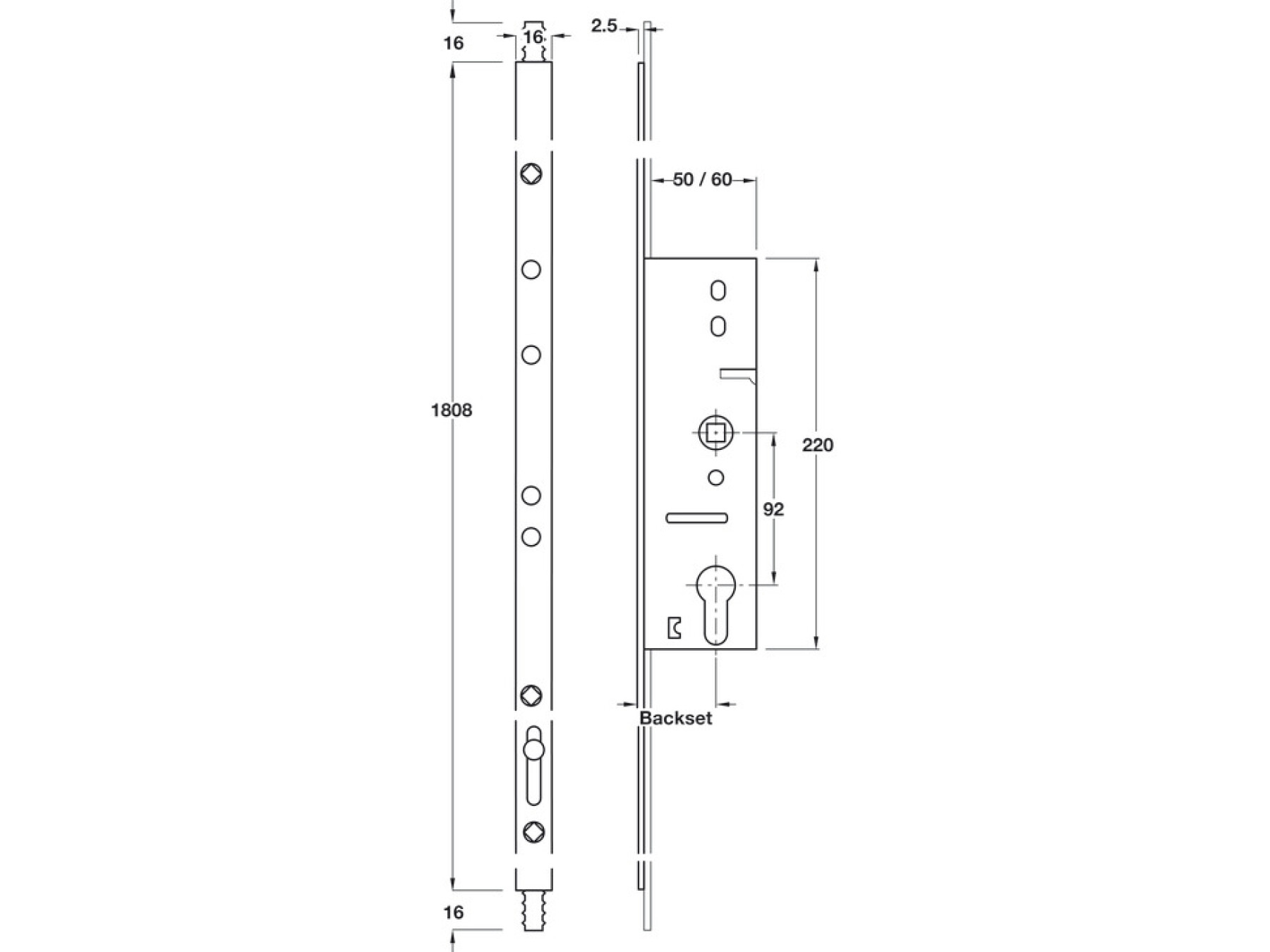

Front plate: Square, 1 piece. BZP CR3 passivate. 2120 mm (including shoot bolts) x 16 mm wide. Front plate can be shortened by max. 130 mm top and bottom
Follower: 8 mm
Corrosion resistance: Plated to BS EN 1670 Grade 4
Designed to meet the requirements of PAS 23 and PAS 24
Licensed by Secured by Design
10 year guarantee
Order reference
Keeps not included, please order separately
Fixings not included, please order Hospa ⌀ 4.0 countersunk screws separately
| Technical data | ||
|---|---|---|
| Forend Type | 35 mm | 45 mm |
Specifications
Material
Case and front plate: Steel
Follower: Brass
Colour/finish
Area of application
Follower: For use with standard 92 mm unsprung lever handles
Recently Viewed
Part No: 229.80.610

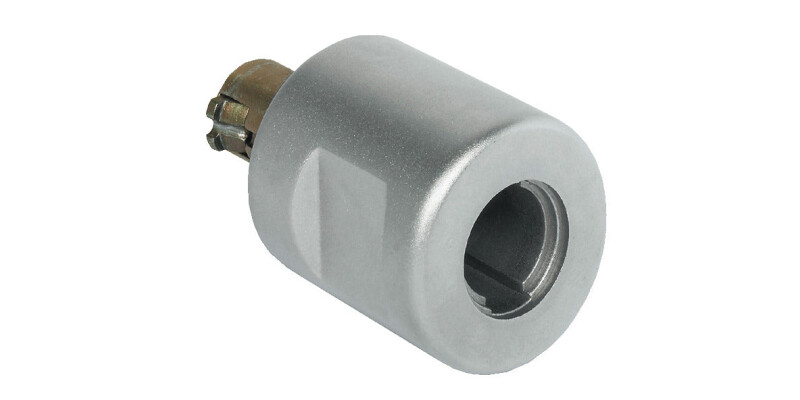

Symo3000 Lock Hdl Case wo Rings RH MNP
