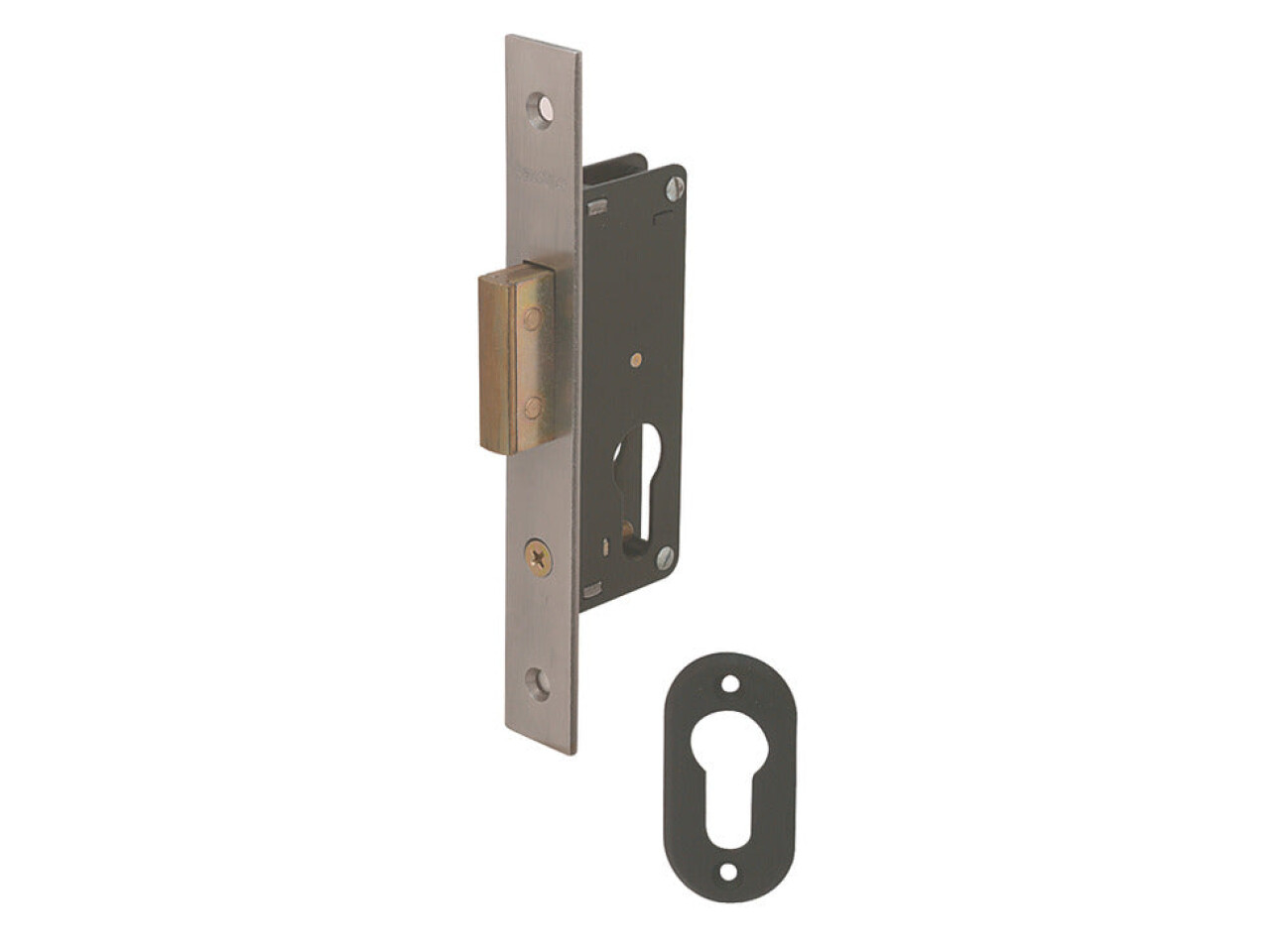

Narrow Mortice Deadlock 35/51mm SSS
Part Number: 911.12.032

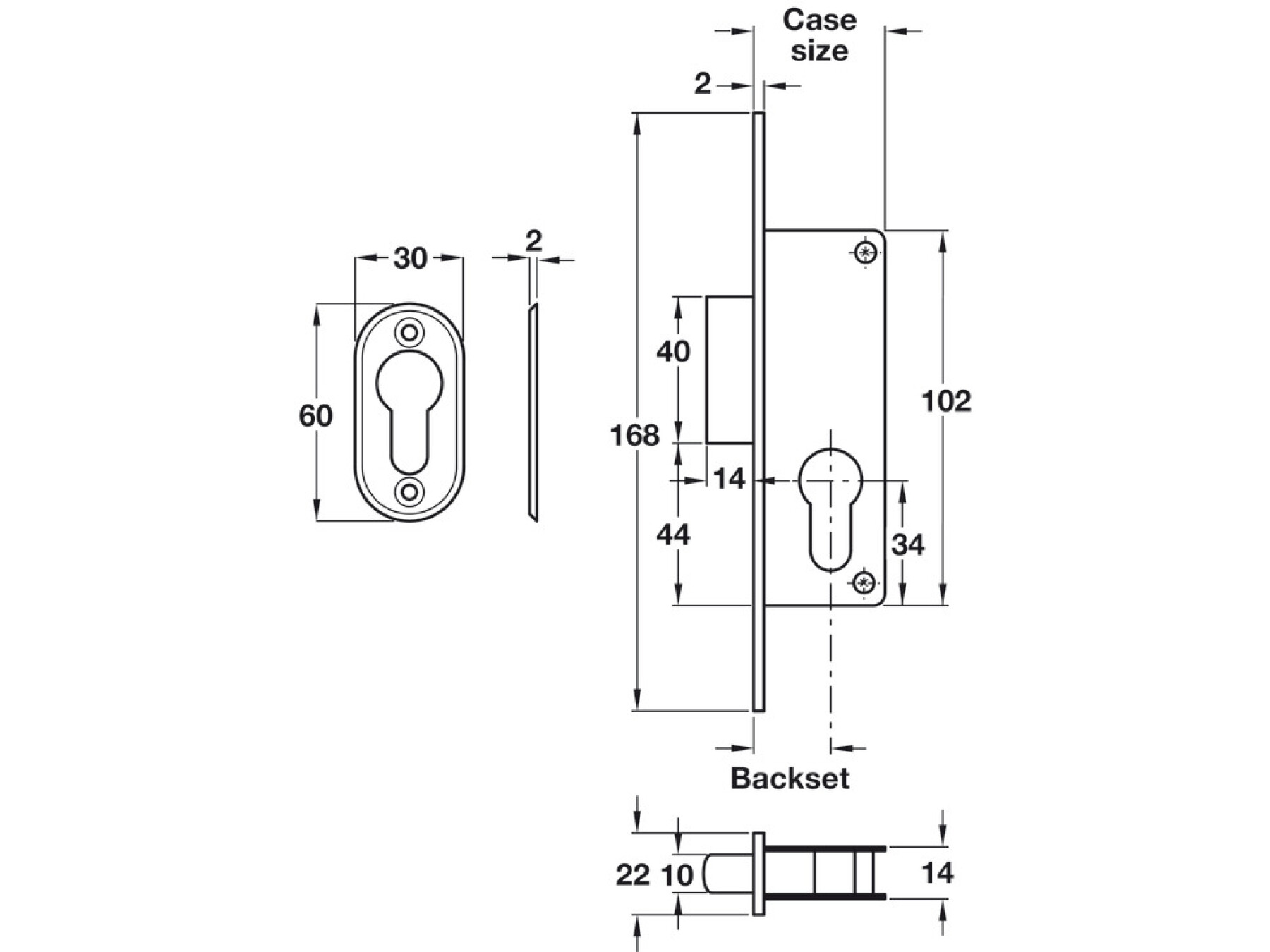

Backset 35 mm, case size 51 mm, satin stainless steel
Price:
£15.64
Per Item
Deadbolt operated by cylinderCase: Epoxy polyester powder coated, 14 mm wideForend: Square, 1 pieceDeadbolt: 14... Read More
Product Information
Product Details
Deadbolt operated by cylinder
Case: Epoxy polyester powder coated, 14 mm wide
Forend: Square, 1 piece
Deadbolt: 14 mm throw
Black plastic escutcheons included
Order reference
Strike plate and fixing screws (Hospa ⌀ 4.0 countersunk) are not included and must be ordered separately
There are no rebate sets available for these locks, as they are primarily intended for metal door applications
| Technical data | |
|---|---|
| Type of locking | PC |
| Deadbolt throw dim. | 14 mm |
Specifications
Type of locking
PC
Forend design
Flat forend edged
Forend width
22.00 mm
Material
Case: Epoxy polyester powder coated steel
Forend: Stainless steel
Deadbolt: Laminated steel
Latchbolt version
Without latch
Prepared for
Profile cylinder
Lock actuation
Key operated
Colour/finish
Satin stainless steel
Forend length
168.00 mm
Deadbolt version
Standard deadbolt
Supplied with
Escutcheons
