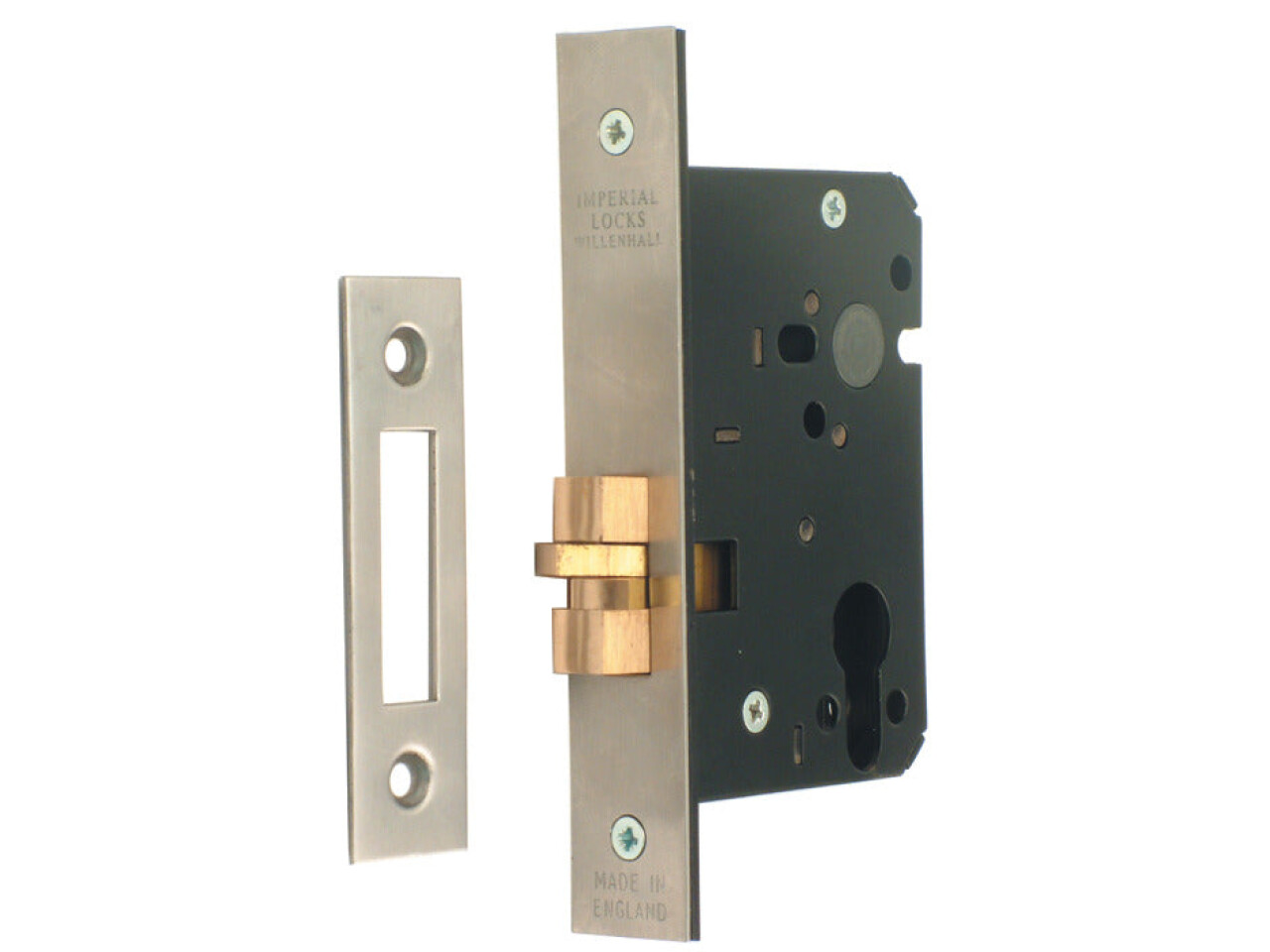

Mod Mort Cyl Clawbolt Lock 57/76mm SSS
Part Number: 911.03.334

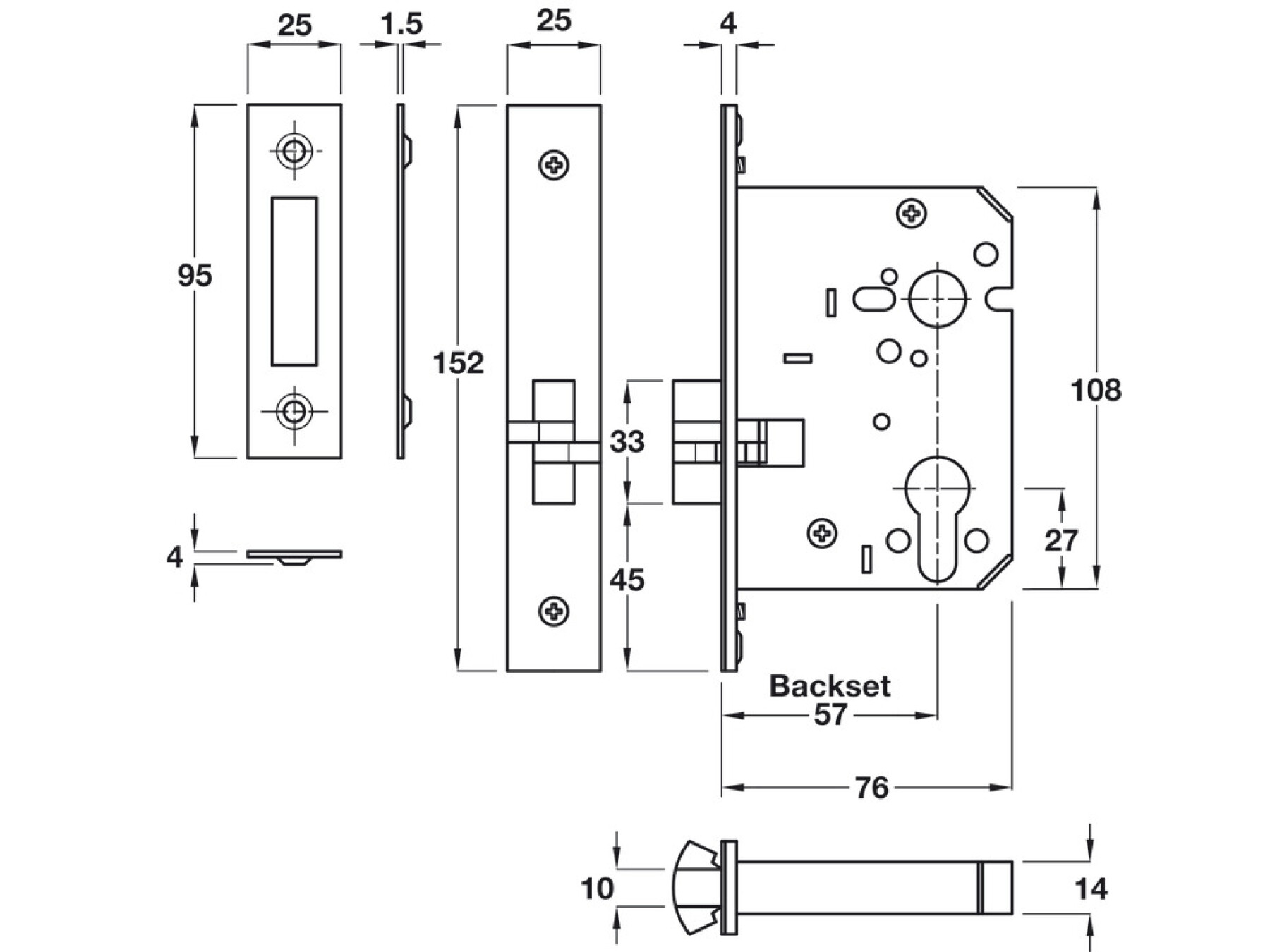

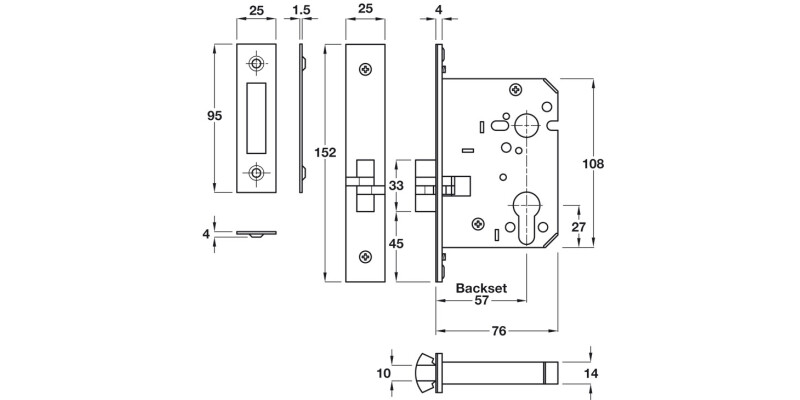

Backset 57 mm, case size 76 mm, satin stainless steel
Price:
£41.55
Per Item
Claw deadbolt operated by cylinderCase: Modular black powder coated, 14 mm wideForend: Square, 2 pieceStrike... Read More
Product Information
Product Details
Claw deadbolt operated by cylinder
Case: Modular black powder coated, 14 mm wide
Forend: Square, 2 piece
Strike plate: Square, flat
Claw bolt: 10 mm throw
Holed for bolt through escutcheons
| Technical data | |
|---|---|
| Type of locking | PC |
| Deadbolt throw dim. | 10 mm |
Specifications
Type of locking
PC
Forend Type
57.00 mm
Forend design
Flat forend edged
Forend width
25.00 mm
Material
Case: Steel
Forend and strike plate: Stainless steel or brass
Claw bolt: Brass
Latchbolt version
Without latch
Prepared for
Profile cylinder
Lock actuation
Key operated
Colour/finish
Satin stainless steel
Forend length
152.00 mm
Deadbolt version
Claw deadbolt
Order reference
Profile cylinders must be ordered separately
Supplied with
Strike plate
Fixings
