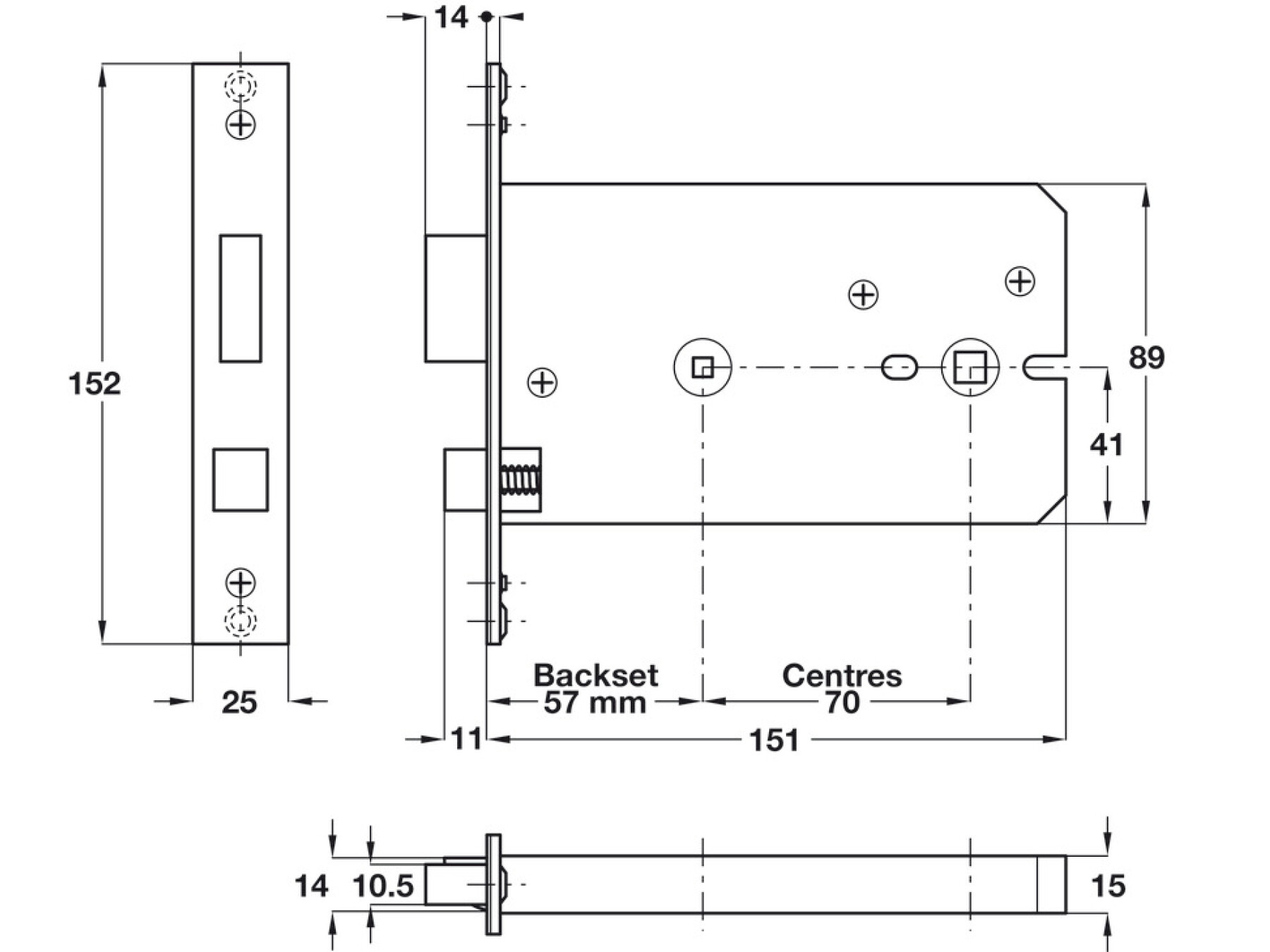

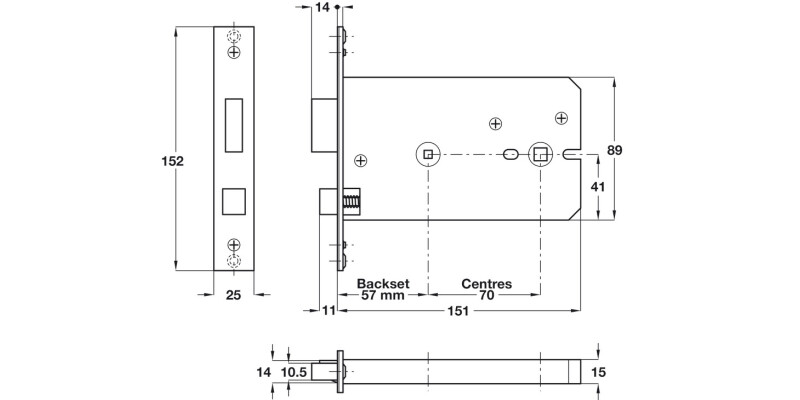

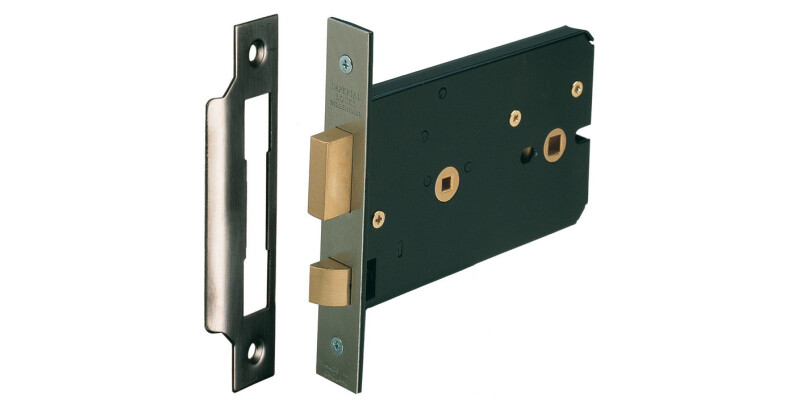

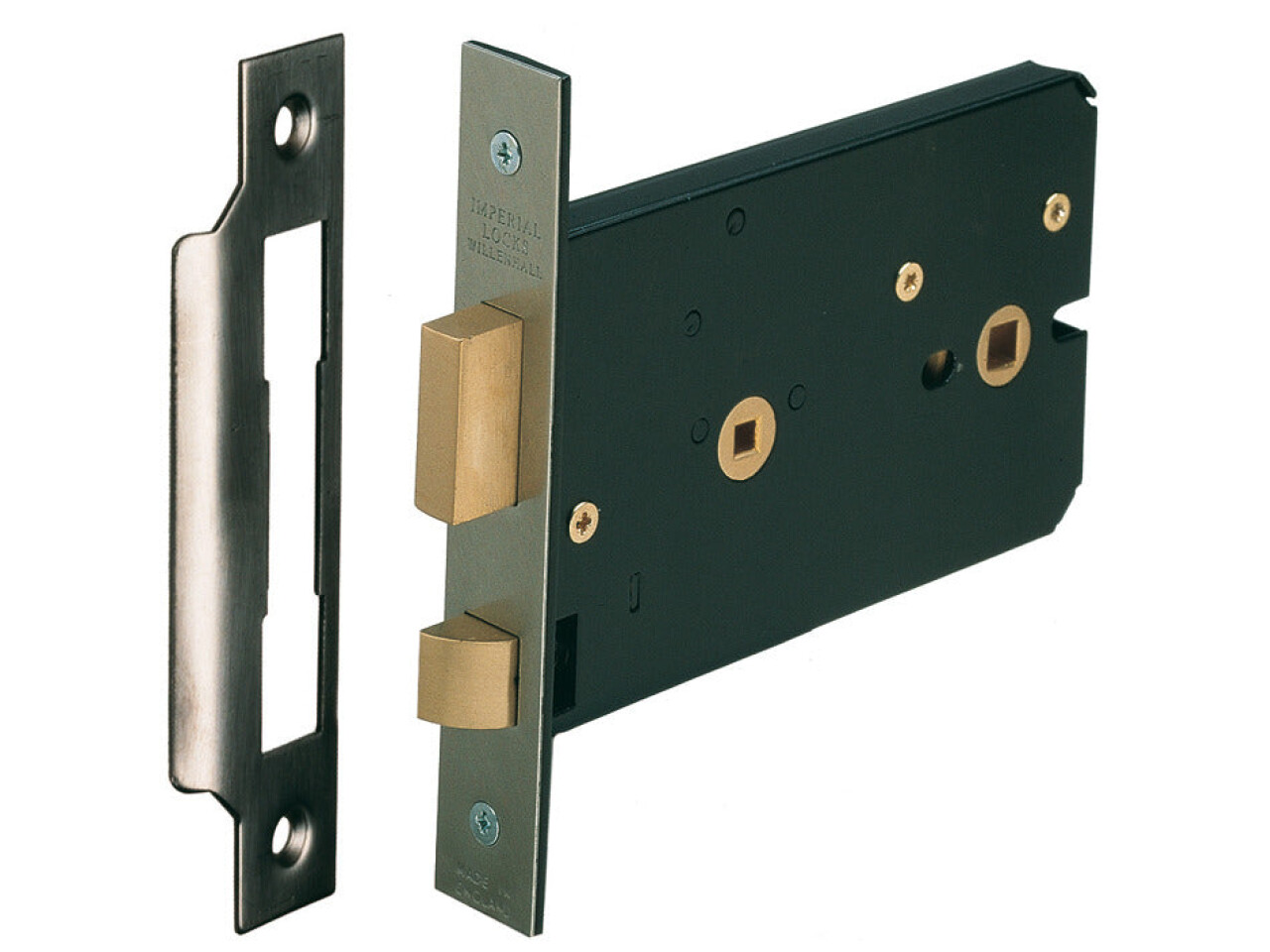

Bath Mortice Lock Horiz 57/151mm Brs SB
Part Number: 911.03.295
Backset 57 mm, case size 151 mm, satin brass
Price:
£54.07
Per Item
Latchbolt operated by knobs. Deadbolt operated by turn/emergency releaseCase: Epoxy powder coated, 15 mm... Read More
Product Information
Product Details
Latchbolt operated by knobs. Deadbolt operated by turn/emergency release
Case: Epoxy powder coated, 15 mm wide
Forend: Square. 2 piece

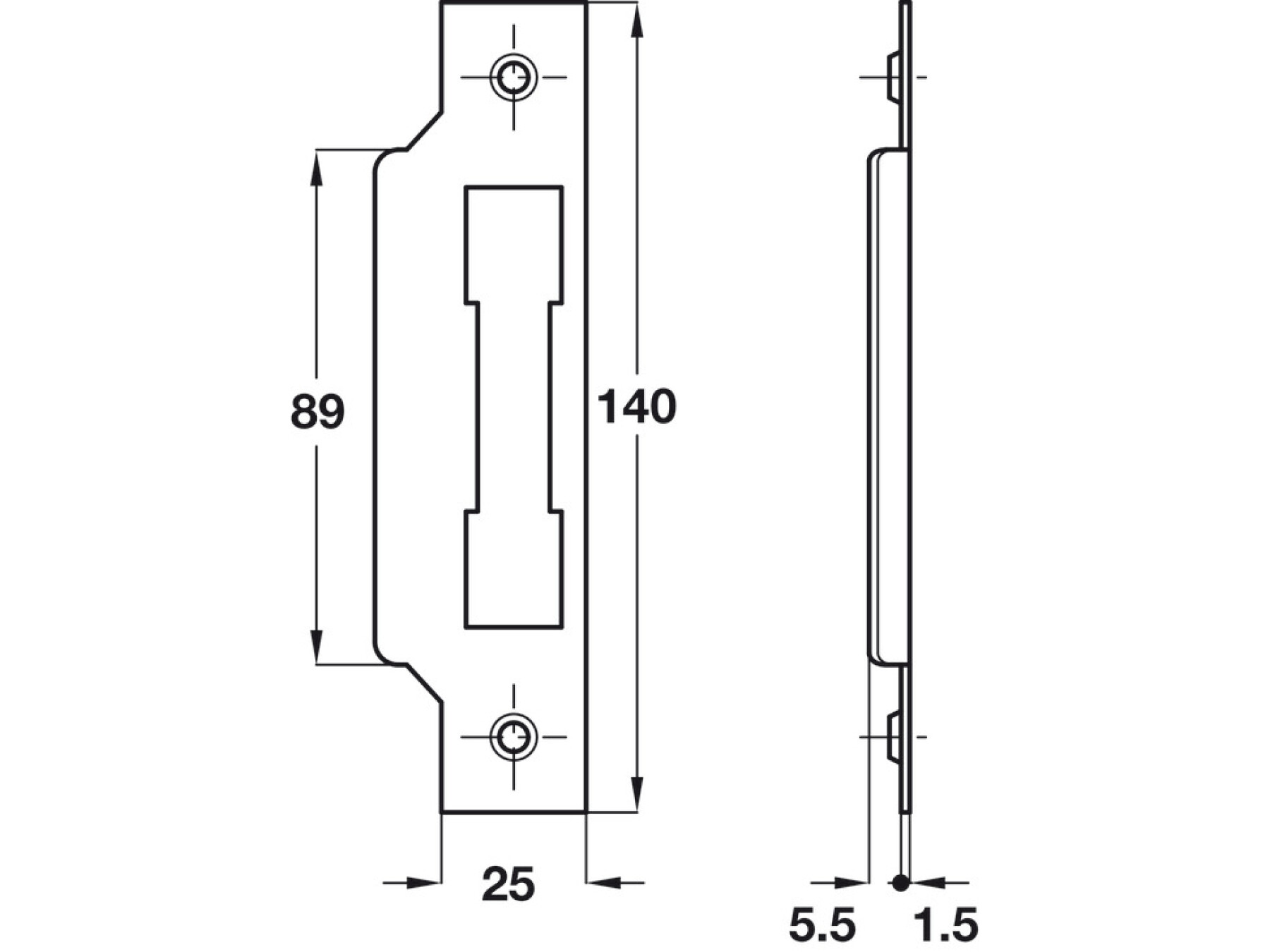

Strike plate: Square, flat
Latchbolt: Reversible
Followers: Latchbolt - 8 mm. For use with unsprung furniture. Deadbolt - 5 mm, two-way action
Holed for bolt through furniture at 38 mm centres
70 mm centres
| Technical data | |
|---|---|
| Type of locking | WC/Bathroom |
| Deadbolt throw dim. | 11 mm |
| Lever follower | 8 mm |
| Deadbolt follower | 5 mm |
Specifications
Type of locking
WC/Bathroom
Forend Type
57.00 mm
2. Backset
127.00 mm
Forend design
Flat forend edged
Forend width
25.00 mm
Lever follower
8.00 mm
Material
Case: Steel
Forend and strike plate: Stainless steel or brass
Latchbolt, deadbolt and followers: Brass
Latchbolt version
Standard latch
For door type
Bathroom/WC doors
Colour/finish
Satin brass
Forend length
152.00 mm
Deadbolt version
Standard deadbolt
Supplied with
Strike plate
Fixings
