Sashlock+Keys 3 Lvr Mortice 45/65mm NP
Part Number: 911.02.360
Backset 45 mm, case size 65 mm, nickel plated
Price:
£6.69
Per Item
Operation: Latchbolt operated by lever handles. Deadlock operated by keyCase: 15 mm wideForend: SquareStrike... Read More
Product Information
Product Details
Operation: Latchbolt operated by lever handles. Deadlock operated by key
Case: 15 mm wide
Forend: Square
Strike plate: Square
Latchbolt: Reversible
Deadbolt: 13 mm throw
Follower: 8 mm. For use with sprung furniture
Keys: 2 keys included

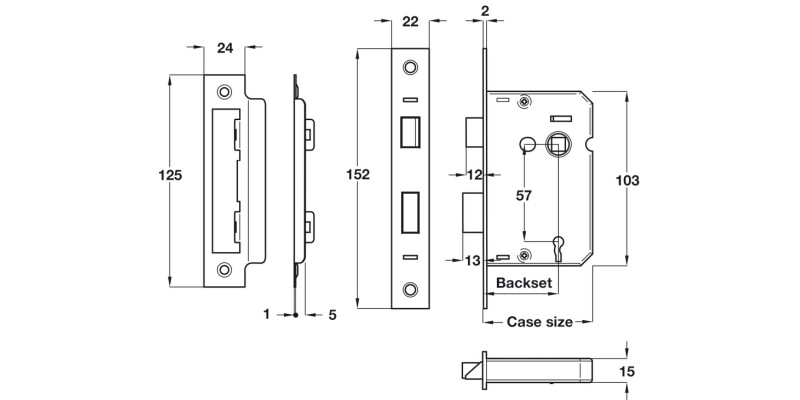

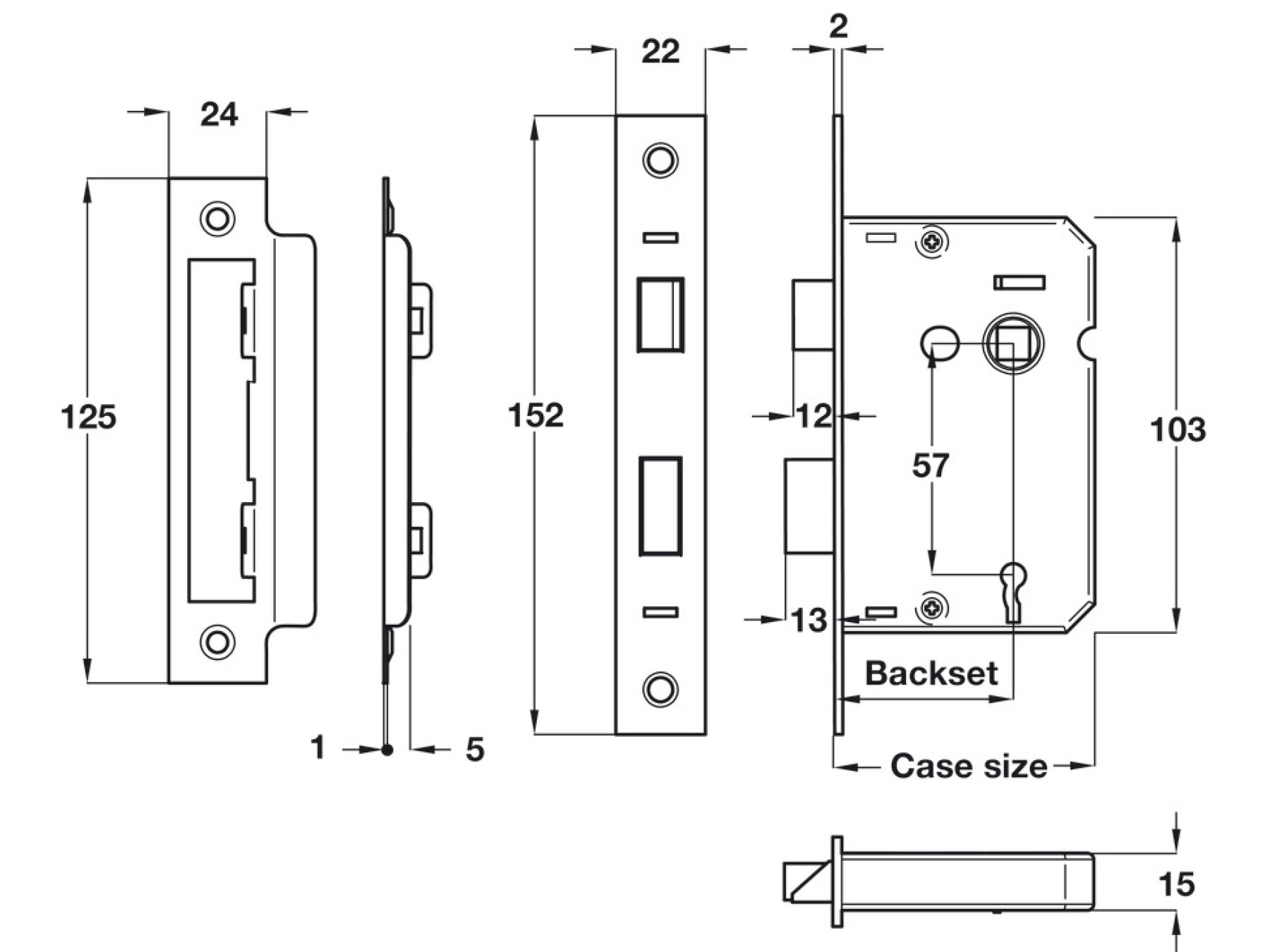

| Technical data | |
|---|---|
| Type of locking | CB |
| Distance | 57 mm |
| Deadbolt throw dim. | 13 mm |
| Lever follower | 8 mm |
±3 mm tolerance on dimensions
Specifications
Type of locking
CB
Distance
57.00 mm
Forend design
Flat forend edged
Forend width
22.00 mm
Lever follower
8.00 mm
Material
Case: Powder coated steel
Forend and strike plate: Steel
Latchbolt and deadbolt: Brass
Latchbolt version
Standard latch
Colour/finish
Nickel plated
Forend length
152.00 mm
Deadbolt version
Standard deadbolt
Supplied with
2 keys
Fixings
