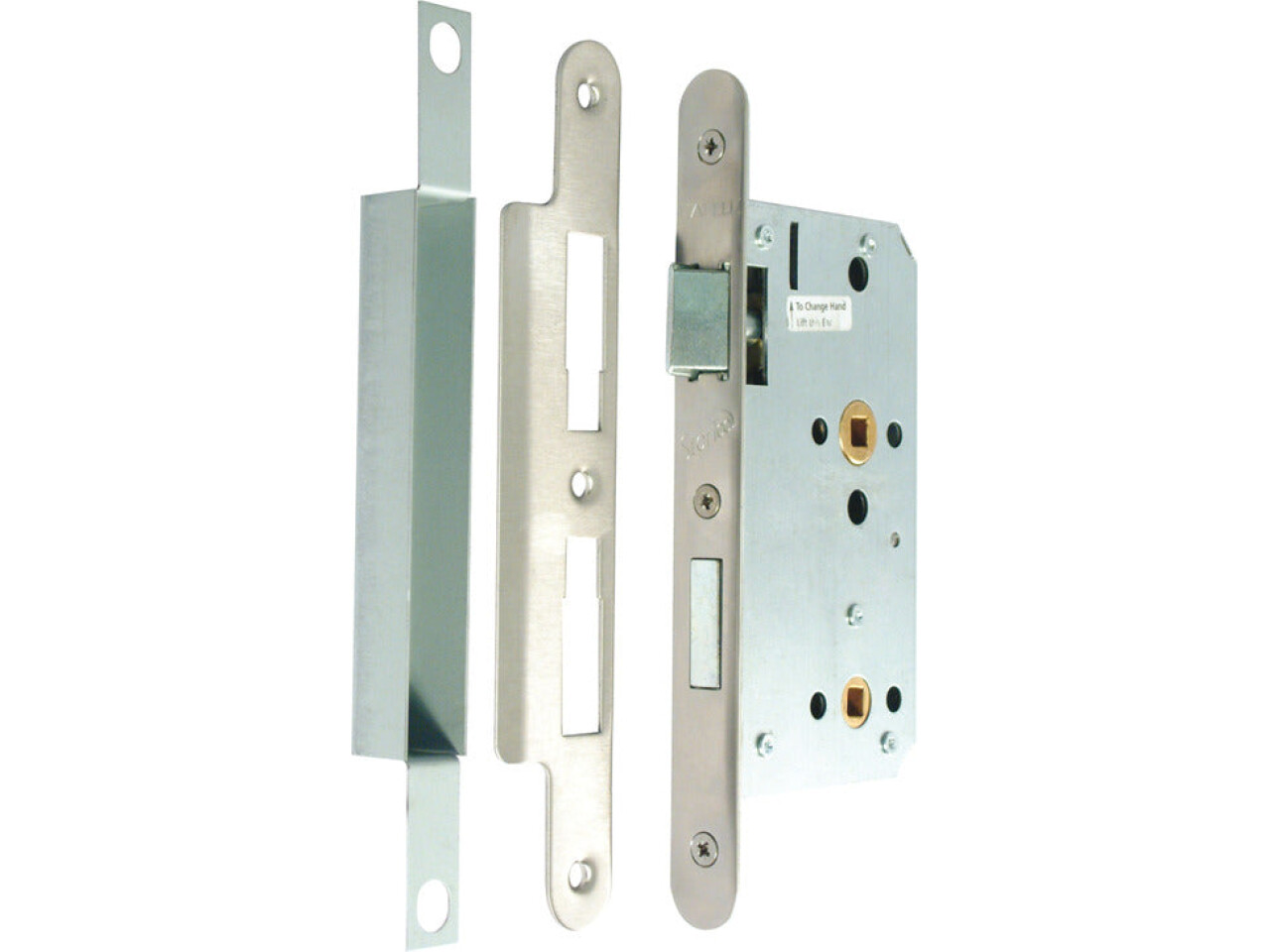

Startec Mortice Bathlock Rad 60/92mm SSS

Conforms to BS EN 12209Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by lever handles. Deadbolt operated by turn/emergency releaseCase: Galvanized, 16 mm wideForend: Radius, 2 pieceStrike plate: Radius. Box includedLatchbolt: Bright zinc plated. Easily reversibleDeadbolt: Bright zinc plated. 12 mm throwFollowers: 8 mm. Hold-tite spindle spring. For use with unsprung furniture5-8 mm adaptor included for deadbolt followerHoled for bolt through furniture at 38 mm centresOnly requires a lever depression of approx. 25° to fully retract latchbolt

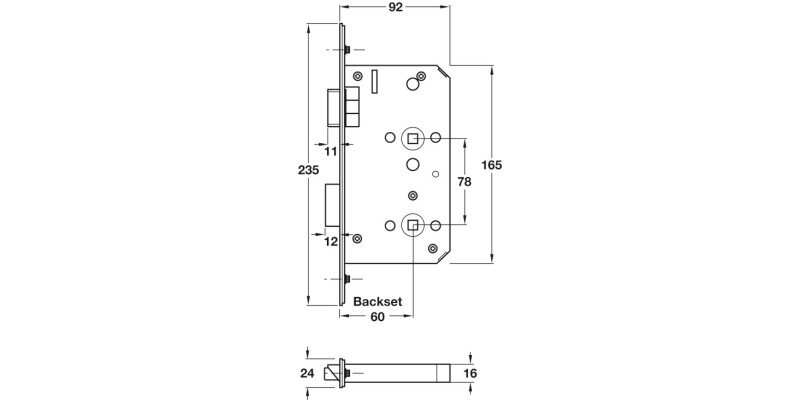

• Backset: 60.0 mm
• Case size: 92 mm
• Finish: Satin stainless steel
• Bolt throw: Deadbolt: 12 mm
• Material: Case: SteelForend and strike plate: Stainless steelLatchbolt and deadbolt: Solid brassFollower: Brass
• Guarantee: 10 years
• Note: Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
• Supplied with: Strike plate5-8 mm adaptorFixings
• Warranty information: This product is covered under H‚Äö√†√∂¬¨√üfele‚Äö√Ñ√∂‚àö√ë‚àö¬•s Lifetime Guarantee.All products covered under the H‚Äö√†√∂¬¨√üfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
