LED Plinth Light 12 V, Ø 30 mm, Rated IP67, Light Set with Driver
LED Plinth Light 12 V, Ø 30 mm, Rated IP67, Light Set with Driver (Product Part No: 833.00.483) is a sleek,... Read More
Product Details
LED Plinth Light 12 V, Ø 30 mm, Rated IP67, Light Set with Driver (Product Part No: 833.00.483) is a sleek, modern lighting solution designed to elevate steps, thresholds, and plinth areas with clean, bright illumination. This 5-light set features a crisp white LED colour that delivers a neat visual finish—ideal for both residential and commercial installs where style and performance matter.
Each light is engineered with an ultra-durable stainless steel housing for lasting strength and a premium look. With a compact 30 x 26 mm dimension and a practical 22 mm drill hole requirement, these recessed plinth lights are built for tidy, professional installations. Thanks to IP67 protection, they’re well-suited to outdoor and damp environments, providing reliable performance where other fittings may struggle.
Powered at 12.00 V and rated at 5.00 W each, the lights produce a luminous flux of 40.00 lm per unit—perfect for subtle guidance lighting and atmospheric edging. The lights are for recessing, helping you achieve a flush, low-profile design that won’t disrupt lines or surfaces.

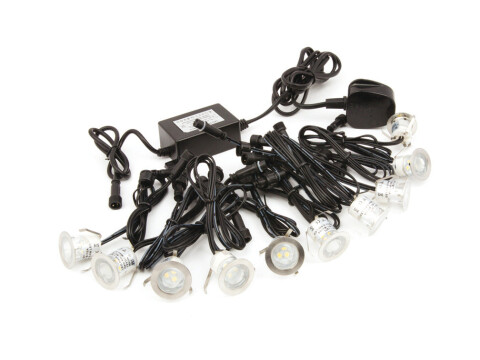

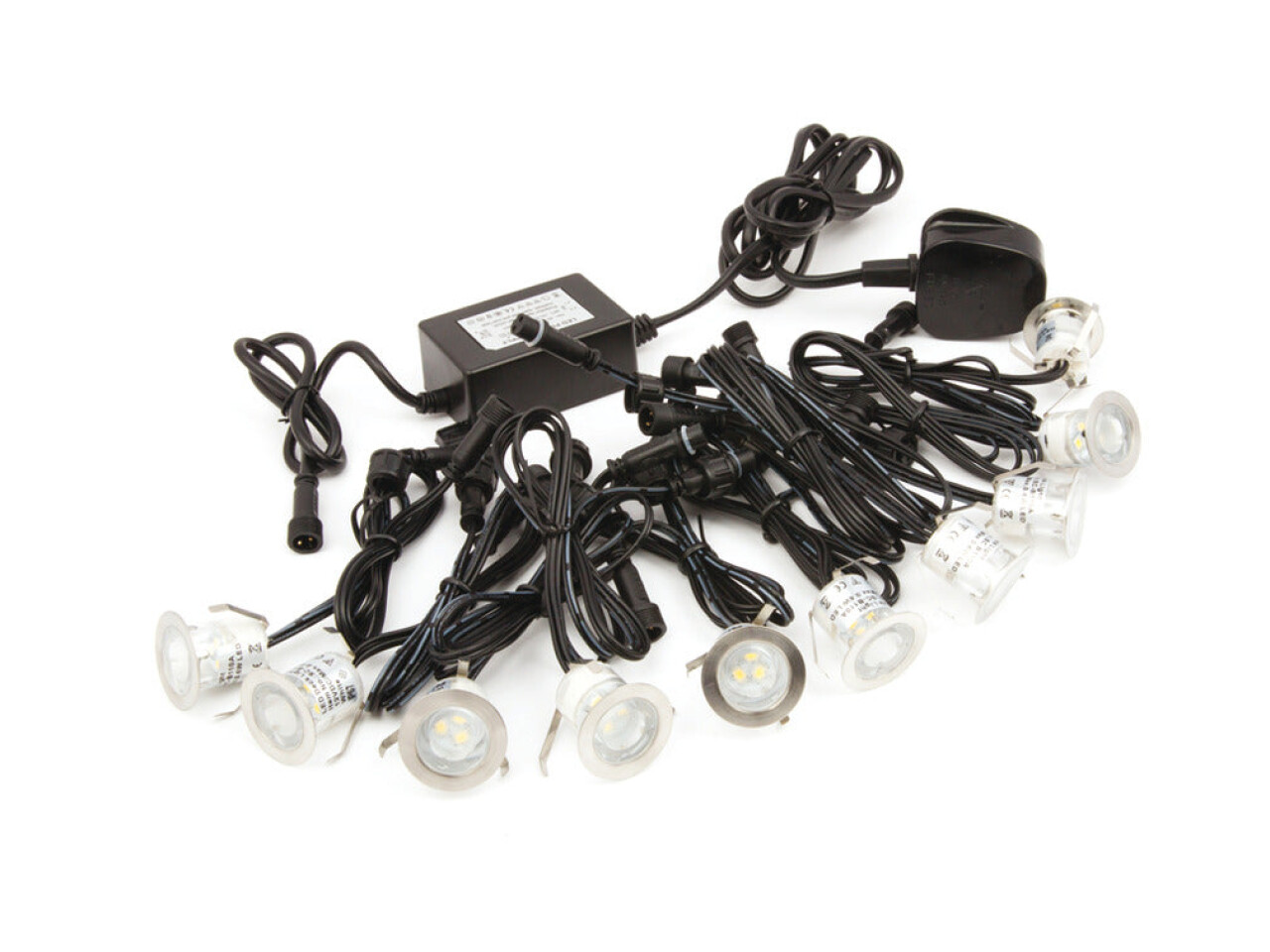

Everything you need is included in the box: 5 x IP67 lights, 2 connecting leads (0.5 metre) per light, and a 240V mains plug driver. Choose the LED Plinth Light 12 V, Ø 30 mm, Rated IP67, Light Set with Driver to create a welcoming, safety-conscious lighting effect that looks great from day one.
Specifications
Light colour
Luminous flux
Nominal voltage
Wattage
Housing material
Dim. (Ø x H)
Drill hole Ø
Installation
Degree of protection
Supplied with
Each set includes:
5 IP 67 lights
2x 0.5 metre connecting leads on each light
240V mains plug driver
Product Details
How many lights are included in the LED Plinth Light Set 30mmD 5x5W White?
Five white LED lights are included in each set, designed to create a neat 5 point lighting effect. The set also includes connecting leads for each light and a mains plug driver for convenient installation.
What power supply does this plinth light set use?
This system runs on a 12 V nominal supply, making it suitable for low voltage landscape and outdoor style lighting applications. You will be provided with a 240 V mains plug driver to power the 12 V lights.
Is the lighting suitable for outdoor use, and what is the protection rating?
Yes. Each light has a IP67 degree of protection, which means it is dust tight and protected against the effects of temporary immersion. This makes it a good choice for plinth and other exterior recessed lighting where the fitting may be exposed to weather.
What size hole do I need to install these lights?
The required drill hole diameter is 22 mm, and the lights are sized for recessed mounting. Always measure your recess carefully before cutting to ensure a secure, flush fit.
How bright are the LEDs, and will they look evenly spaced in a set?
Each 5 W LED light produces 40 lm in white light. While each unit is compact, using five lights together typically gives a balanced, evenly distributed accent effect for steps, plinths, or boundary areas.
Are the lights white, and what is the light colour?
The light colour is white, intended for clear illumination of outdoor surfaces and architectural details. If you prefer warmer or cooler tones, consider matching your wider exterior lighting colour theme before ordering.
What are the key physical dimensions of the fitting?

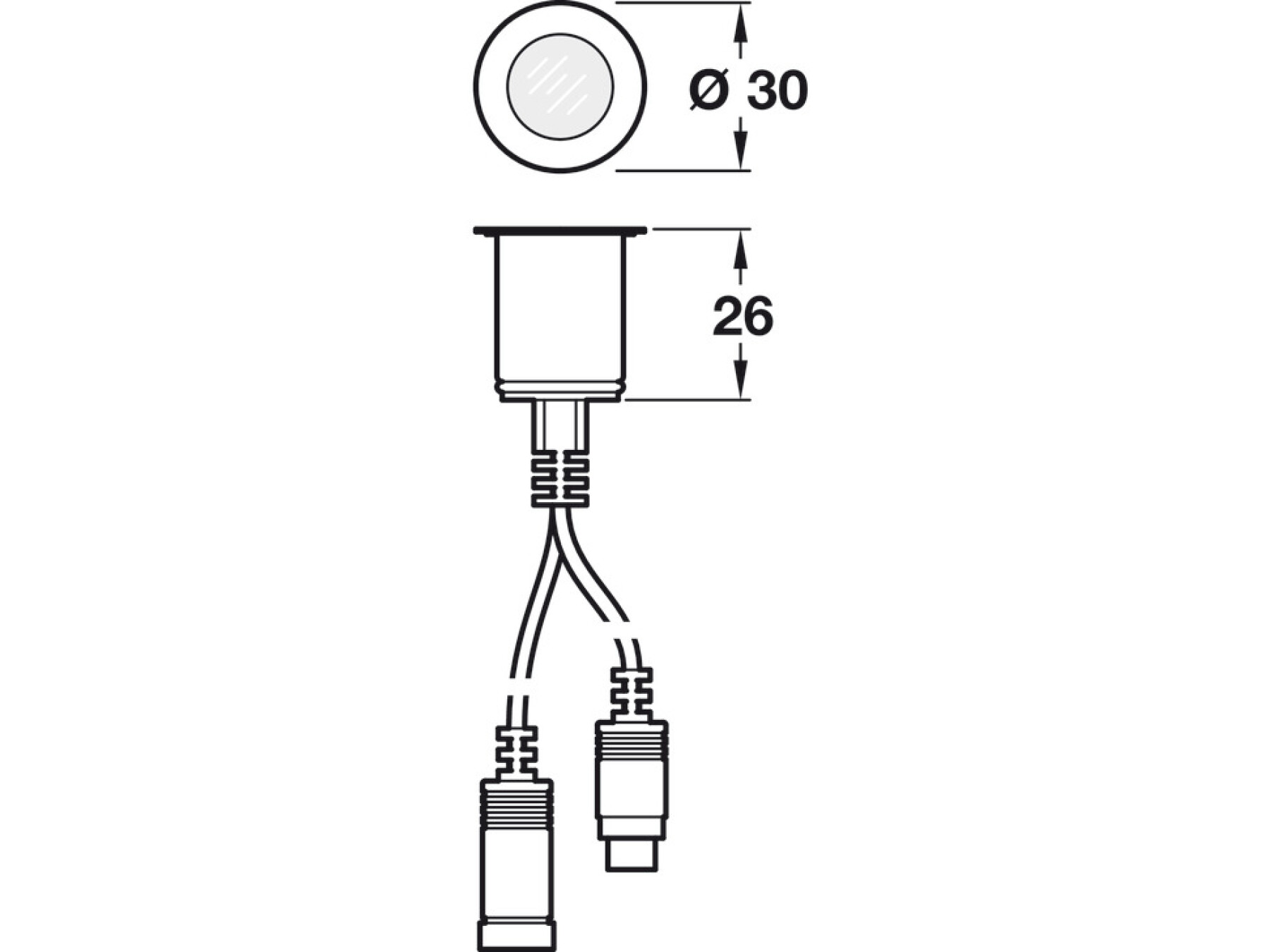

The light has dimensions of Ø 30 mm x 26 mm high, with a stainless steel housing. This compact profile helps the lights blend neatly into recessed housings while still being robust for outdoor use.
Does the set include everything needed to connect and start using the lights?
Yes. The set is supplied with five IP67 lights, two 0.5 metre connecting leads on each light, and a 240 V mains plug driver. This reduces the need for extra components and makes the set a straightforward choice for your recessed plinth lighting project.
