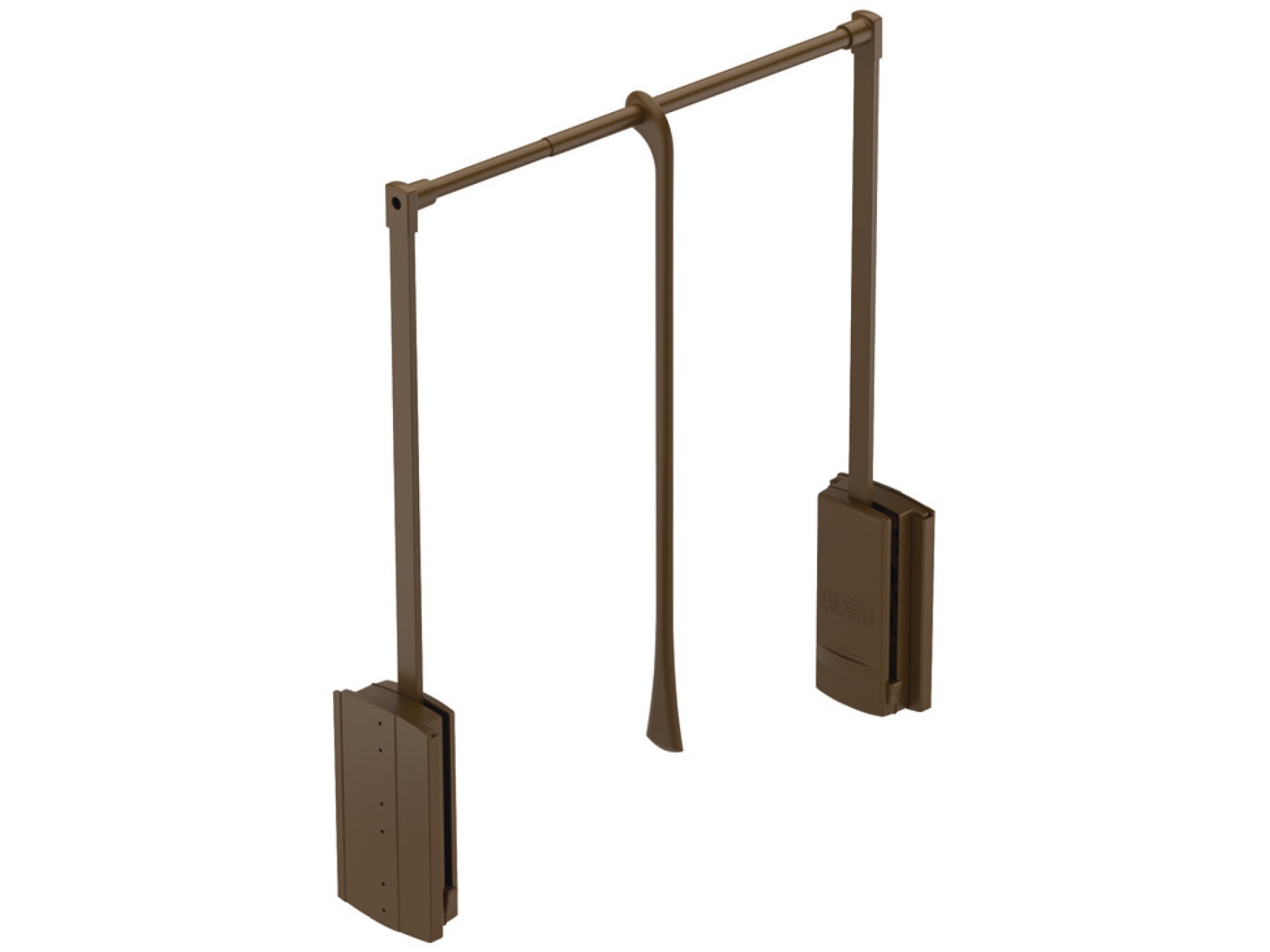

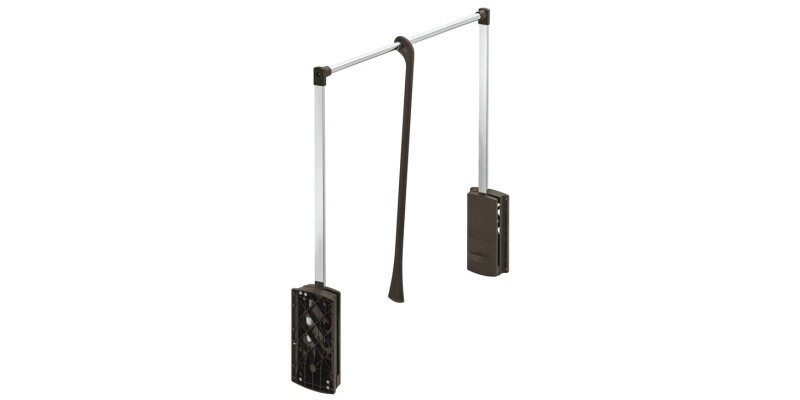

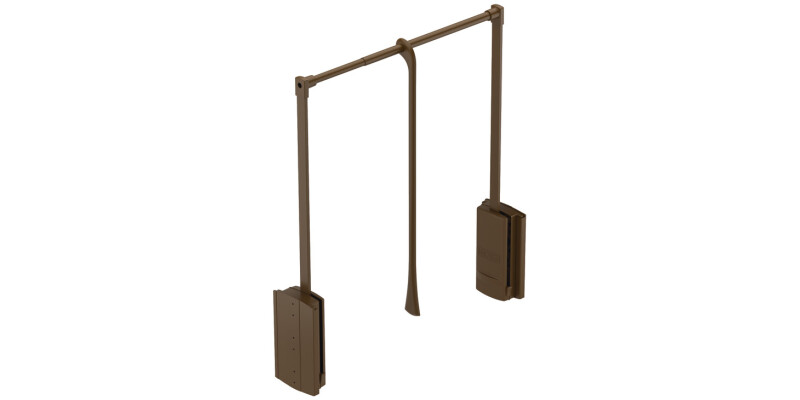

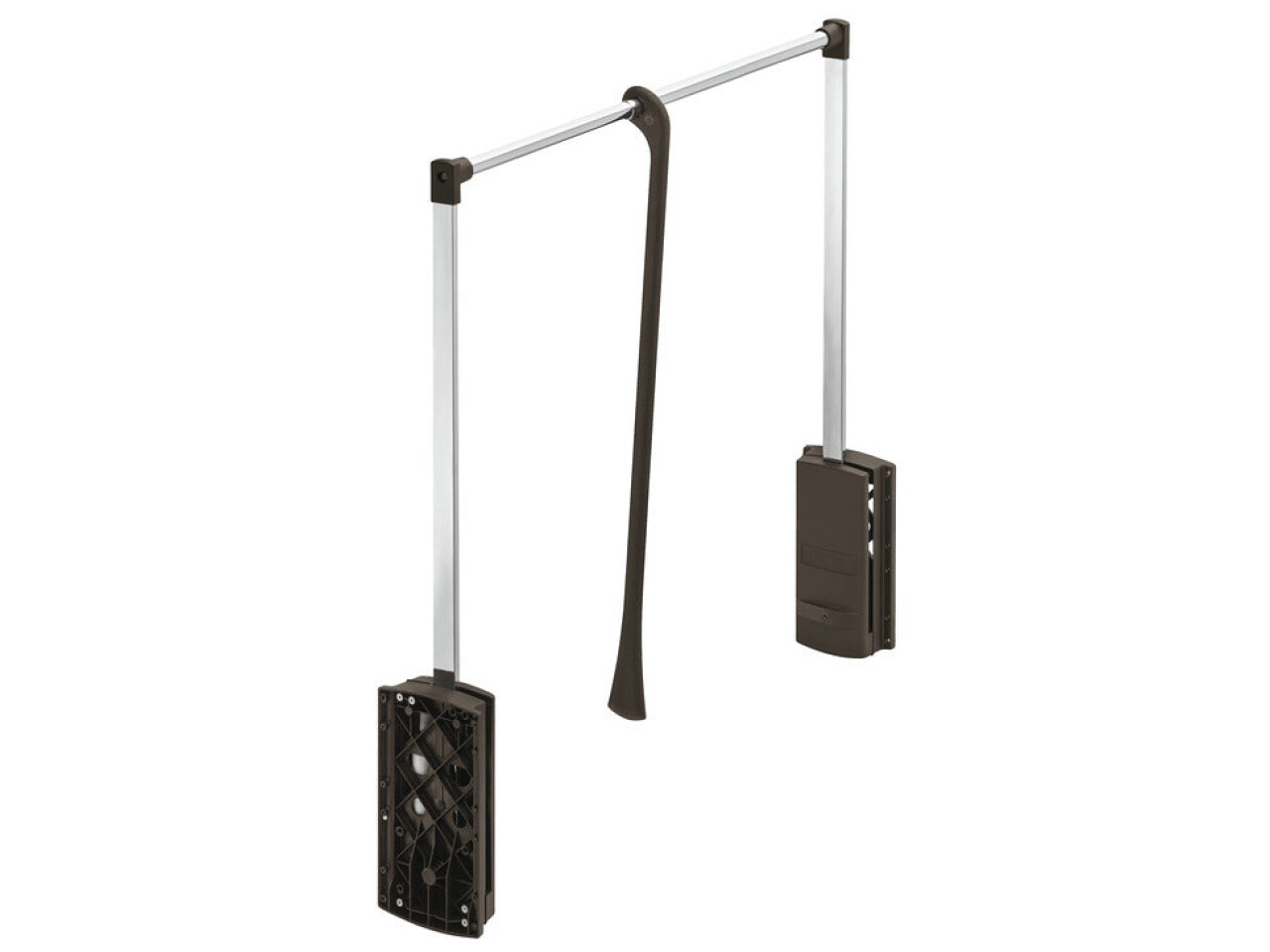

Pull Down Wardrobe Rail, for Internal Wardrobe Width 600-1000mm, 2004 Brw/Brw
Operated by pull rod - slides along railØ 22 mm hanging rail - adjustable for different wardrobe... Read More
Product Details

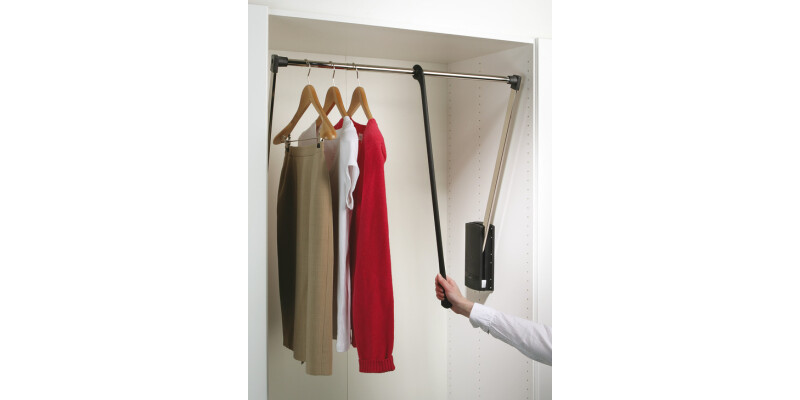

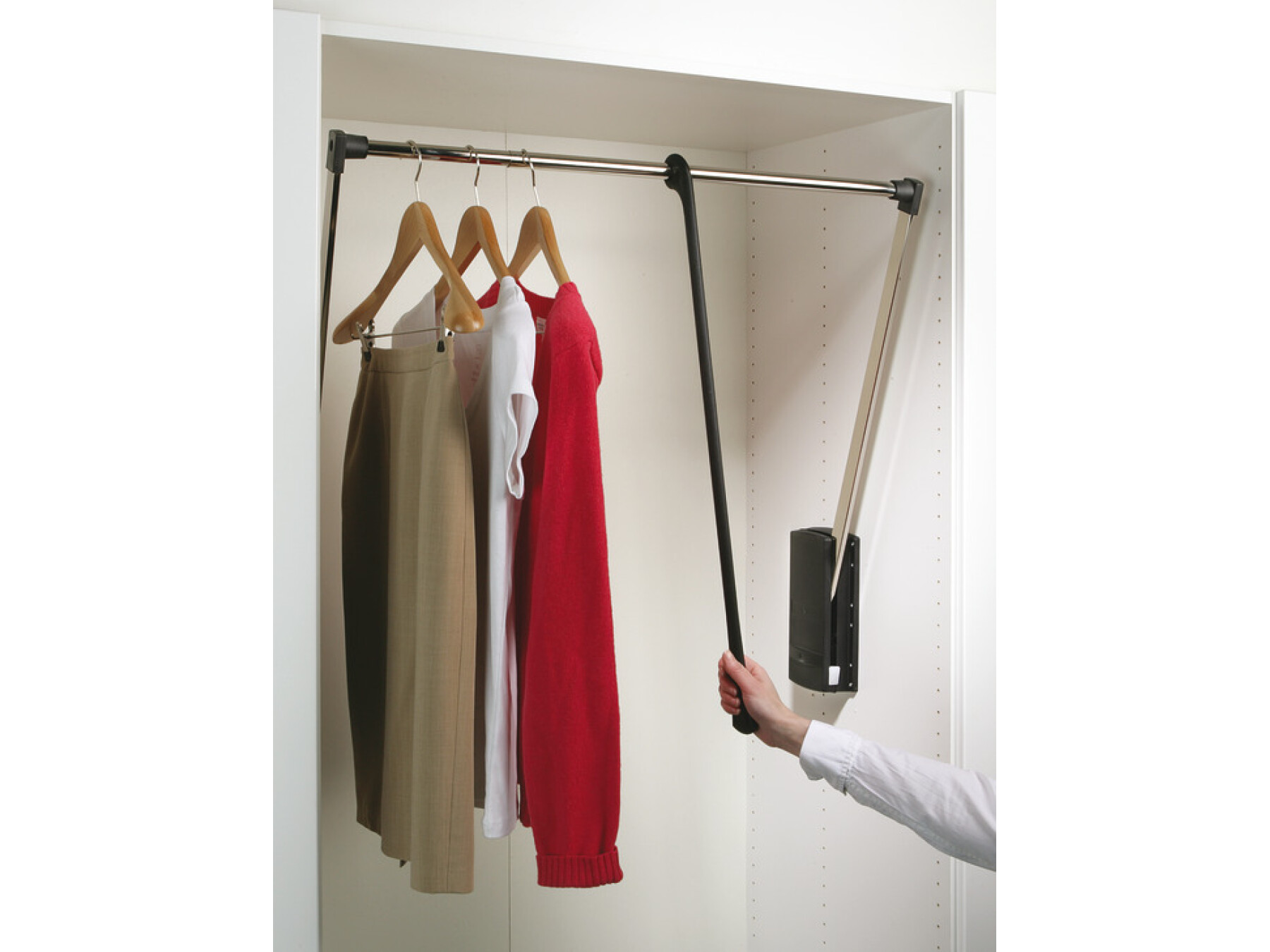

Operated by pull rod - slides along rail

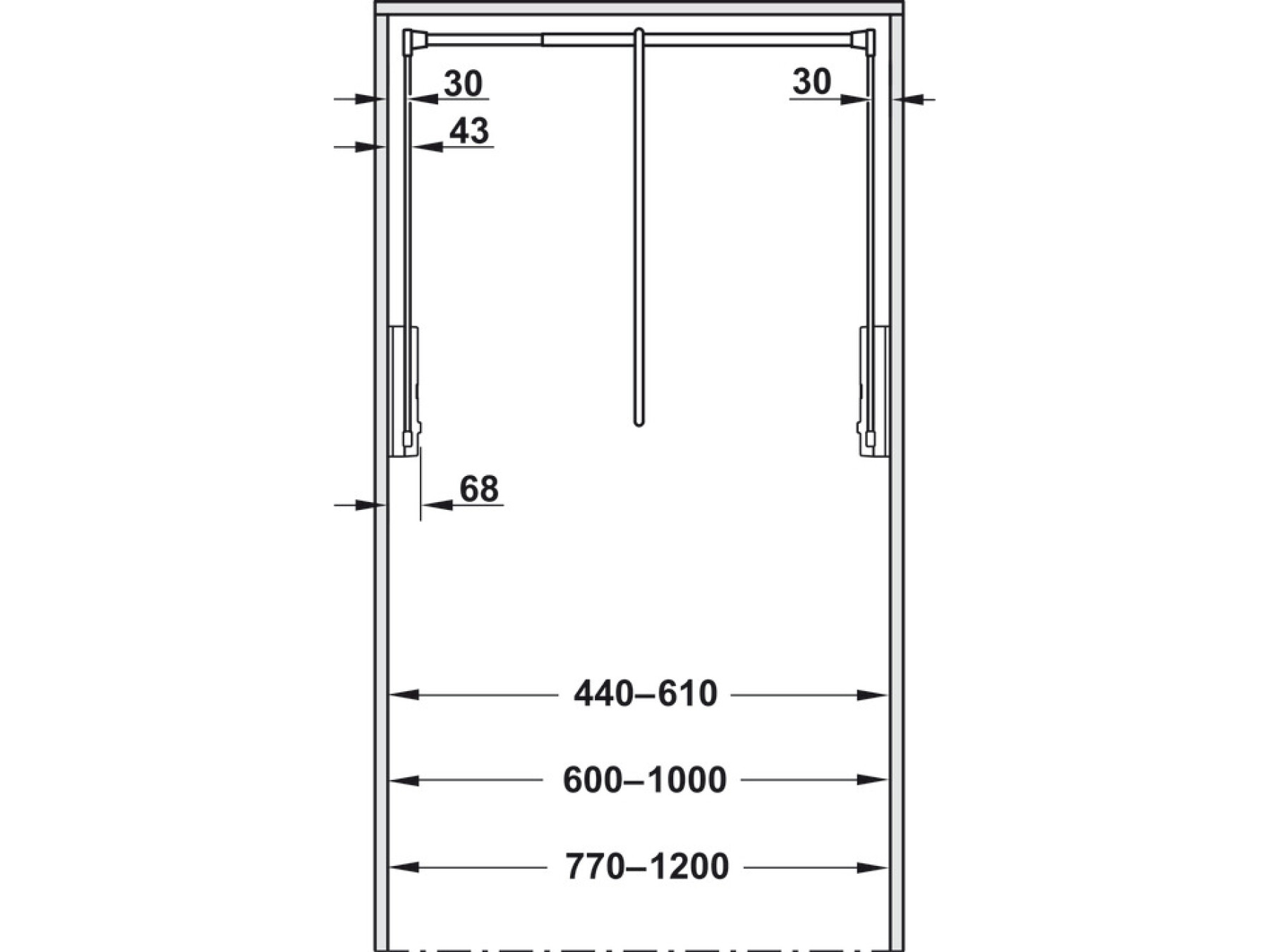

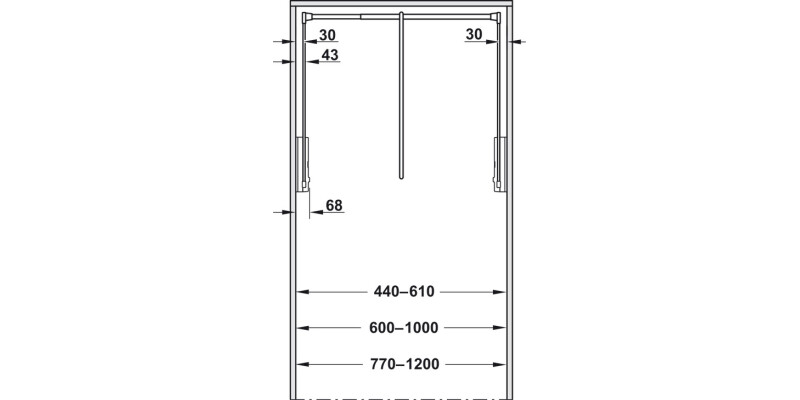

Ø 22 mm hanging rail - adjustable for different wardrobe widths
Minimum load required 1.6 kg, maximum load capacity 10 kg
Screw fixing to side panels - fixing materials included
Please note: All fixings must be used
Important: Tilting device should only be used if fitting installed to rear of the cabinet
Installation note

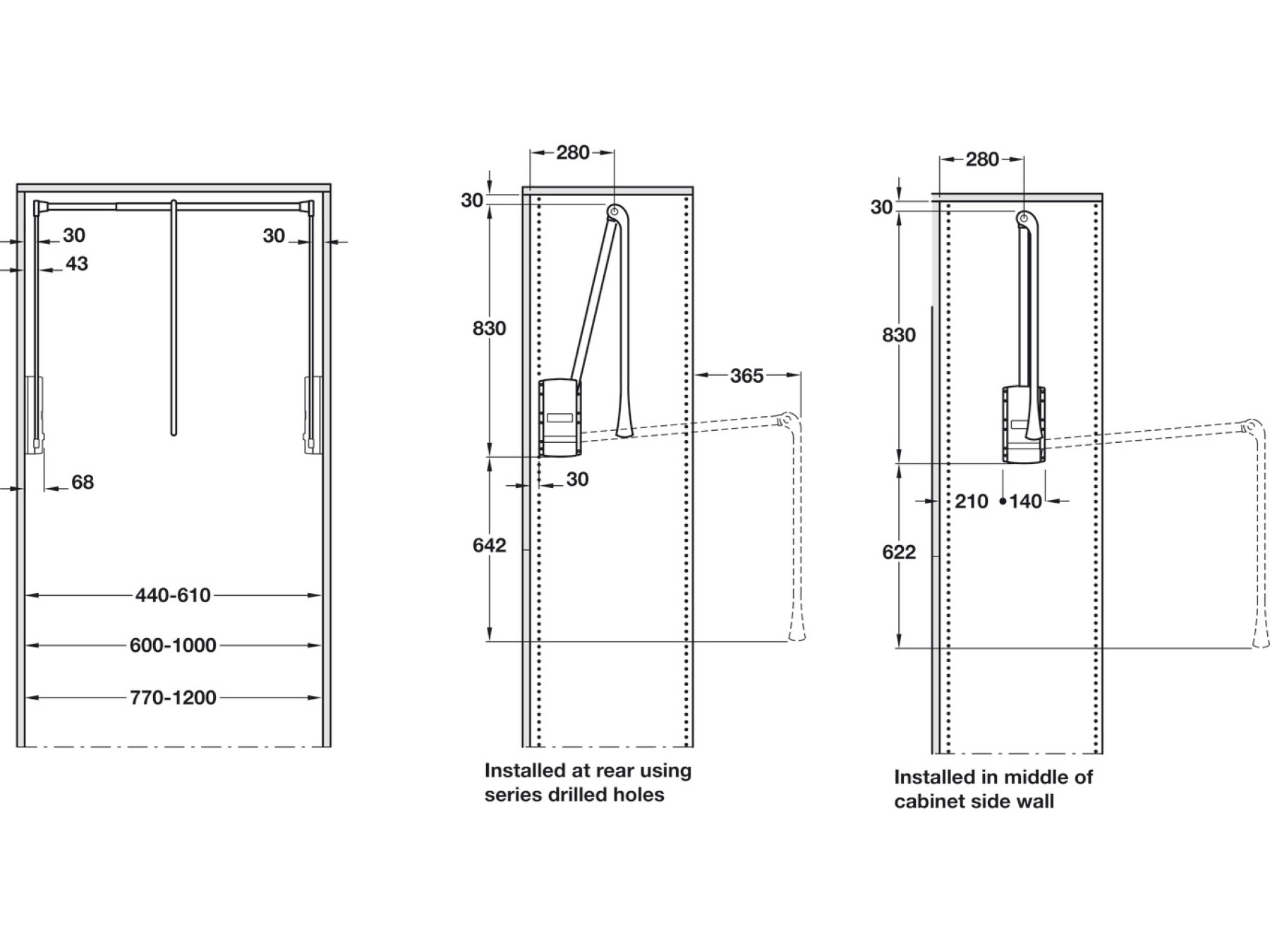

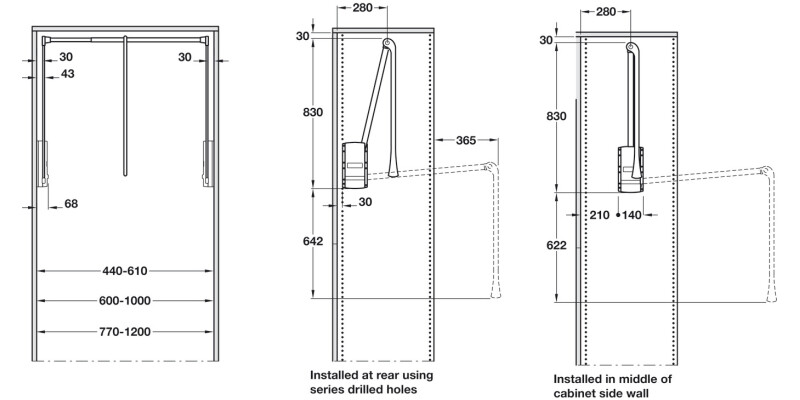

Only use tilting device if wardrobe lift is fitted in rear row of series drilled holes.

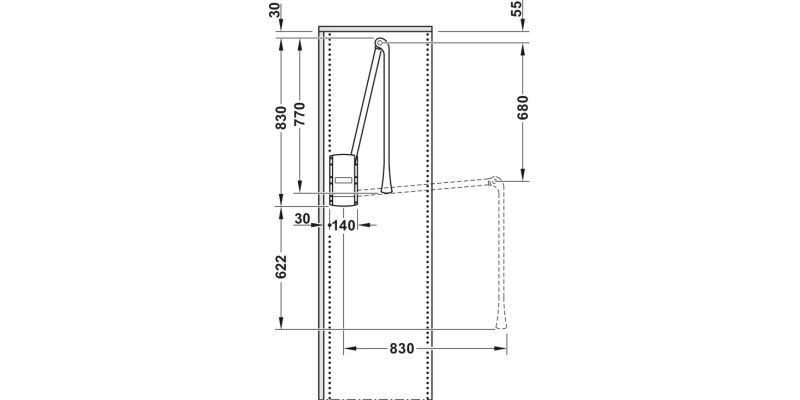

This reduces the min. installation height to 860 mm.
Order reference
When the wardrobe lift is being used in the Versatile system, the support must also be ordered.
When used in the frame construction, 2 pairs of adapter plates must be ordered additionally.

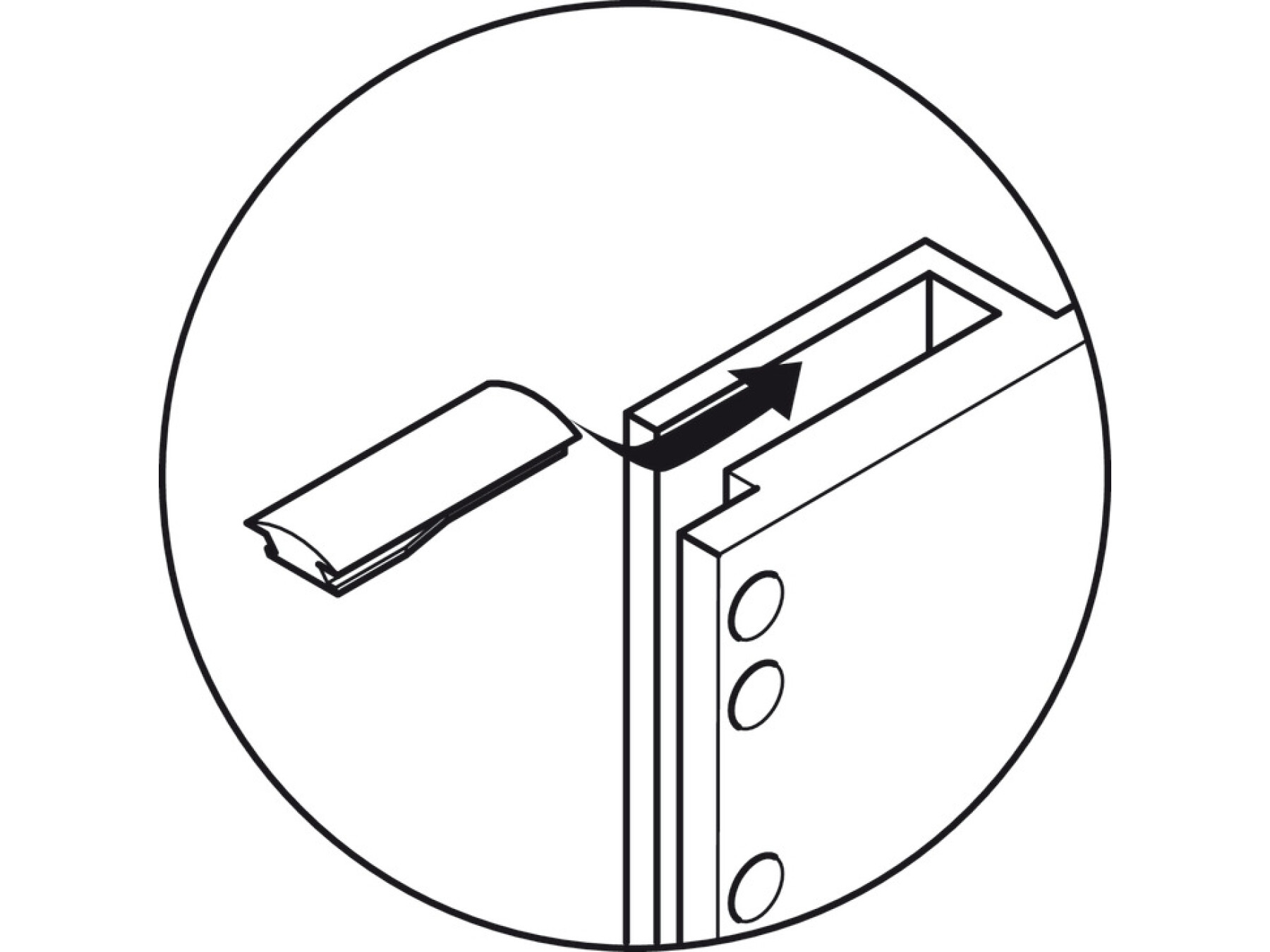

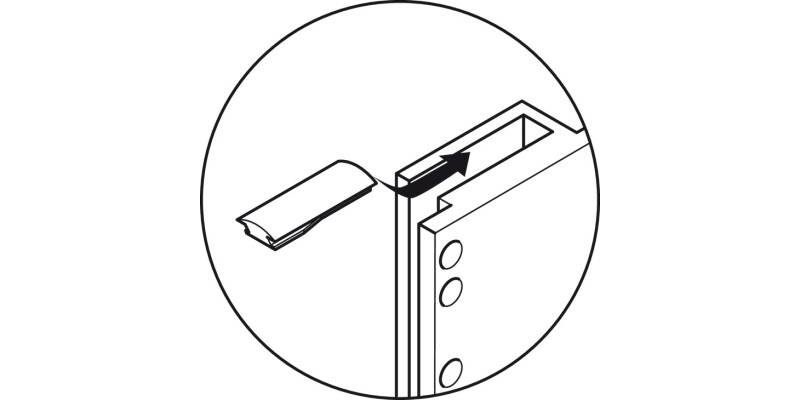

Plastic clip or damper must be installed in order to protect the housing.
Specifications
Model
Load bearing capacity
Material
Steel
Min. installation height
Installation
Screw fixing
