Tavoflex Swing Up Table Top Fit Alu Wht
Part Number: 643.12.201
For table tops, coffee tables and side tables, White aluminium, RAL 9006
Price:
£66.88
Per Item
For moveable table tops with different effective heights and positions and access to storage space inside the... Read More
Product Information
Product Details

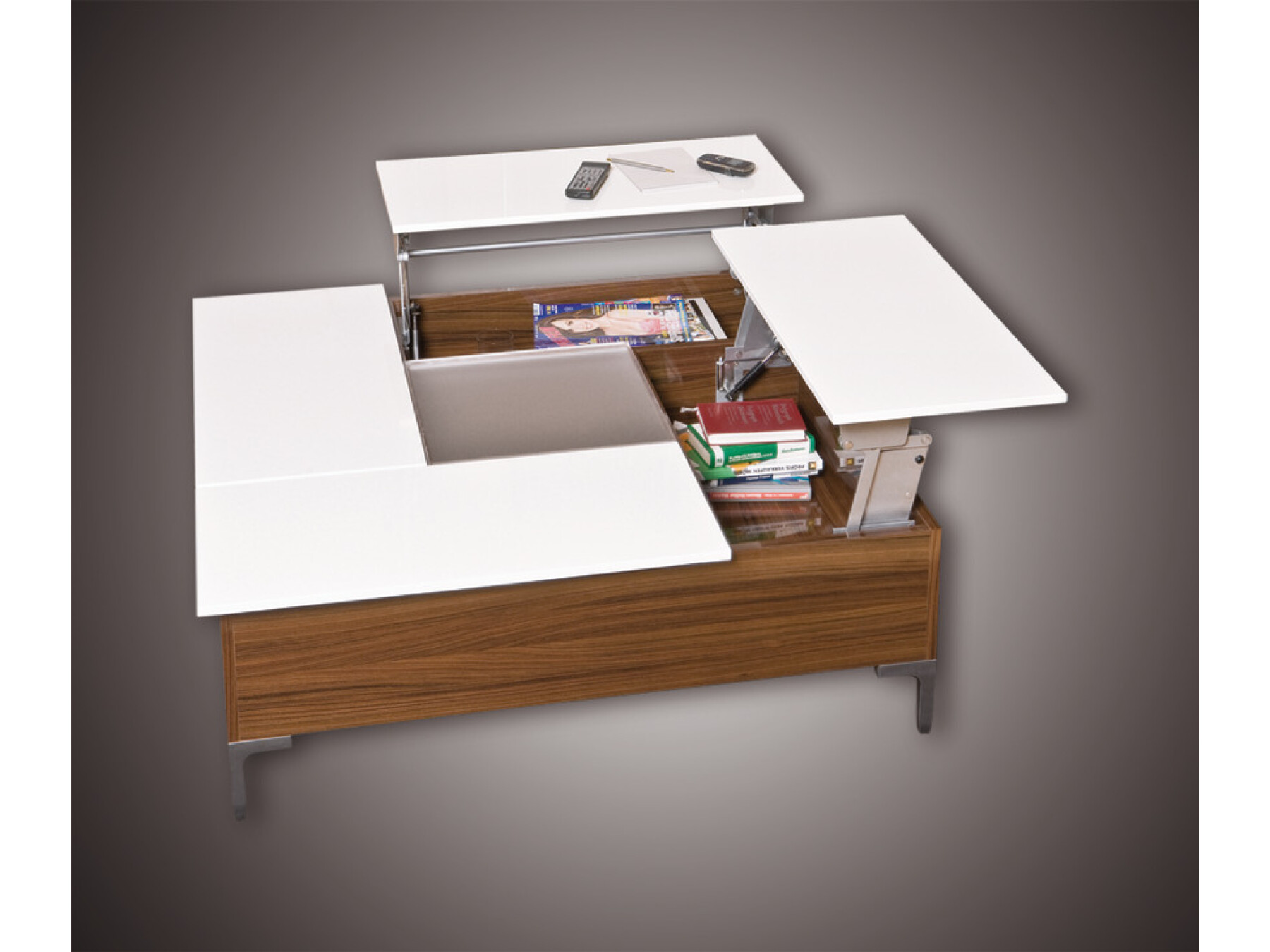

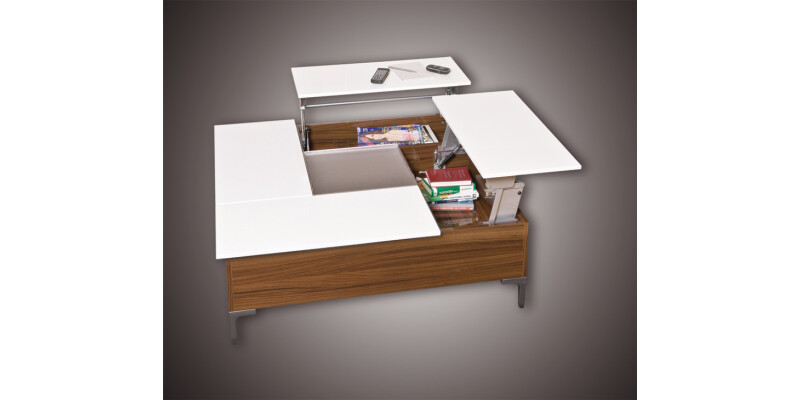

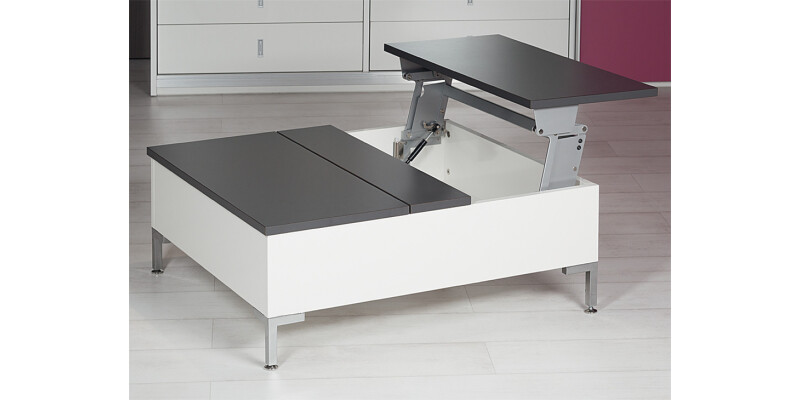

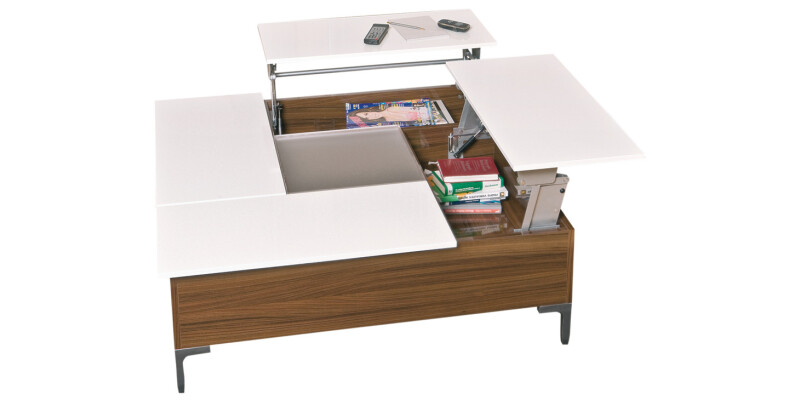

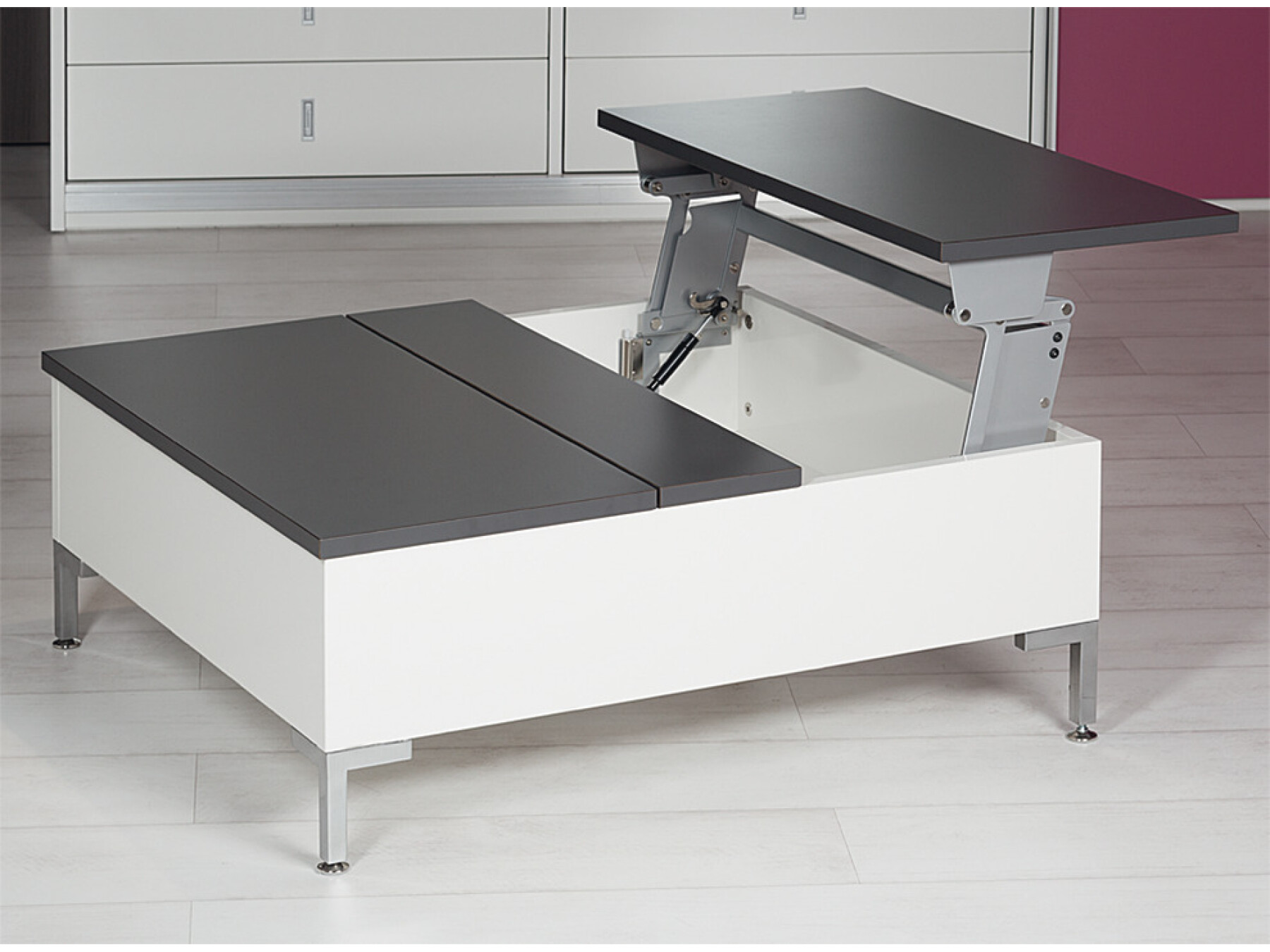

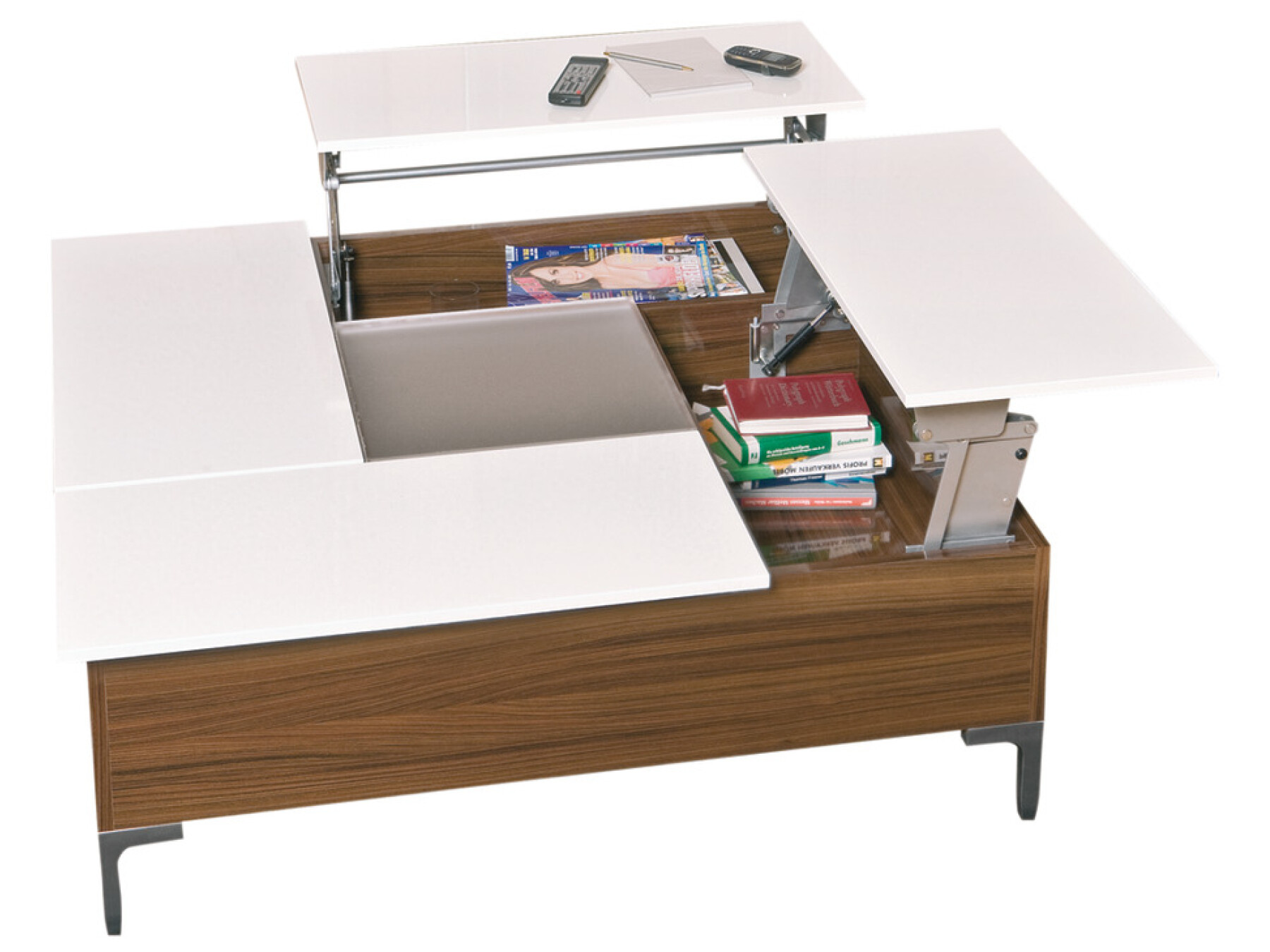

For moveable table tops with different effective heights and positions and access to storage space inside the table
Easy fit

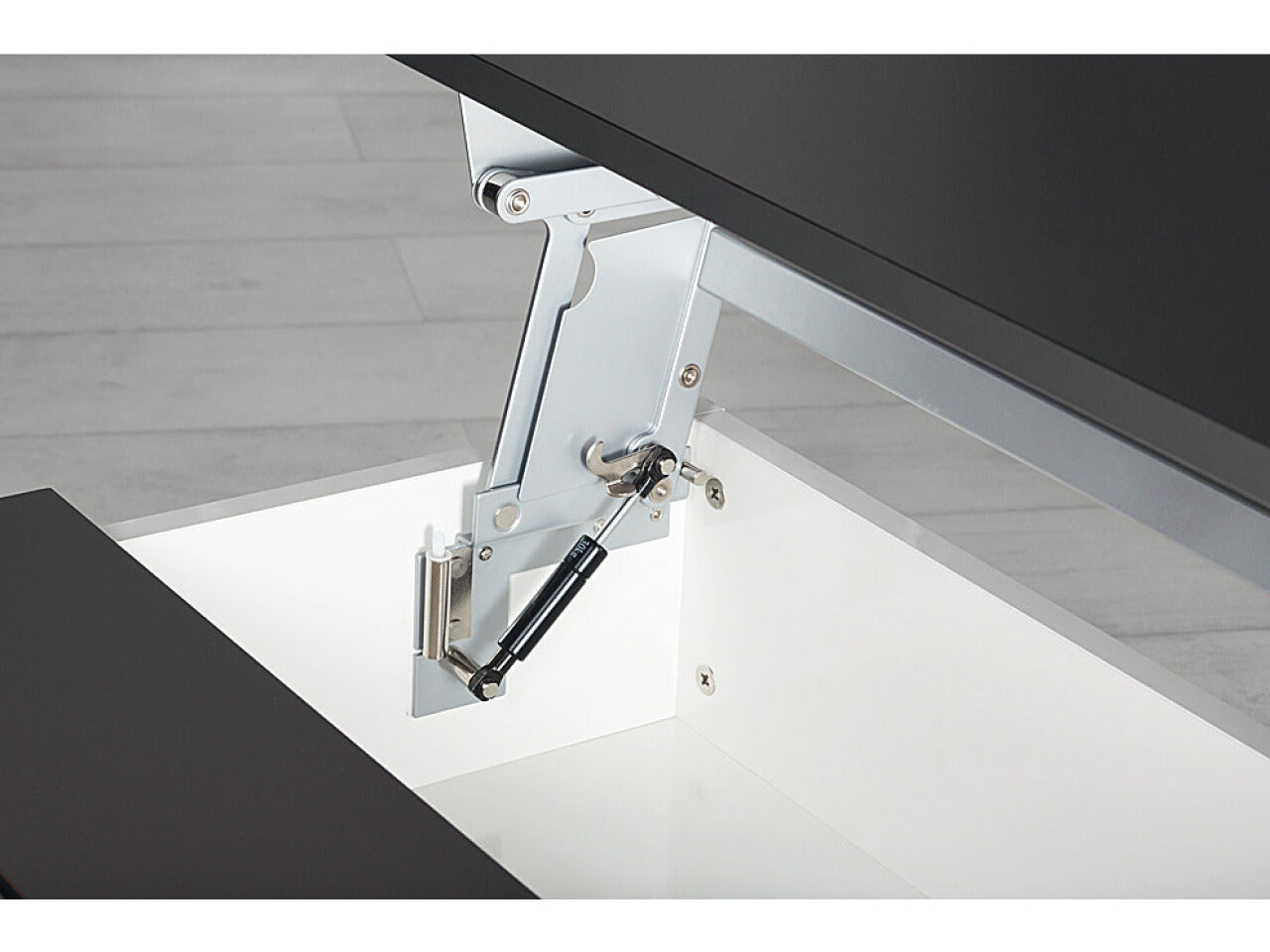

The fitting raises the table top and swivels it sideways
Easy to use from a seated position
Synchronising rods provide smooth movement
The lock safety catches on both sides prevents unintentional closing
Side covers prevent fingers being trapped

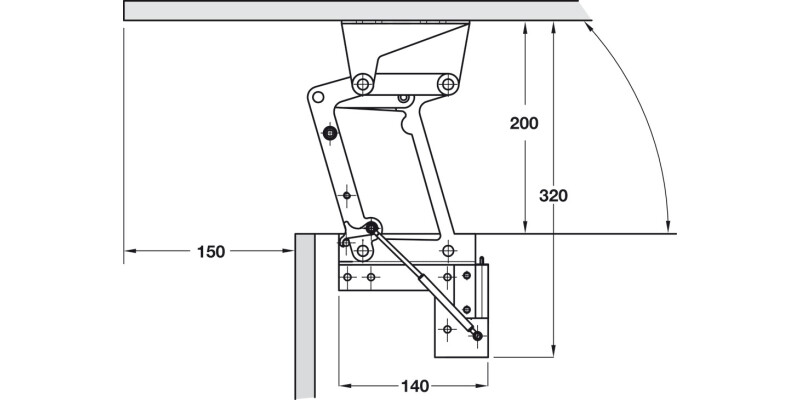

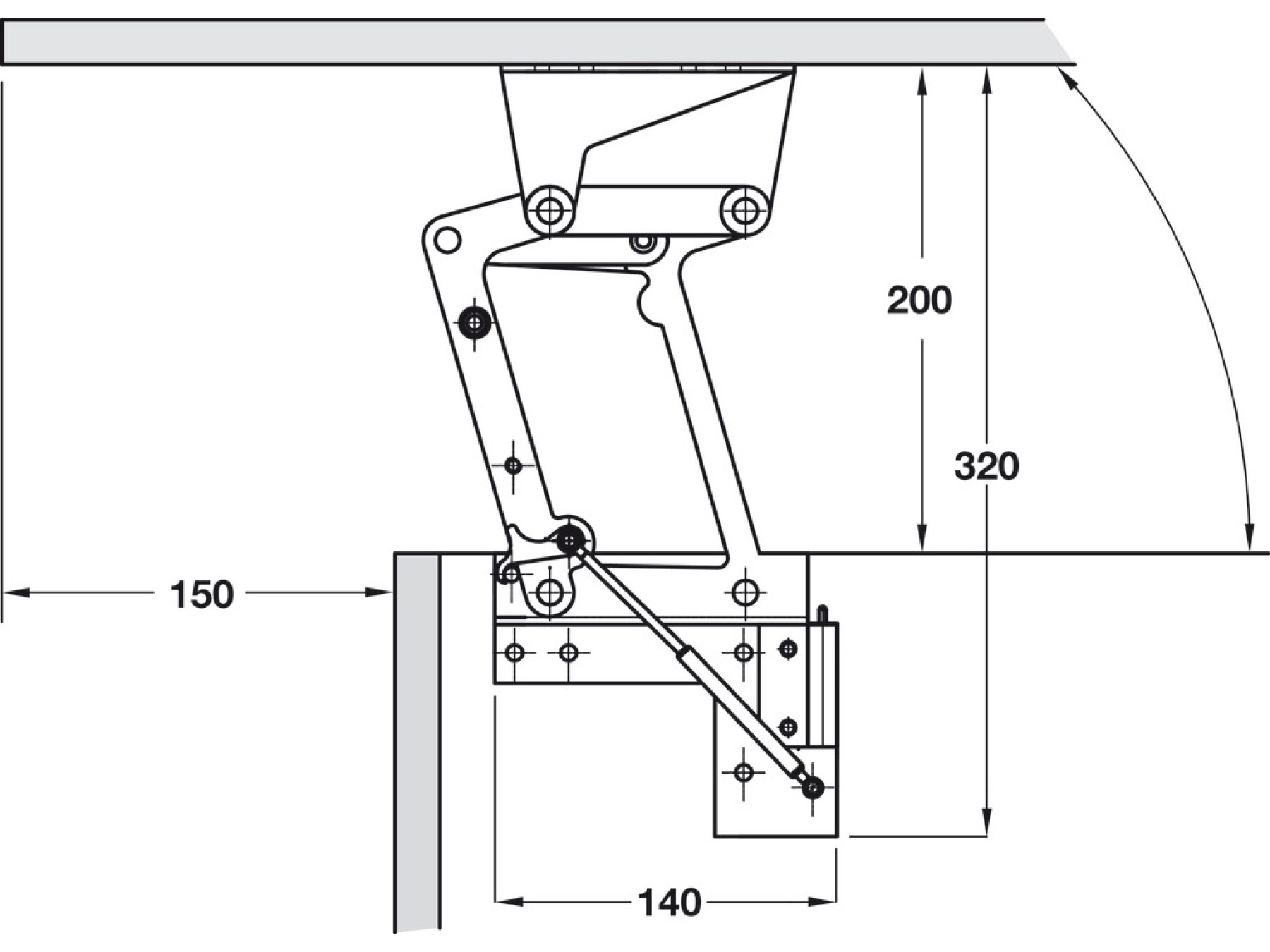

Installation
For screw fixing into pre-drilled 32 mm series drilled holes, installation of synchronising rod with size 6 Allen key
Minimum gap to fixed table top 6 mm
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Colour/finish
Silver coloured, RAL 9006
Area of application
For table tops, coffee tables and side tables up to a load bearing capacity of 5 kg
Version
With side finger protection
Material
Steel
Load bearing capacity
5.00 kg
Installation width
698 mm
Recommended panel thickness
16.00 mm
Order reference
Order Varianta Ø 6 cylindrical head screws separately
Supplied with
1 pair of swing-up table top fittings
1 cross bar
1 set of installation instructions
