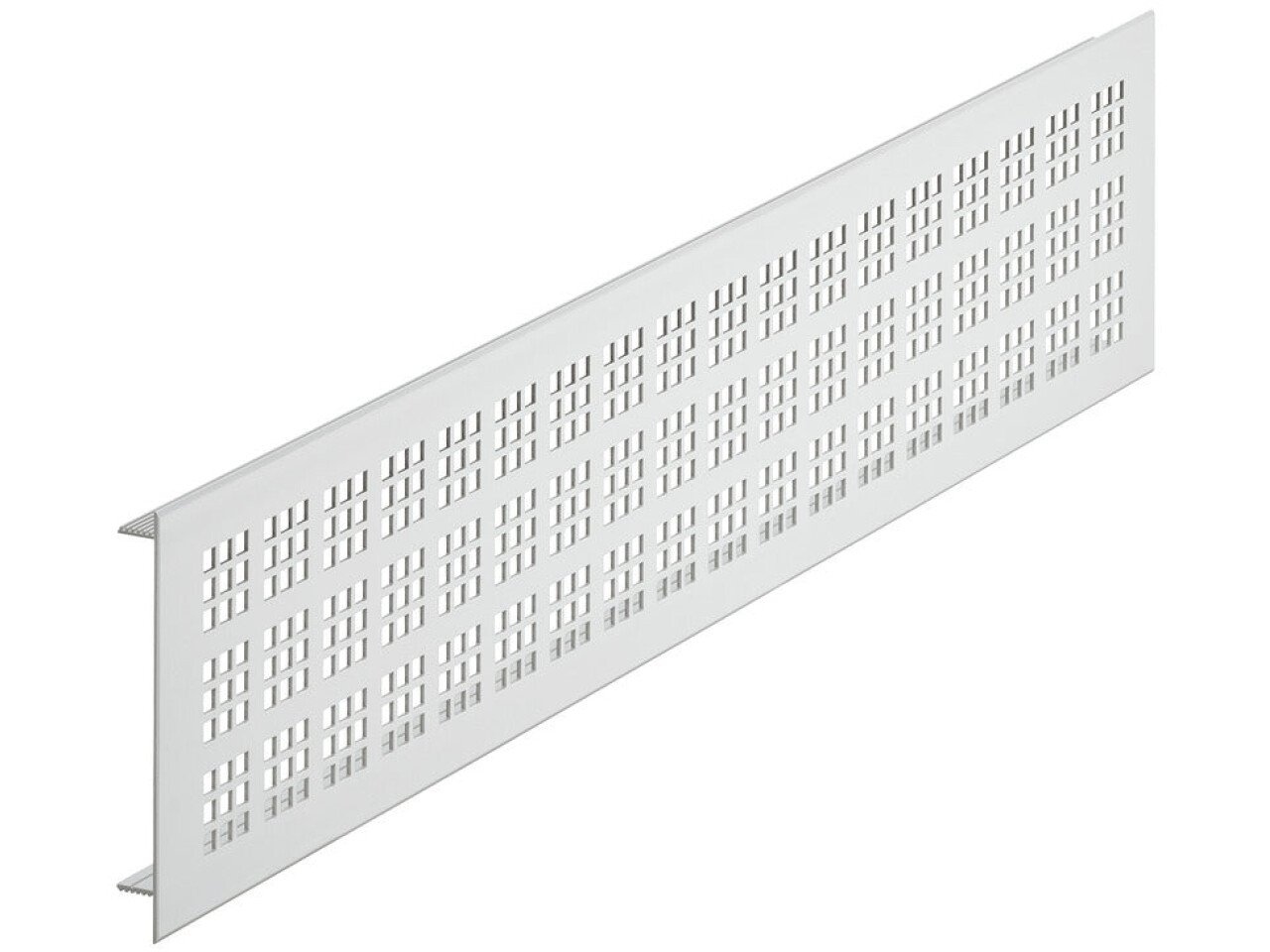

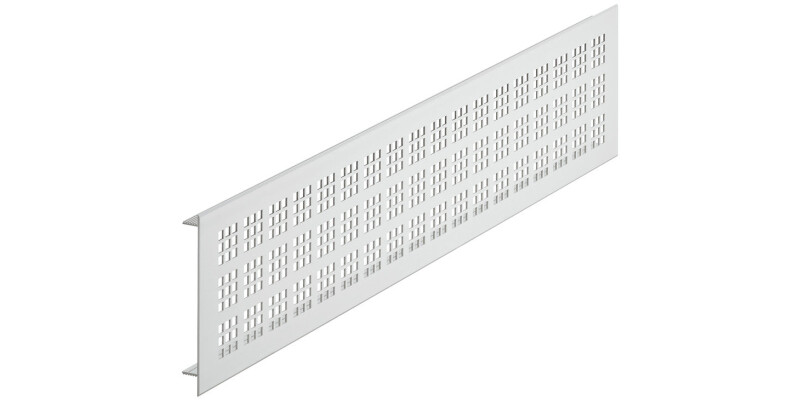

Vent Grille PF Sqr 500x100mm AA Slv F1
Part Number: 575.27.934
Anodised aluminum, Ventilation area 120.5 cm2, length 500 mm, max. installation dims. 485 x 85 mm, matt silver F1
Price:
£38.90
Per Item
Technical data Dim. (L x W) 500 x 100 mm 1000 x 100 mm 2000 x 100 mm Cut-out (L x W) 485 x 85 mm 985 x 85... Read More
Product Information
Product Details

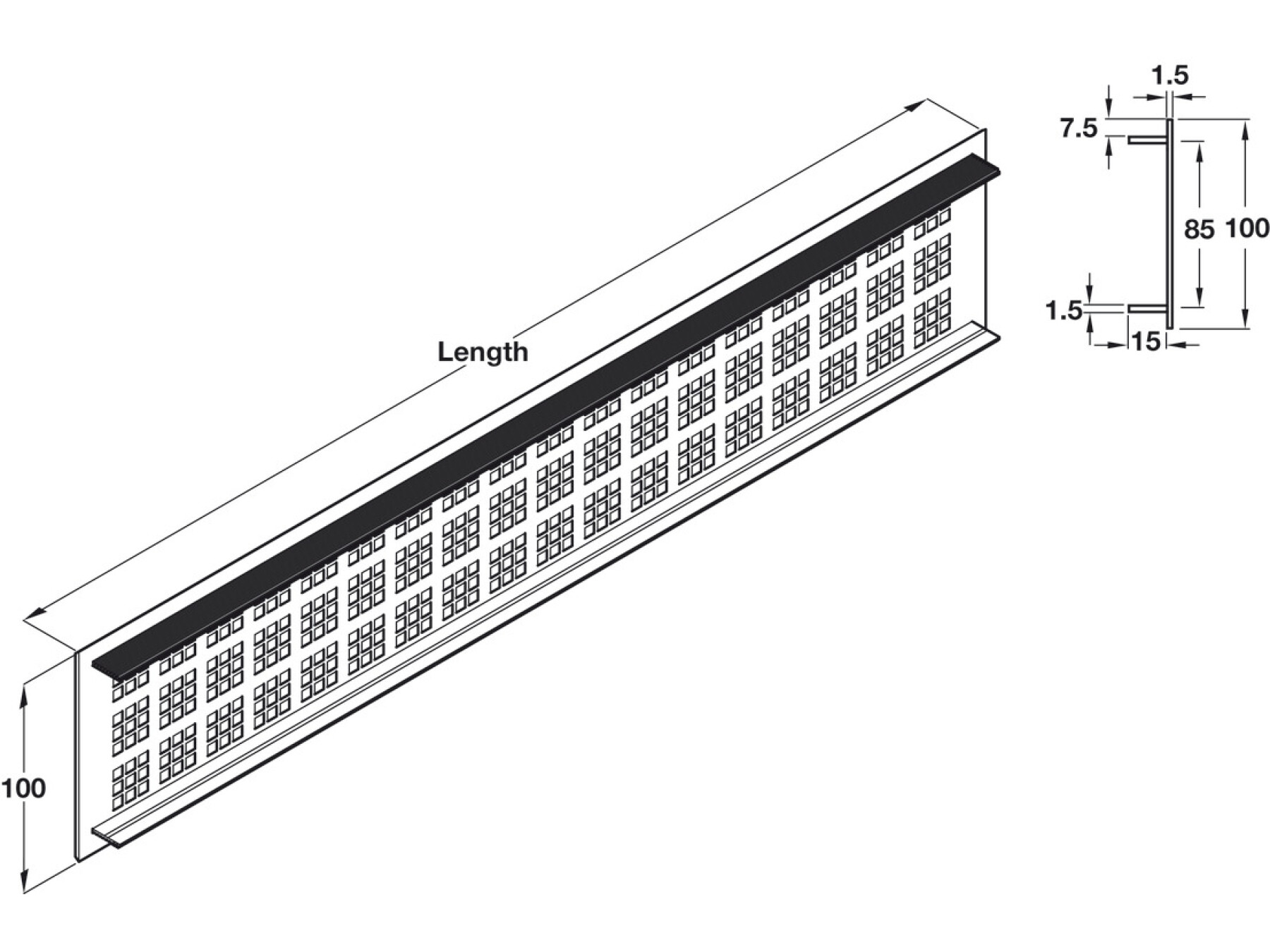

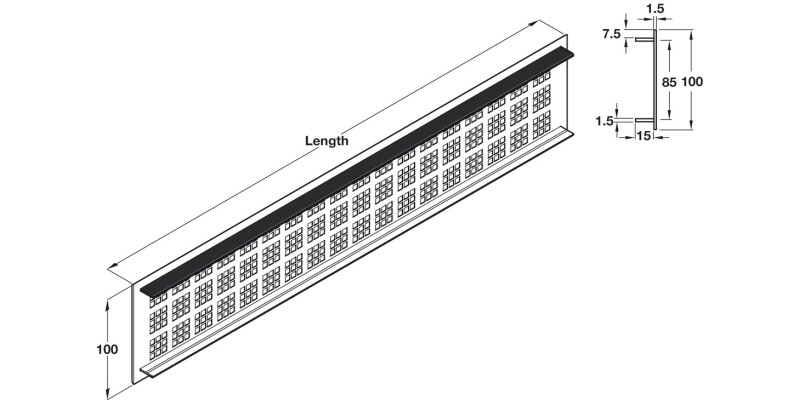

| Technical data | |||
|---|---|---|---|
| Dim. (L x W) | 500 x 100 mm | 1000 x 100 mm | 2000 x 100 mm |
| Cut-out (L x W) | 485 x 85 mm | 985 x 85 mm | |

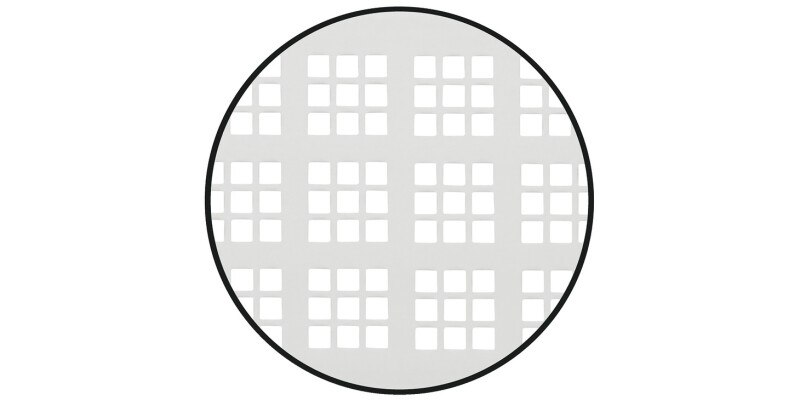

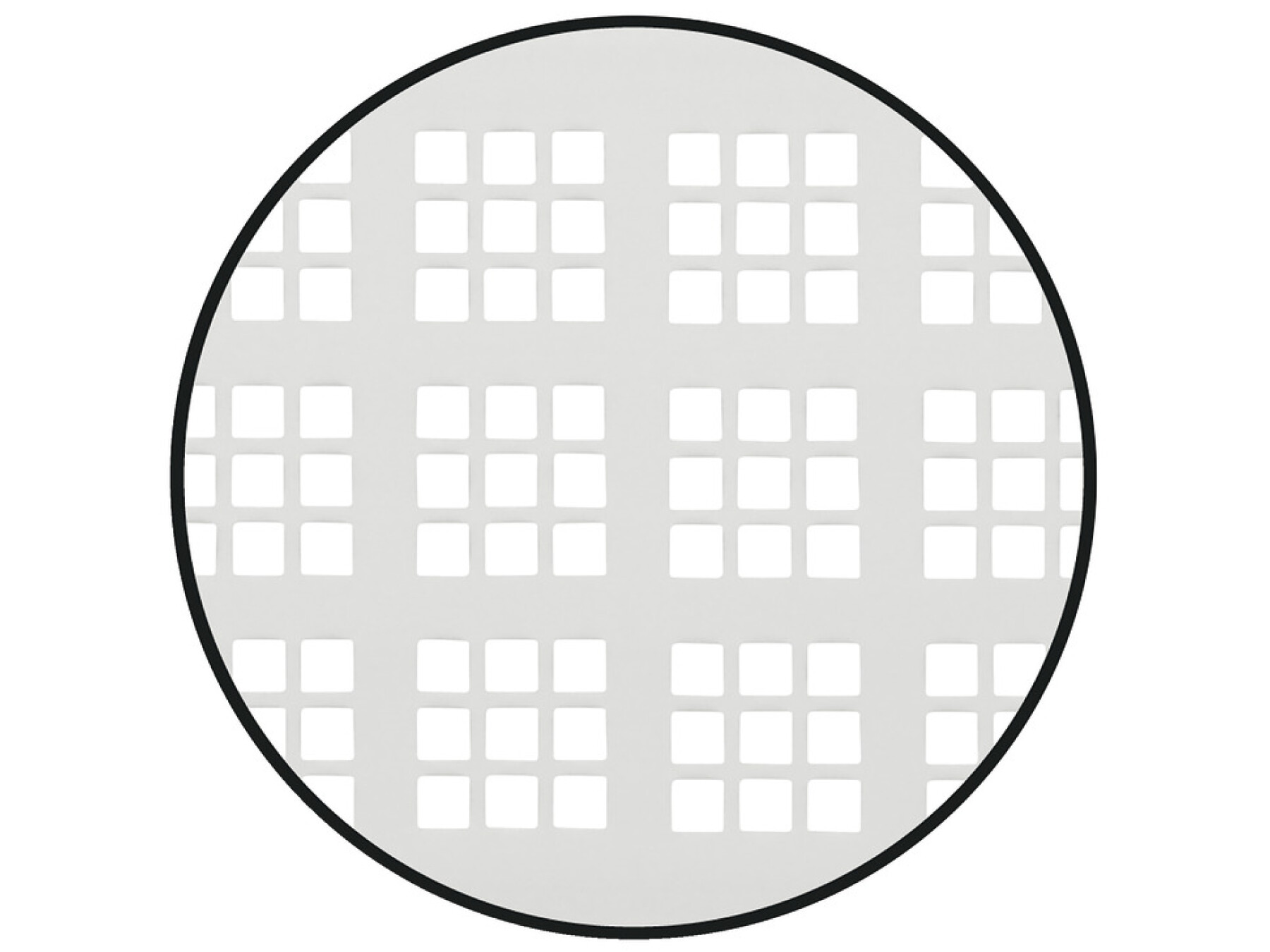

| Apertures (L x W) | 5 x 5 mm | 5 x 5 mm | 5 x 5 mm |
| Flange width | 15 mm | 15 mm | 15 mm |
| Ventilation Area | 121.5 cm² | 256.5 cm² | |
| Thickness | 1.5 mm | 1.5 mm | 1.5 mm |
Specifications
Material
Aluminium
Thickness
1.50 mm
Colour/finish
Silver coloured, anodized F1
Version
Max. installation dims. 485 x 85 mm
Installation
With straight notched 7.5 mm ribbed flanges on both sides for press fitting
