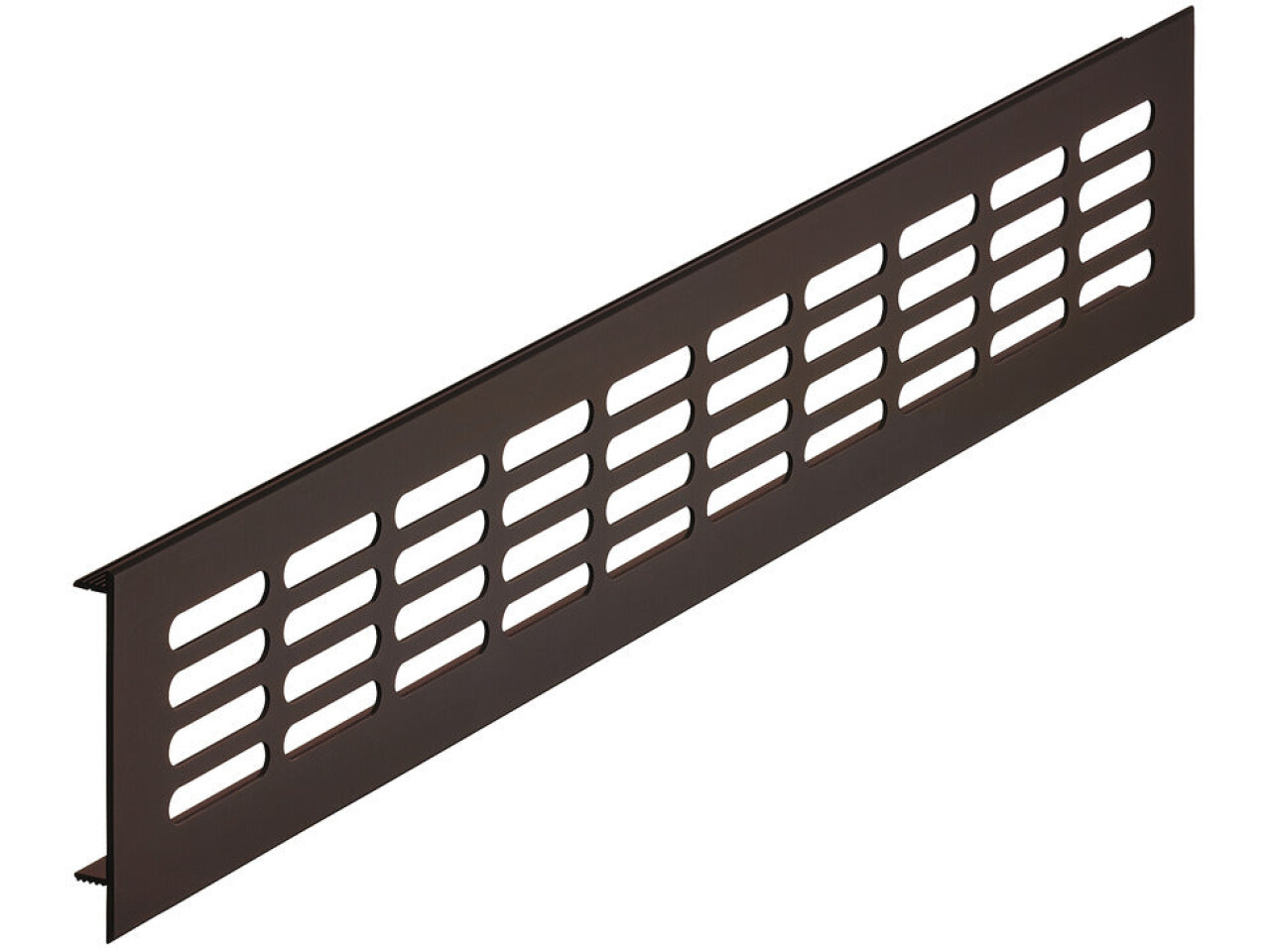

Vent Grille RM 250x60mm Alloy Bronze F5
Part Number: 575.20.111

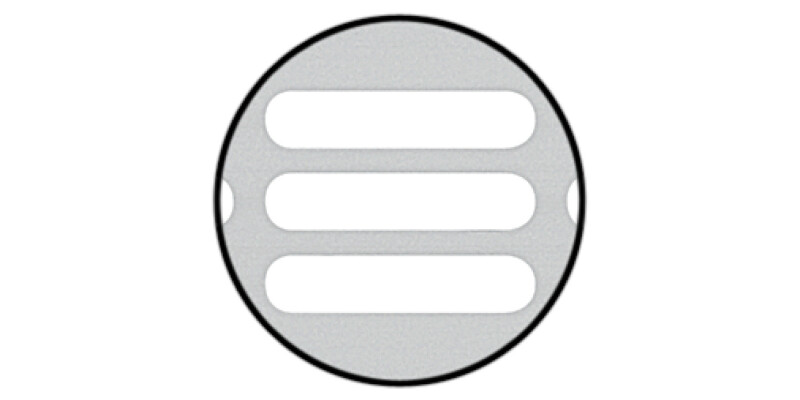

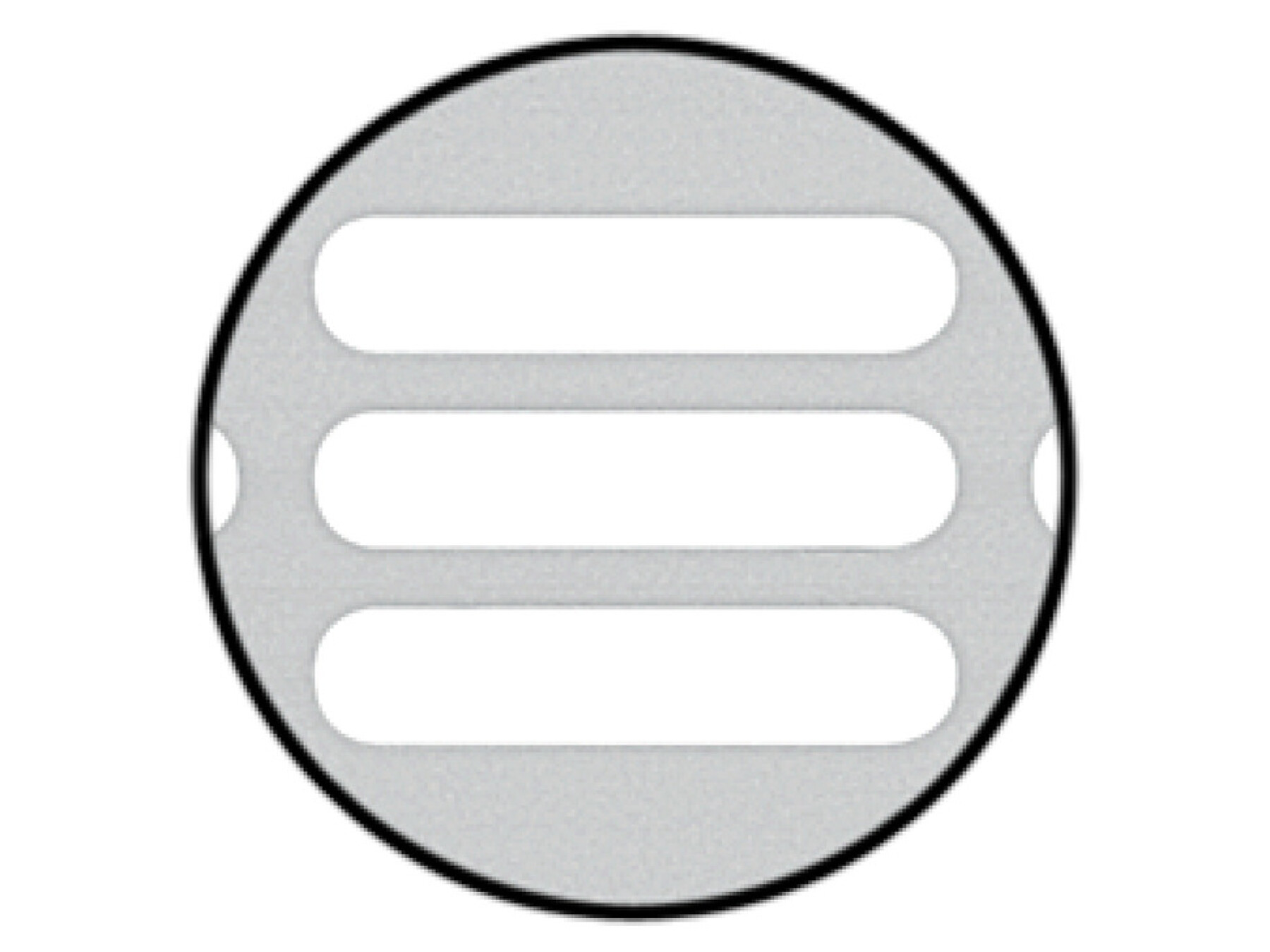

With 40 x 7.5 mm Oval Slots Arranged in Parallel, Ventilation area 45 cm2, length 250 mm, flange length 228 mm, recessed height 46 mm, bronze F5
Price:
£12.79
Per Item
Technical data Dim. (L x W) 250 x 60 mm 300 x 60 mm 400 x 60 mm 500 x 60 mm 1000 x 60 mm 2000 x 60 mm... Read More
Product Information
Product Details

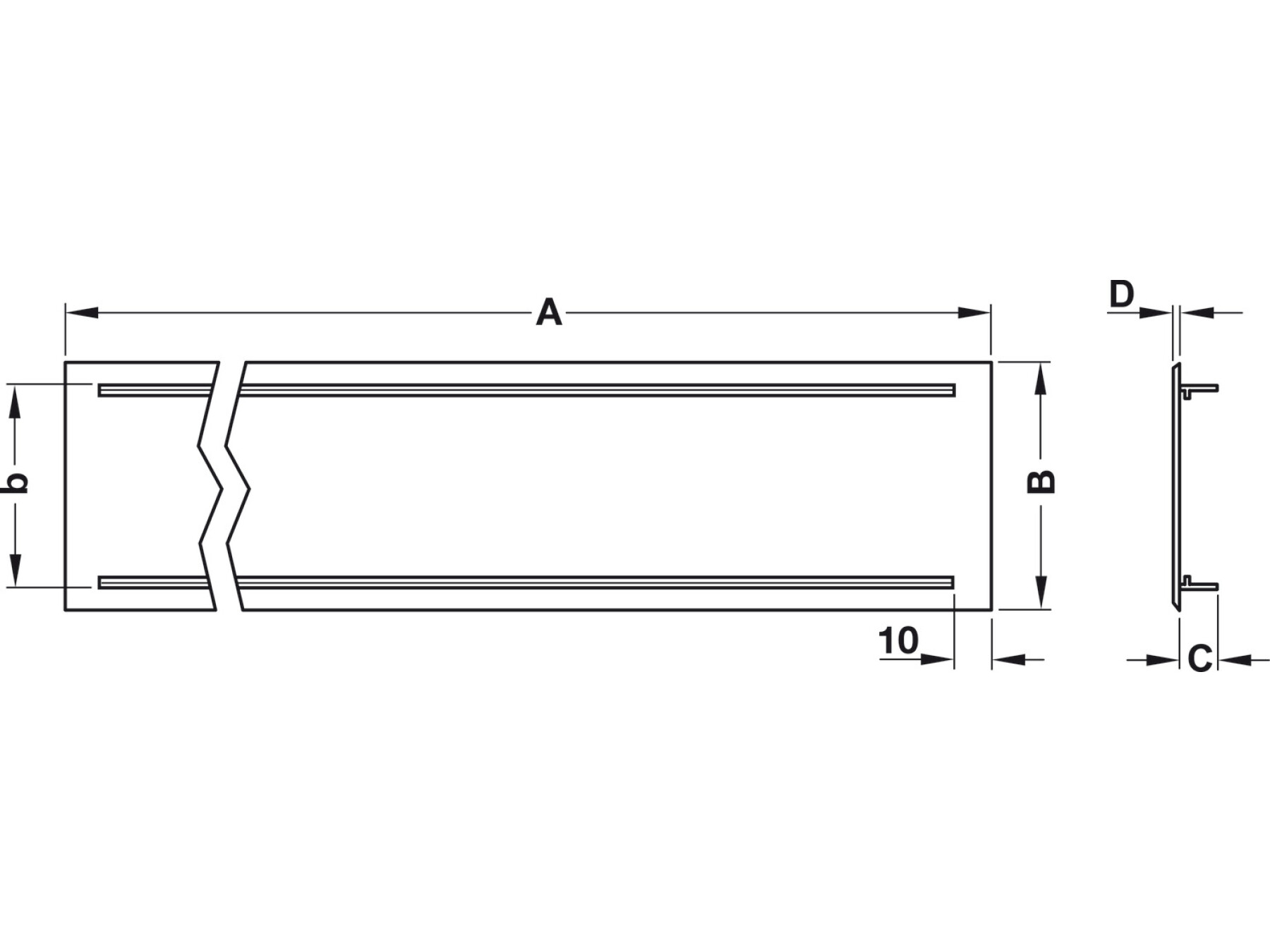

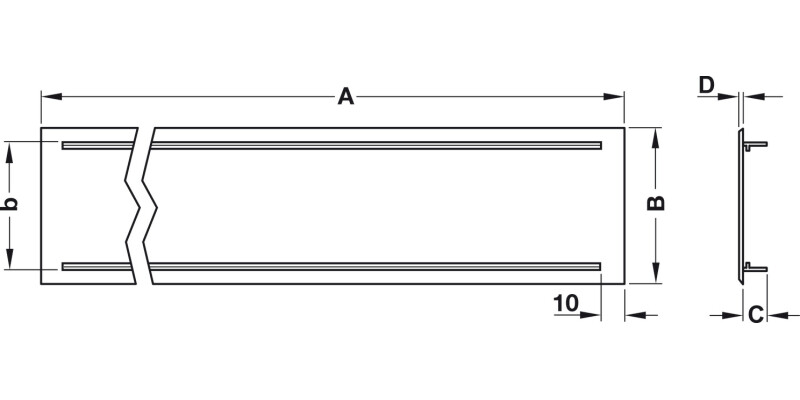

| Technical data | ||||||
|---|---|---|---|---|---|---|
| Dim. (L x W) | 250 x 60 mm | 300 x 60 mm | 400 x 60 mm | 500 x 60 mm | 1000 x 60 mm | 2000 x 60 mm |
| Apertures (L x W) | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm |
| Flange length | 228 mm | 278 mm | 378 mm | 478 mm | 978 mm | 2,000 mm |
| Flange width | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm |
| Ventilation Area | 45 cm² | 53 cm² | 71 cm² | 89 cm² | 186 cm² | 372 cm² |
| Thickness | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Specifications
Material
Aluminium
Thickness
1.50 mm
Version
Bevelled front edges and ribbed flanges
Installation

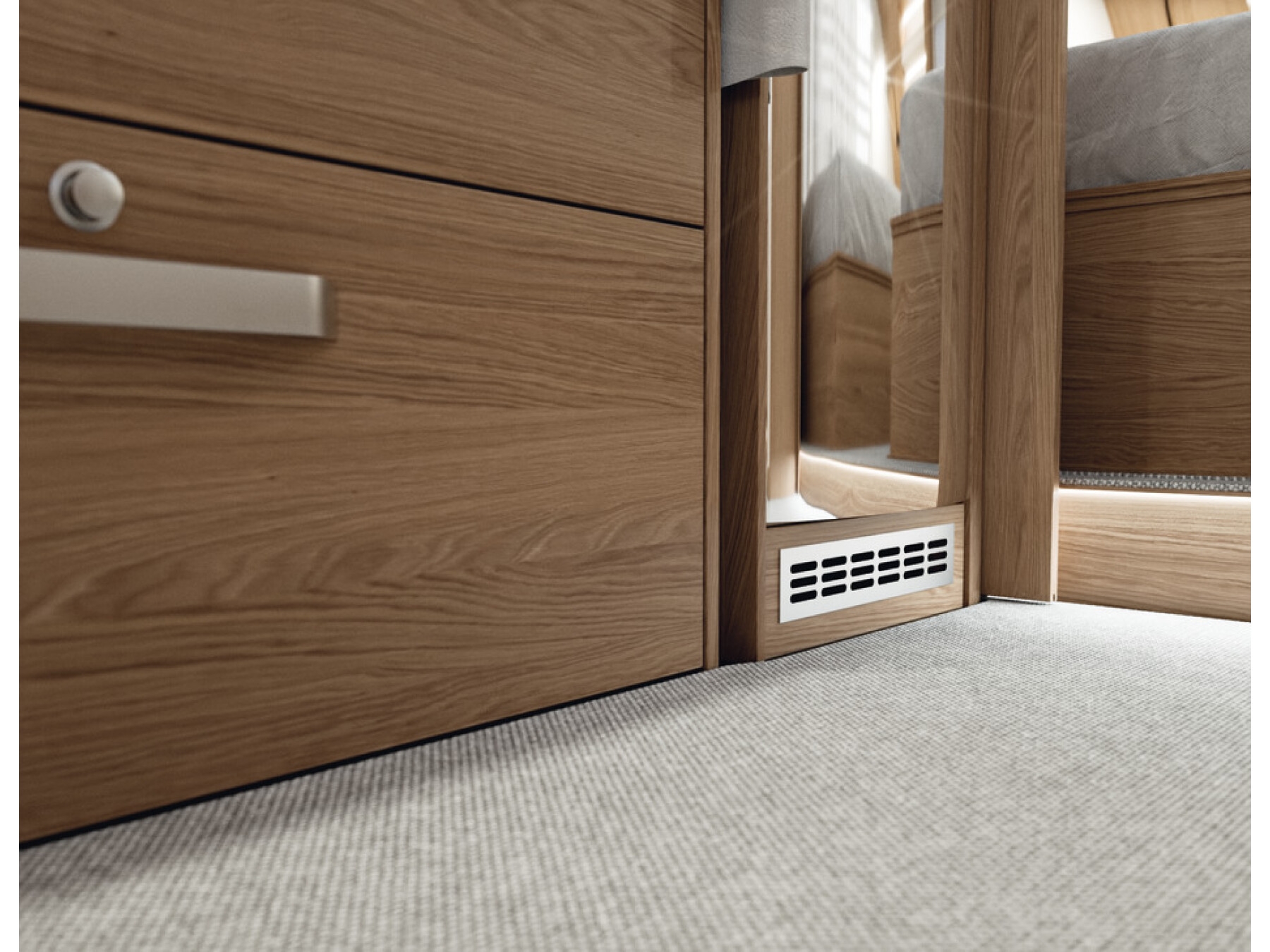

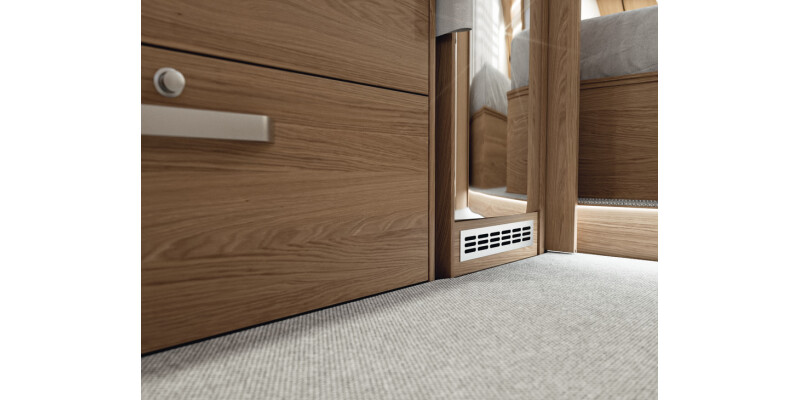

For recess mounting.
Ribbed flanges for press fitting.
