Banio H Frame Set White

Product Details

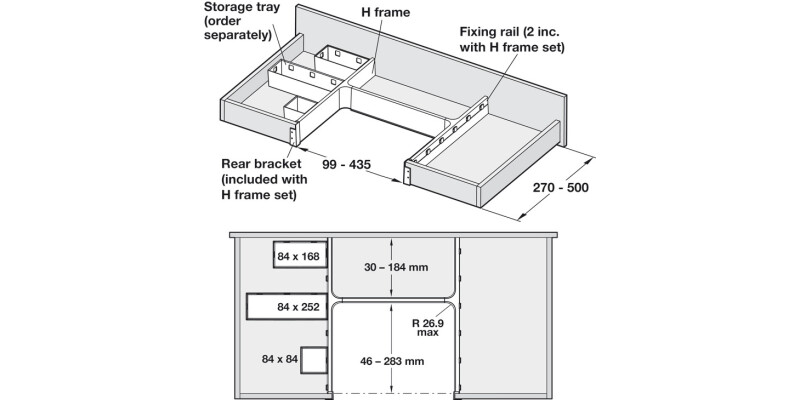

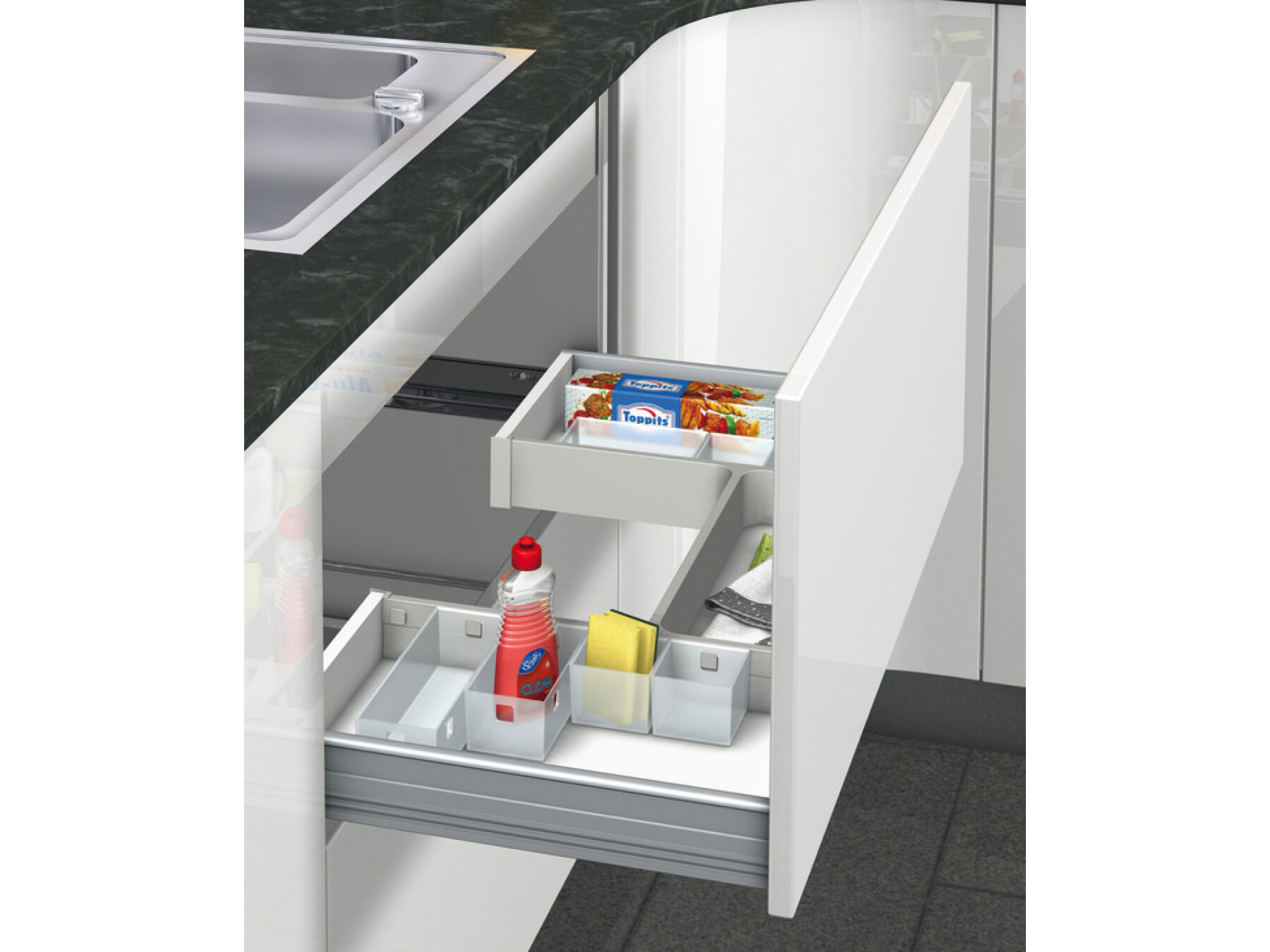

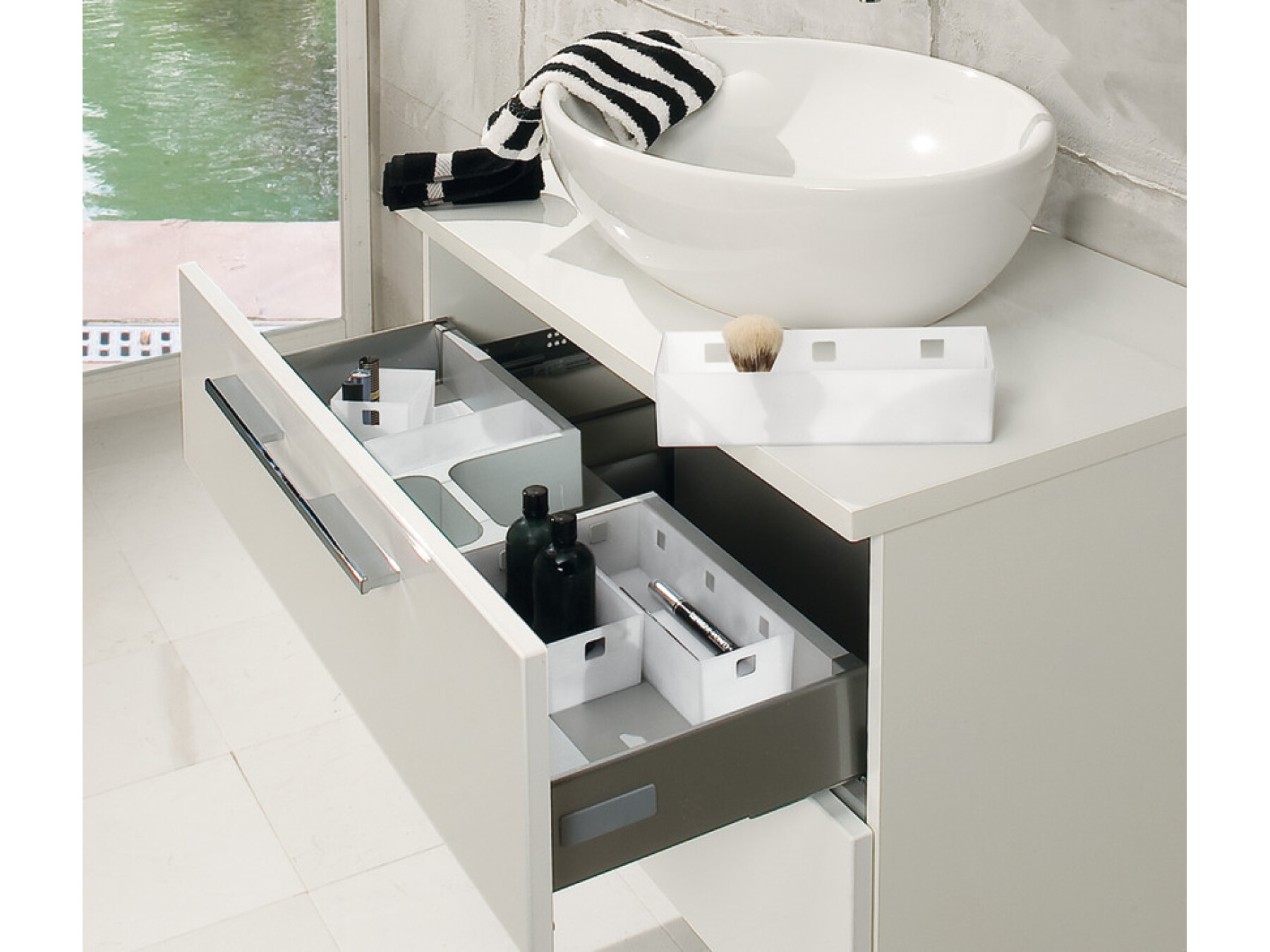

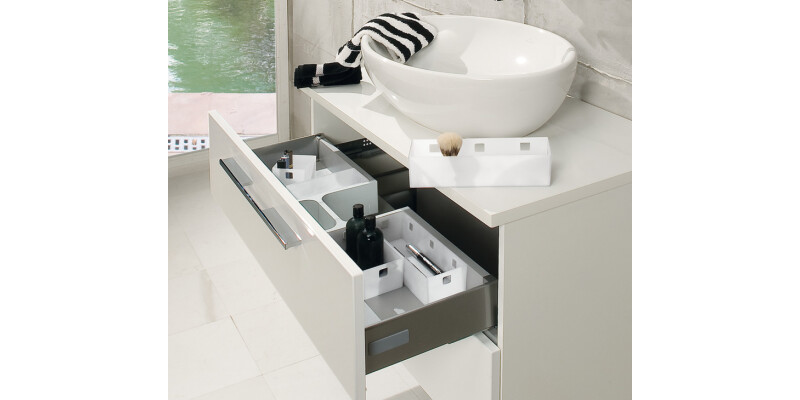

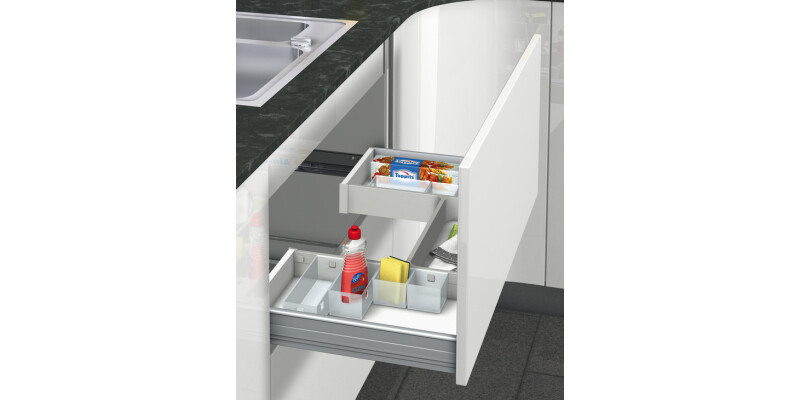

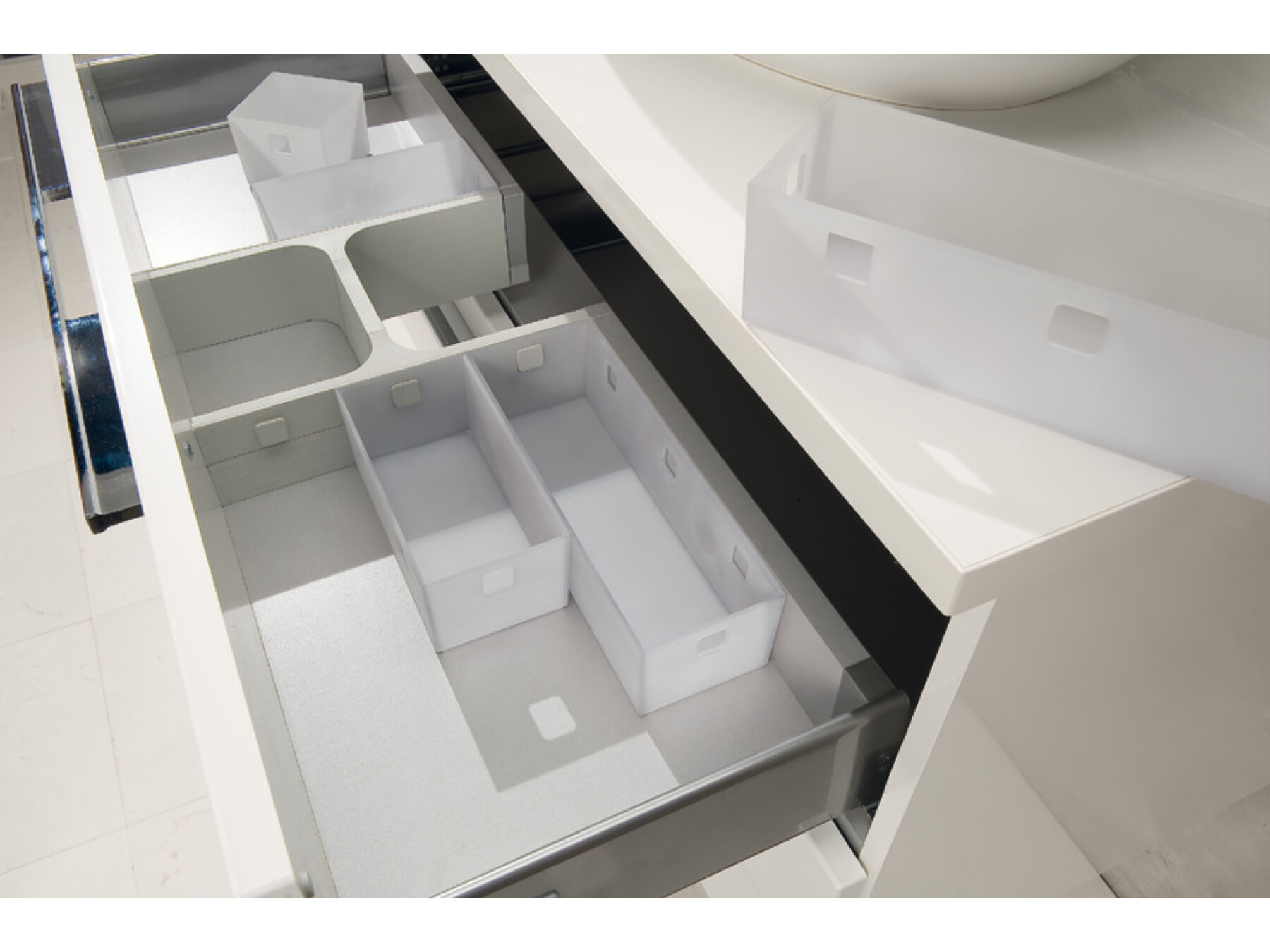

Suitable for drawers, the Banio system contains of a unique H-shaped frame to conceal cut outs required for sink waste pipework, as well as storage trays that can be configured to suit indiviudal requirements and removed or swapped at any time
For use in drawers with 16 mm base and rear panel

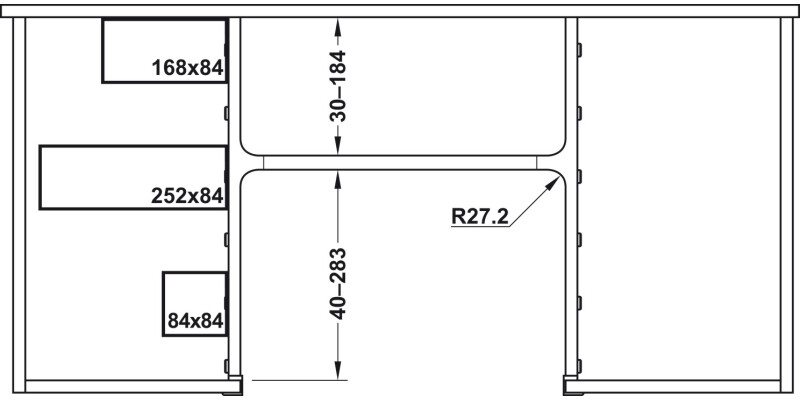

Storage trays (ordered separately) are impact resistant, easy-to-clean and come in three different sizes. Can also be used free standing

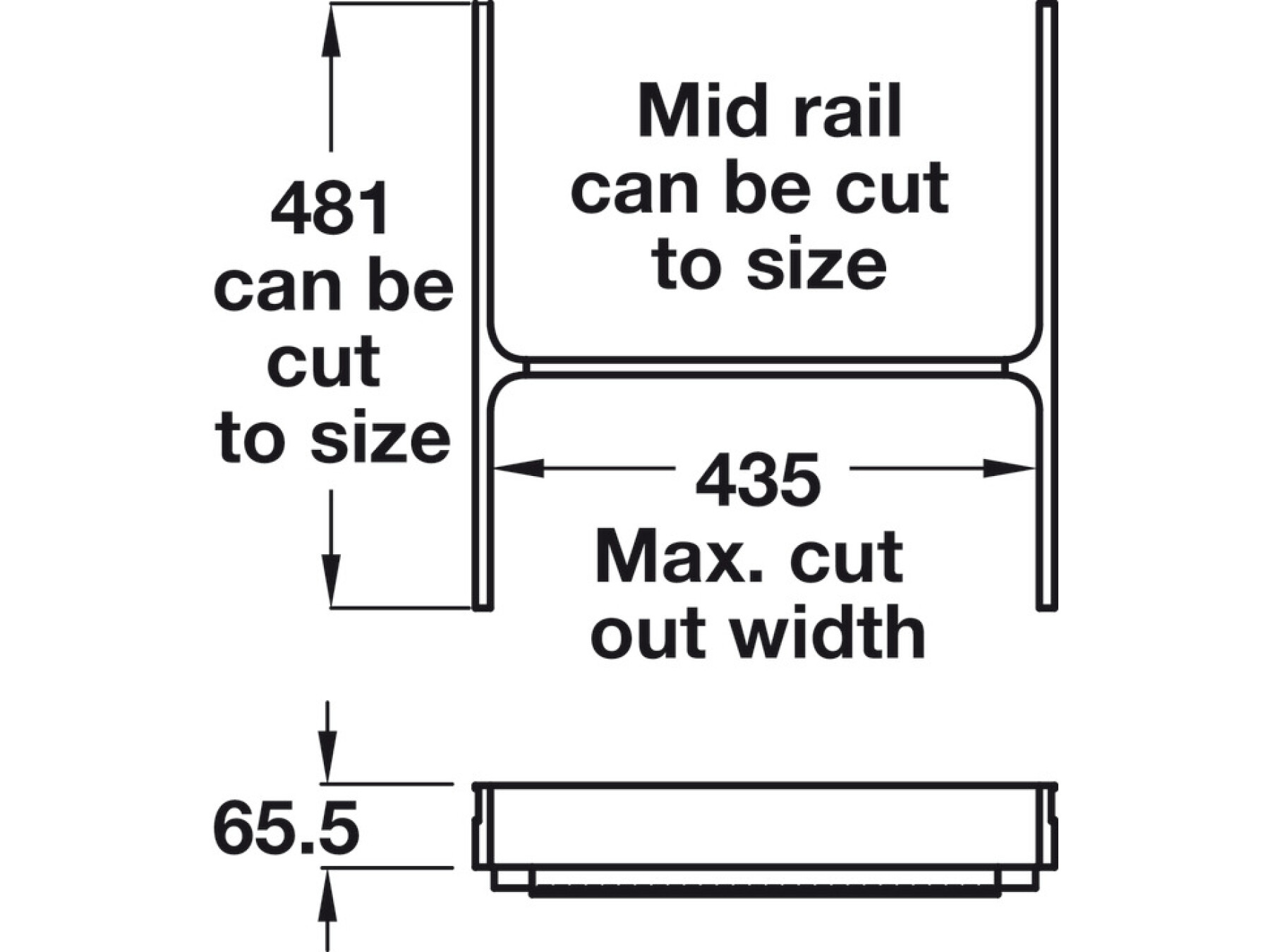

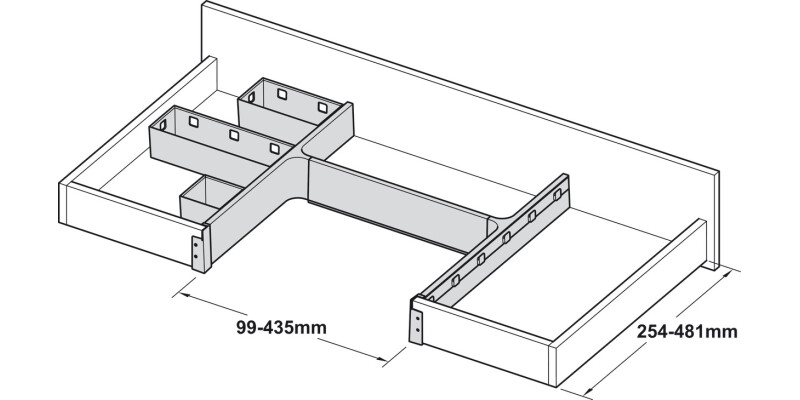

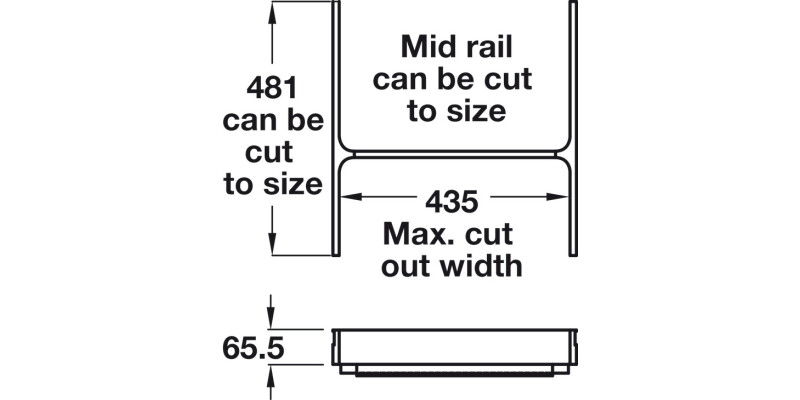

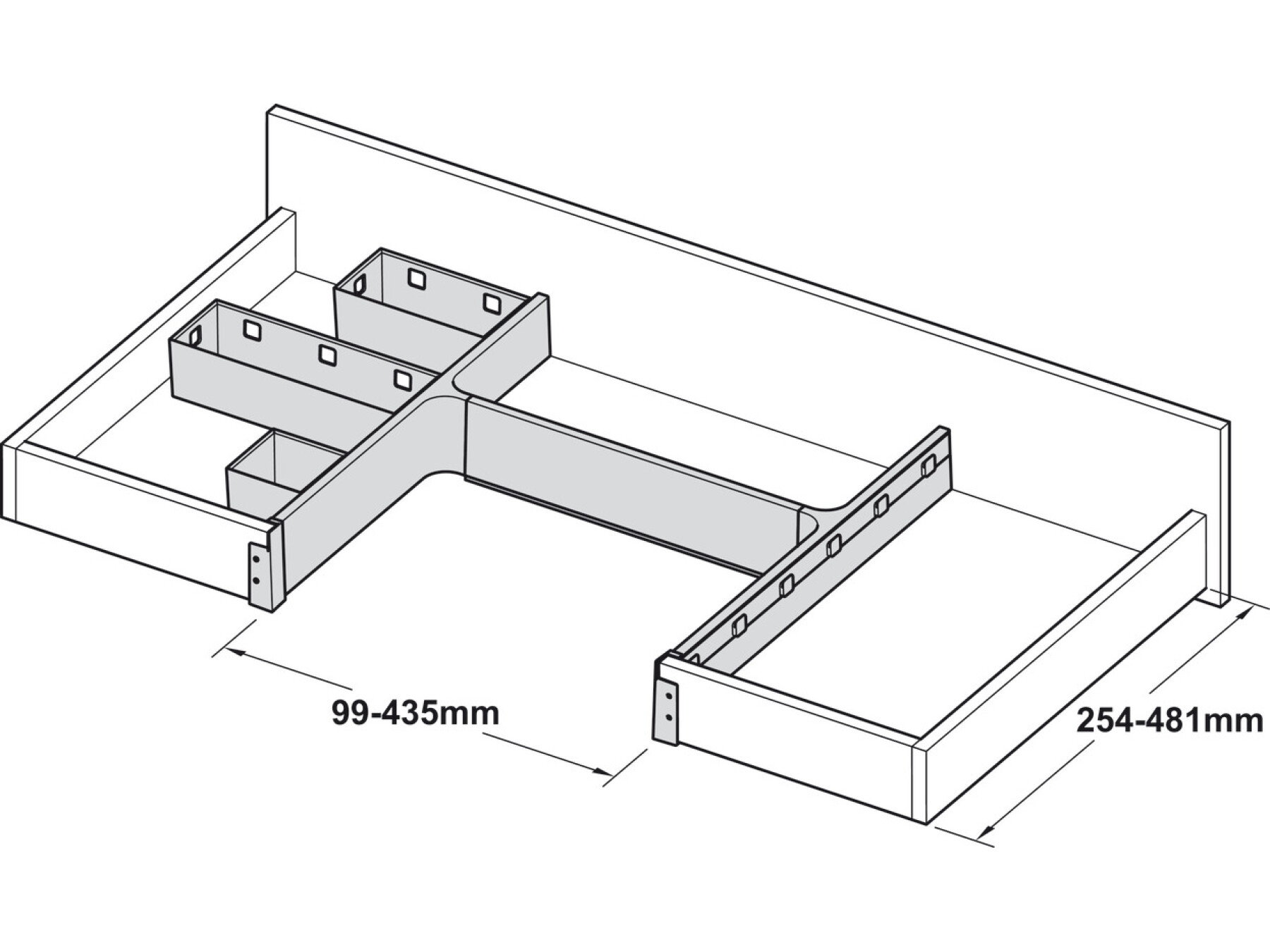

H frame as supplied suits 500 mm MX or Grass drawers but can be cut to size (both depth and width) to suit a wide range of other drawer types and sizes
The additional fixing rail can be fixed against a flat surface, such as tiles, cabinet rear wall, so that storage trays can be used to create alternative storage solutions

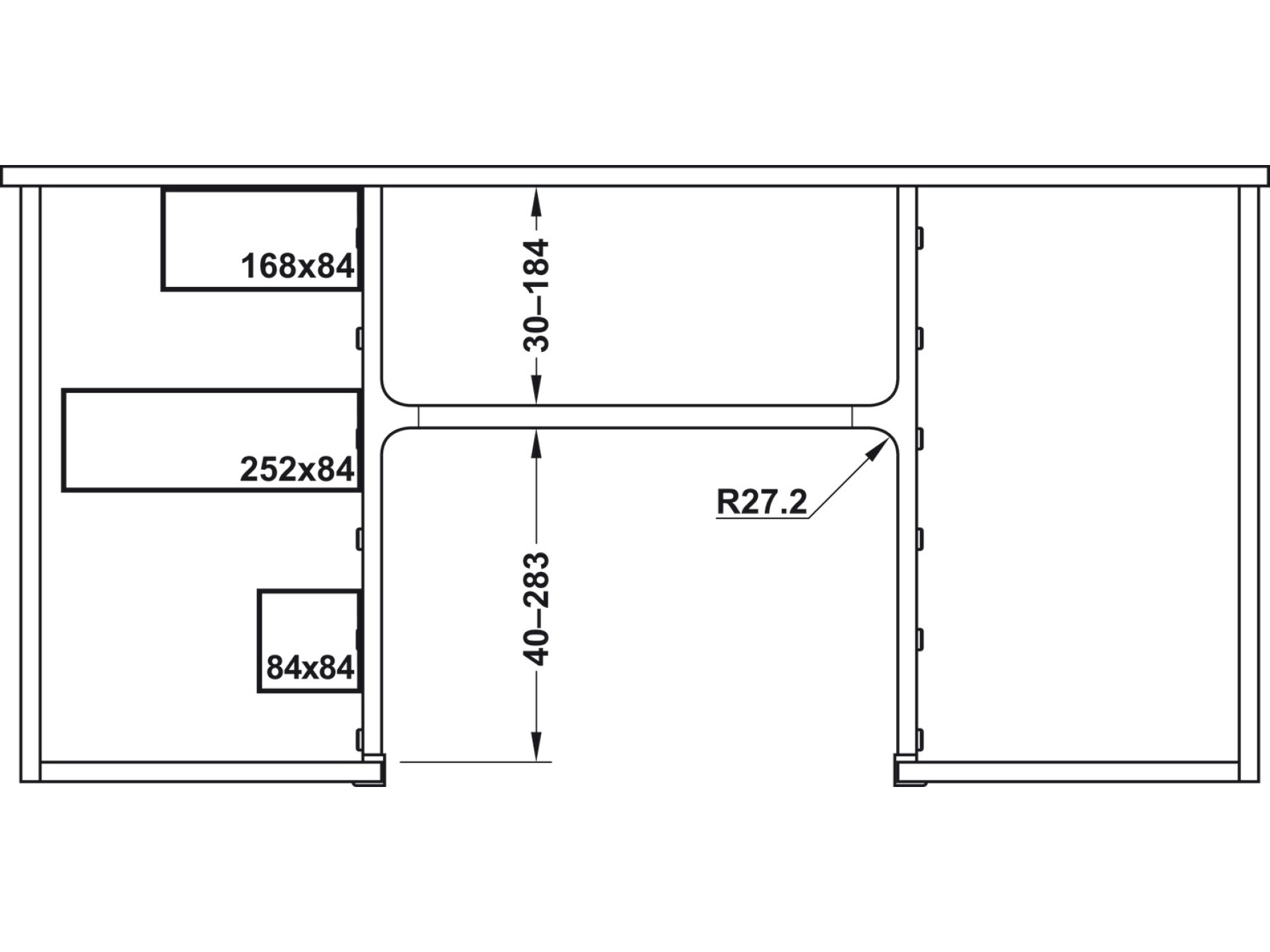

Maximum cut out width can be extended to 835 mm by using joinery clip and profile set

Order reference

Supplied with

Specifications

Colour/finish

Suitable for

Version

Material

Dim. (W x D x H)

Installation
