NovaPro Scala Cry+ AsD Drawer 186/800mm Stn
Pre-assembled standard drawers with 186 mm high drawer sides with glass insertsWith integrated liquid... Read More
Product Details
Pre-assembled standard drawers with 186 mm high drawer sides with glass inserts
With integrated liquid Soft-close®
Fully synchronised runner technology without midway knock
Integrated height and side adjustment
Drawer front (not included) can be fitted and removed without tools
Width of bottom and back panel is the same
Optimal use of storage space due to straight inside narrow surfaces and narrow construction
Order reference
Drawer front supplied by customer
Tipmatic touch to open sets 551.91.182 or 551.91.183 to be ordered separately
Supplied with
Pre-assembled drawer includes:
1 pair Full extension drawer runners, 450 mm length
1 pair Drawer sides, 90 mm height with grey transparent 8 mm thick, 140 mm high glass sides
1 Drawer base, MFC chipboard, 16 mm thick
1 Steel drawer back
1 set Fixing screws and front fixings

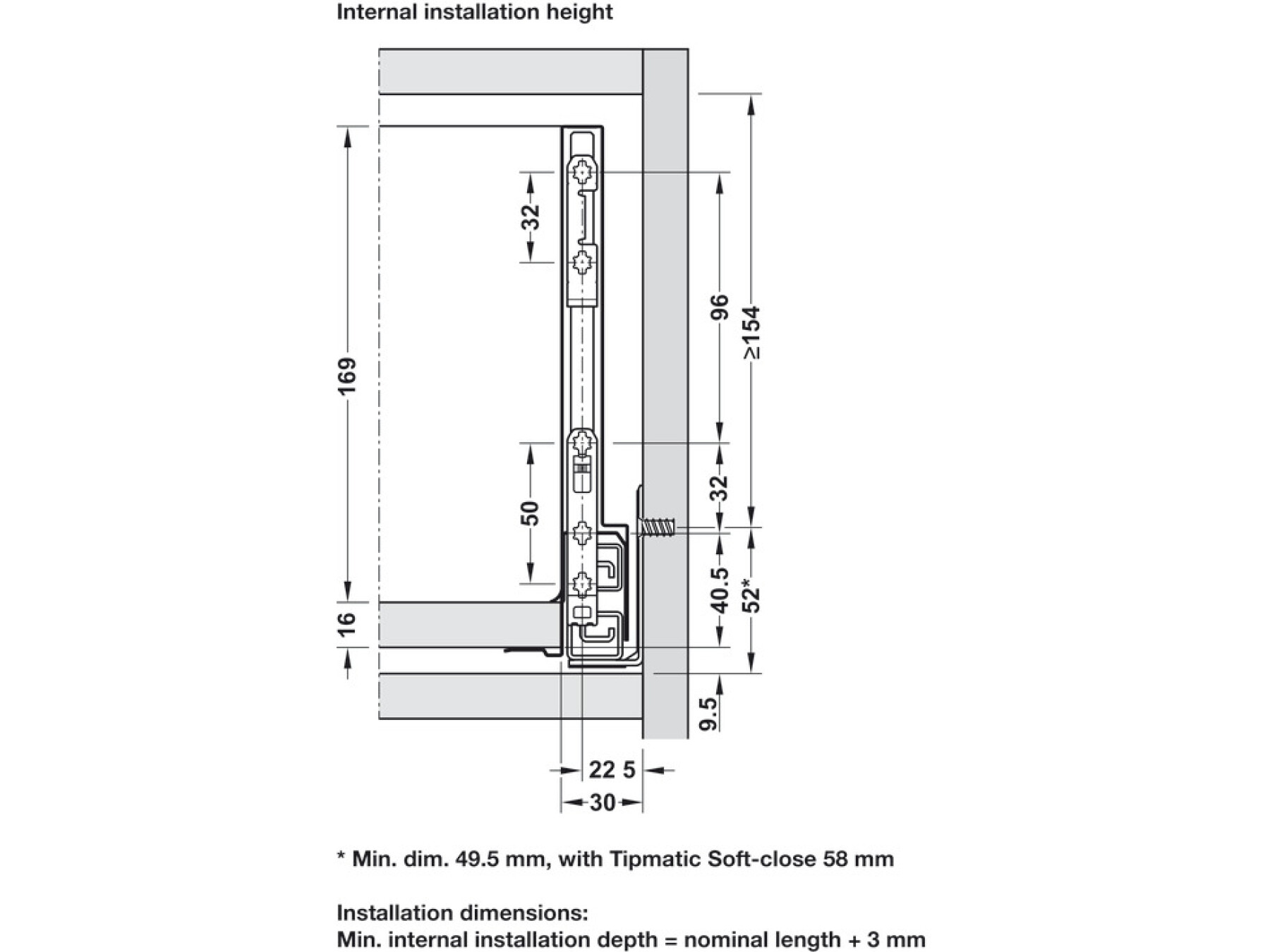

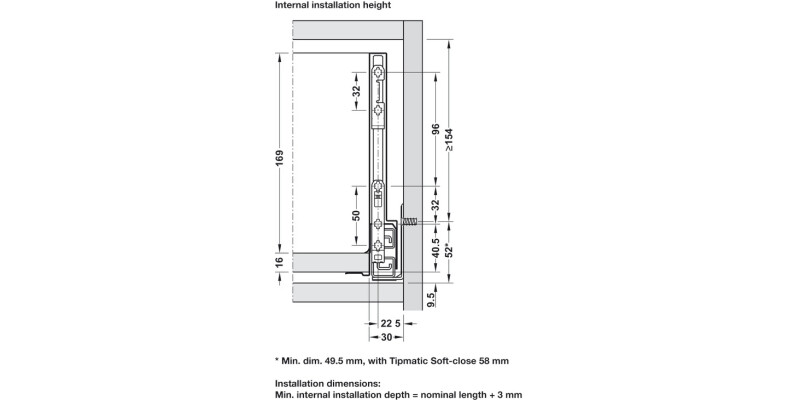

Installation instructions
