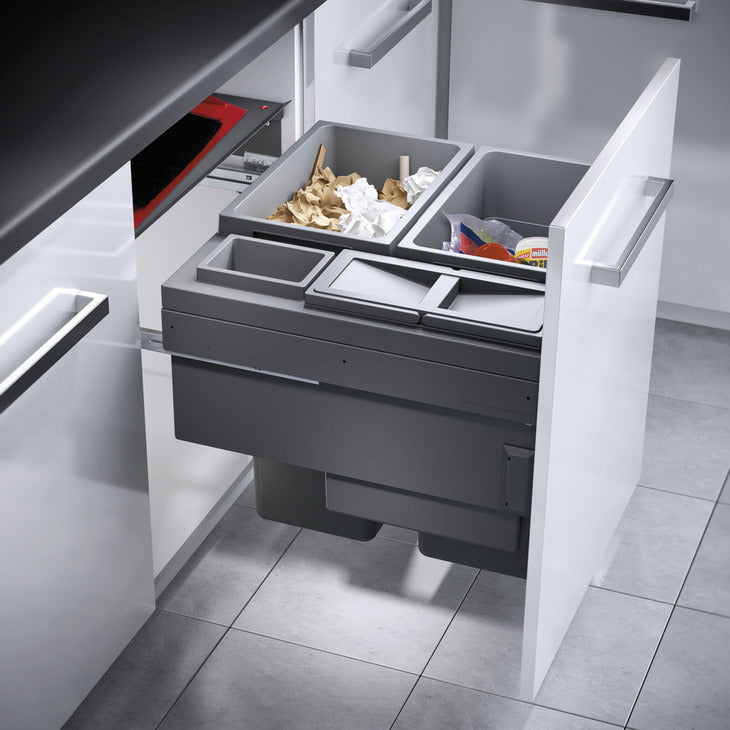

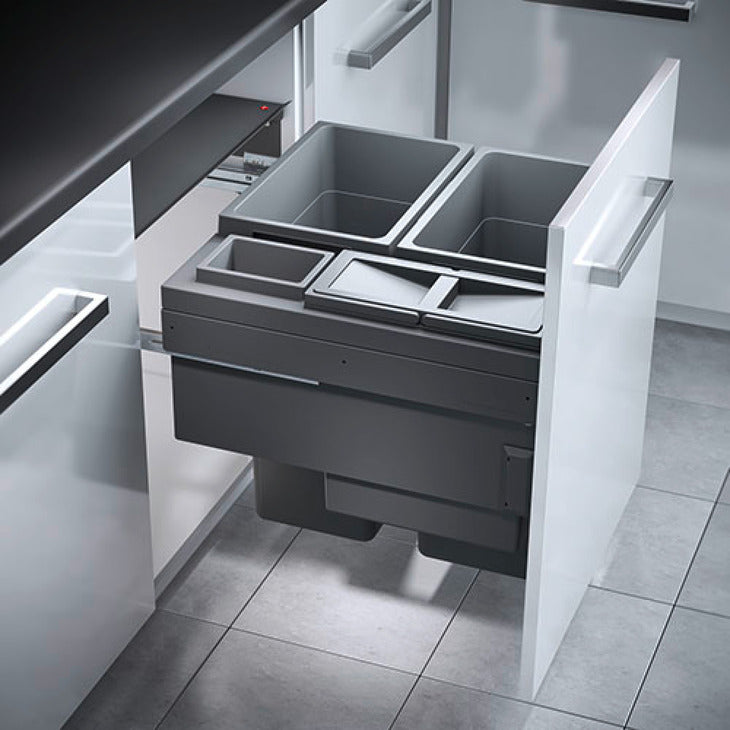

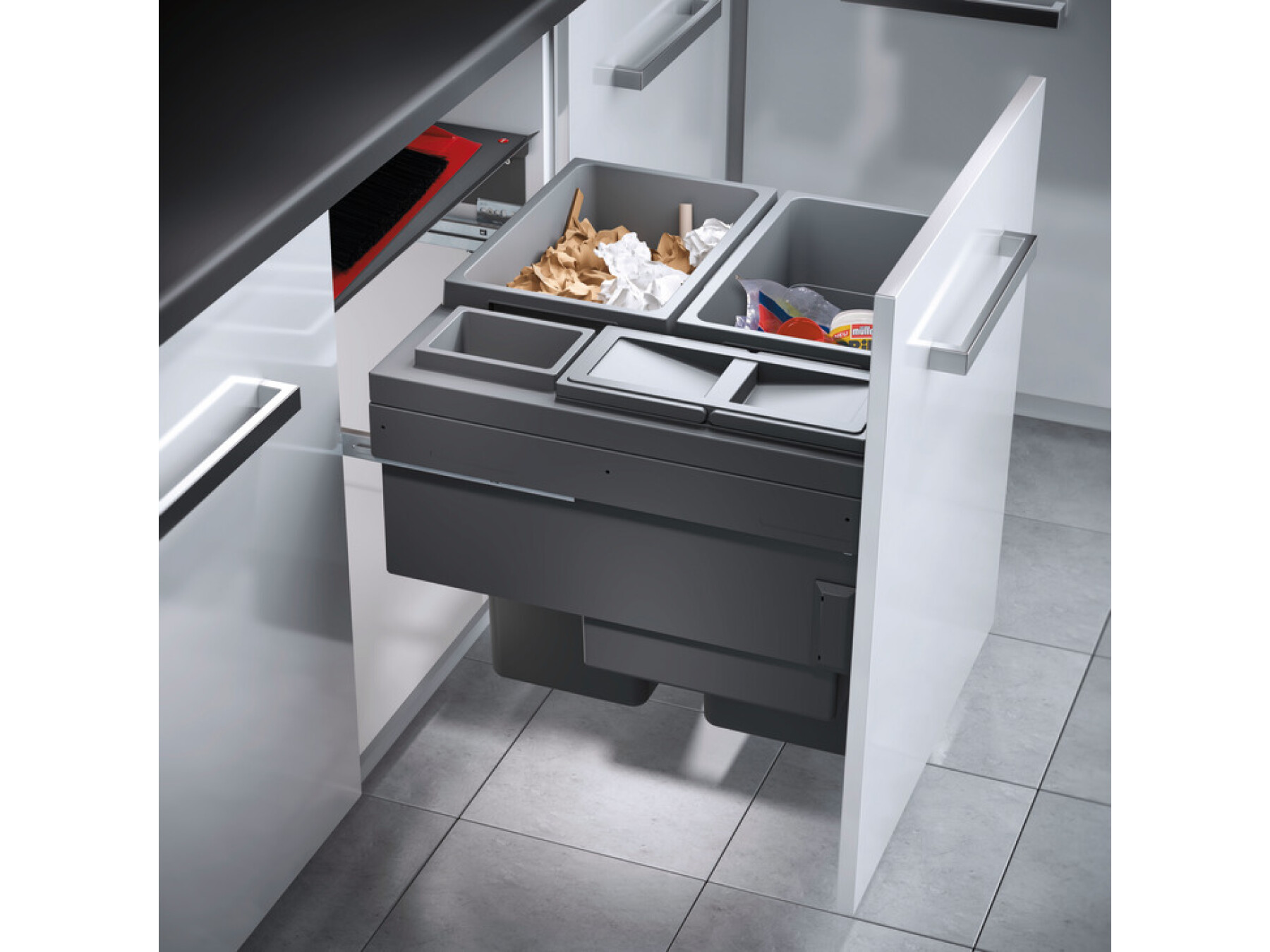

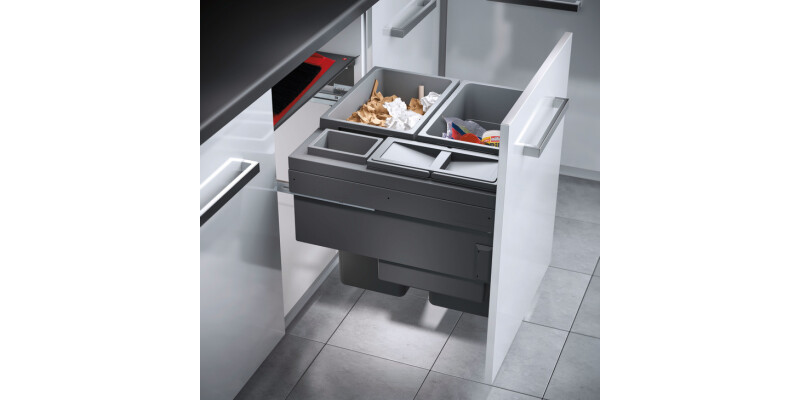

Hailo EuroCargo 60 Bin w 2x38+12+2.5L Dk
Part Number: 503.70.455
With soft close, For cabinet width 600 mm, dark grey
Price:
£317.35
Per Item
Material/finish Light grey version: Light grey bins with silver epoxy coated steel bin holder, mounting... Read More
Product Information
Product Details
Material/finish
Light grey version: Light grey bins with silver epoxy coated steel bin holder, mounting components, covers and lidDark grey version: Dark grey bins with dark grey epoxy coated steel bin holder, mounting components, covers and lid
Installation note
System includes its own synchronised over extension runners for side fixing to cabinets and door front.

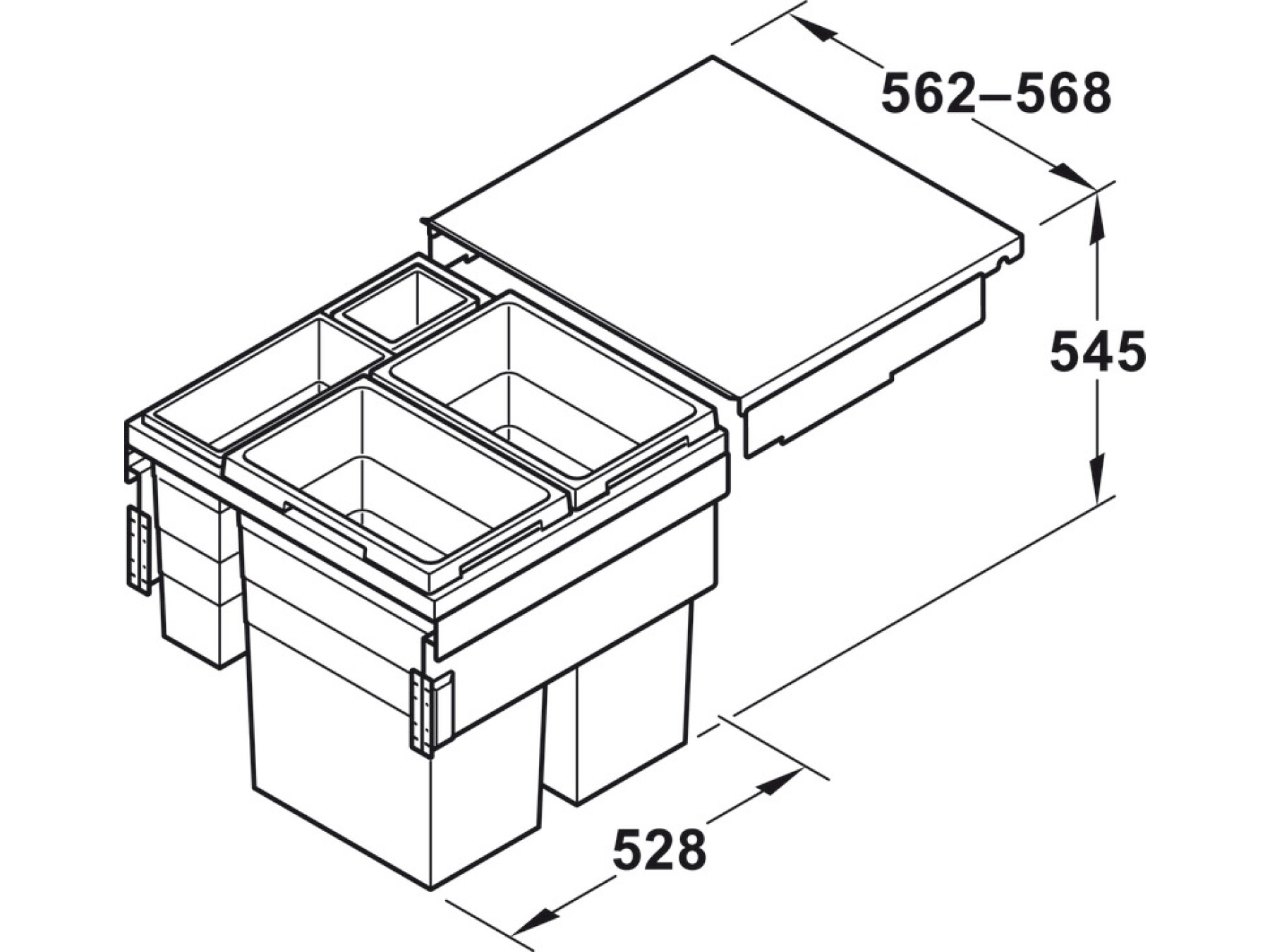

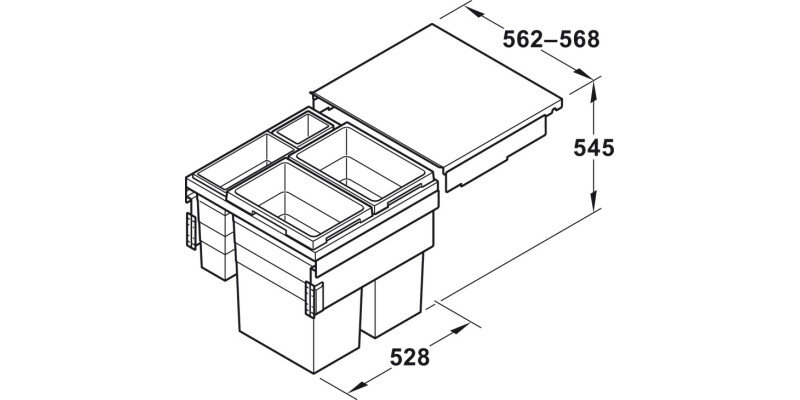

Specifications
Installation depth
528 mm

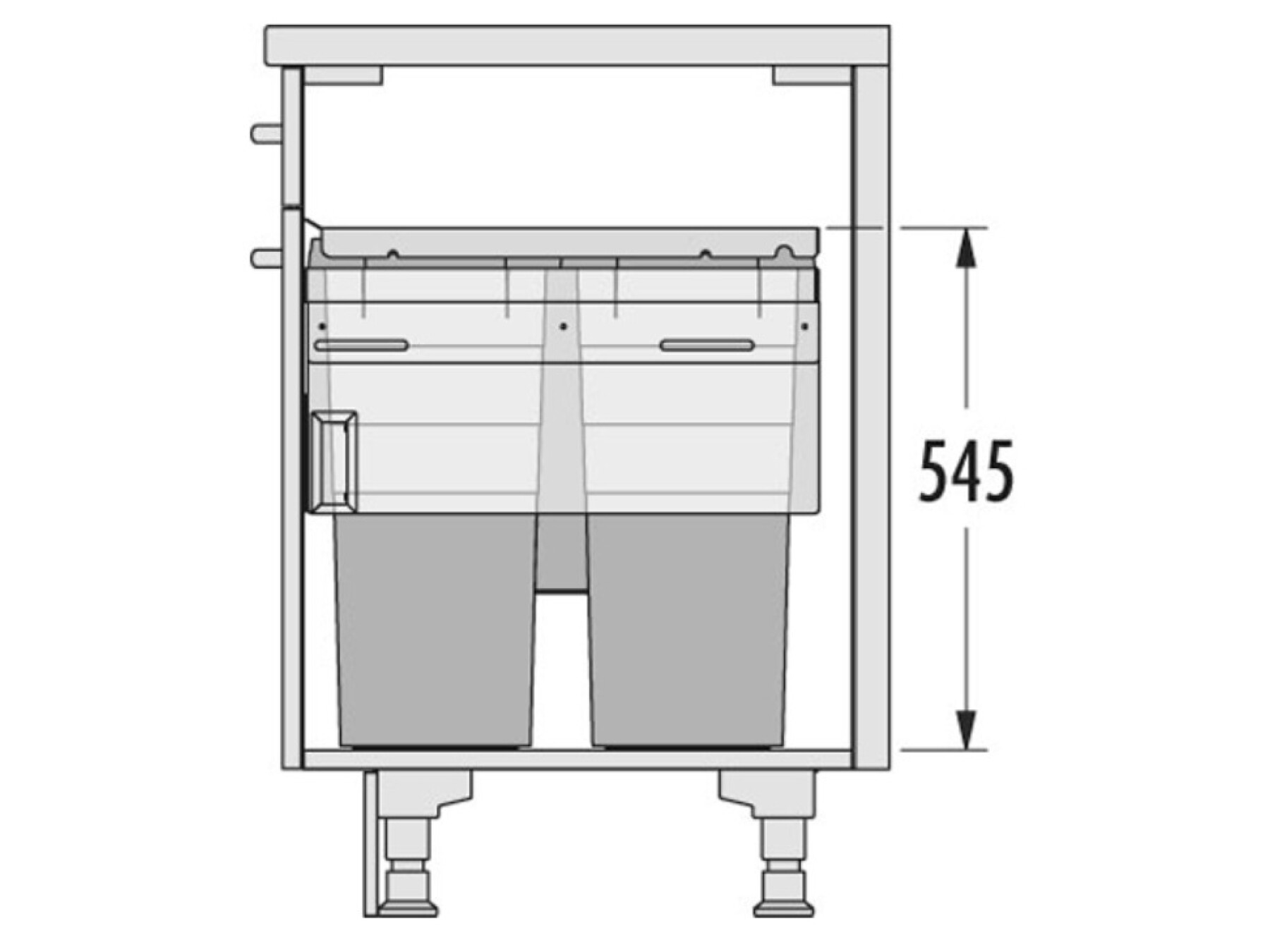

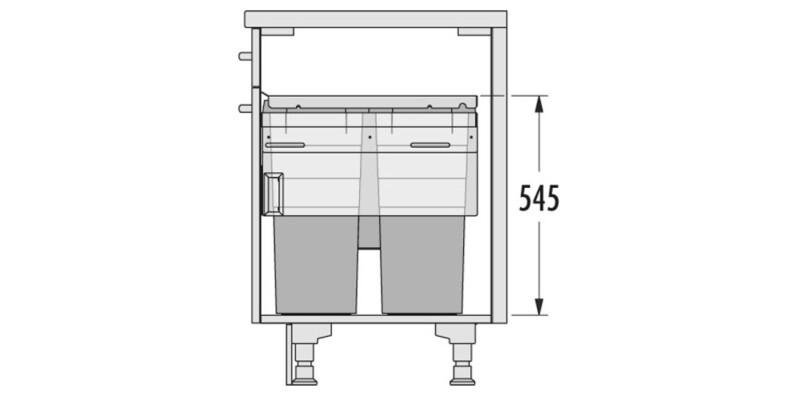

Installation Height
545.00 mm
Area of application
Designed to be withdrawn from the cabinet whilst the lid remains inside for use as a shelf
Version
Automatic soft closing mechanism
Type of pull out
Covered, synchronized overextension with soft closing mechanism
Mounting
For fixing to side panel
Installation
Screw fixing
Installation position
Installation behind fronts, For screw fixing to side panel
For internal cabinet width min.
562.00 mm
For internal cabinet width max.
568.00 mm
Number of bins
4.00
