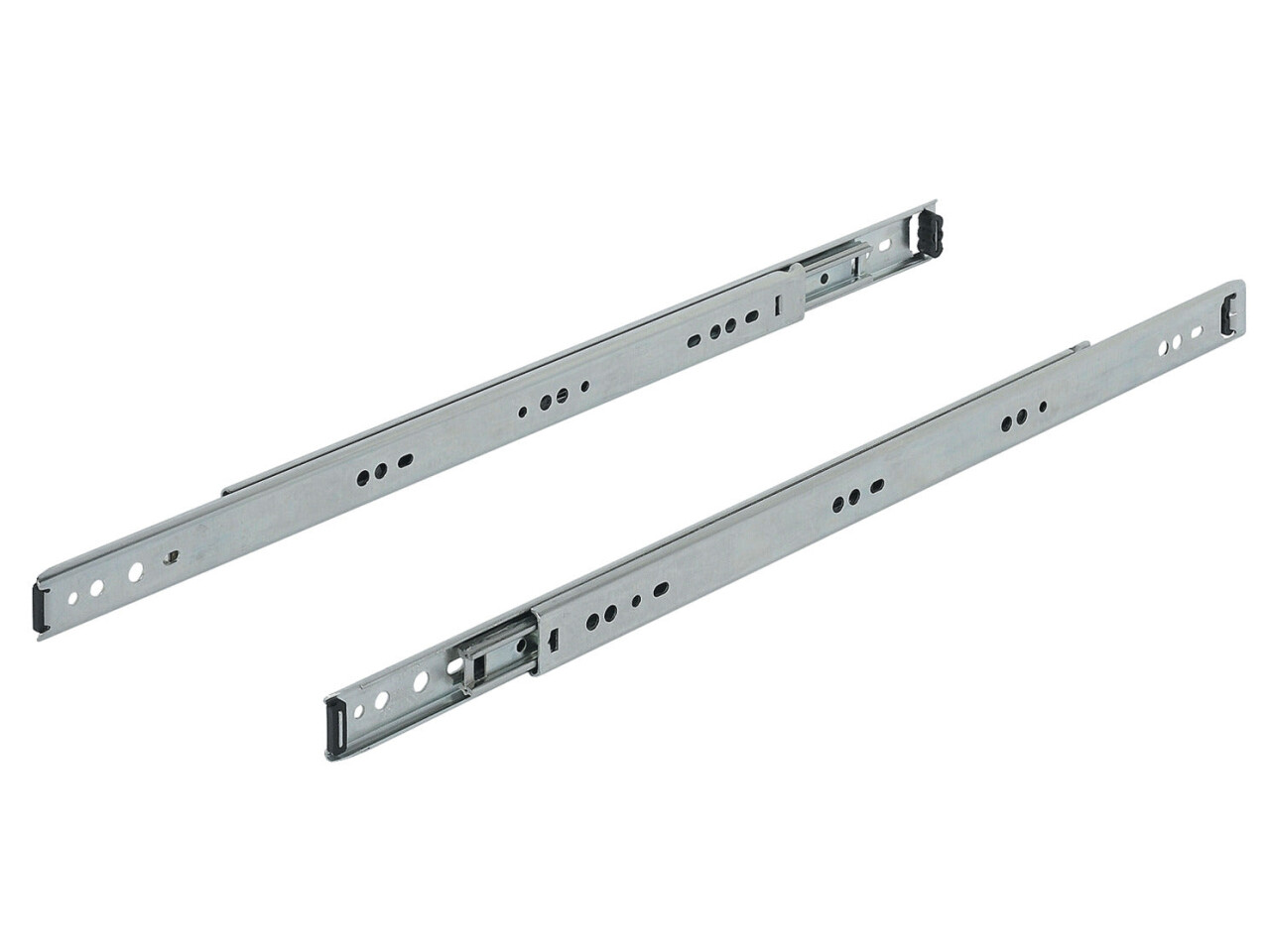

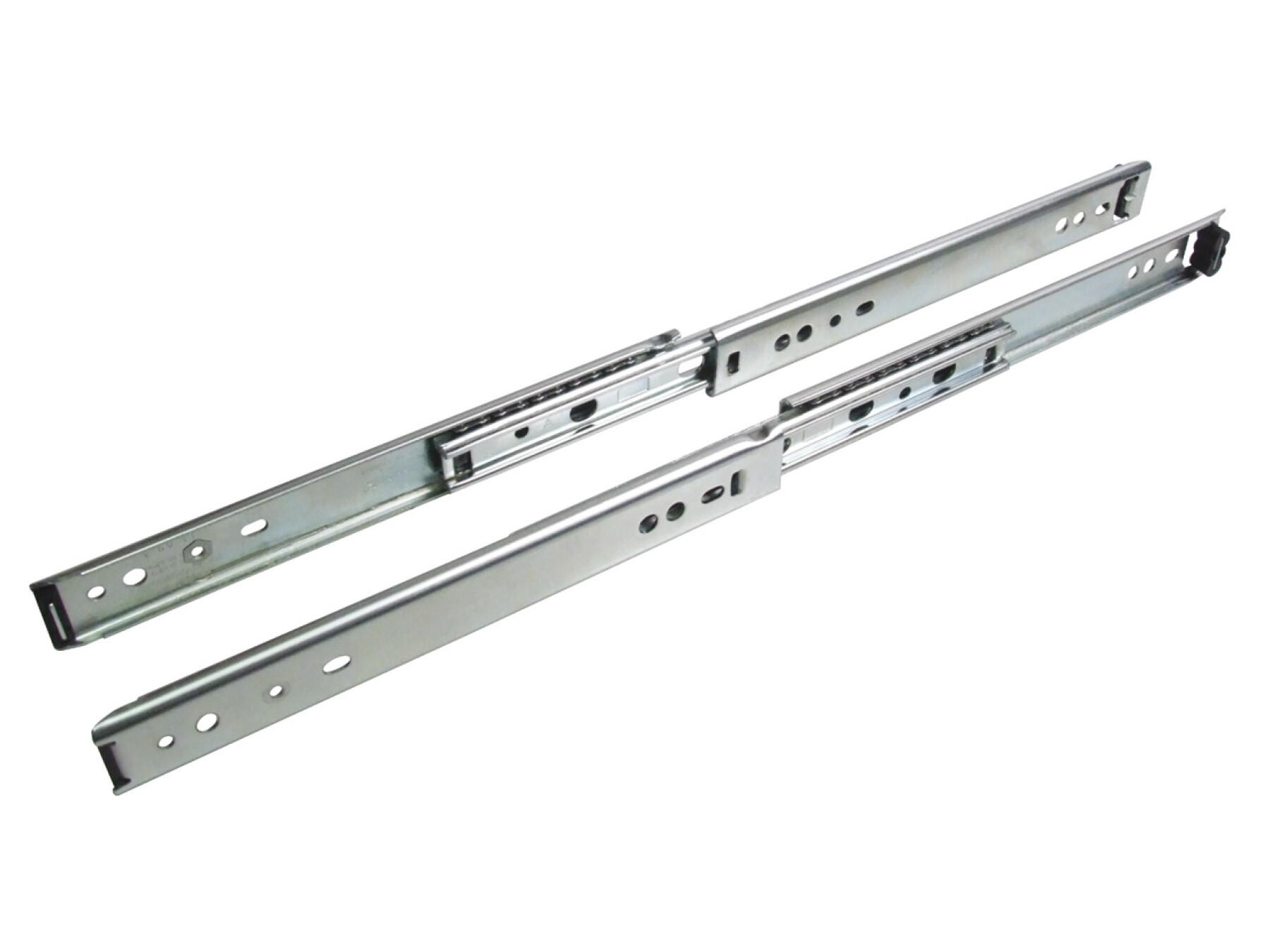

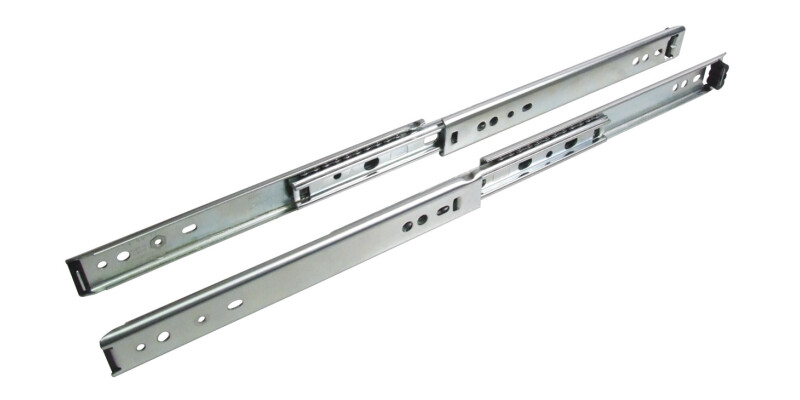

2642 BB Darwer Runner Full 45kg 400mm BZP
Part Number: 422.26.406

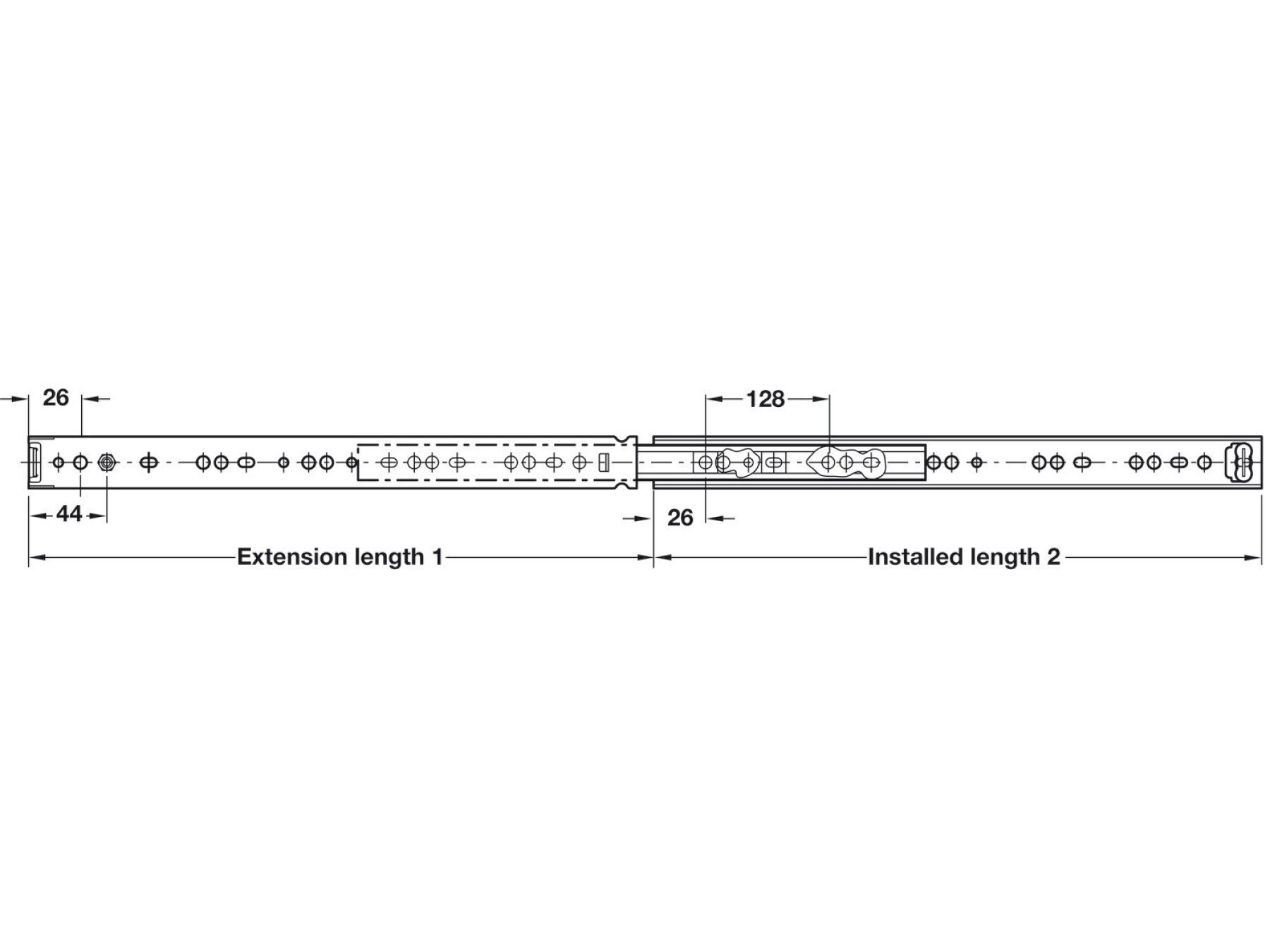

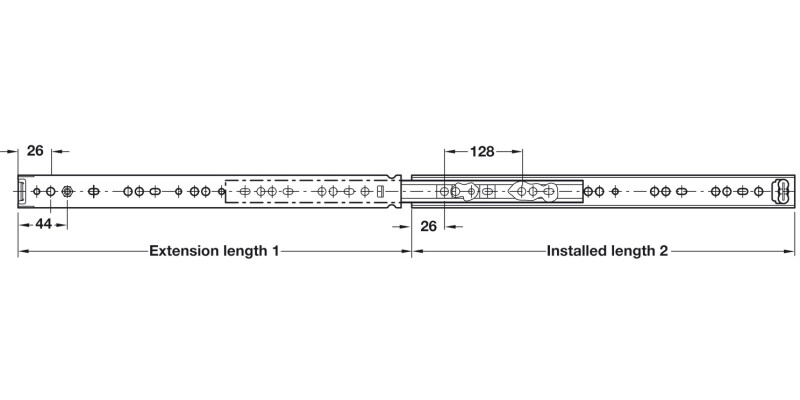

Installation length 400 mm, load capacity 45 kg
Price:
£64.05
Per Item
Hold-in feature holds the closed drawer inUniversal drilling pattern including 32 mm drilling pattern Area of... Read More
Product Information
Product Details
Hold-in feature holds the closed drawer in
Universal drilling pattern including 32 mm drilling pattern
Area of application
For desk pedestals and general storage drawers, display cabinets and other applications requiring a minimum profile slide
Order reference
Order Varianta Ø 5 cylindrical and Hospa Ø 4.0 flat head screws separately
Fixings: Max head height 2 mm, Ø 7.8 mm
Specifications
Version
With hold-in device for holding in closed position
Colour/finish
Zinc plated, Bright
Model
2642
Type of pull out
Full extension
Holding function
Hold-in
Drawer removal
without release lever
Material
Steel
Width
320.00 mm
Installation

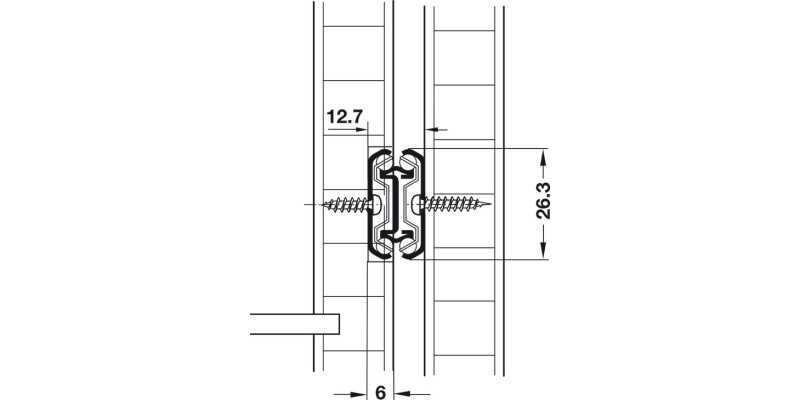

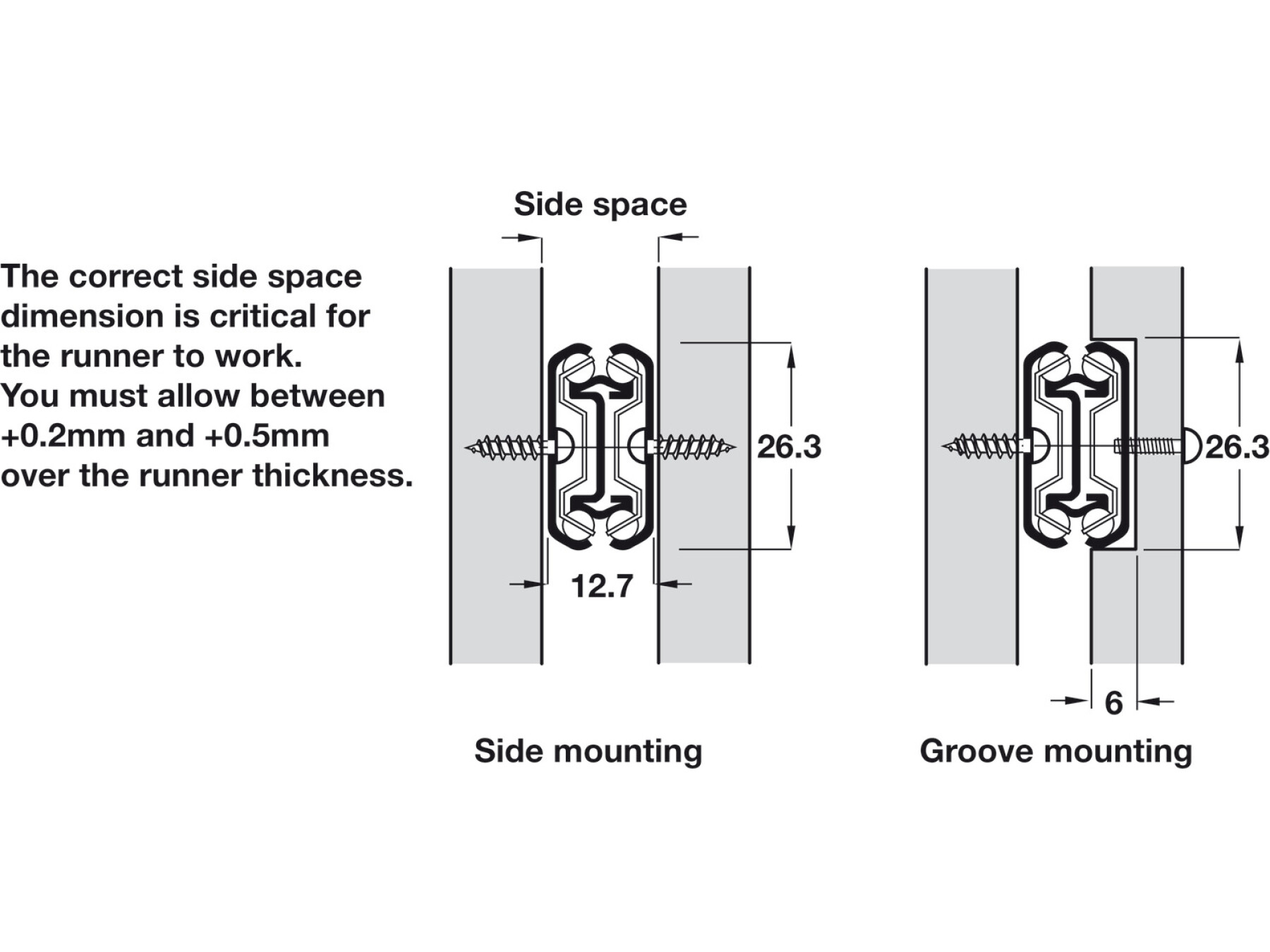

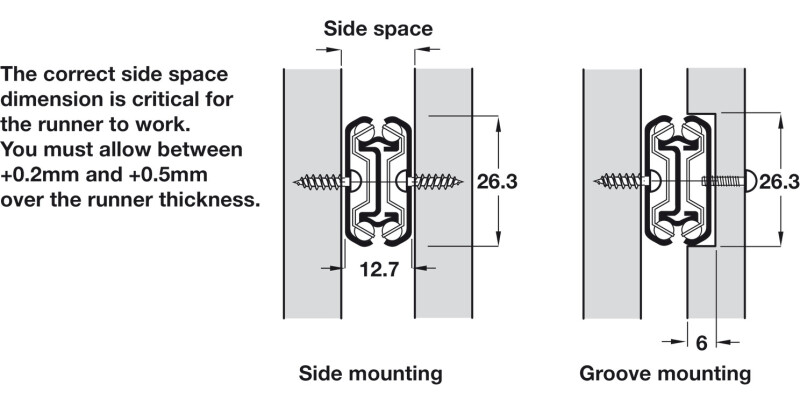

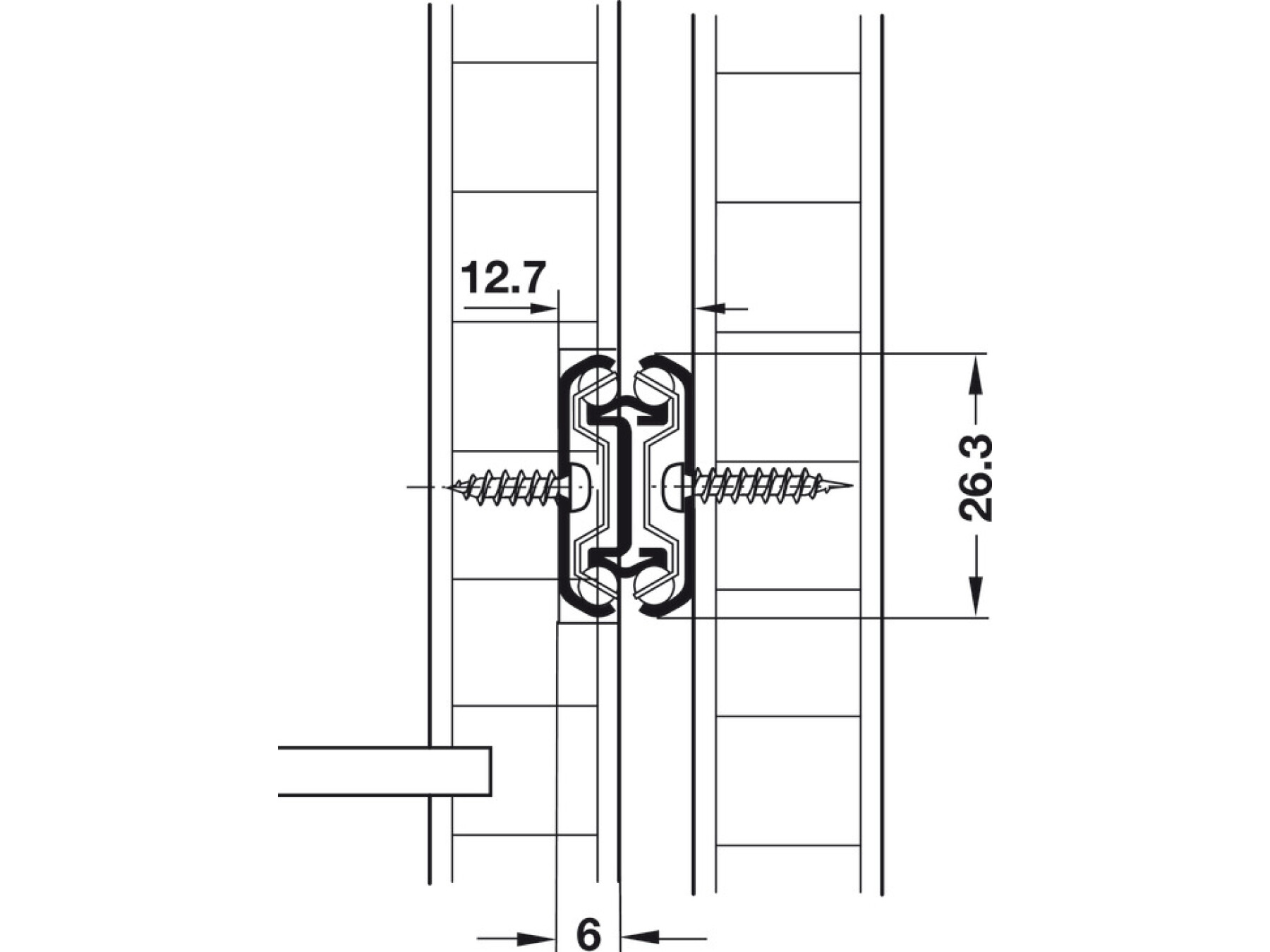

Side or 27 mm groove mounting, for M4 fixing to drawer, M4 universal insert on drawer profile
