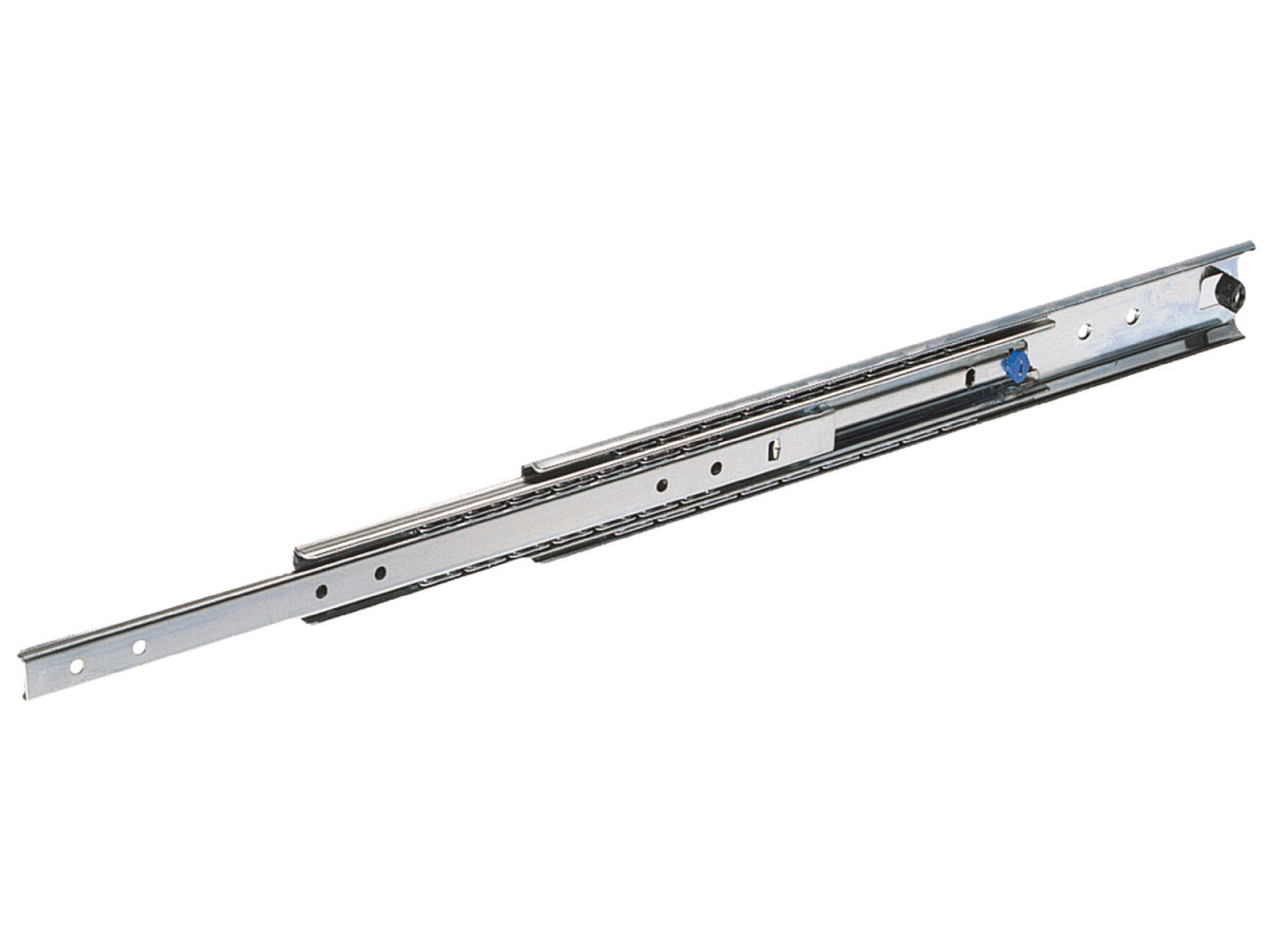

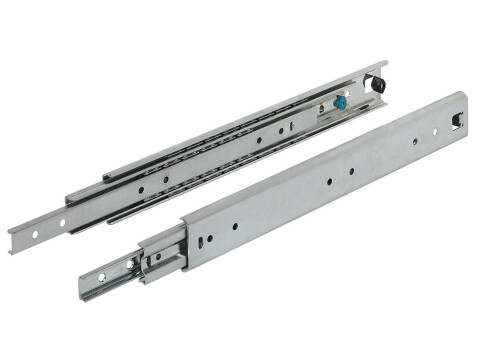

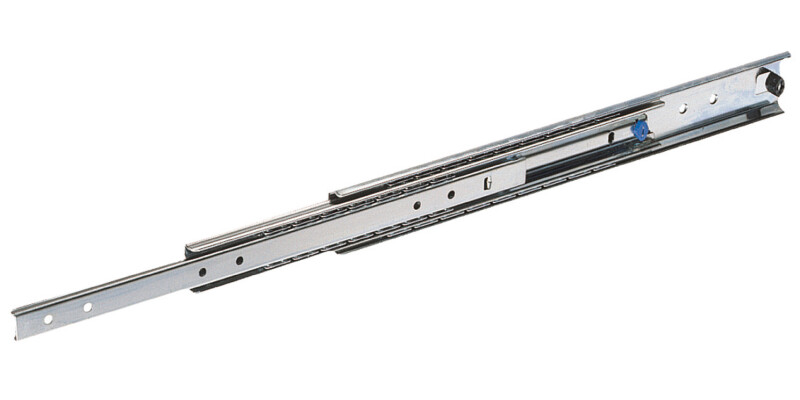

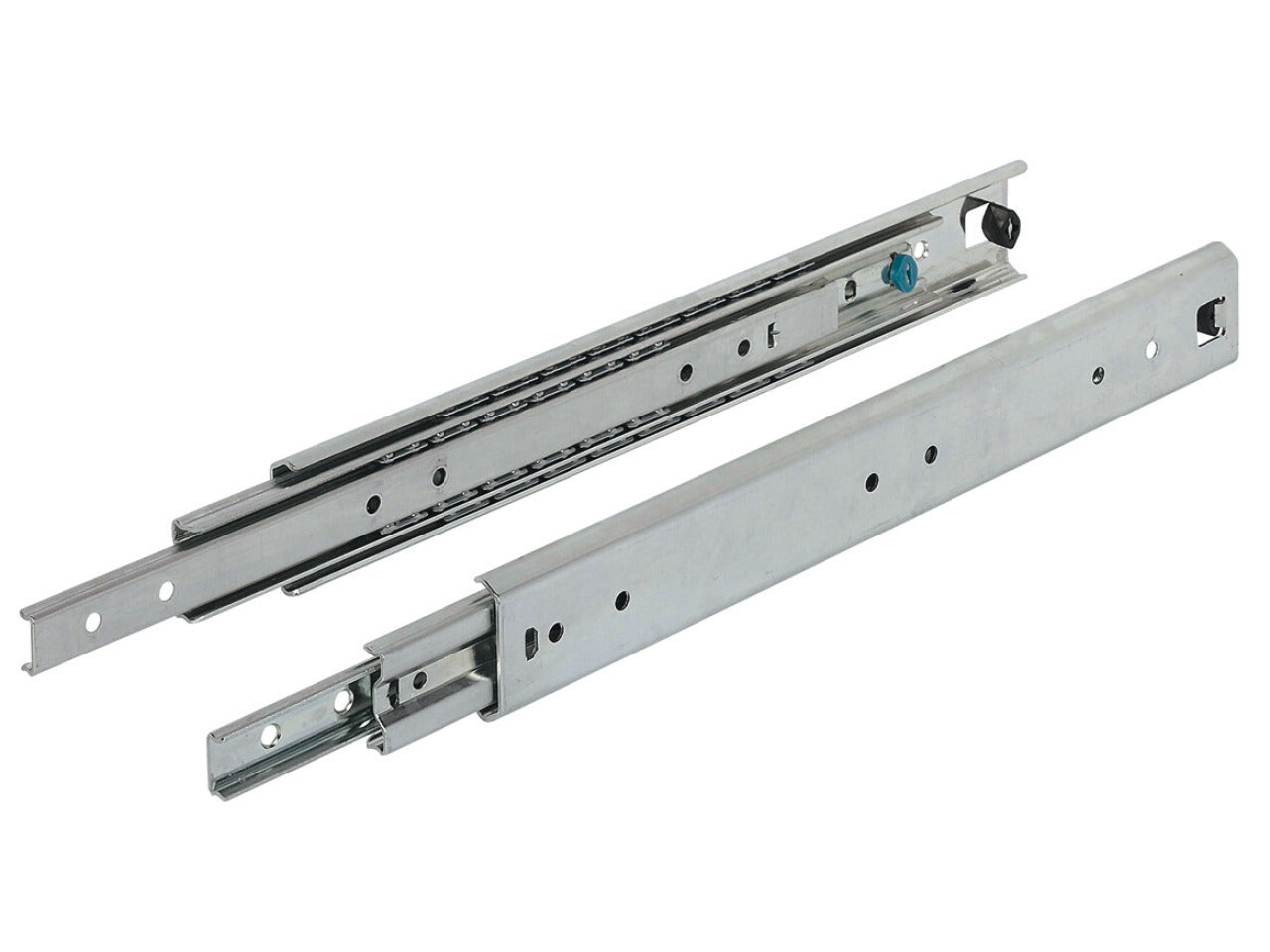

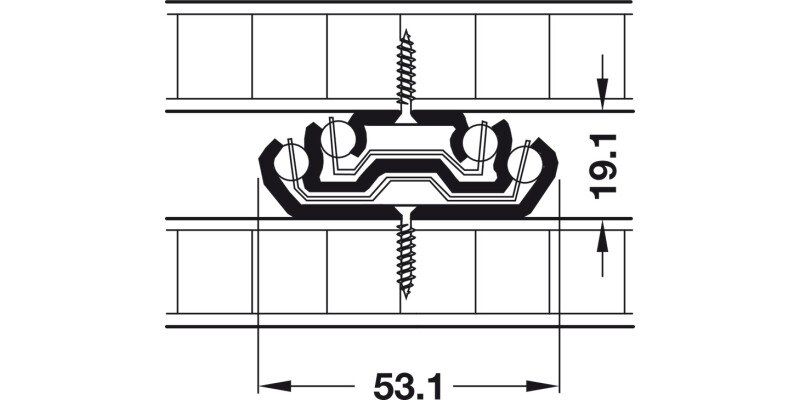

5321 BB Drawer Runner Full 120kg 300mm HGSS
Part Number: 422.22.030

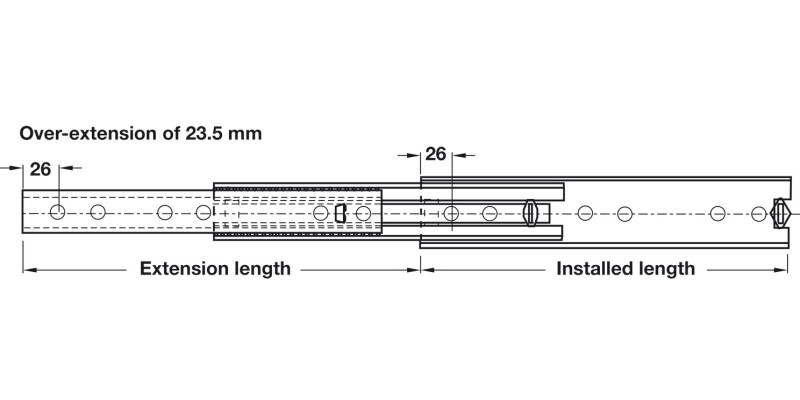

High grade stainless steel, with hold-in feature, Installed length 300 mm, load capacity 120 kg
Price:
£101.67
Per Item
For applications such as lateral filing cabinets, extra heavy duty storage drawersStainless steel version... Read More
Product Information
Product Details
For applications such as lateral filing cabinets, extra heavy duty storage drawers

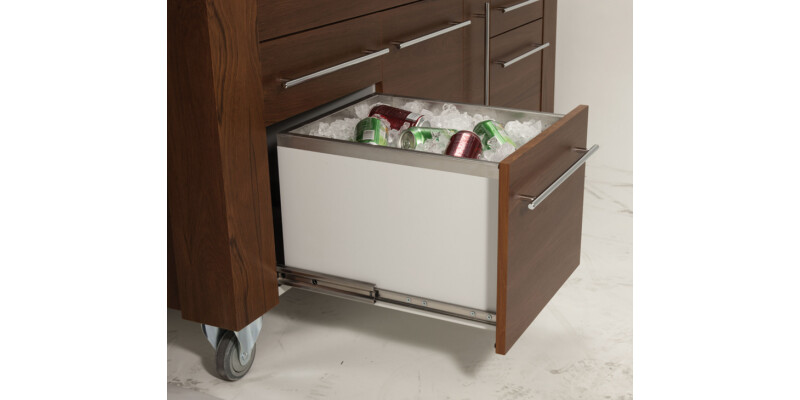

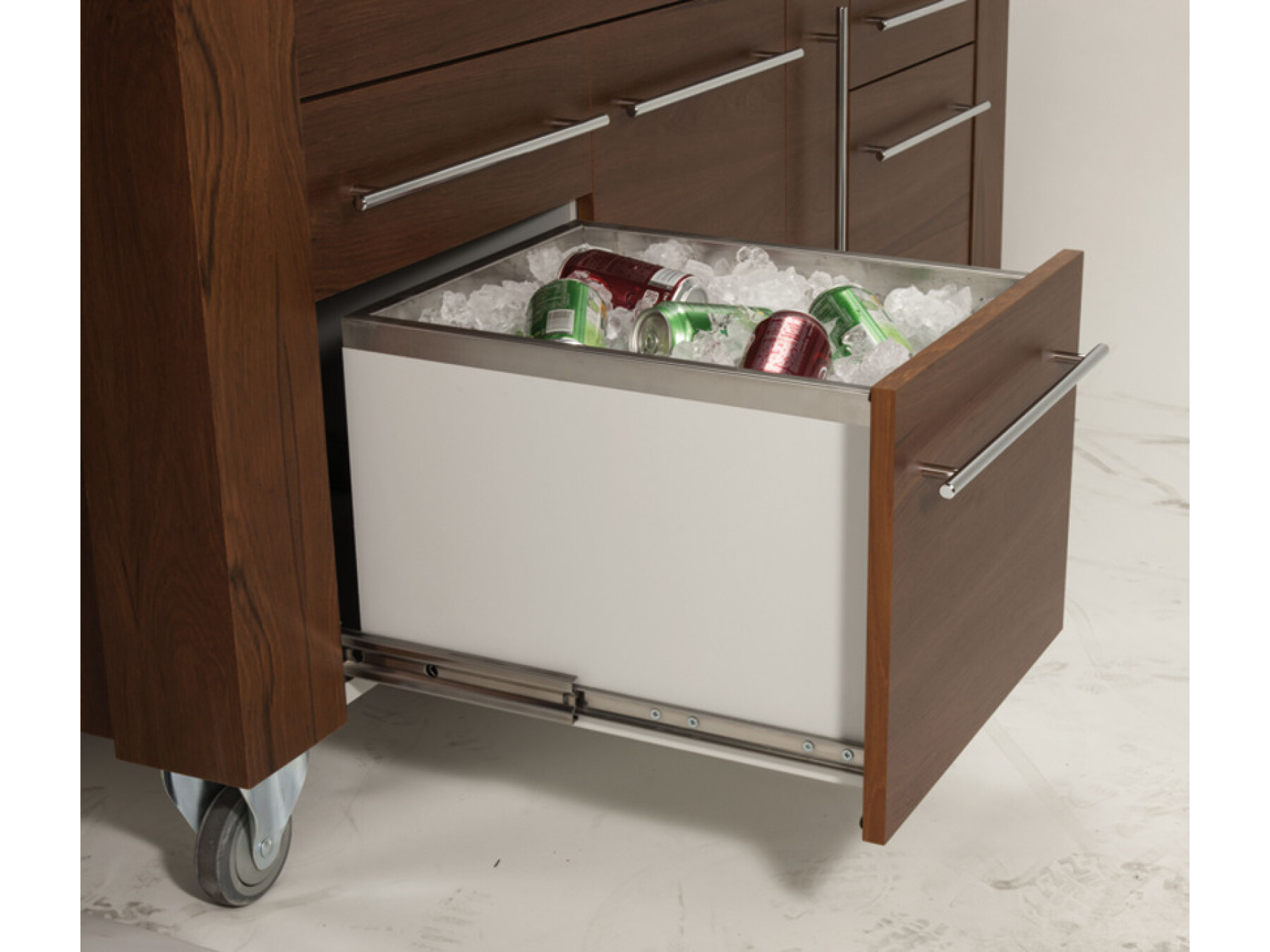

Stainless steel version suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment
Hold-in feature holds the closed drawer in
Order reference
Standard steel and self closing versions available
Optional mounting brackets for bottom or shelf mounting available, please order separately
Order M5 countersunk screws separately
Ensure all fixing holes are used for heavier loads
Specifications

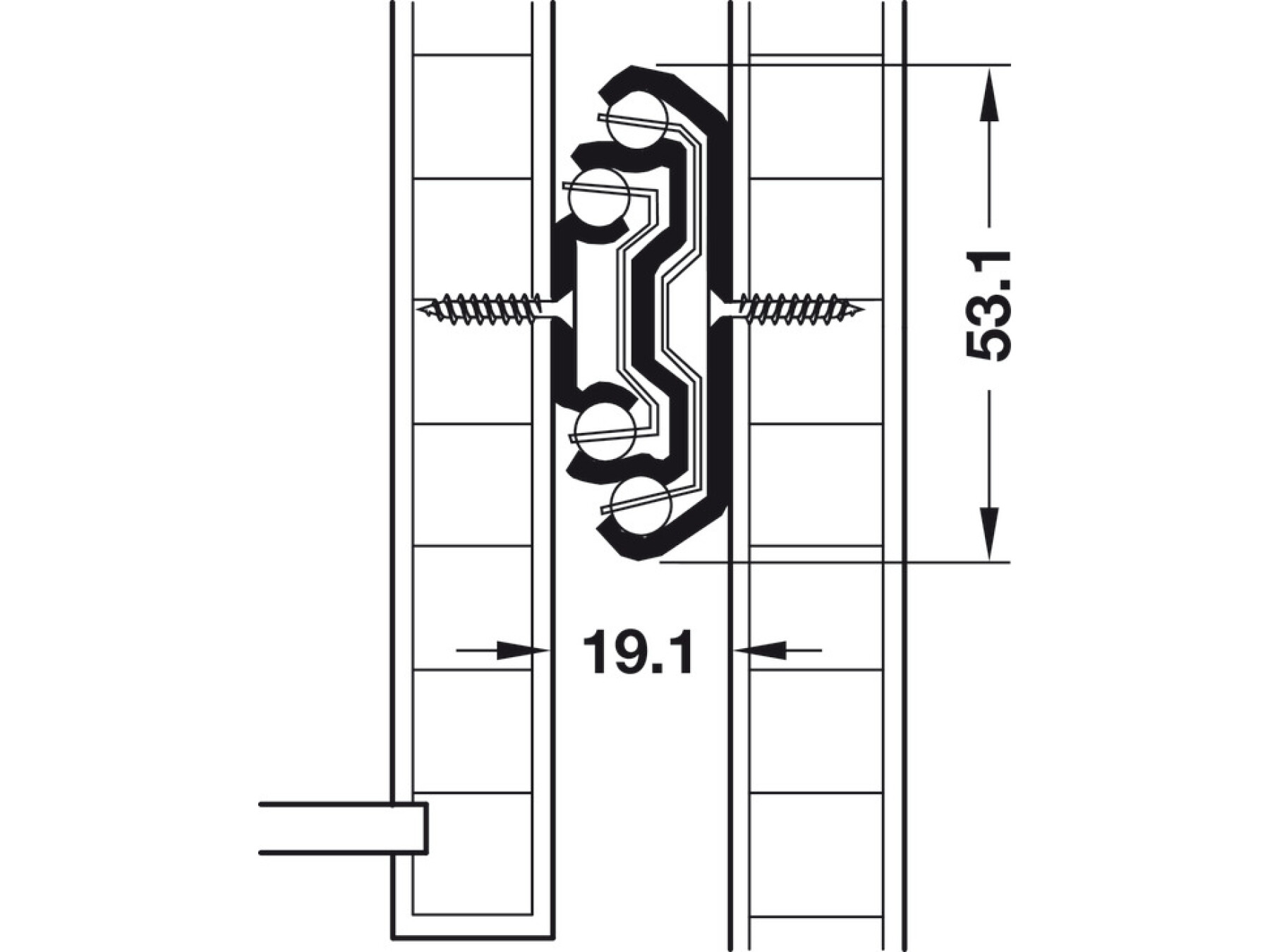

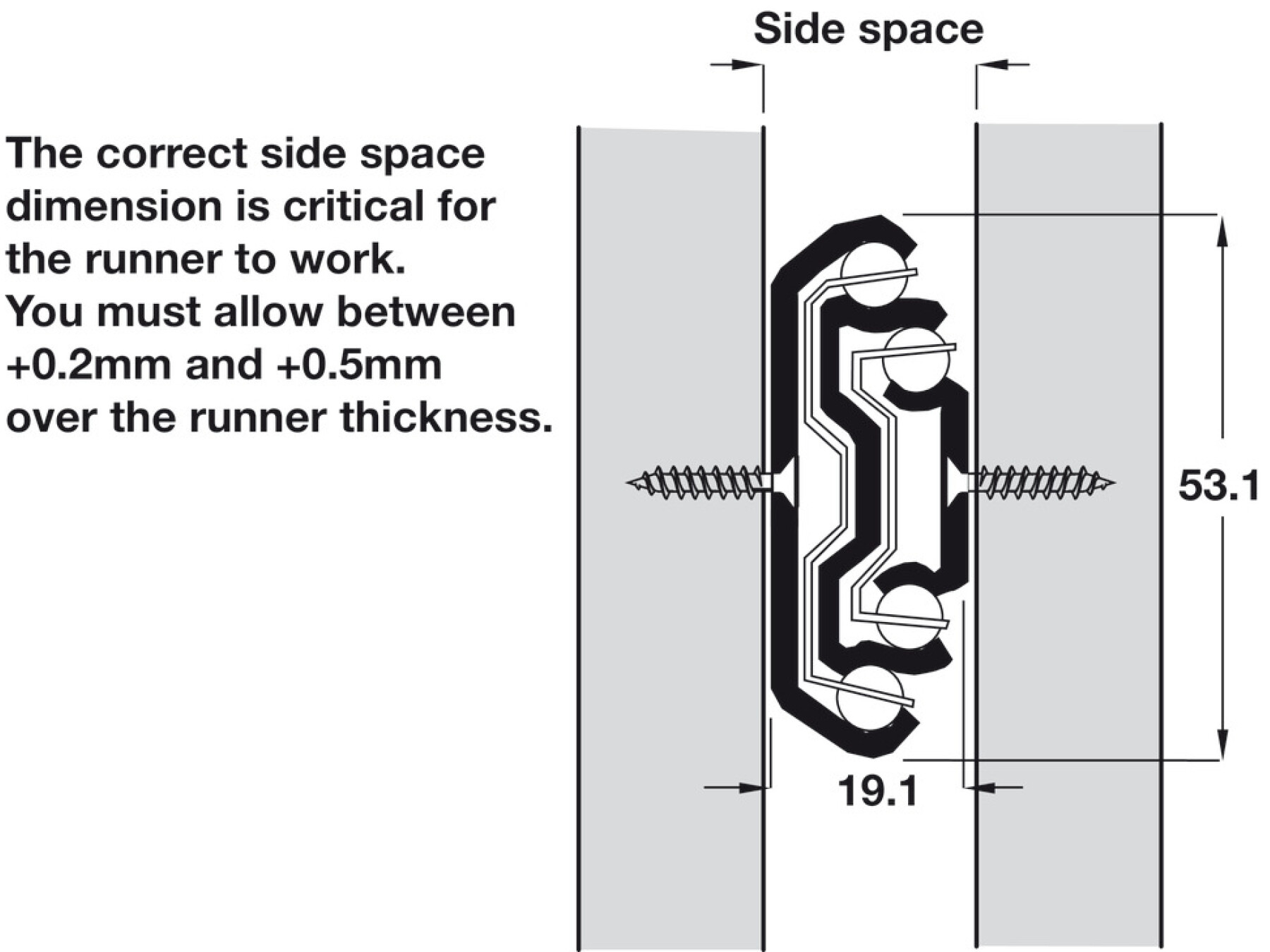

Mounting

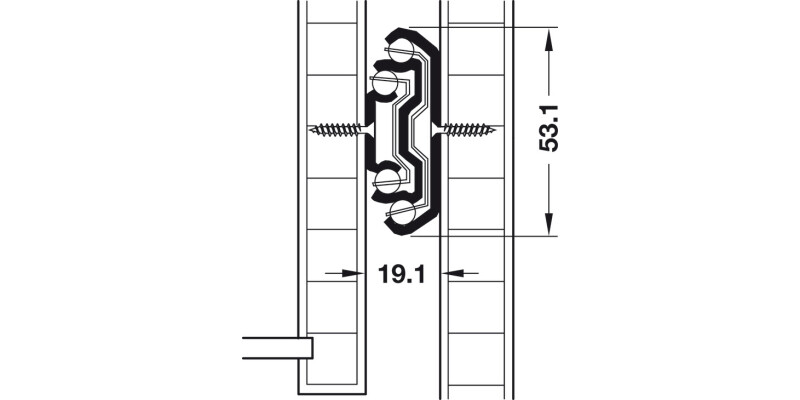

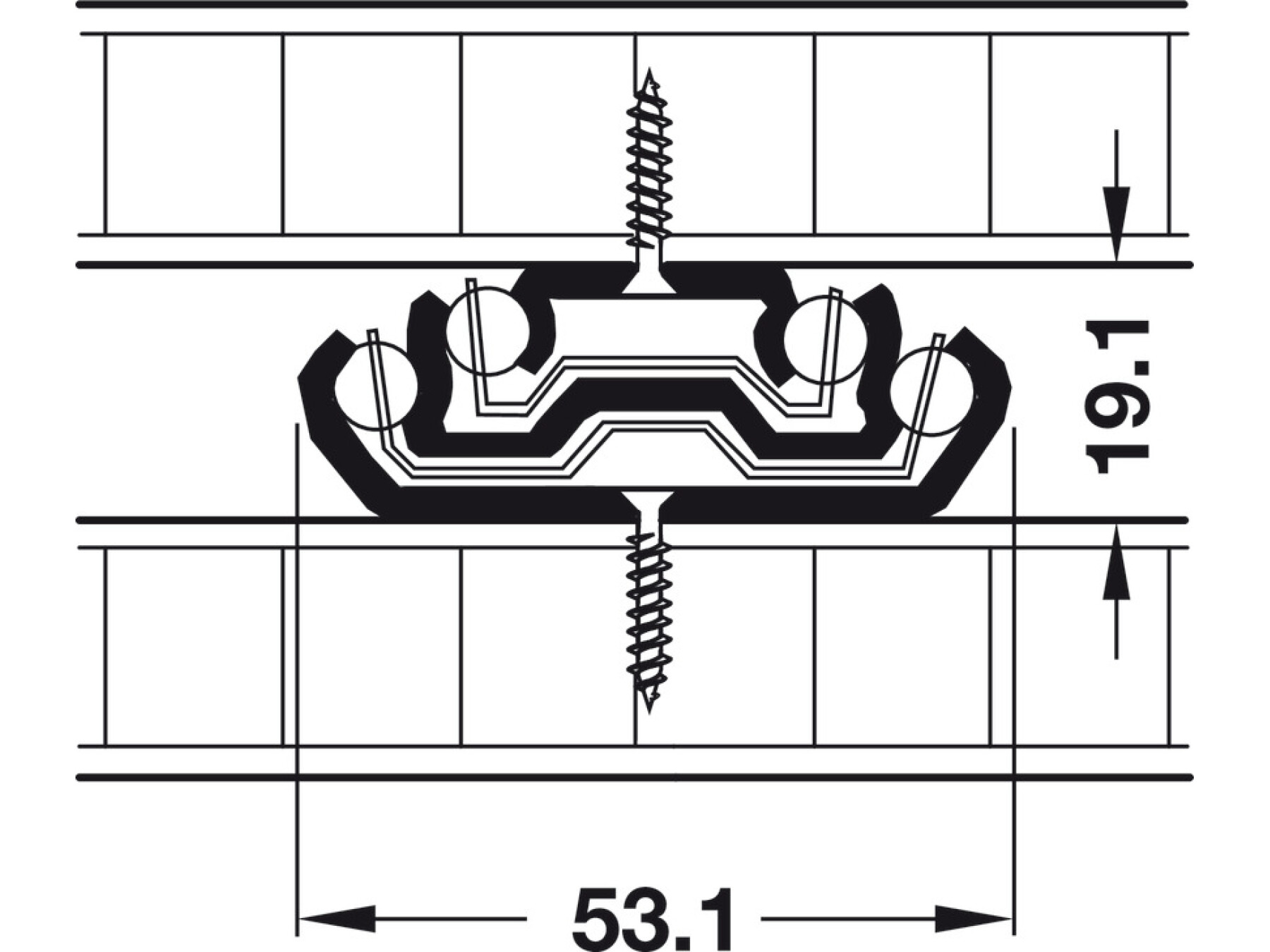

Side mounting
Version
With hold-in device for holding in closed position
Colour/finish
Model
5321DS
Type of pull out
Full extension
Area of application
For applications such as lateral filing cabinets, extra heavy duty storage drawers
Holding function
Hold-in
Drawer removal
without release lever
Material
Grade 304 stainless steel
Installation
32 mm drilling pattern
