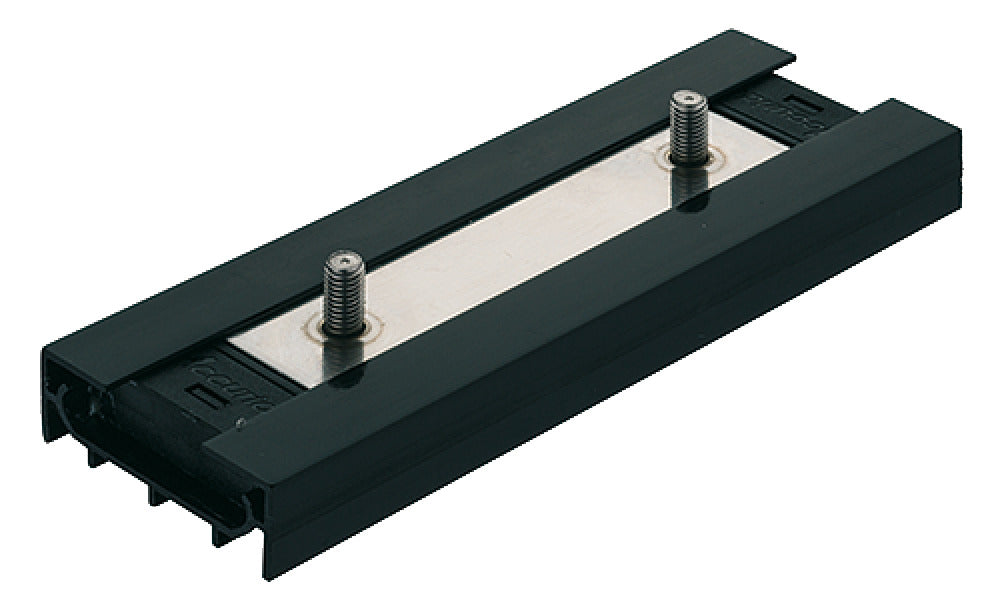

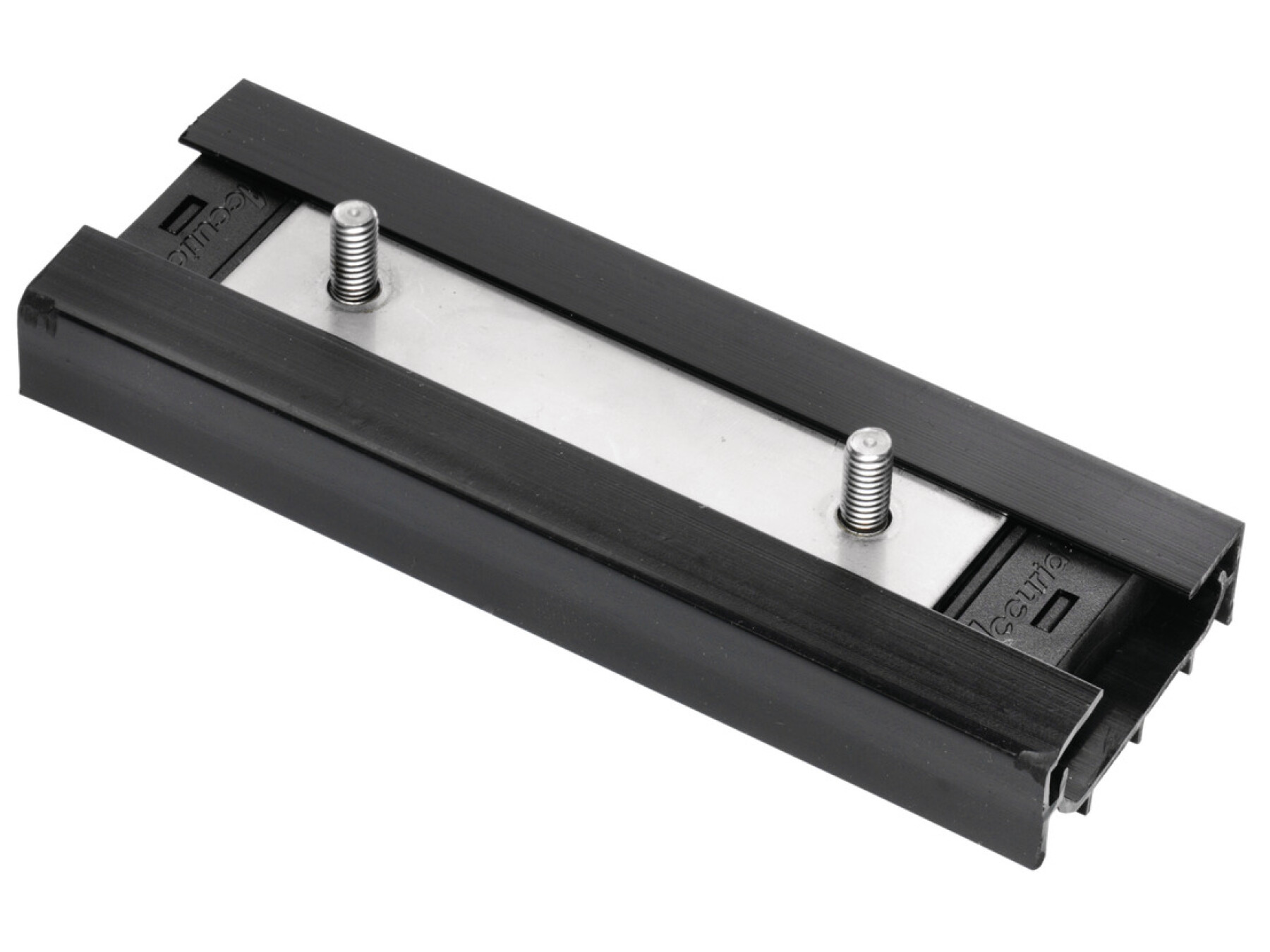

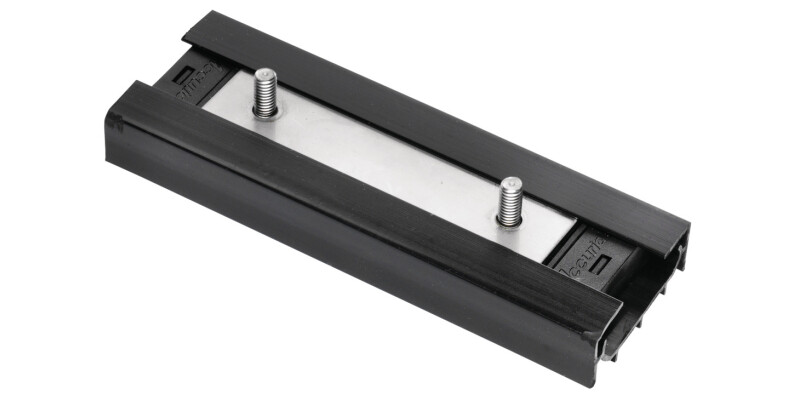

Accuride 0115RC Ball Carriage-BB Polymer
Part Number: 421.59.805
With polymer ball bearing carriage
Price:
£411.85
Per 10 Pack
Grease free and smooth runningThread: 5 mmInstallation: The balls are loosely inserted into the re-circulating... Read More
Product Information
Product Details
Grease free and smooth running
Thread: 5 mm

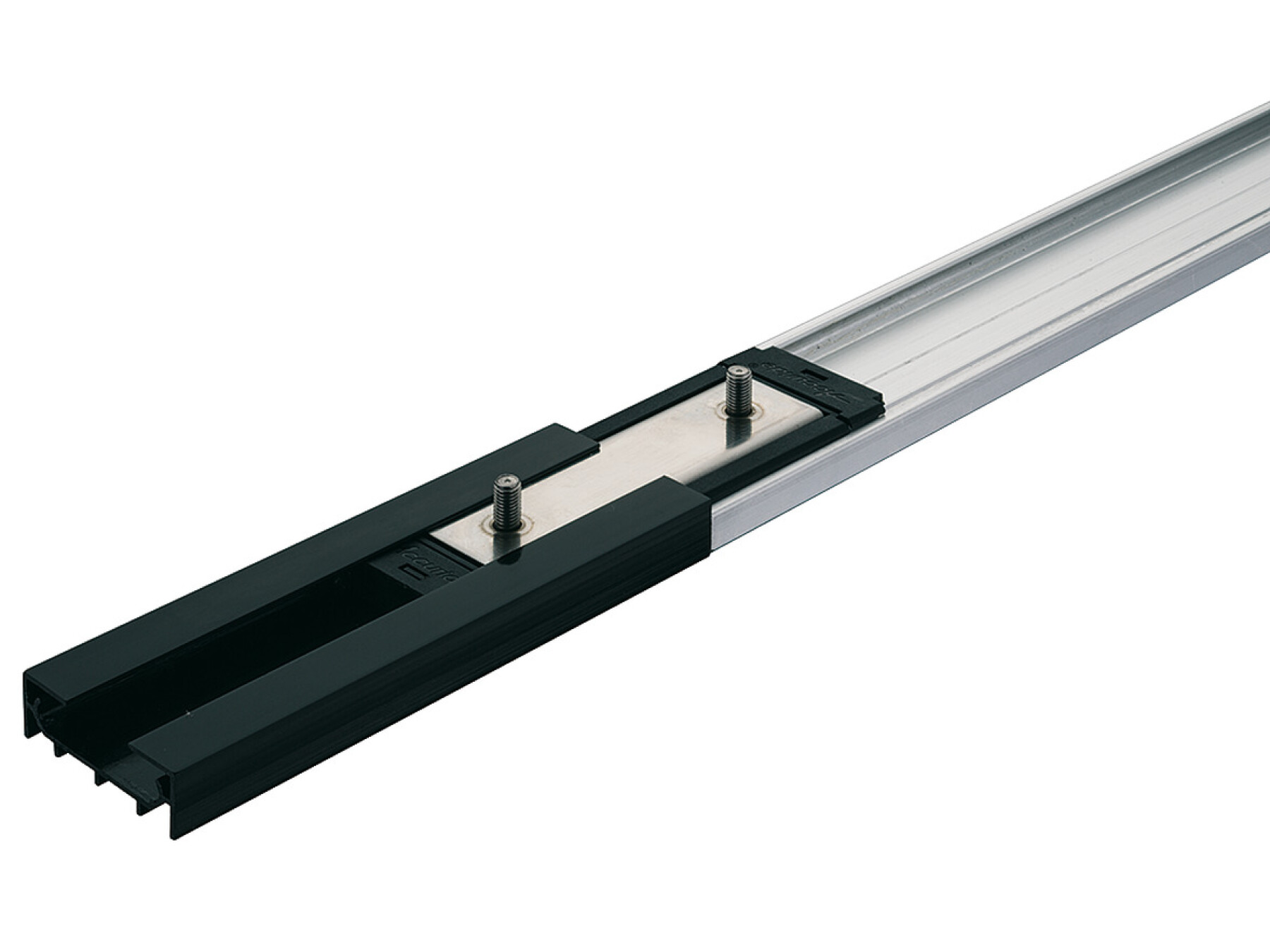

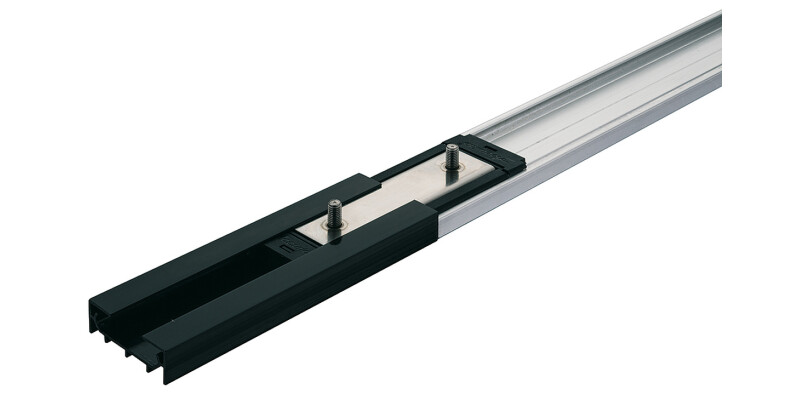

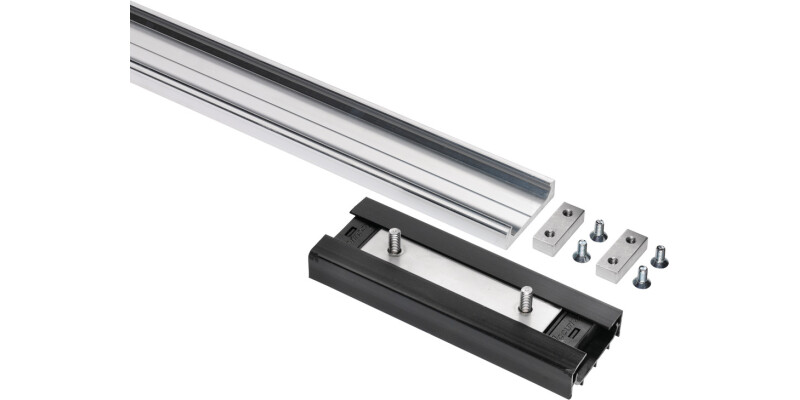

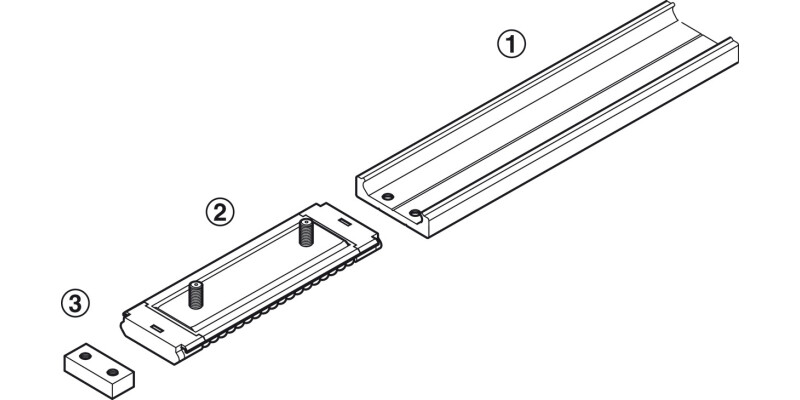

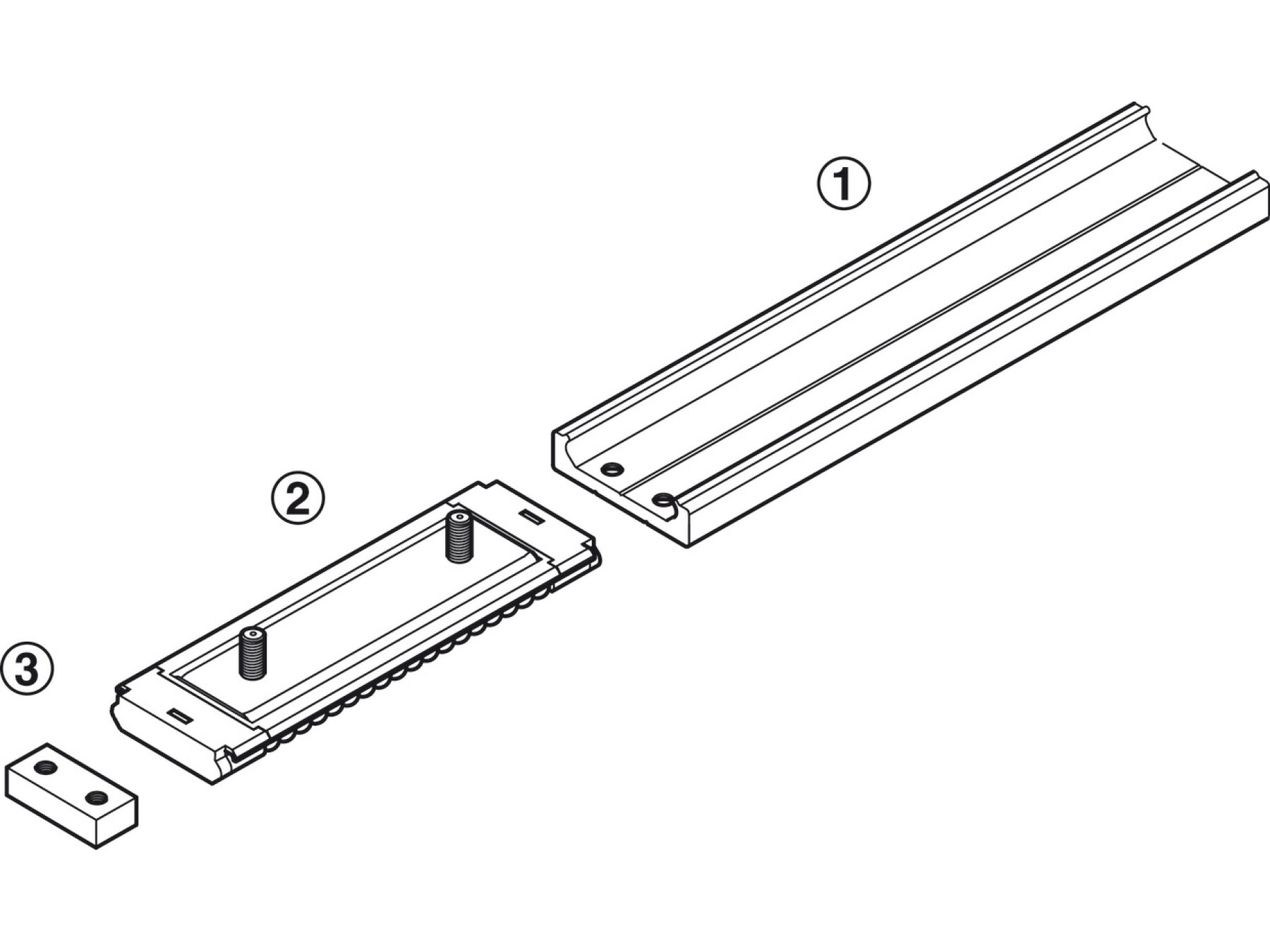

Installation: The balls are loosely inserted into the re-circulating ball carriage therefore it is supplied packed in a plastic envelope. In order to avoid losing balls during the installation of the re-circulating ball carriage, the plastic envelope must be pressed against the aluminium track and the re-circulating ball carriage must be slid carefully into the aluminium track. Finally install end stops.
Installation note
Supplied in a plastic sleeve as balls are loose in the ball carriage. To prevent the balls from falling out when installing the ball carriage, press the plastic sleeve against the aluminium track, then carefully slide the ball carriage into the aluminium track. Then fit the end stops.
Specifications
Area of application

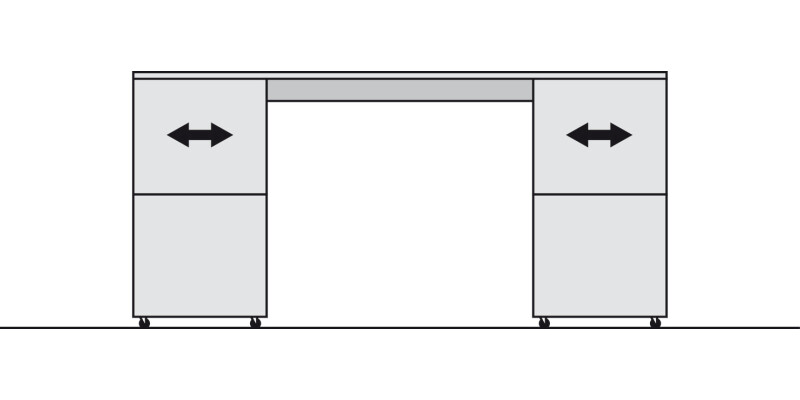

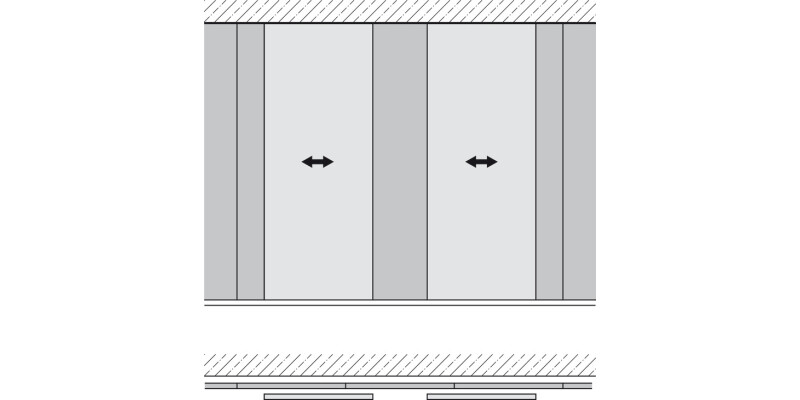

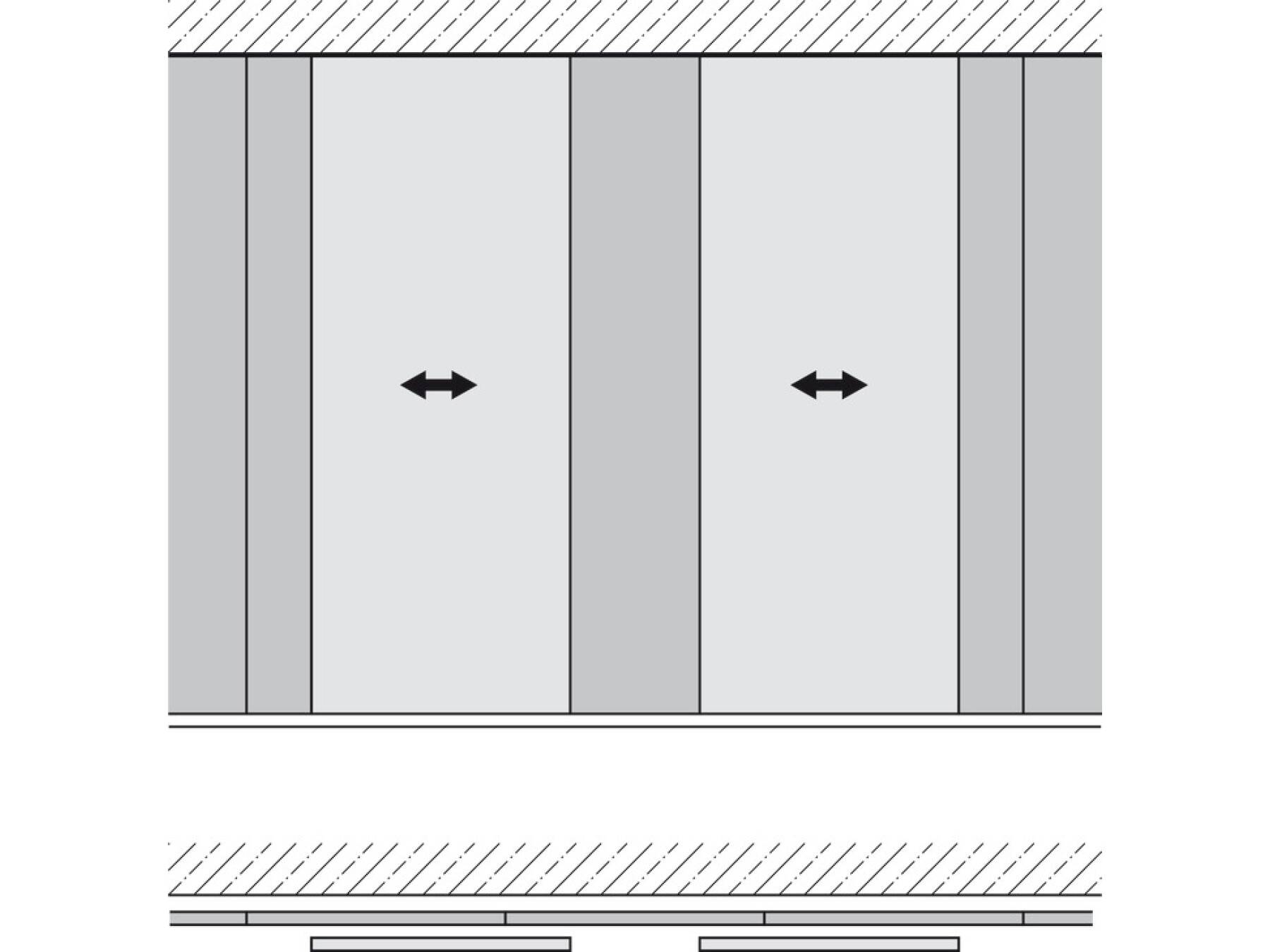

For sliding objects horizontally such as cabinets, claddings, display walls etc.
Suitable for
Accuride 0115RC linear runners
Version
Running track can be shortened or extended to required size
Material
Stainless steel

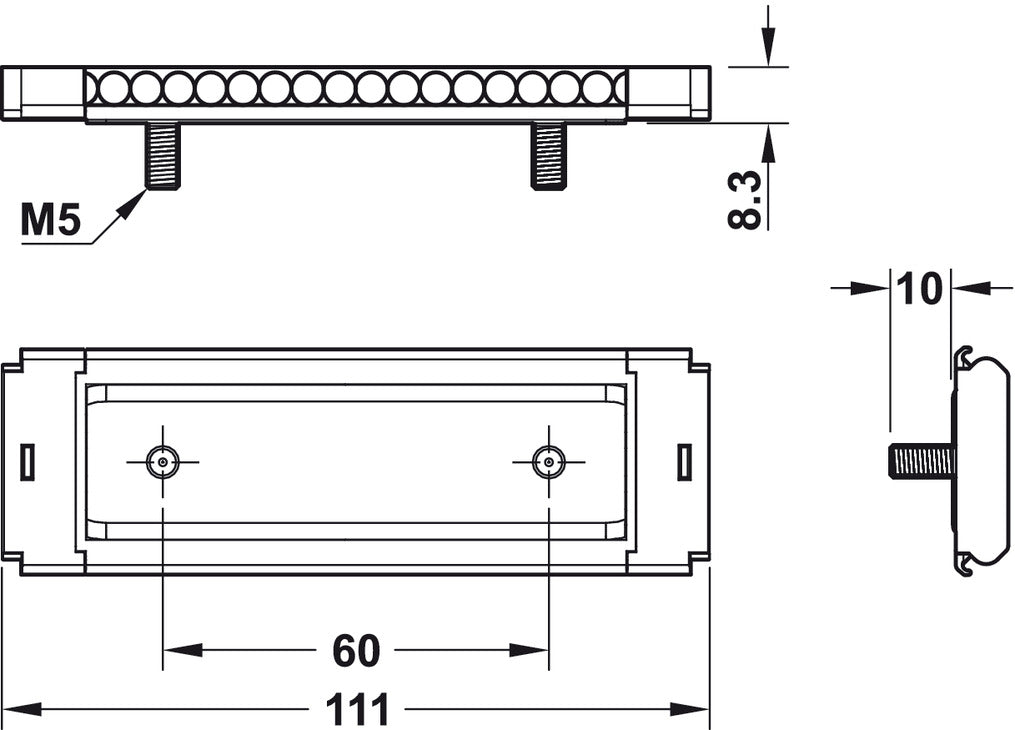

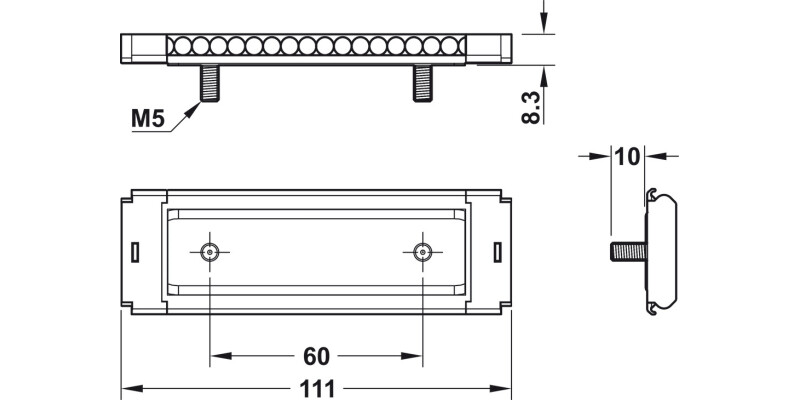

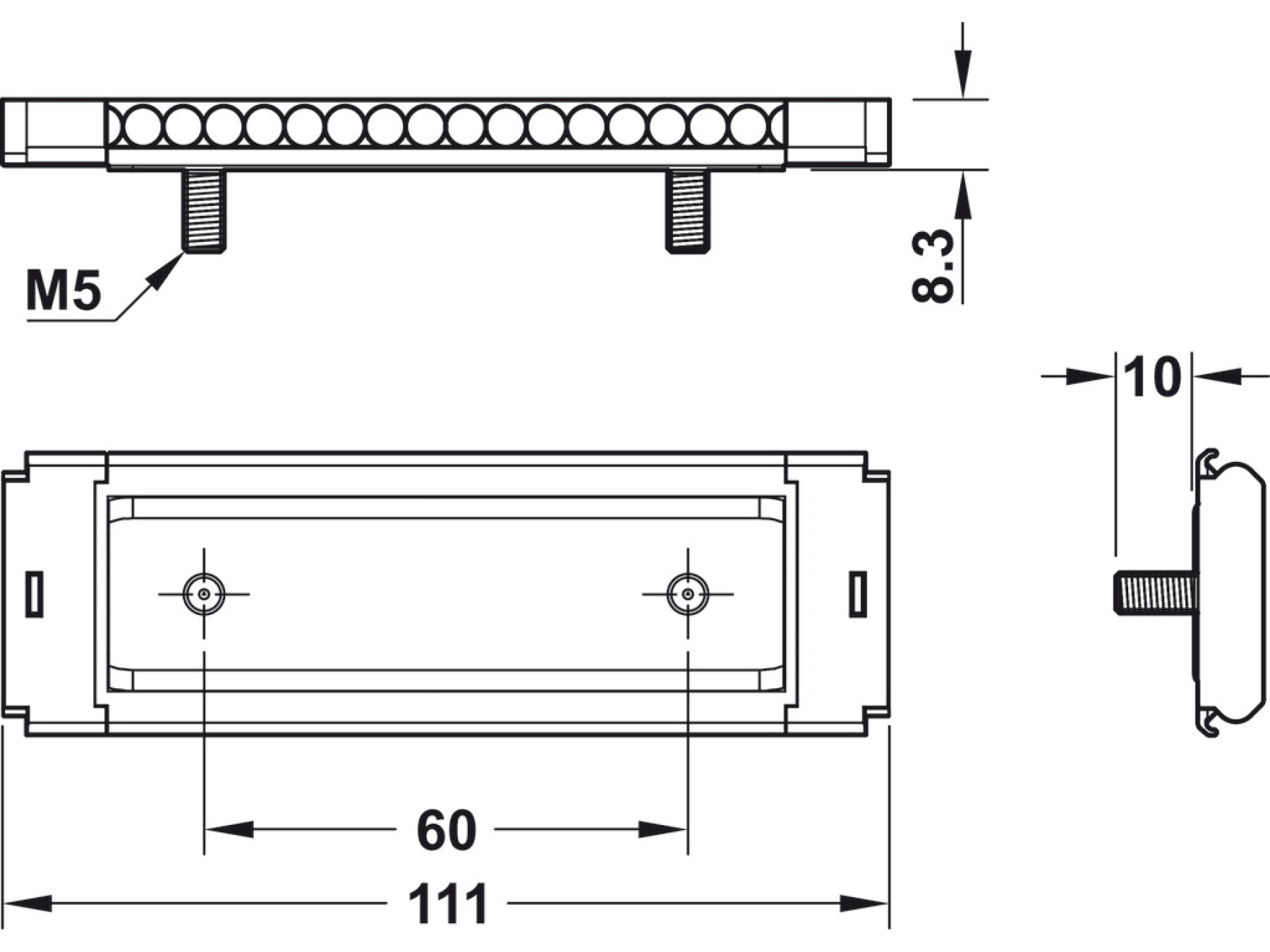

Thread
M5
Length
111.00 mm
Width
40.00 mm
Height
18.30 mm

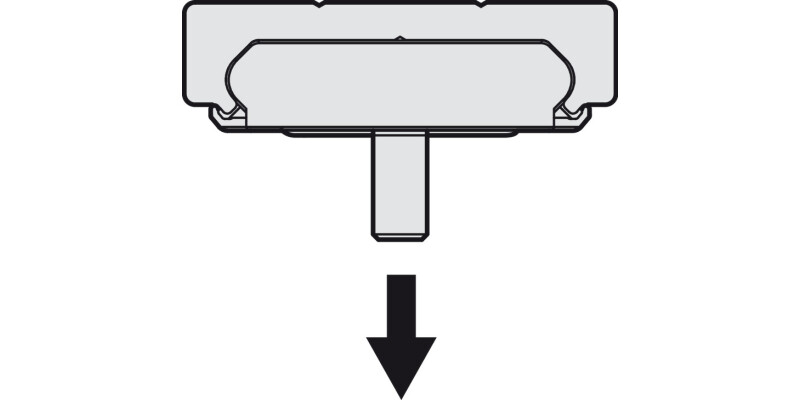

Installation
Screw fixing
Order reference
Tracks and accessories to be ordered separately
