Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1234

Product Details

Can I use the Accuride 1234 Pivot Sld Dr Run Blk for both horizontal and vertical door movement?

Yes. This pivot sliding door runner is designed for horizontal or vertical use, so it suits different cabinet and furniture layouts. Always confirm the door weight and dimensions before installation for the best performance.

What door sizes and weights can this runner support?

It is suitable for doors up to 14 kg and up to 610 mm in width, with a maximum 1,100 mm height. It is also intended for door thicknesses of 16 to 32 mm, helping it fit common furniture builds.

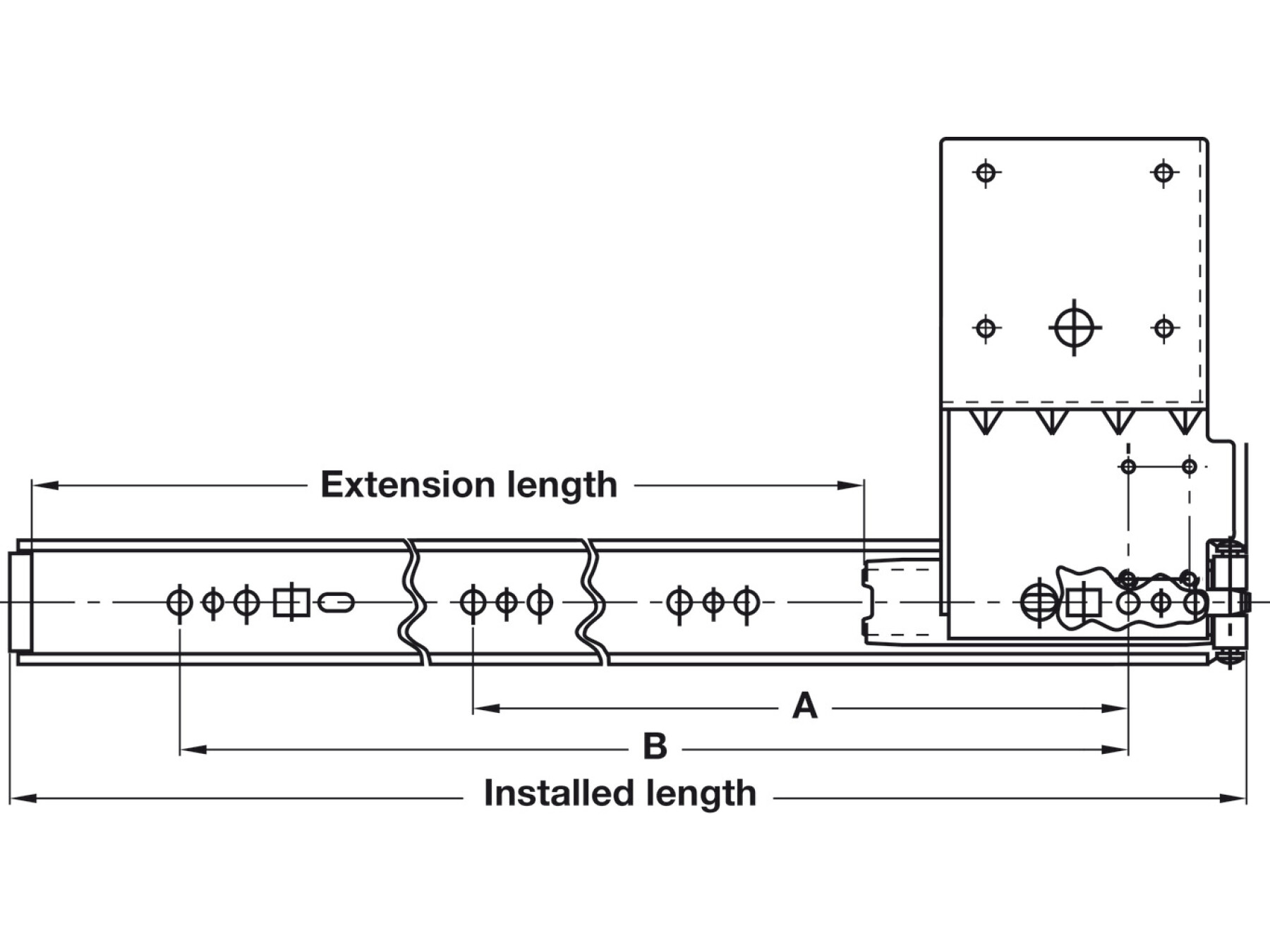

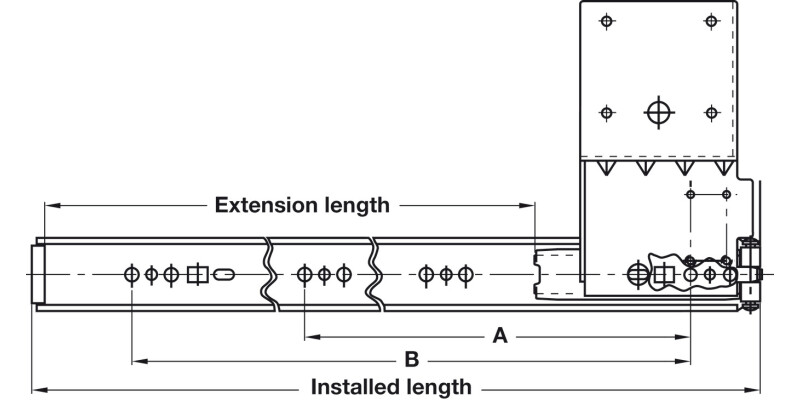

What is the installed length of this pivot sliding door runner?

The installed length is 608 mm. If you are planning the track position in your cabinet or furniture frame, measure the available space carefully to ensure the installed length will match your door route.

Is this runner compatible with inset or half overlay cabinet doors?

Yes. The runner is intended for inset or half overlay cabinet doors. If your door sits fully overlay, you may need a different runner and hardware arrangement to achieve proper alignment and smooth travel.

How is the runner fitted to the furniture?

Screw fixing is used for installation. This style of fitting is typically chosen because it allows you to secure the runner firmly to the cabinet frame for stable, consistent movement.

What finish and corrosion resistance should I expect?

This model is finished in black zinc plated steel. A zinc plated finish is commonly used to help protect hardware against corrosion, which can be helpful in everyday home environments.

Which part number should I select when ordering spares or matching hardware?

For this specific runner, use Product Part No: 408.35.361. Choosing the correct part number makes it easier to match the right track components and keep your door movement consistent.

Will this suit slim cabinet doors with narrower openings?

It can if your door width is within the limit of up to 610 mm. If you are working with tight cabinet openings, check the door width, thickness, and weight first to confirm correct fit and smooth operation.
