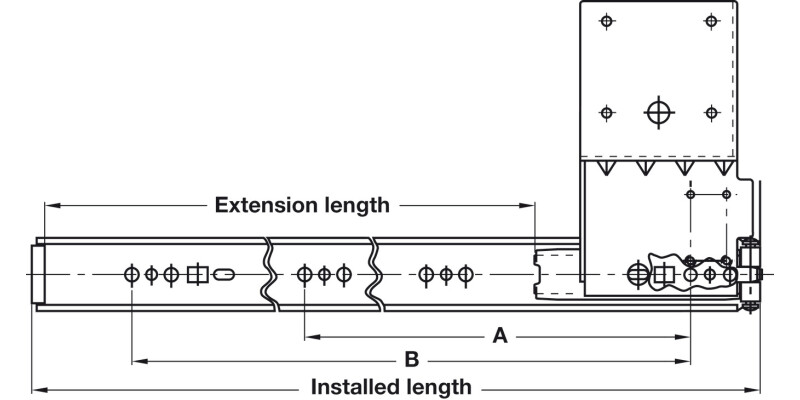

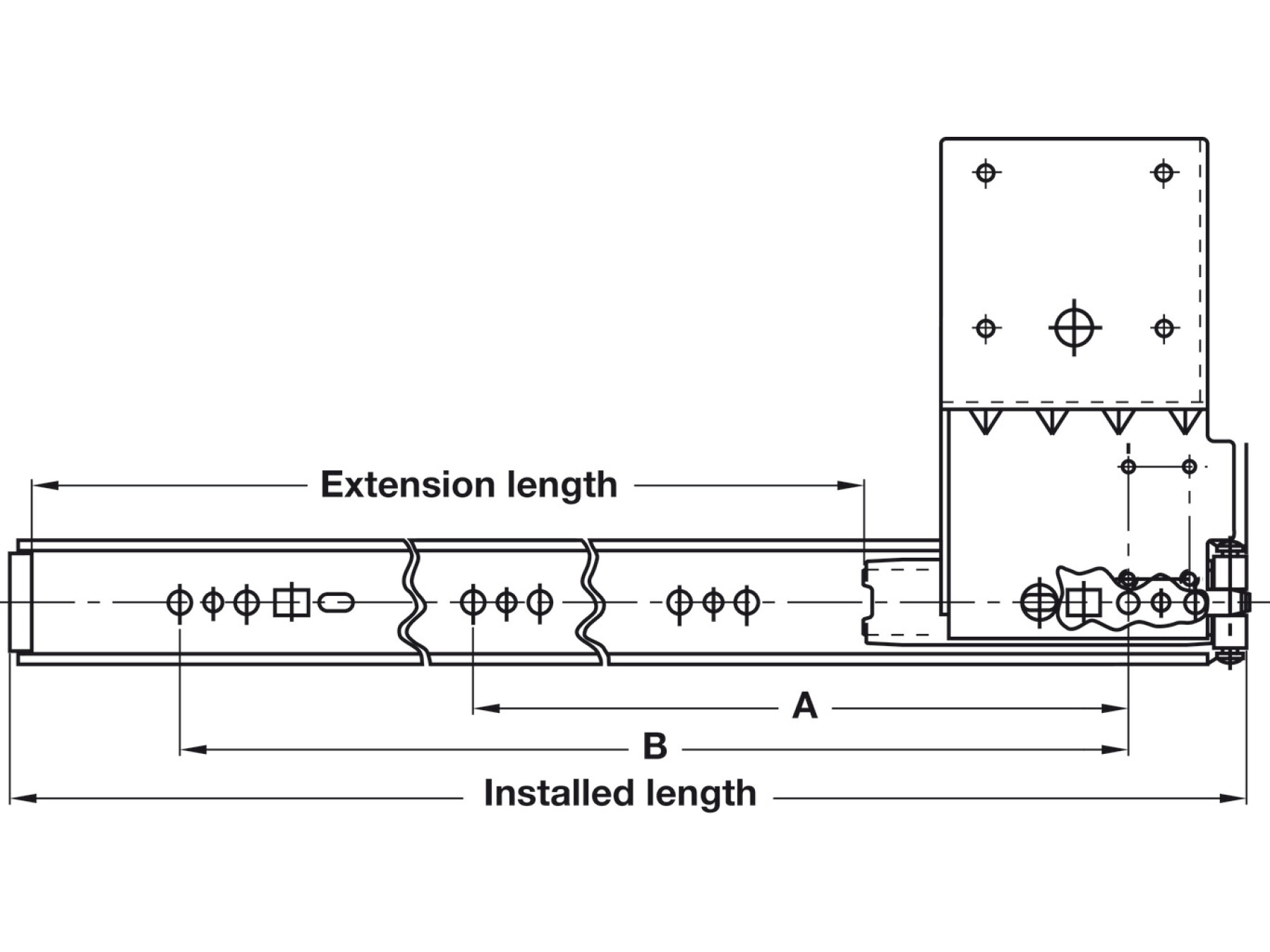

Accuride 1234 Pivot Sld Dr Run Blk 405mm
Hold-out feature at maximum extension for ease of door operationDoor supports required when fitting horizontallyInstalled in 3 easy stepsHinge carrrier strip, 15 mm thickness, to be supplied by customerTested to 80,000 cycles
- Application: Inset or half overlay cabinet doors
- Installation: Screw fixing
- Door weight: Max. 14 kg
- Door height: Max. 1100 mm
- Door width: Max. 610 mm
- Door thickness: 16-32 mm
- Material: Steel
- Finish: Black zinc plated
- Order reference: Hinges and mounting plates to be ordered separatelyFor inset applications, hinge 348.31.802 and mounting plate 348.38.512For half overlay applications, hinge 322.13.630 and mounting plate 322.85.750
