Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1321

Product Details

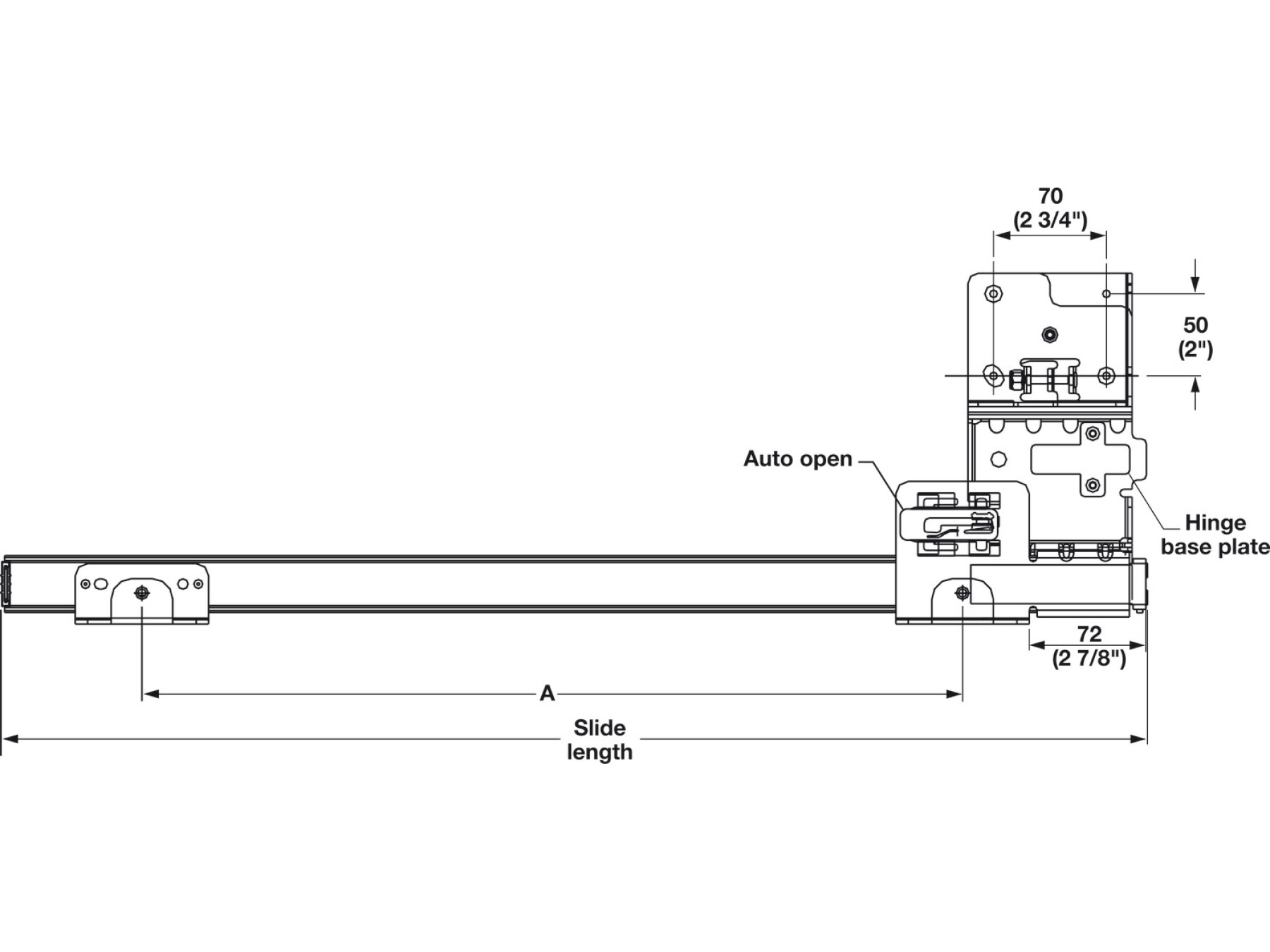

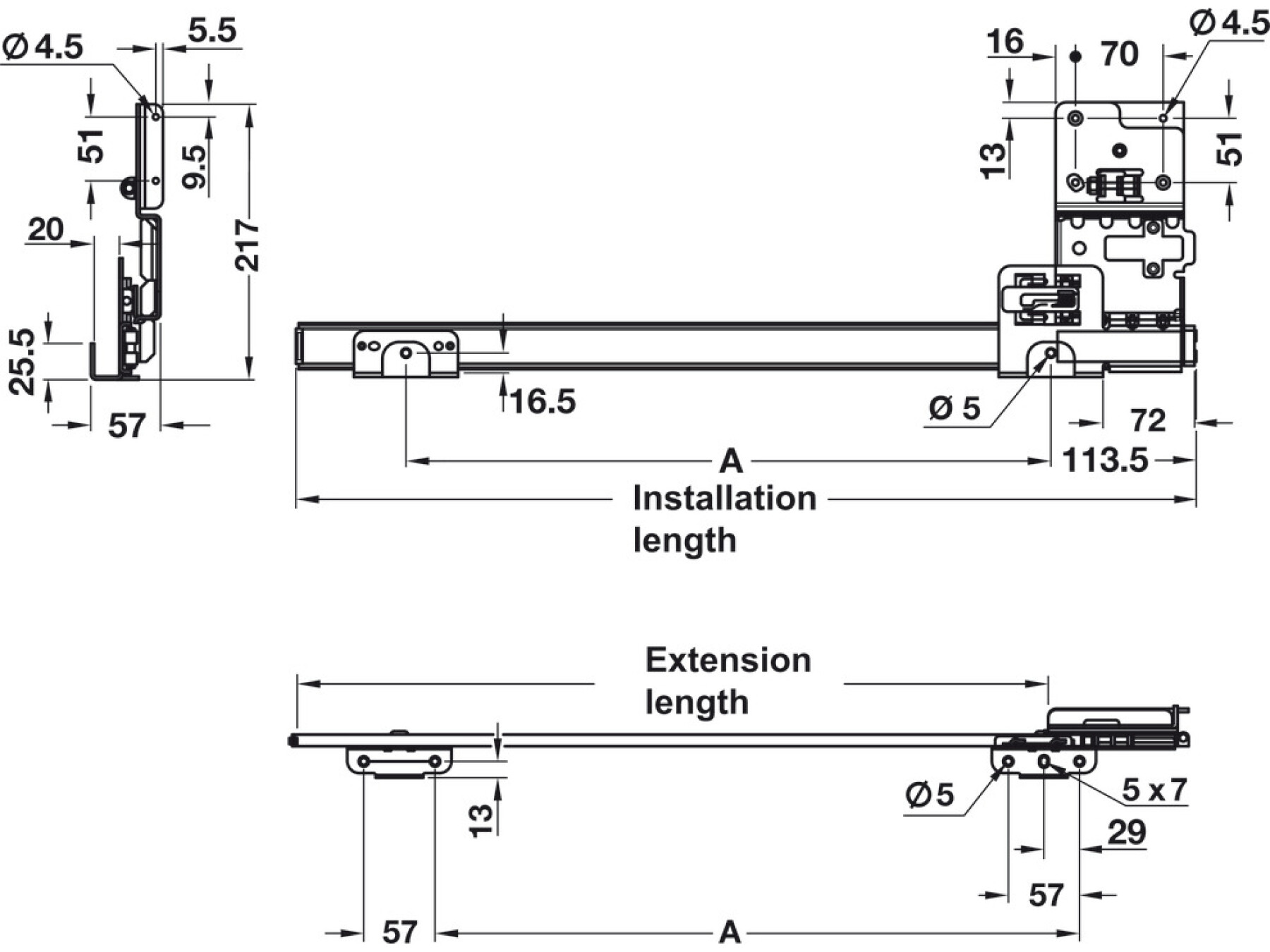

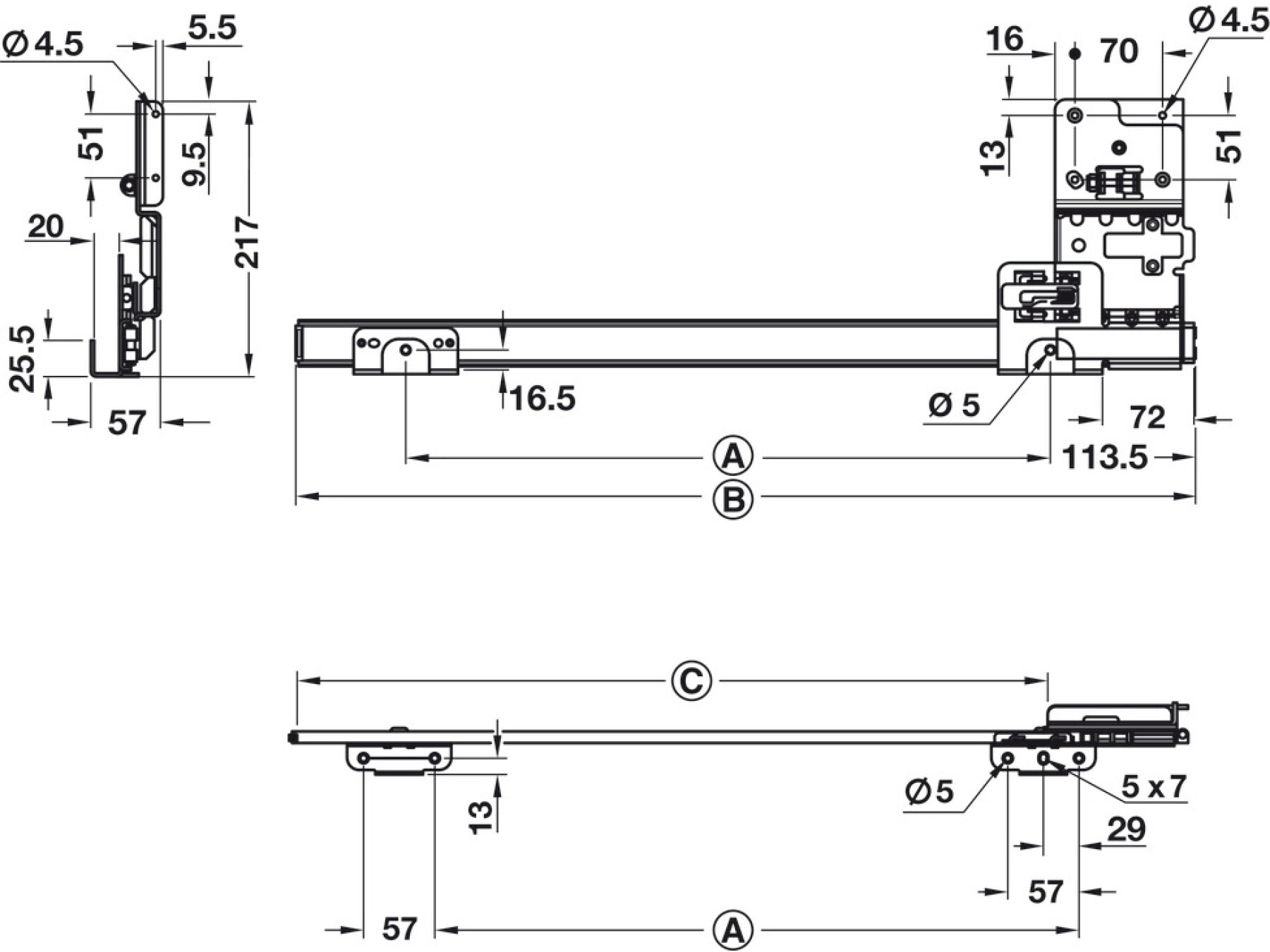

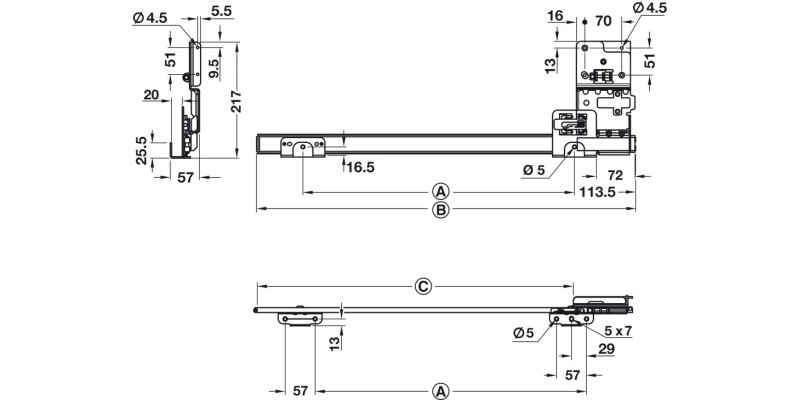

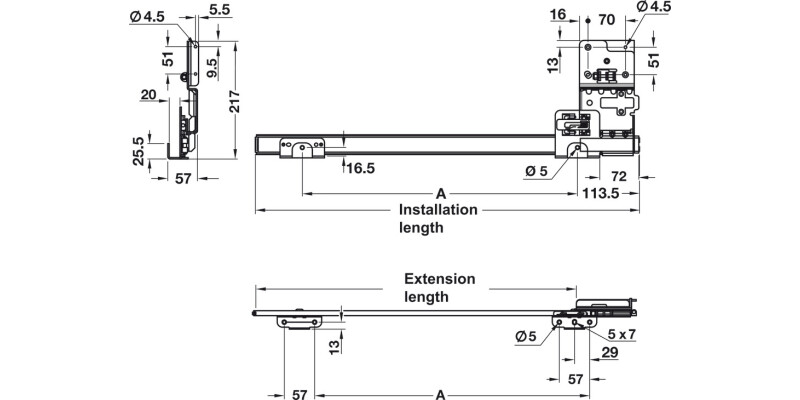

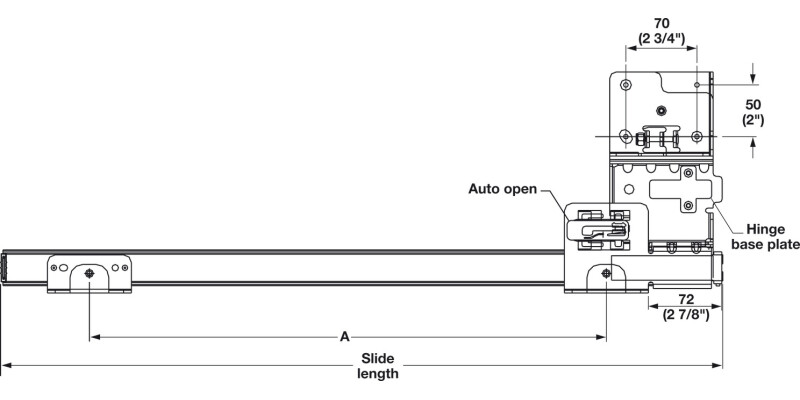

What does “installed length 456 mm” mean for this pivot sliding door runner?

Installed length is 456 mm, which is the distance the runner set occupies when fitted for vertical use. This helps you confirm compatibility with your cabinet or furniture frame before installation.

How does the extension length 340 mm affect door positioning?

The extension length is 340 mm, meaning the runner can extend from the fitted position to support smooth pivot sliding movement. It is useful when planning clearance and the door’s travel so the door aligns correctly with the frame and track system.

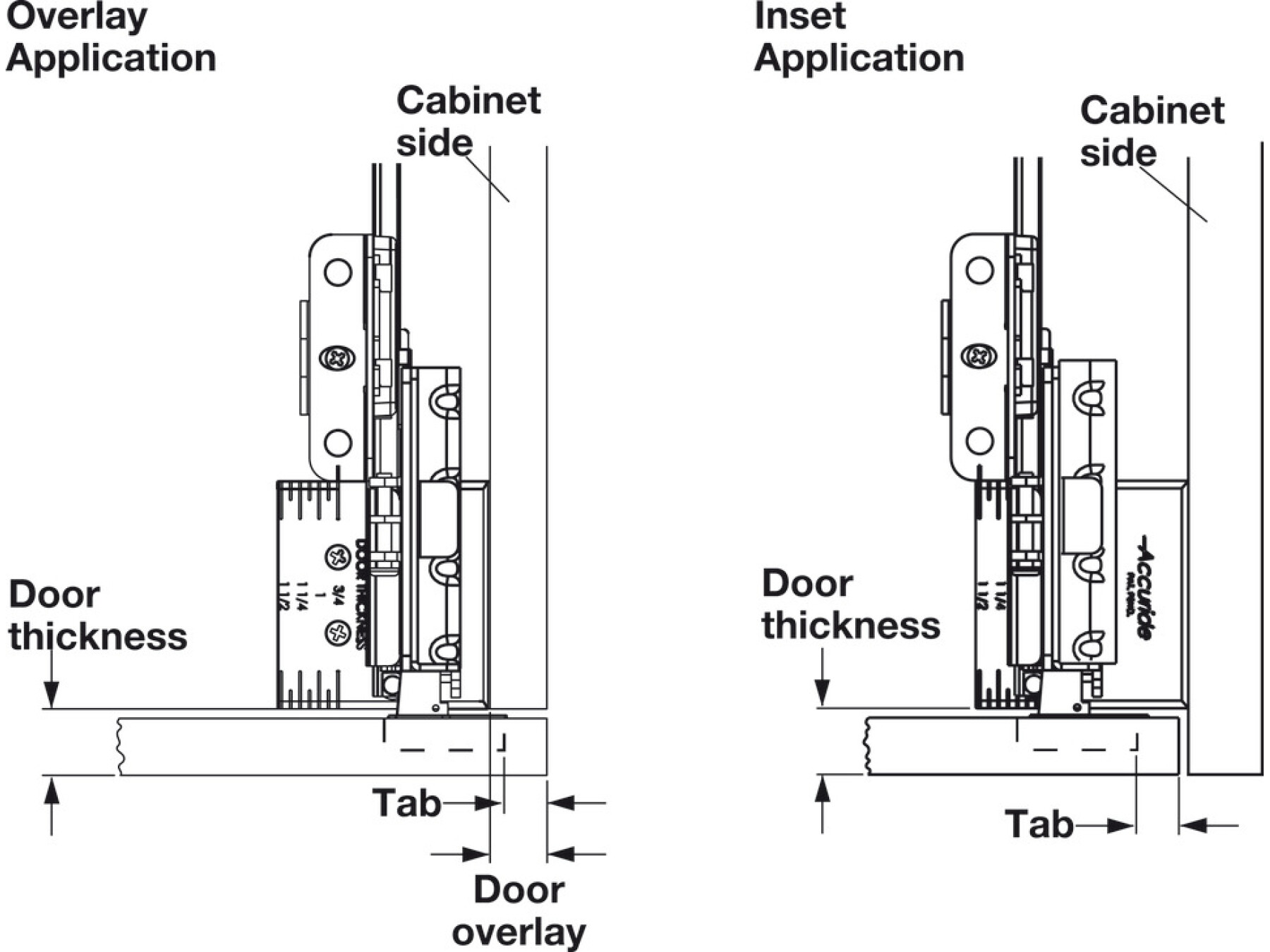

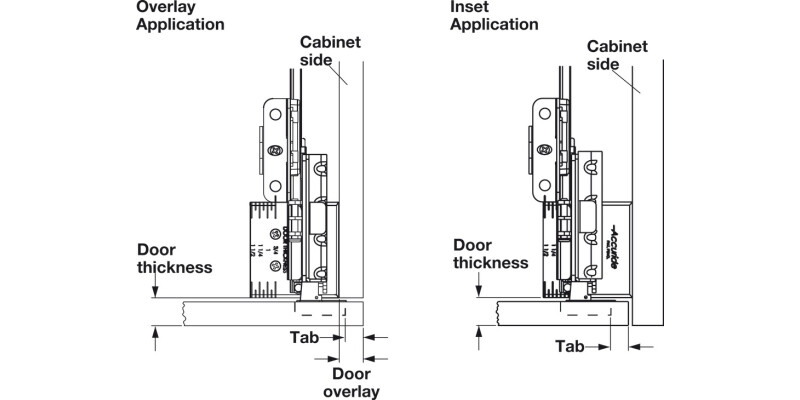

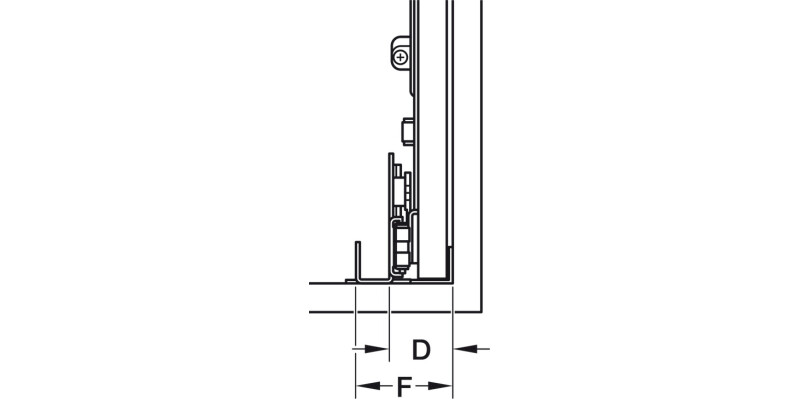

Is this suitable for inset and overlay cabinet doors?

Yes, this runner set is designed for inset and overlay cabinet doors. If you are matching an existing sliding and folding furniture setup, this is a practical choice because it is made for common cabinet door mounting styles.

What door size and weight is this pivot runner set for?

For best performance, it is intended for doors with width up to 610 mm, height up to 1,065 mm, and door weight up to 14 kg. Sticking to these limits helps maintain steady running and reduces wear.

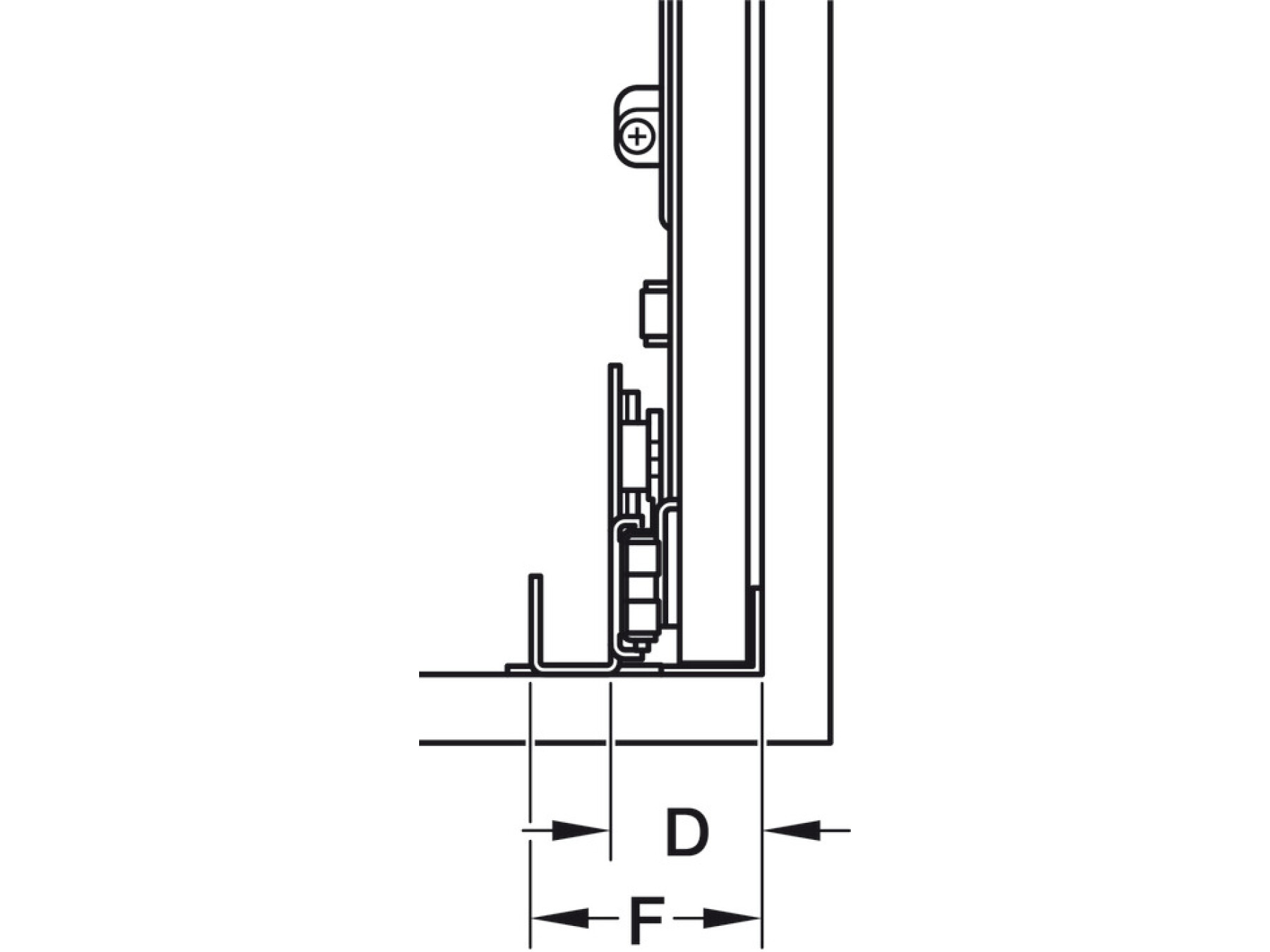

Can it be used with different door thicknesses?

Yes. The set works with door thicknesses of 19 mm to 38 mm. This range covers many typical wooden furniture panels, making it a convenient option for installations where the door thickness varies between units.

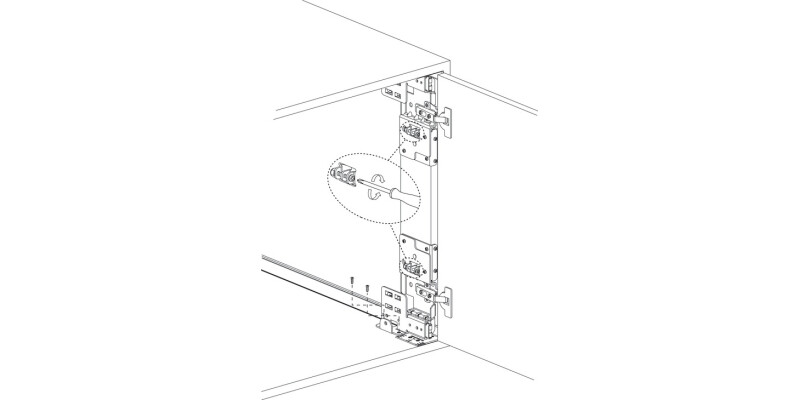

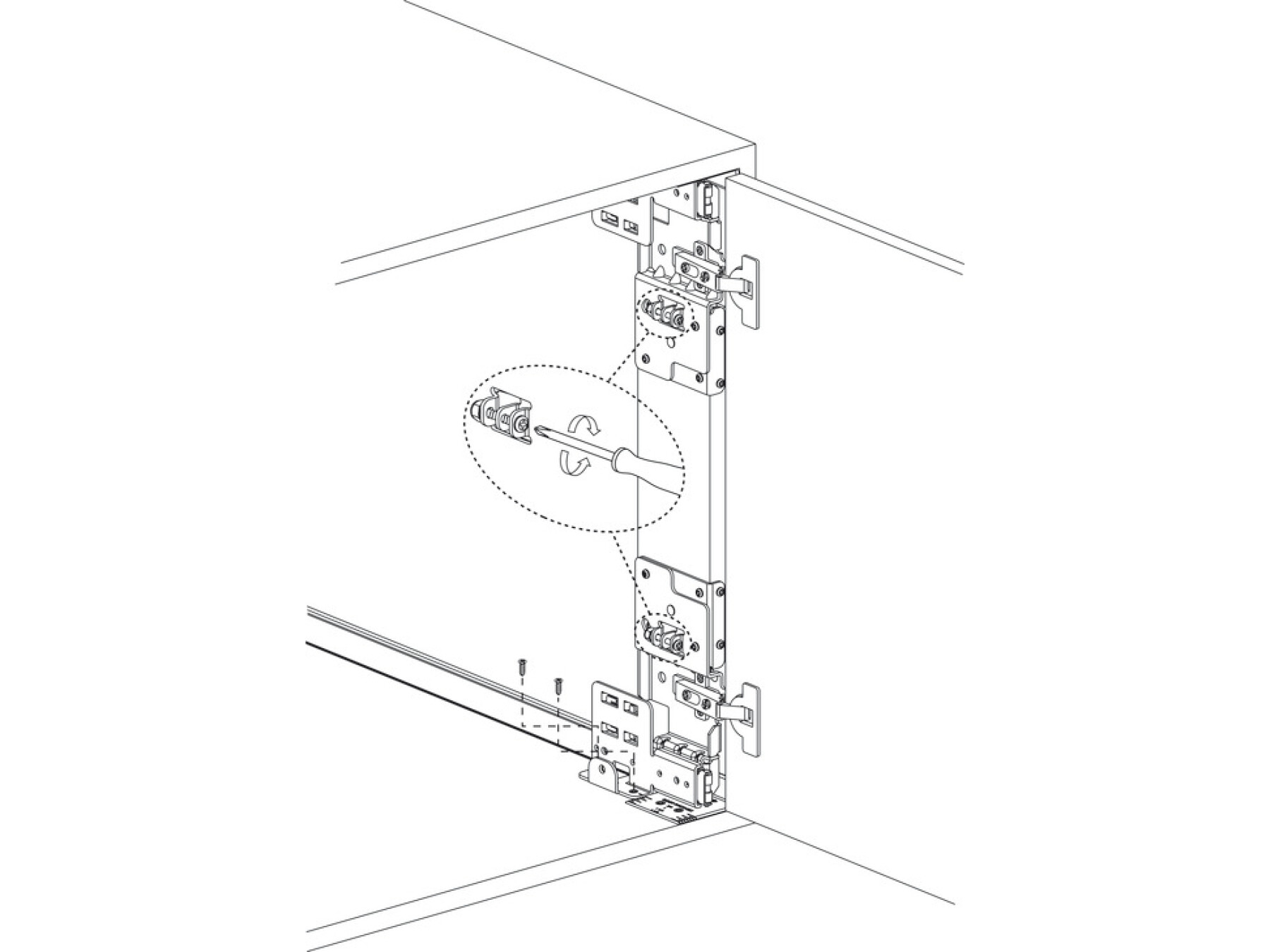

How is the runner set fixed during installation?

This system is designed for screw fixing. Using the correct screws and following the mounting points helps ensure the pivot runner stays aligned for smooth sliding and folding action over time.

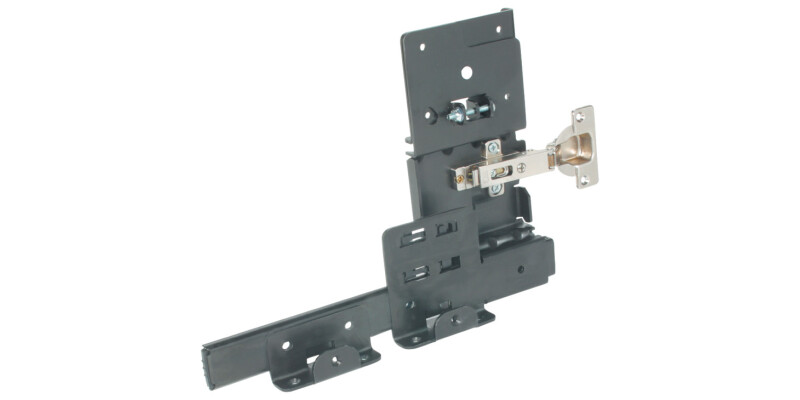

What is included in the box, and do I get everything needed to fit it?

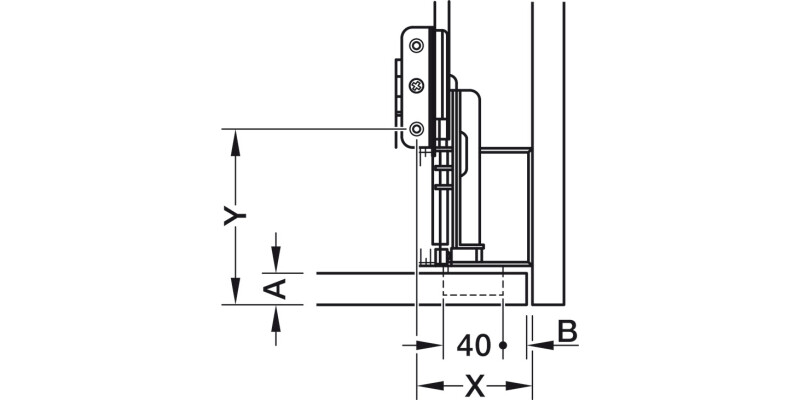

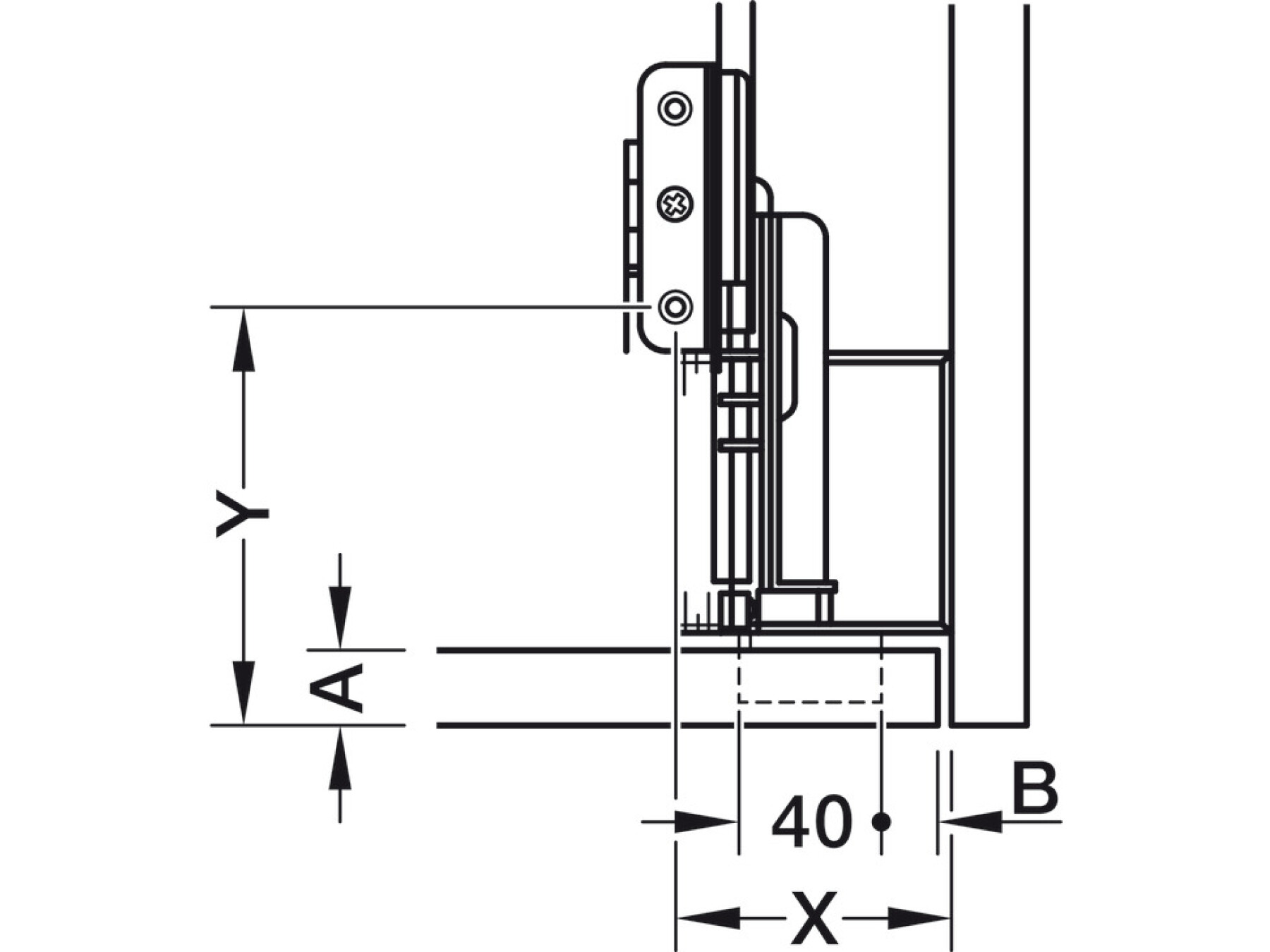

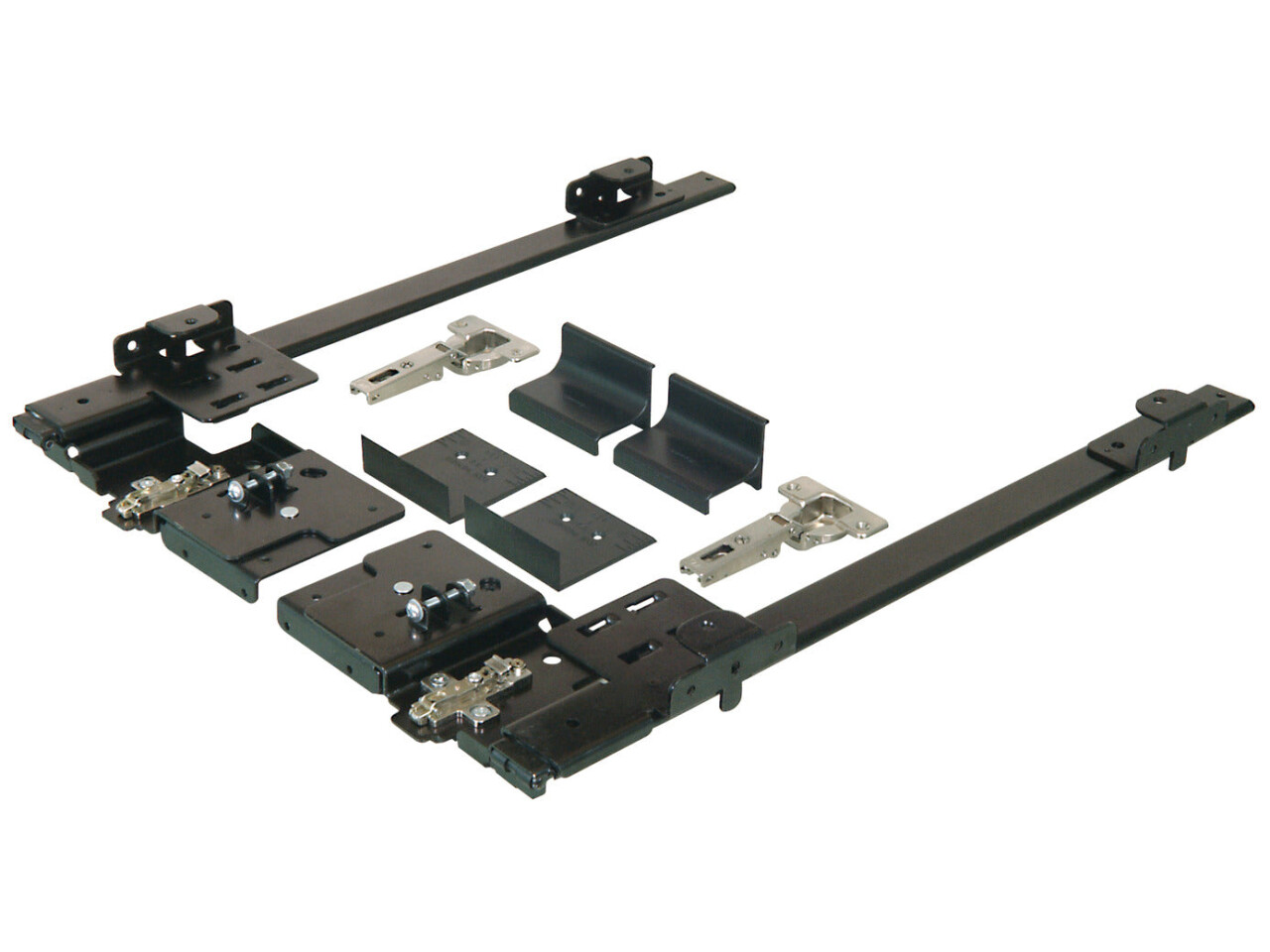

The pack is supplied as a complete set with one pair of runners, two mounting brackets, two concealed hinges of 40 mm, two mounting plates, and fixing material. This means you can usually install without needing to source key components separately.

How many door leaves can be supported by one set?

Each set is for one door leaf. If you are fitting a double door arrangement, you will generally need a separate runner set for each door leaf to keep the movement balanced.
