Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1321

Product Details

Is Accuride 1321 suitable for vertical use?

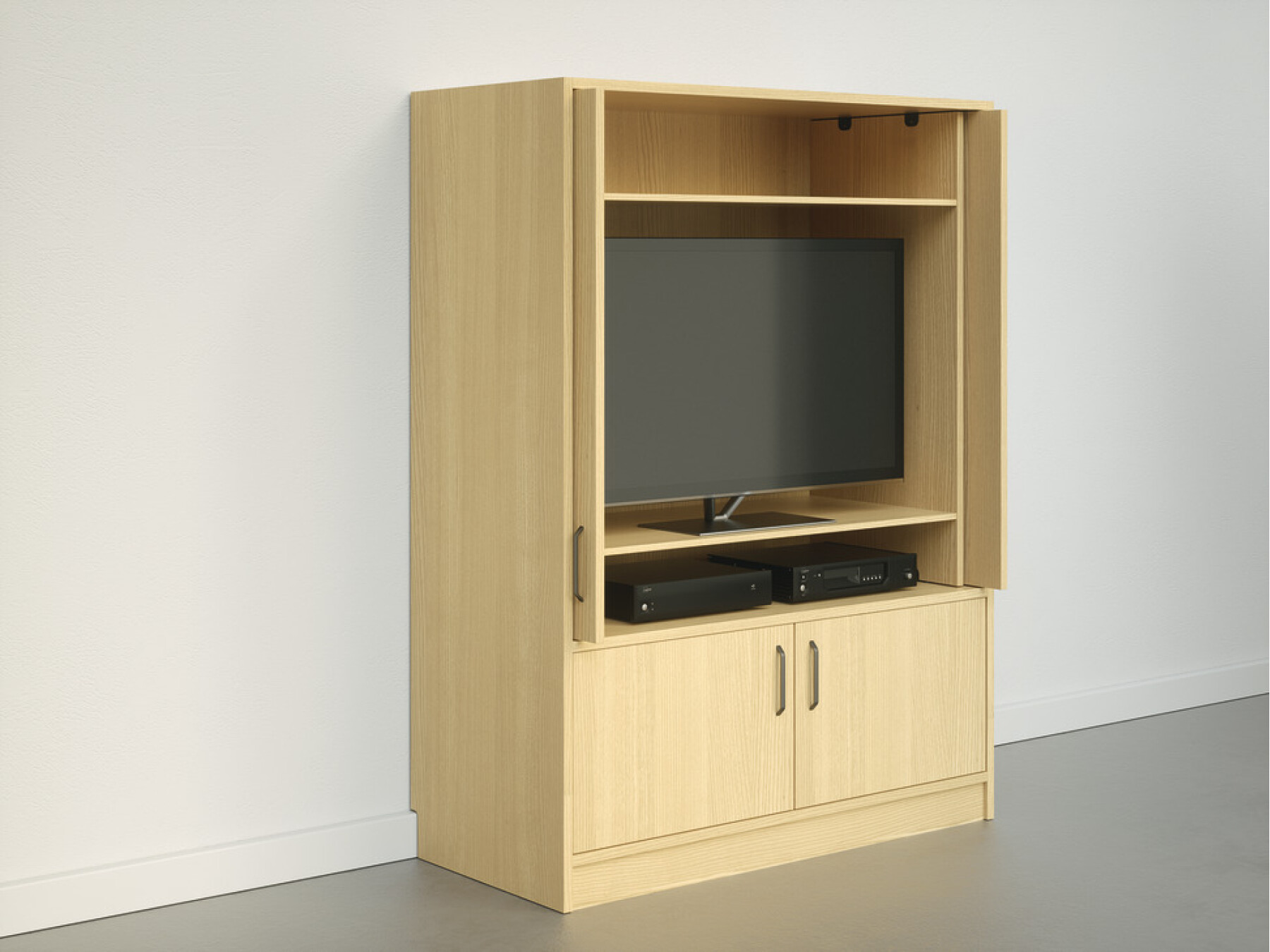

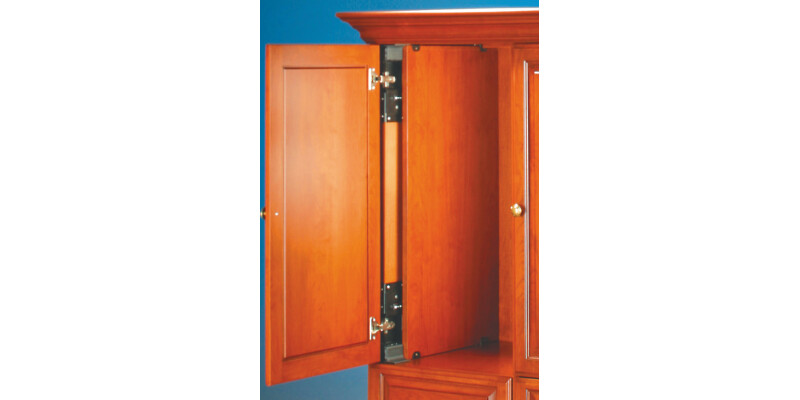

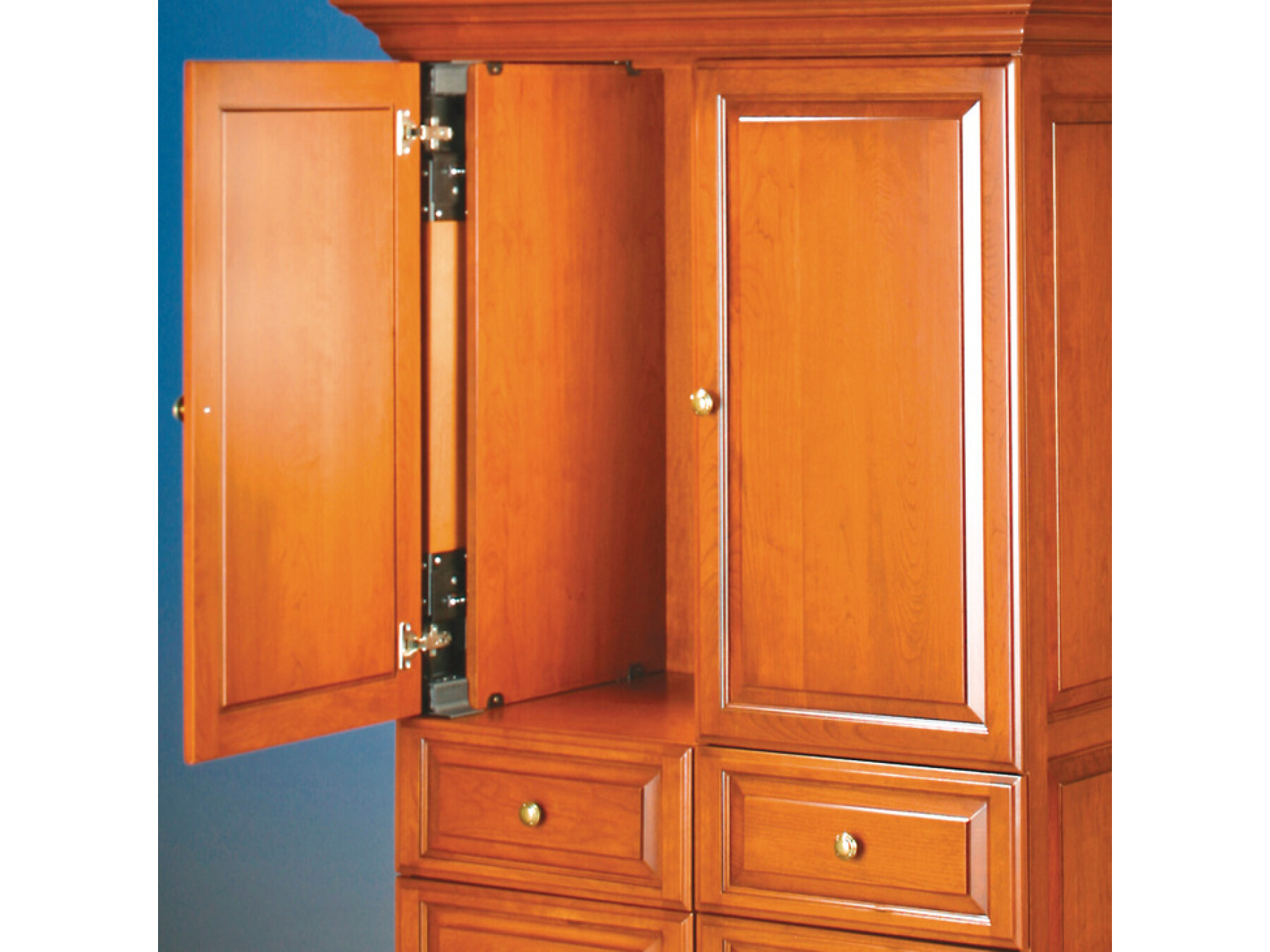

Yes. This pivot sliding door runner is designed for vertical installation. It is intended for furniture applications where a folding or sliding door needs controlled movement along a track.

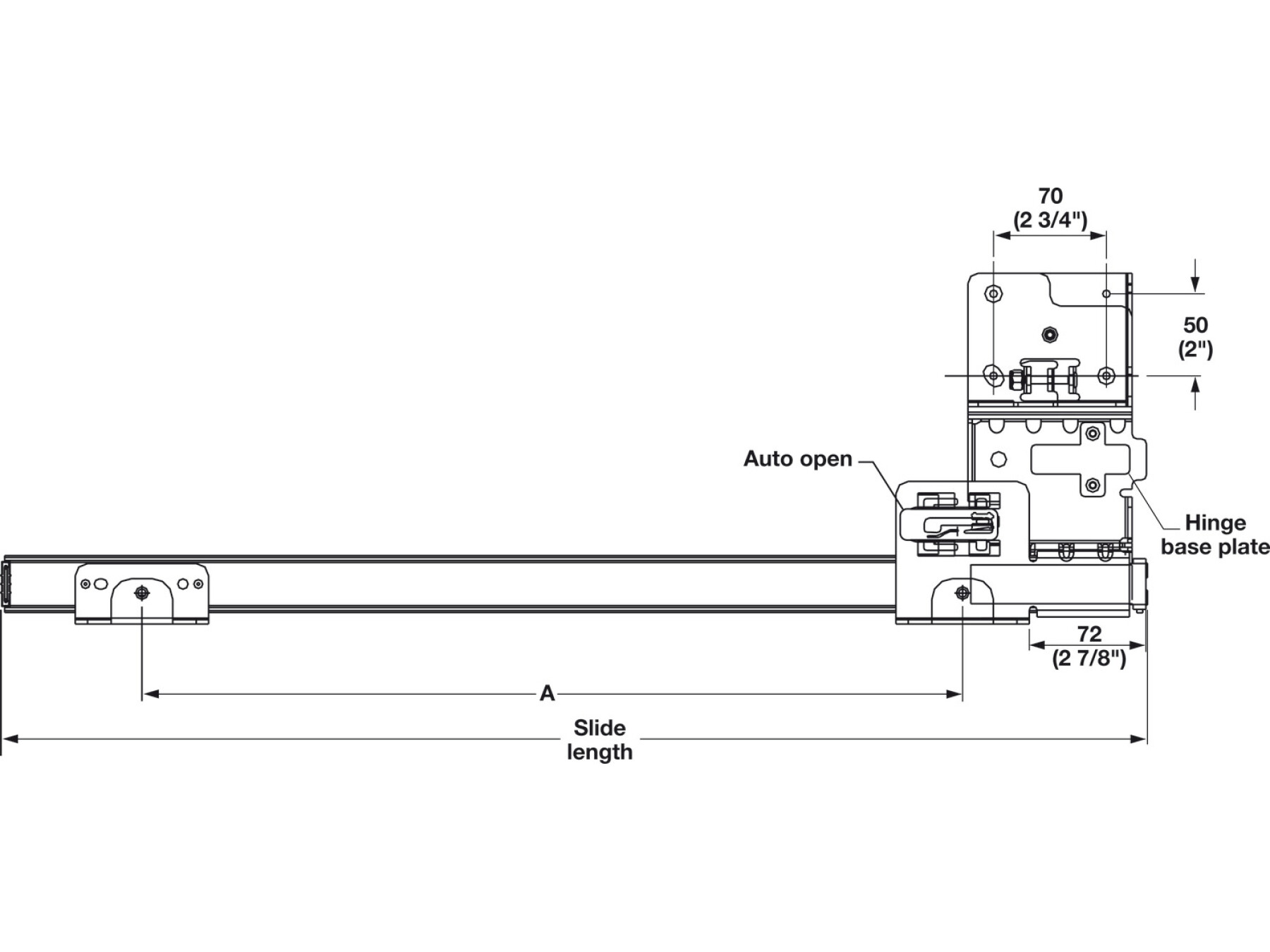

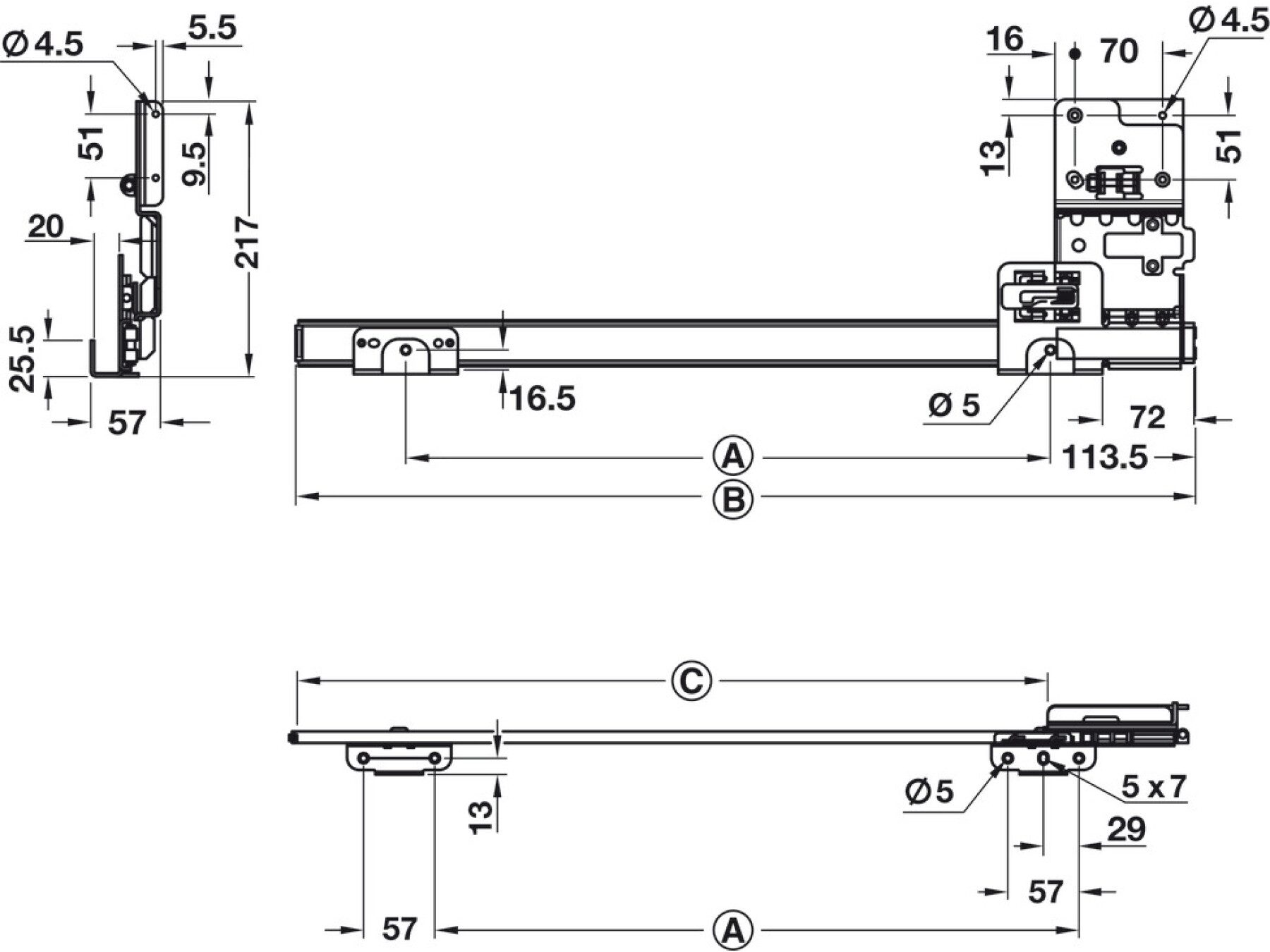

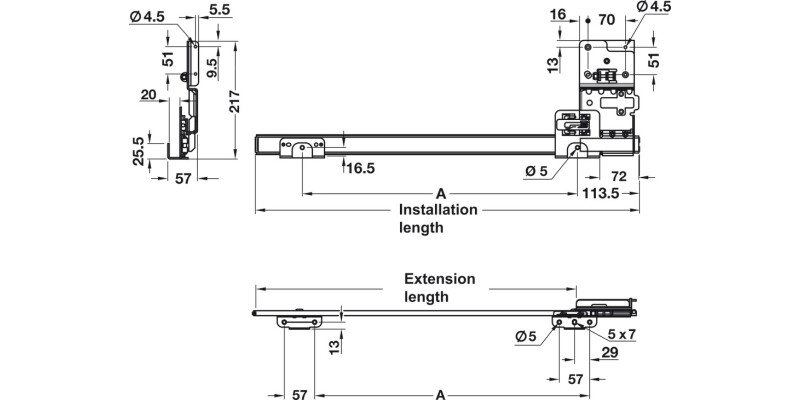

How do the installed length and extension length affect door alignment?

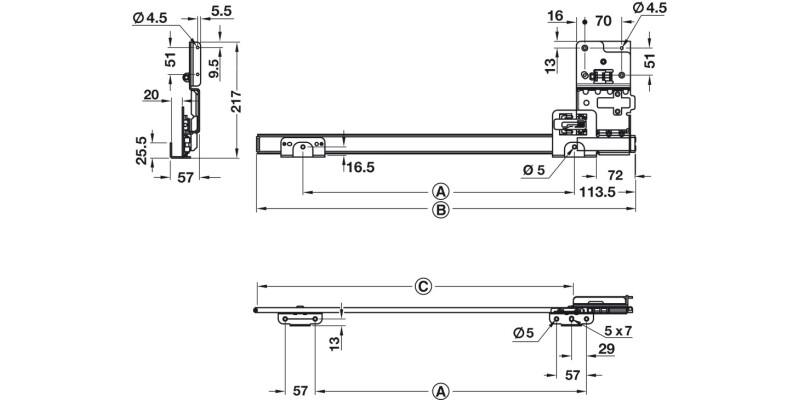

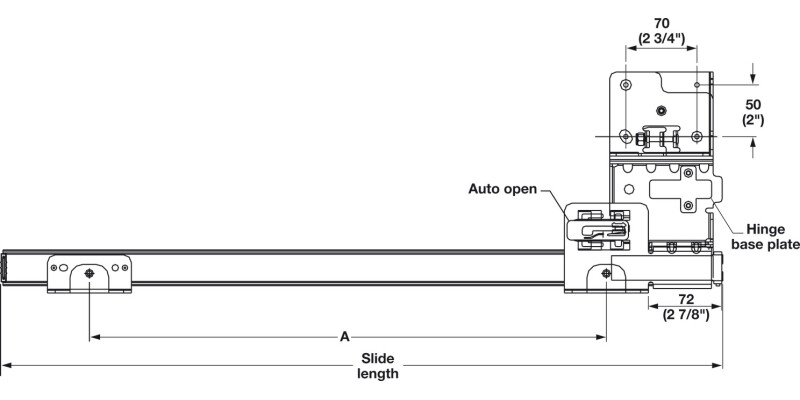

The installed length is 405 mm and the extension length is 290 mm. These measurements help determine the movement range and the fit against your door and track layout, so it is important to match the runner setup to your cabinet or furniture opening before fixing.

What door sizes and weights can this set support?

This hardware is suitable for door panels up to 610 mm wide and up to 1,065 mm high, with a maximum door weight of 14 kg per door leaf. Using it outside these limits can reduce smoothness and increase wear.

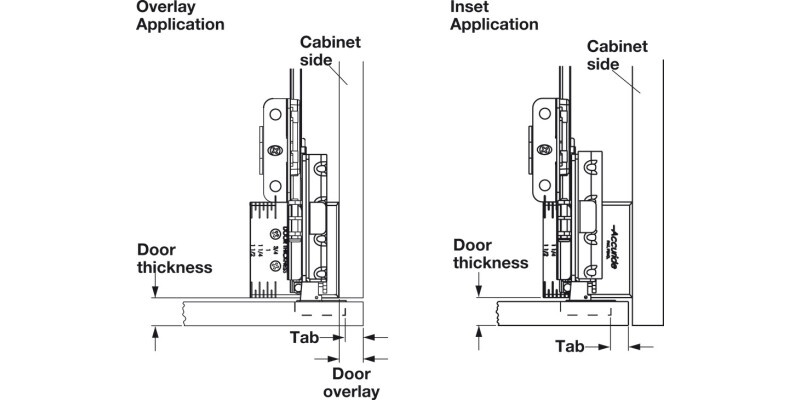

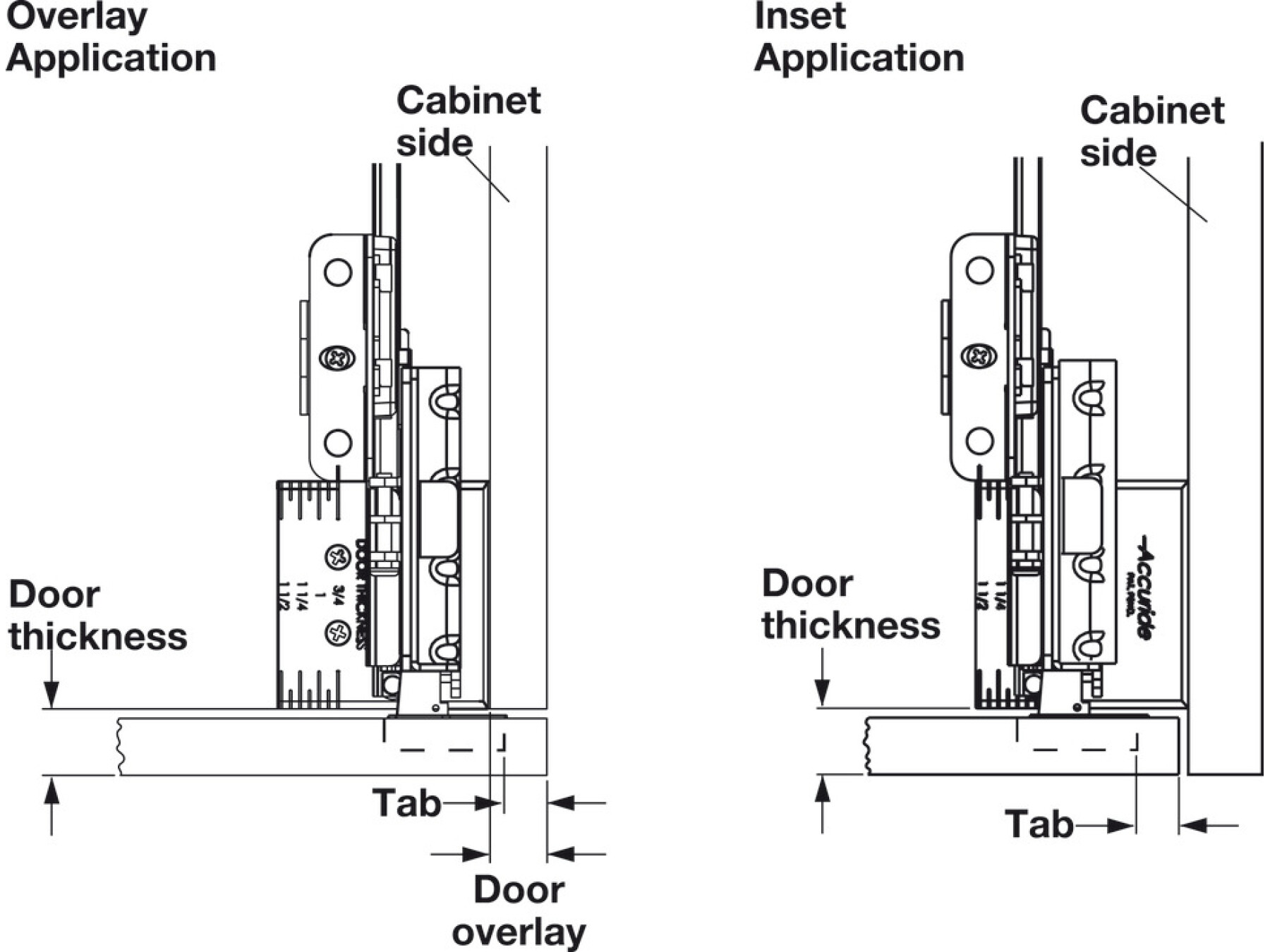

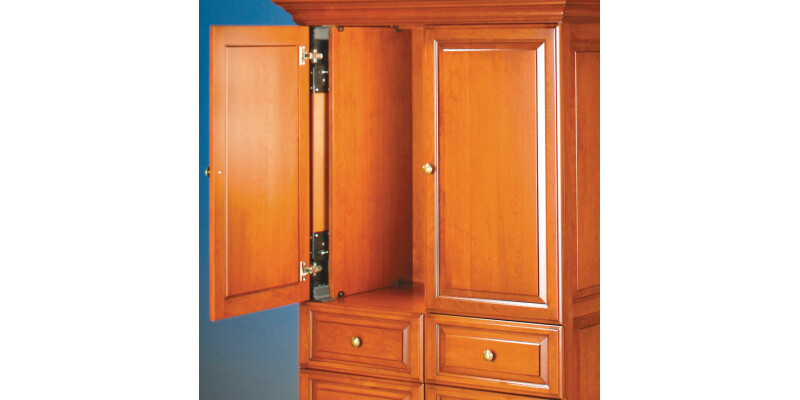

Will it work with wooden inset or overlay cabinet doors?

Yes. It is intended for inset and overlay cabinet doors made from wood. As long as your door thickness is within the supported range, you can use it for a range of furniture styles.

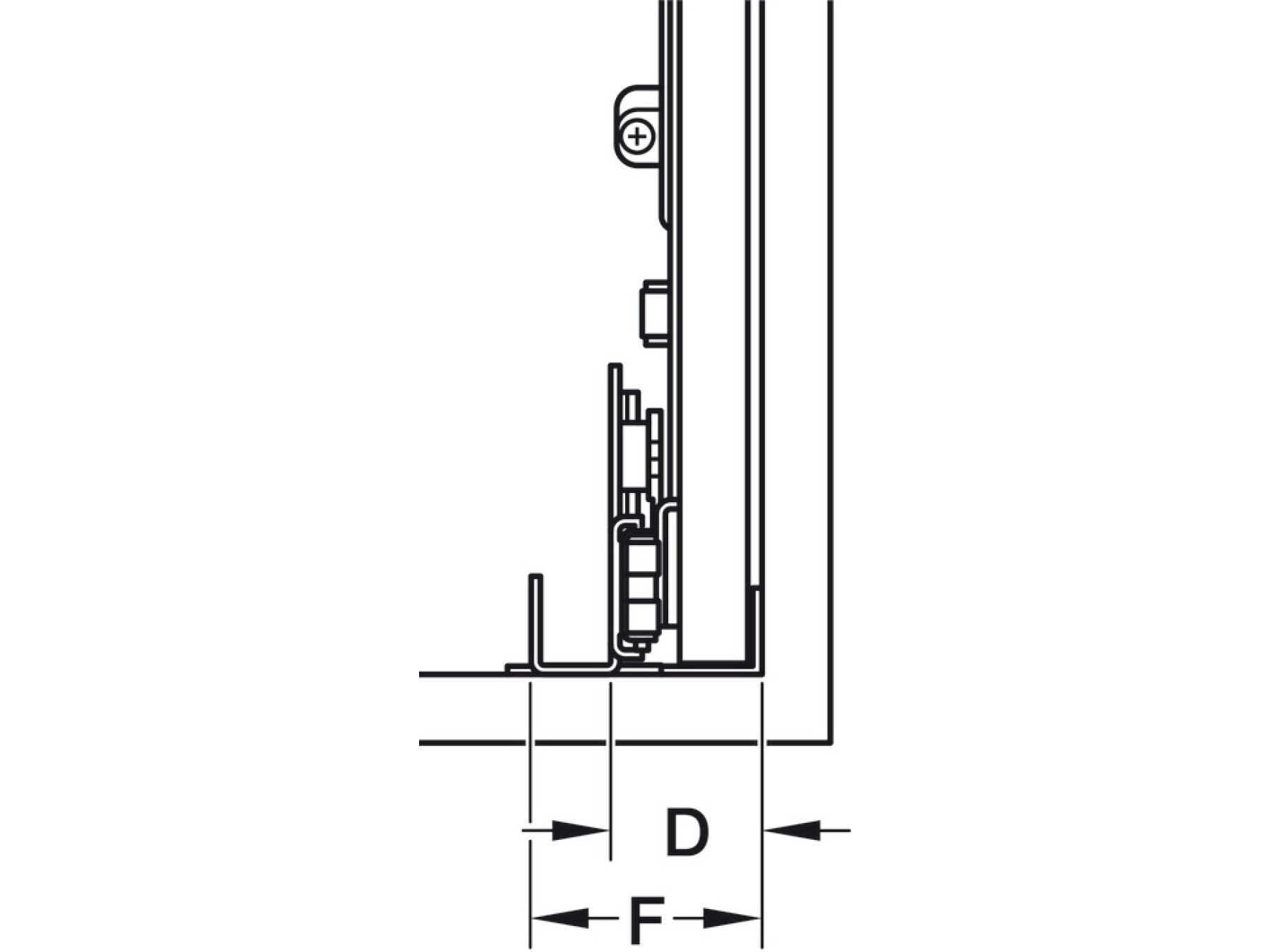

What door thickness does the runner fit?

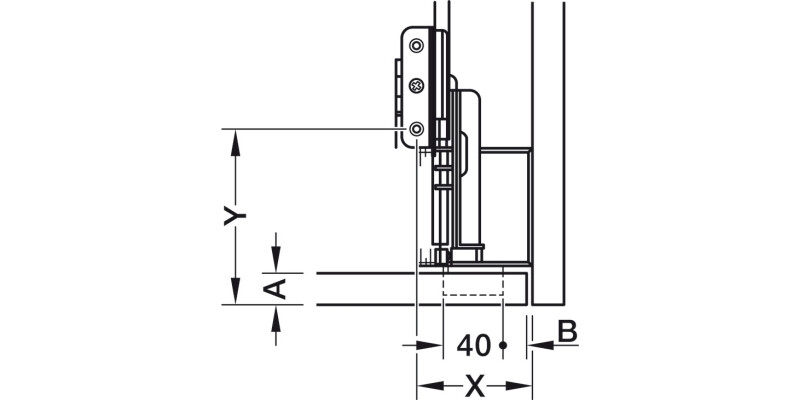

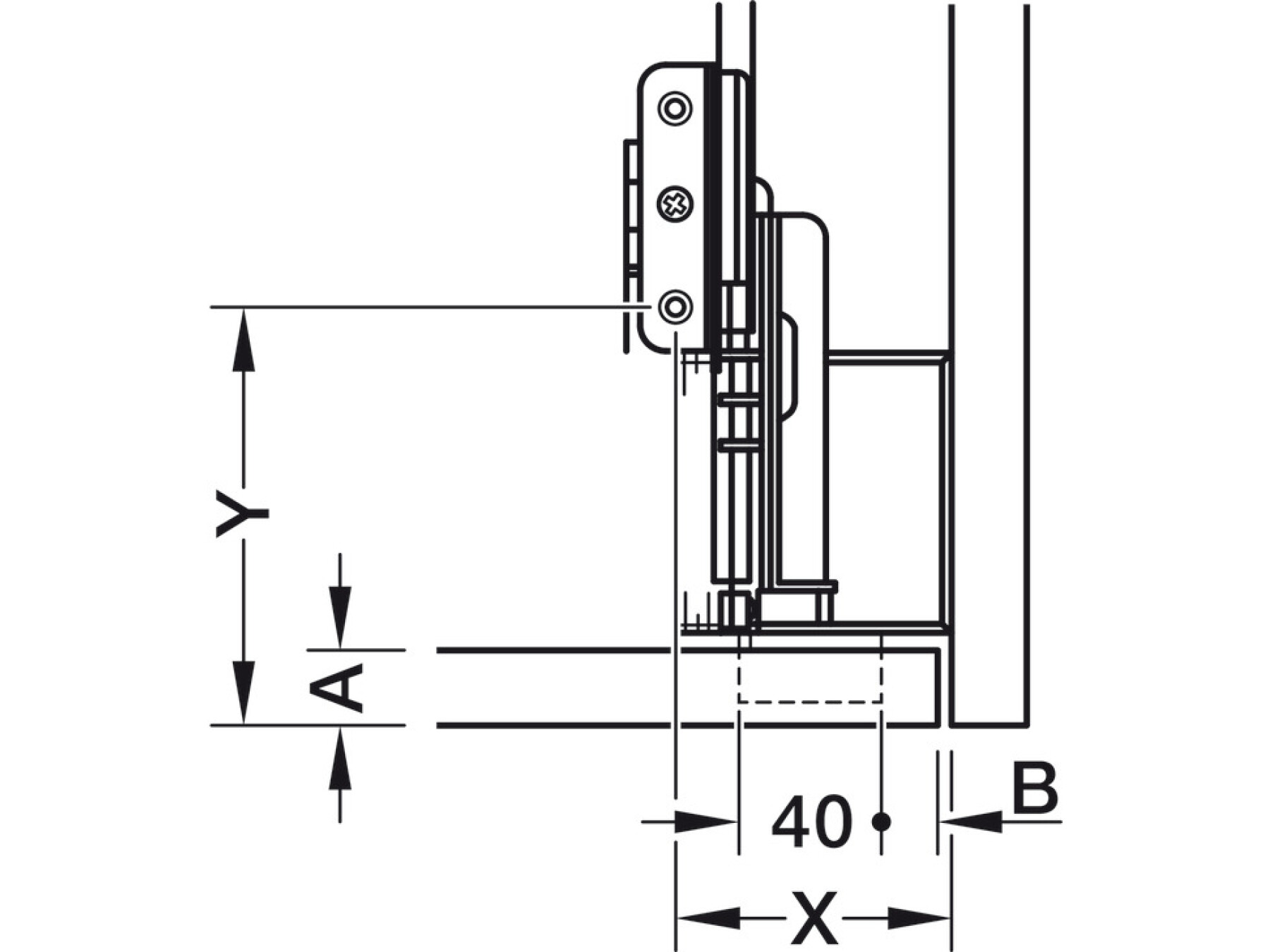

The recommended door thickness range is 19 to 38 mm. Choosing the correct thickness helps ensure the concealed hinges and mounting points sit correctly, supporting reliable operation over time.

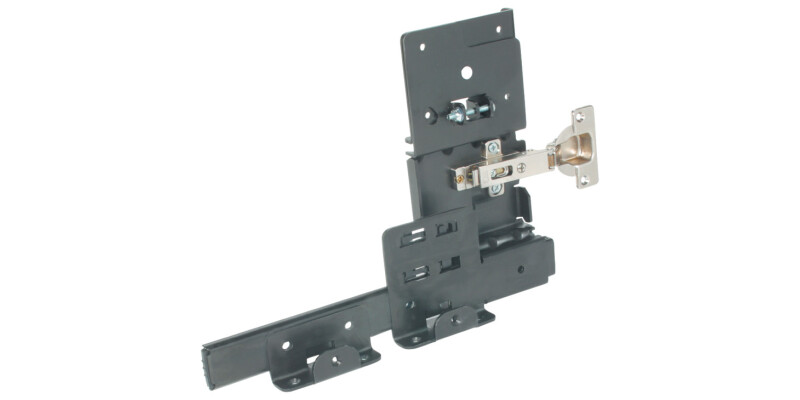

What is included in the set, and is it ready to install?

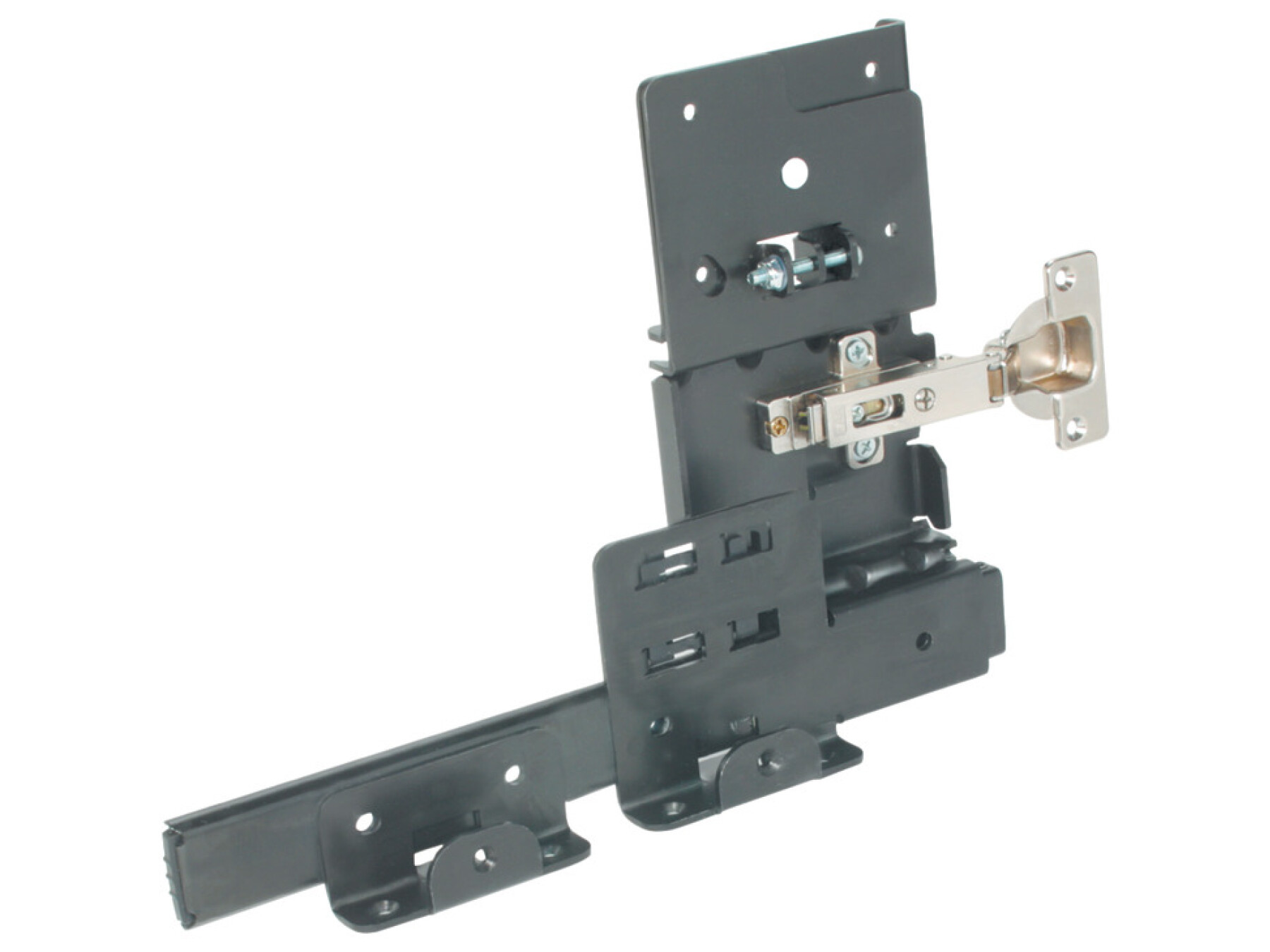

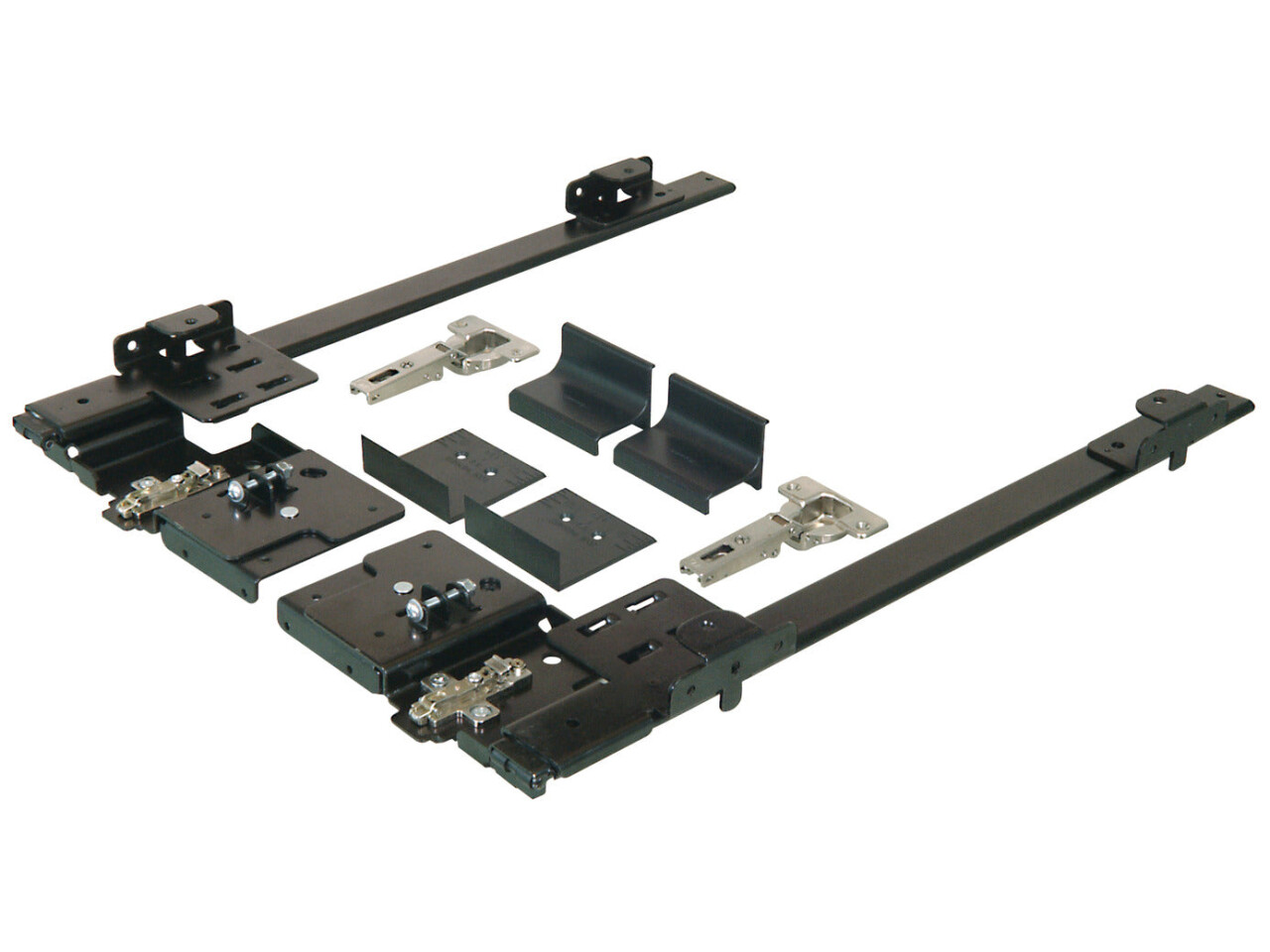

This product is supplied as a set with tracks and includes 1 pair of runners, 2 mounting brackets, 2 concealed hinges (40 mm), 2 mounting plates, and fixing material. It is designed for straightforward screw fixing during installation.

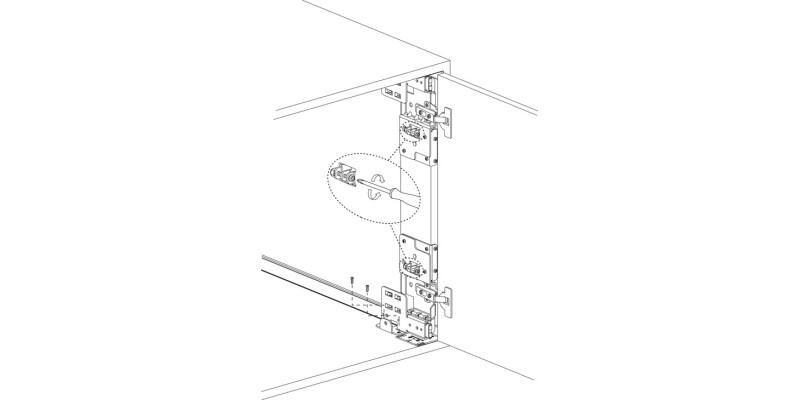

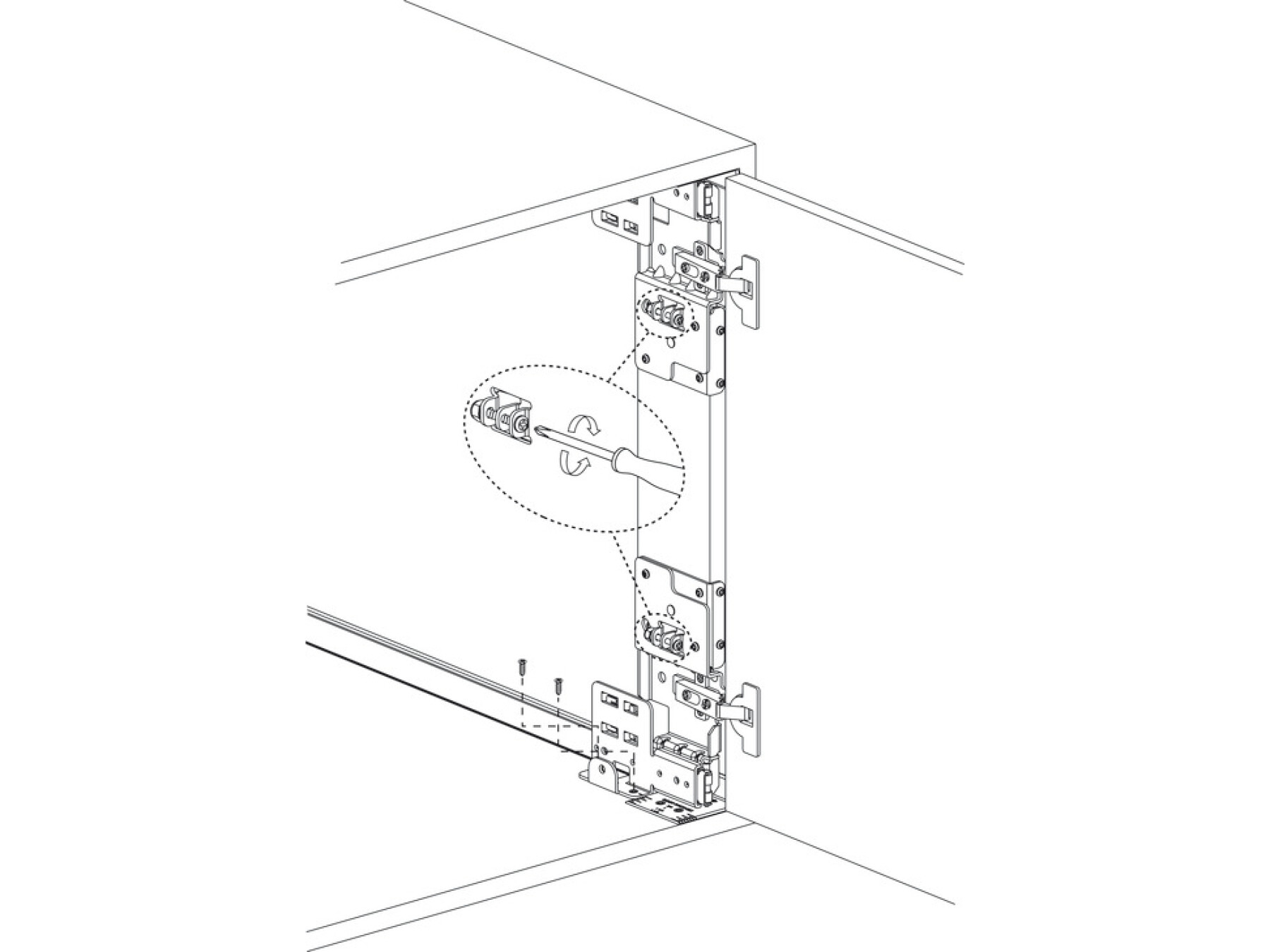

How is the Accuride 1321 pivot runner mounted to the door and furniture?

Installation is by screw fixing, using the included brackets, mounting plates, and concealed hinge components. Proper alignment at the screw fixing points is important to achieve smooth sliding and stable pivoting during folding or sliding movement.
