Name: Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432
SKU: 408.24.561
Price: 133.63 GBP
Availability: InStock

Part Number: 408.24.561

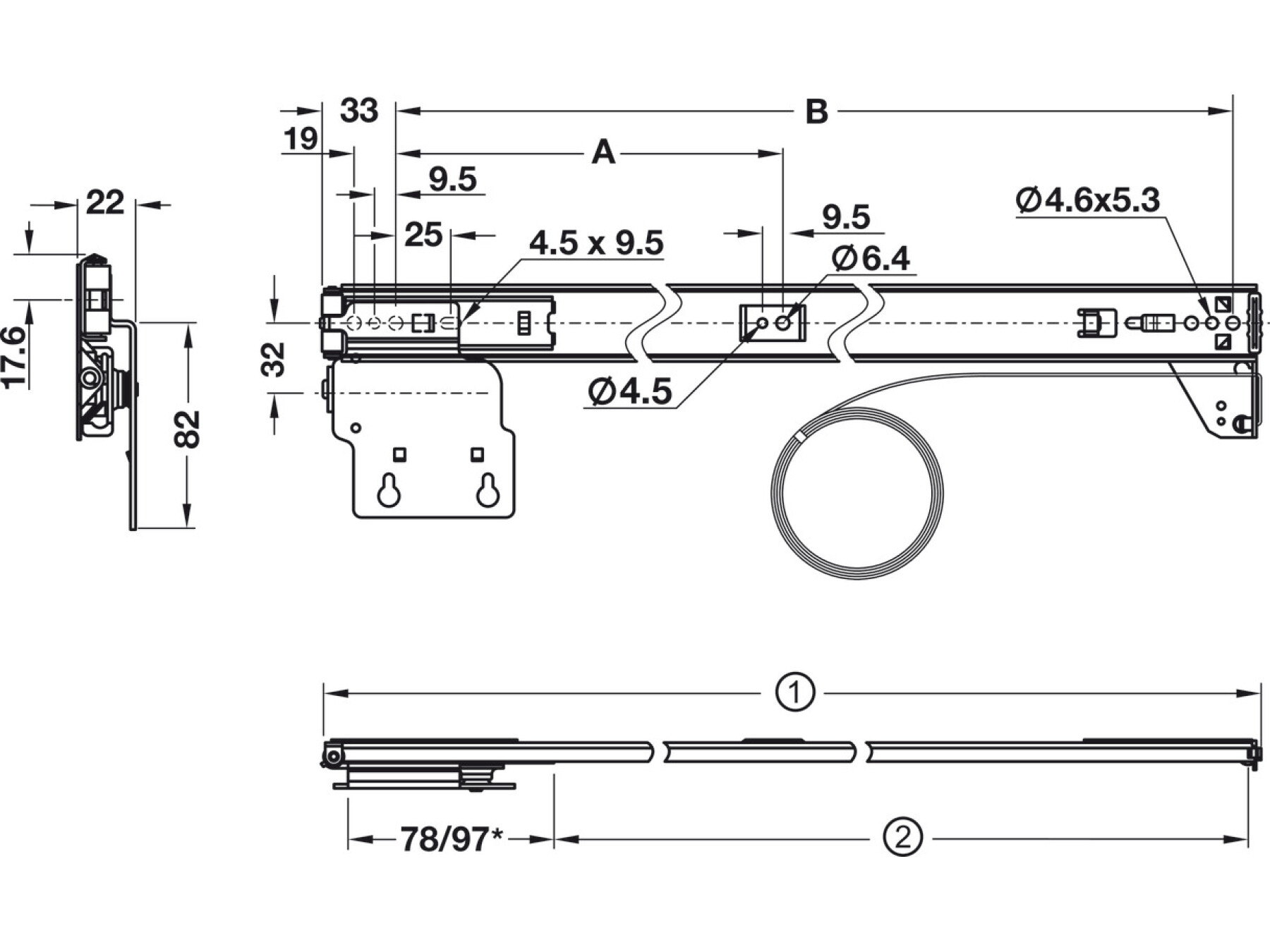

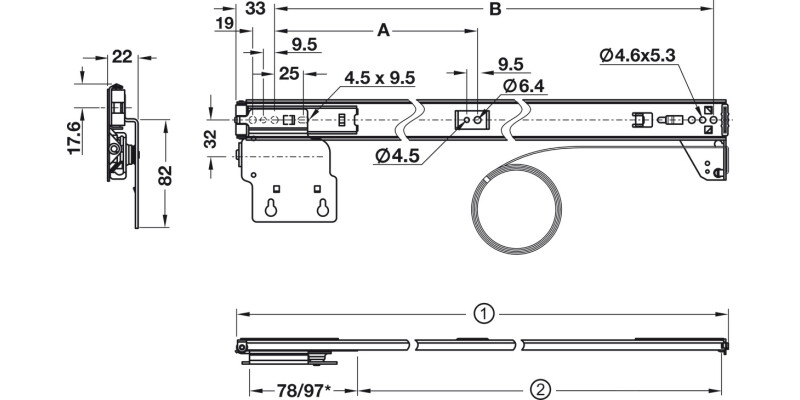

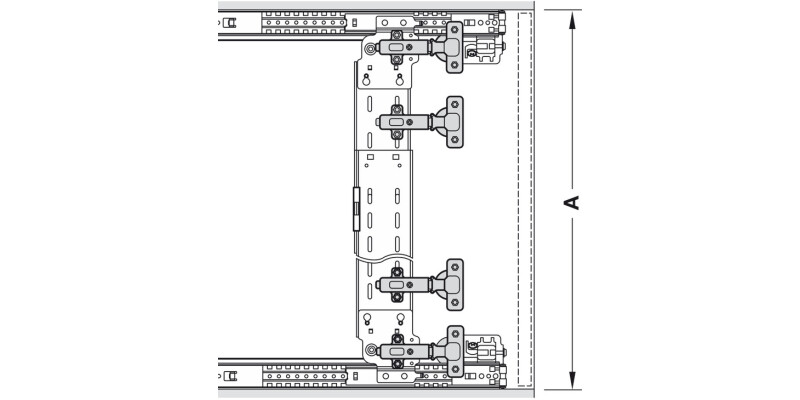

For vertical use, Installed length 608mm, extension length 496 mm

Price:

£133.63

Per Item

VAT excluded

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 (Part No: 408.24.561) is a premium pivot sliding door... Read More

Product Information

Product Details

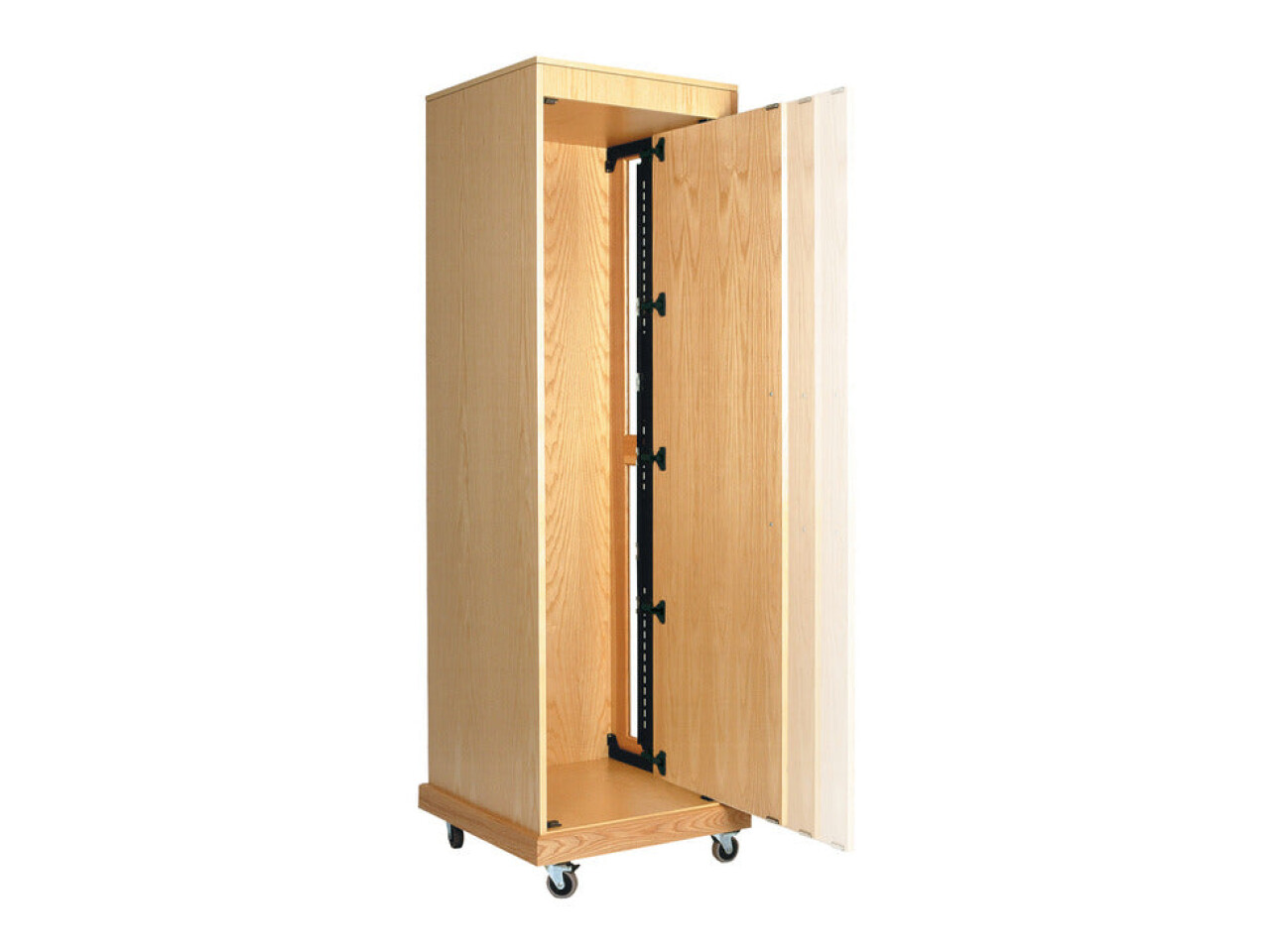

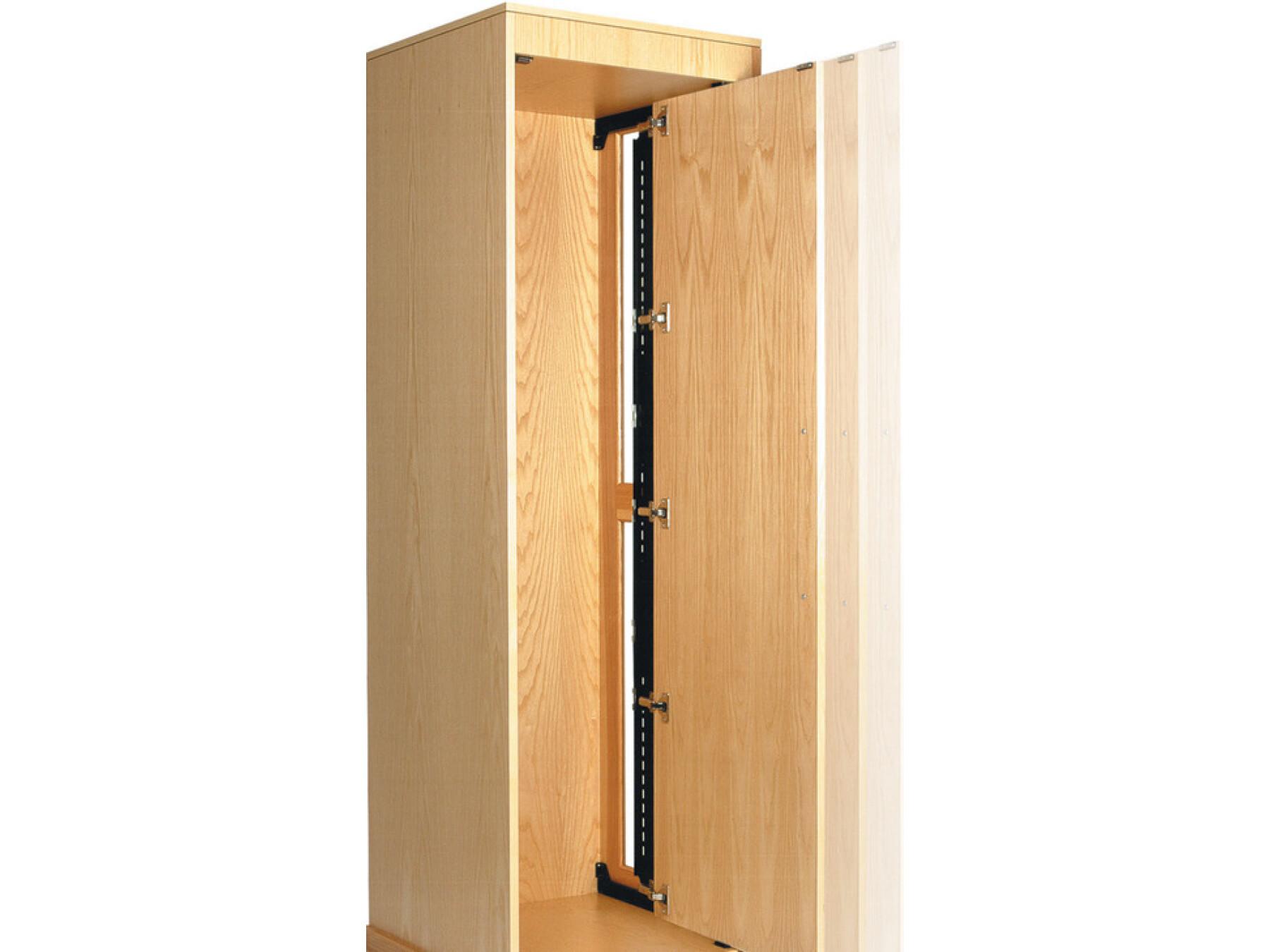

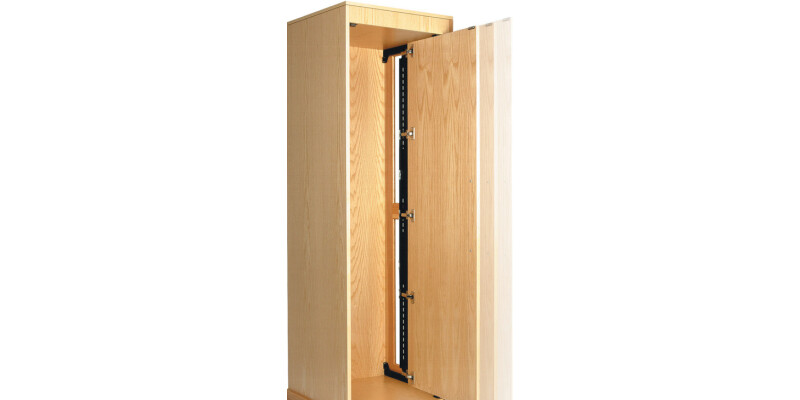

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 (Part No: 408.24.561) is a premium pivot sliding door runner designed for smooth, controlled movement on furniture sliding & folding door systems. If you’re upgrading existing joinery or planning a new cabinet installation, this vertical-use track solution delivers stable performance and a clean, modern look—finished in durable black steel with zinc plating.

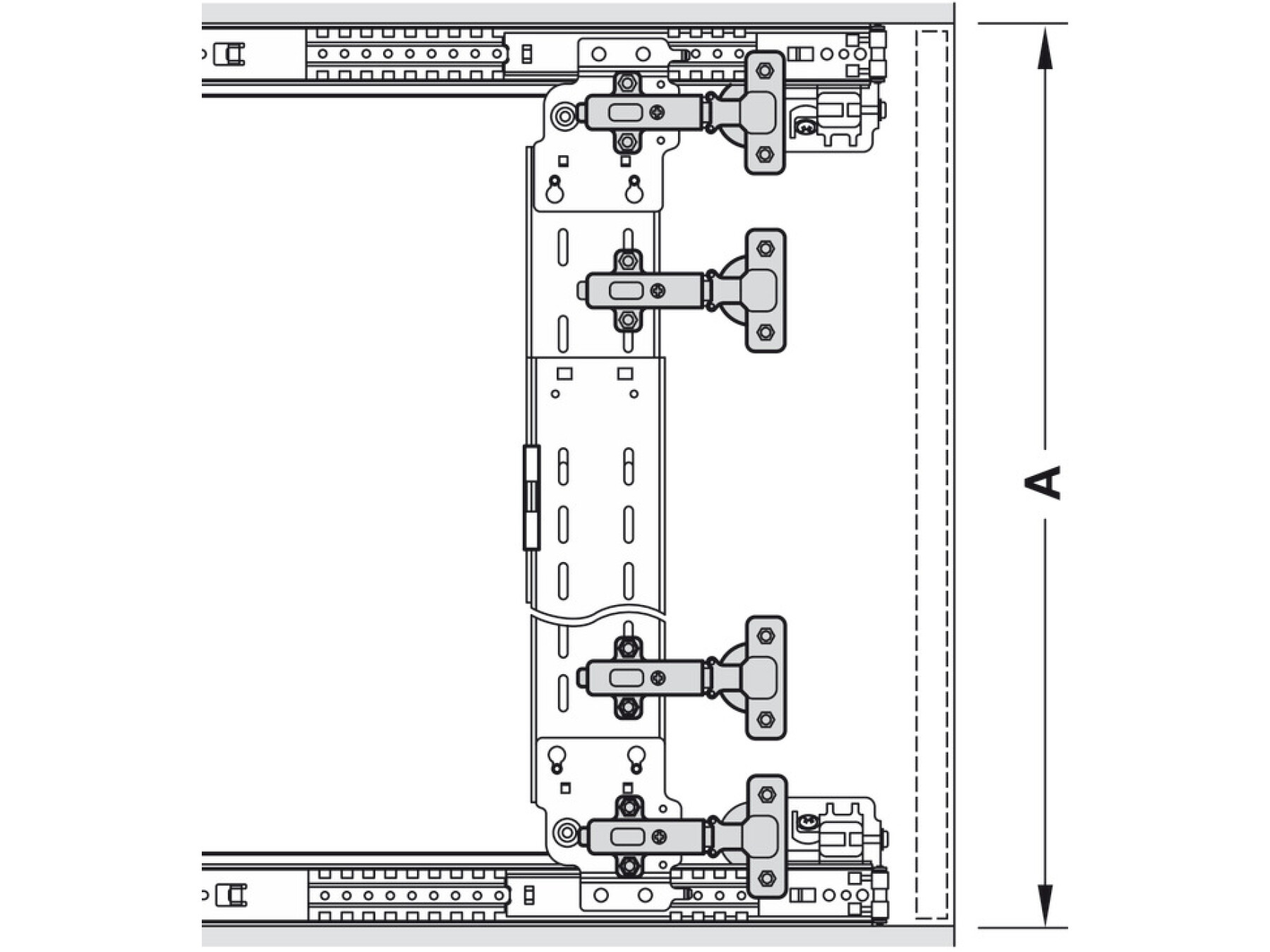

This model is built for vertical applications and offers an installed length of 608mm with an extension length of 496mm, making it ideal for a wide range of cabinet door sizes. It’s engineered to support 1 door leaf per set and is suitable for door widths from 255–660mm and door heights from 915–1,981mm. With a maximum door weight rating of up to 34kg, it’s a strong choice for everyday reliability.

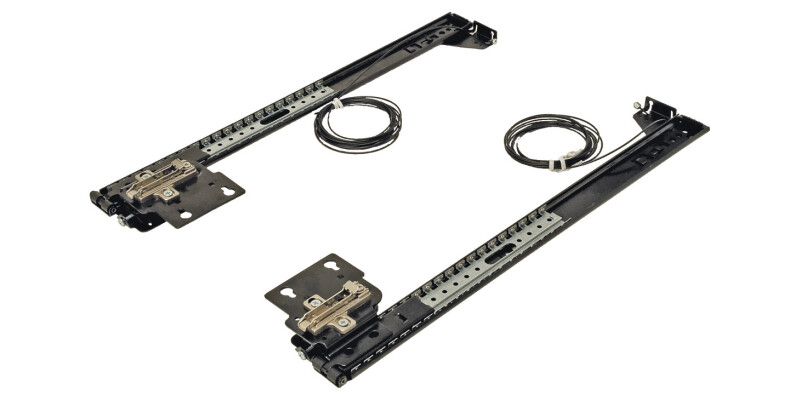

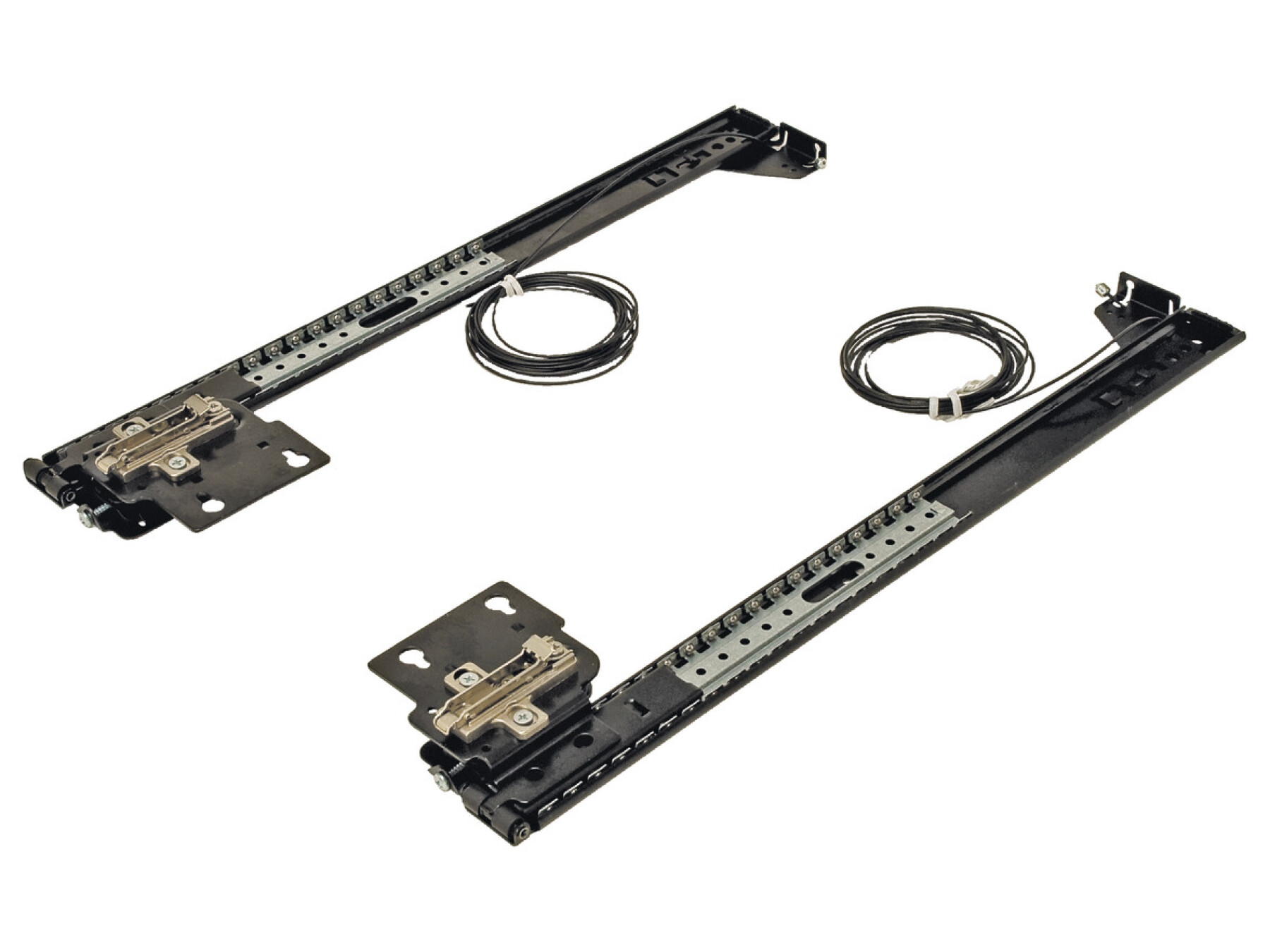

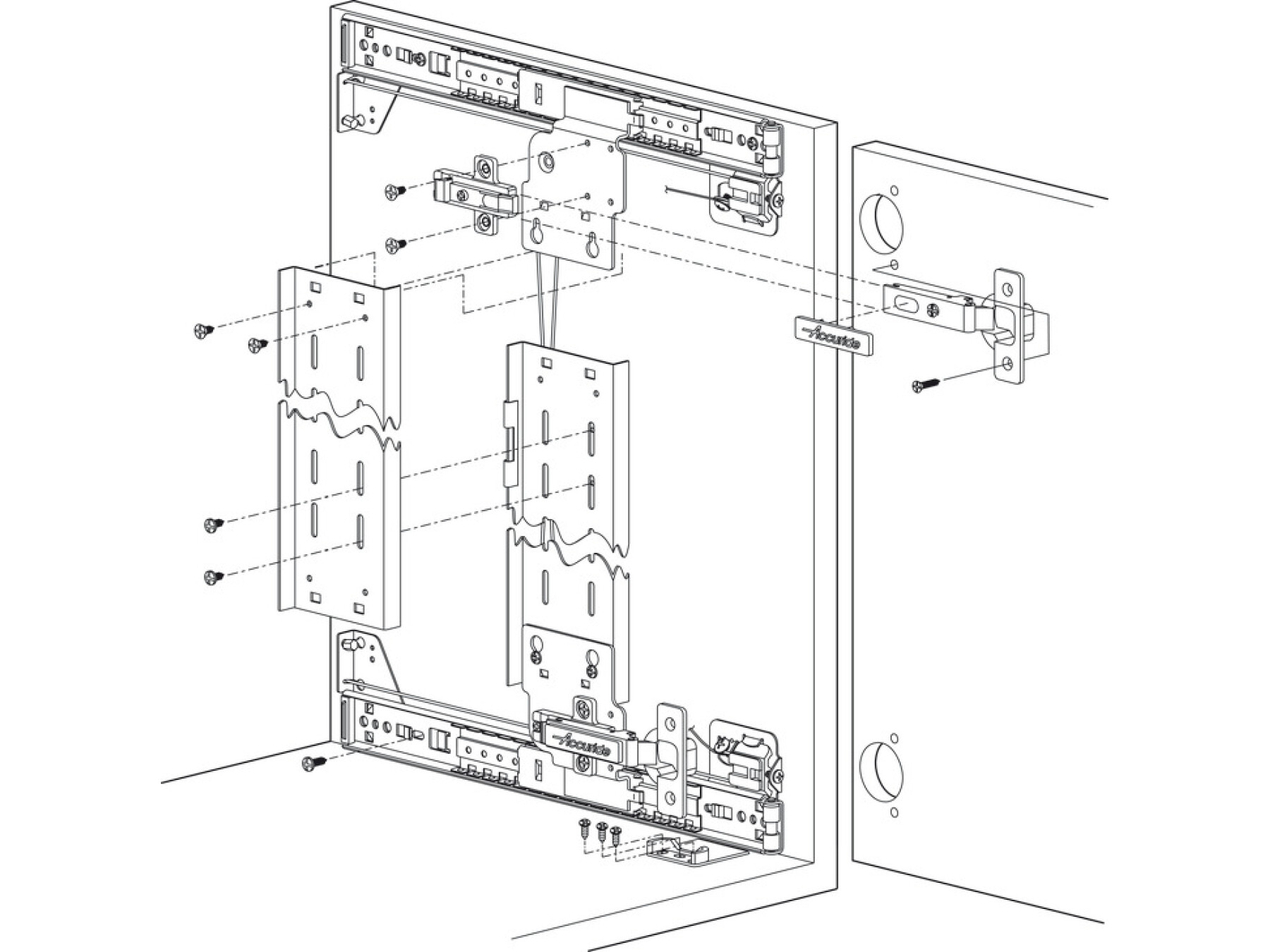

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 is compatible with wood doors with a thickness of 19–32mm, giving you flexibility for inset and overlay cabinet configurations depending on the hinges used. Installation is straightforward with screw fixing, and the runner is supplied with a synchronising cable for coordinated movement within the system.

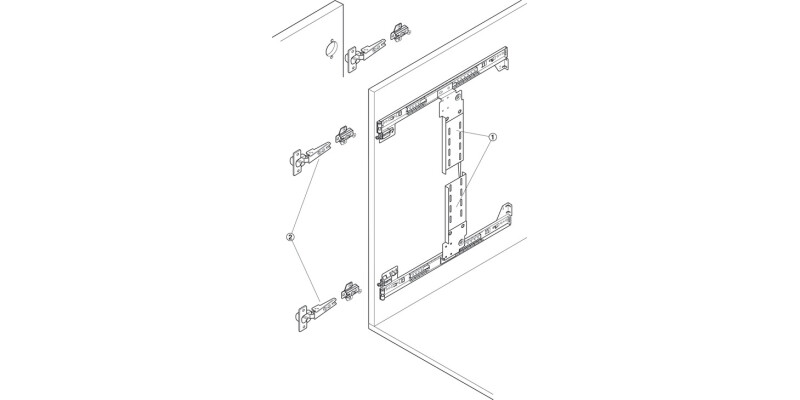

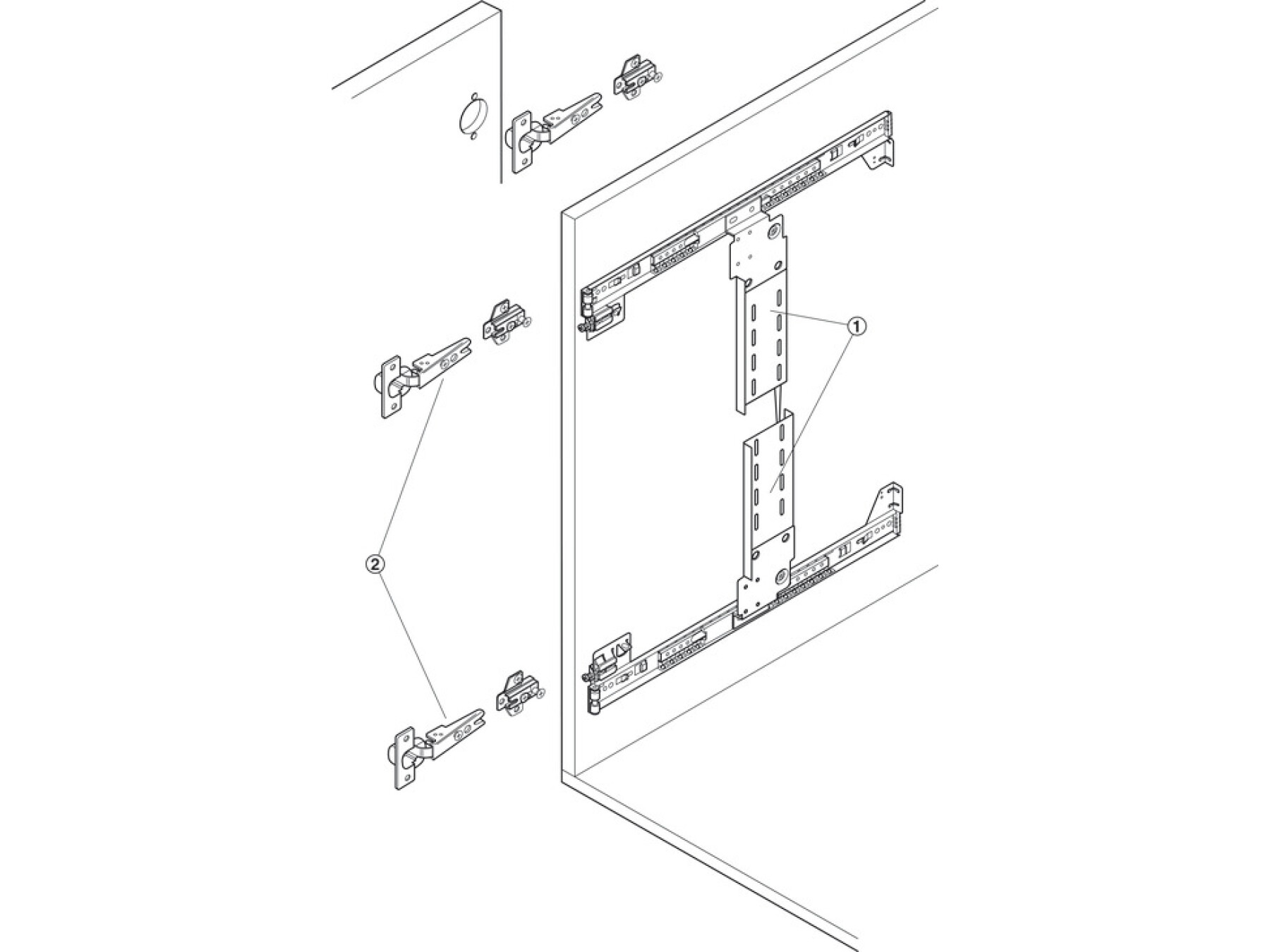

Order reference note: hinge carrier strips and hinge sets must be ordered separately to complete your sliding setup.

Choose the Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 sliding and folding door gear for furniture to bring smoother operation, a refined black finish, and dependable long-term function to your cabinetry.

Specifications

Area of application

Inset and overlay cabinet doors, depending on hinges used

For door material

Wood

Number of door leaves per set

1.00

For door width

255 – 660 mm

For door height

915 – 1,981 mm

For door weight

≤34 kg

For door thickness

19 – 32 mm

Material/finish

Steel, Black, Zinc plated

Installation

Screw fixing

Order reference

Hinge carrier strips and hinge sets to be ordered separately

Supplied with

Synchronising cable

FAQ

Product Details

Is this runner suitable for vertical use in sliding or folding furniture doors?

Yes. Accuride 1432 Pivot Sld DrRun Blk 608mm is intended for vertical use as part of sliding and folding door furniture applications, helping the door move smoothly along its track.

How do the 608 mm installed length and 496 mm extension length work?

The installed length is 608 mm and the extension length is 496 mm, giving you flexibility when setting up the runner position to match your cabinet layout and door travel requirements.

Will this work for my door size and weight?

It is designed for door leaves up to 34 kg and suitable for door widths in the 255 to 660 mm range. It can also suit door heights of 915 to 1,981 mm, making it a good fit for many cabinet and furniture layouts.

What door thickness and material is this runner compatible with?

For door thickness 19 to 32 mm and wood door panels, this pivot sliding runner is intended to provide the correct fit and performance for typical furniture builds.

What is included with the 408.24.561 kit, and do I need any extra parts?

The synchronising cable is supplied with this product. If you are completing a full system, note that hinge carrier strips and hinge sets must be ordered separately.

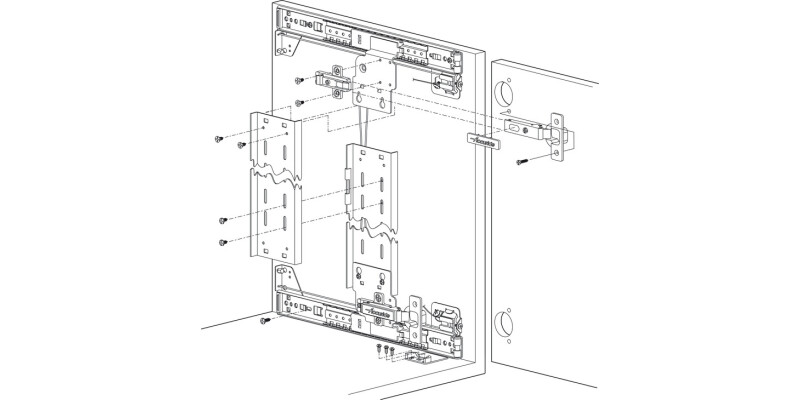

How is the runner installed onto the furniture?
