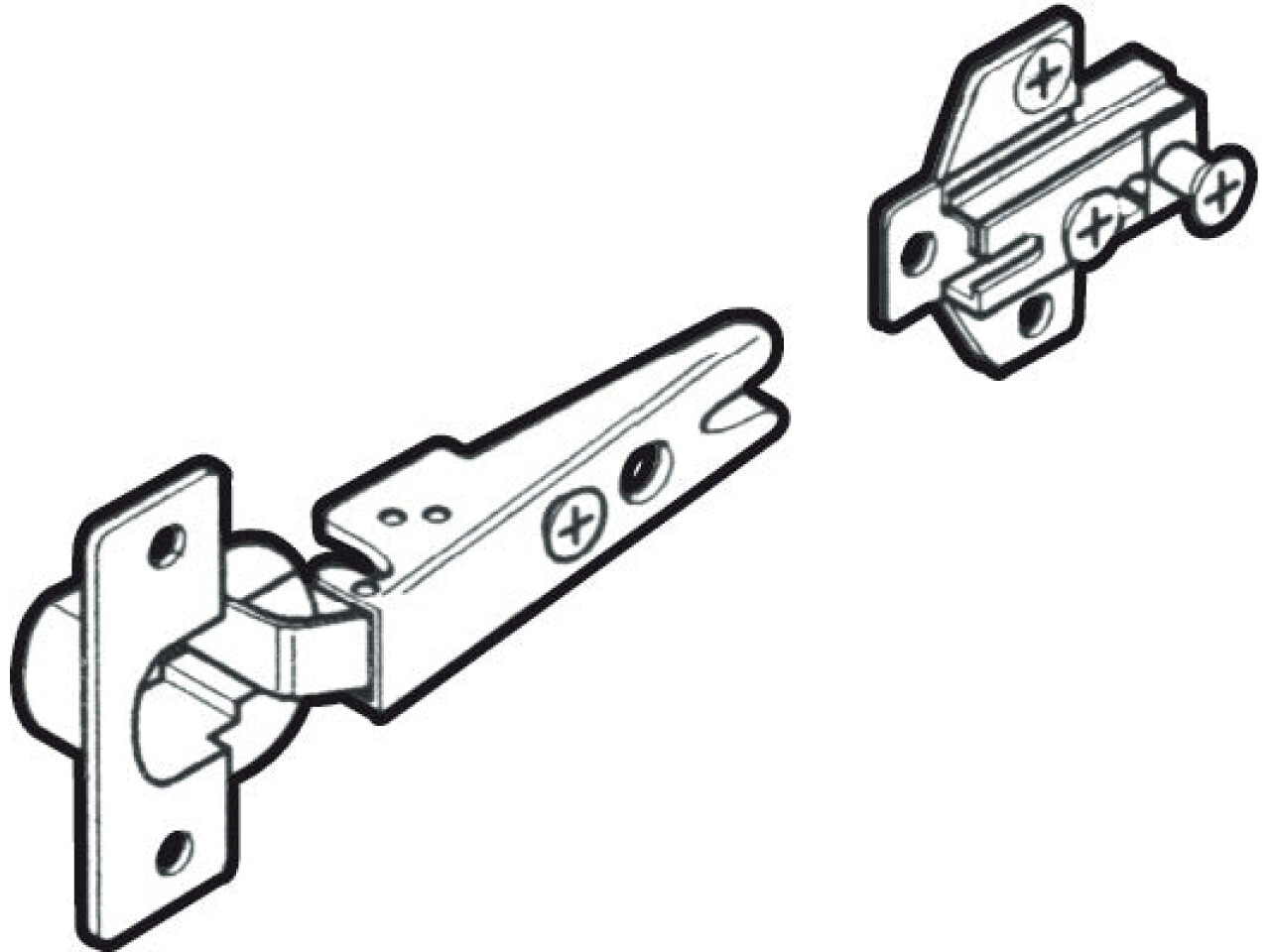

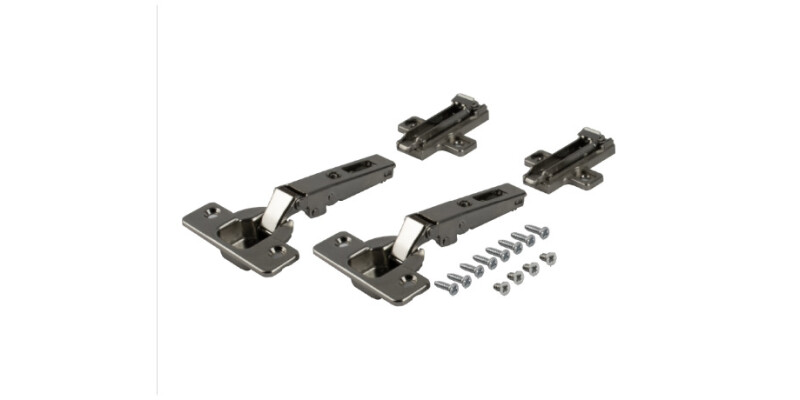

Accuride 1432 40mm Hinge Set-Thick Inset
Part Number: 408.24.094
For vertical use, Ø 40 mm cup hinge set for door thickness 22-32 mm, bright zinc plated steel
Price:
£48.59
Per Item
Cable system for synchronised slide operation Supplied with 35 mm cup set consists of 2 x 35 mm zinc clip on... Read More
Product Information
Product Details
Cable system for synchronised slide operation
Supplied with

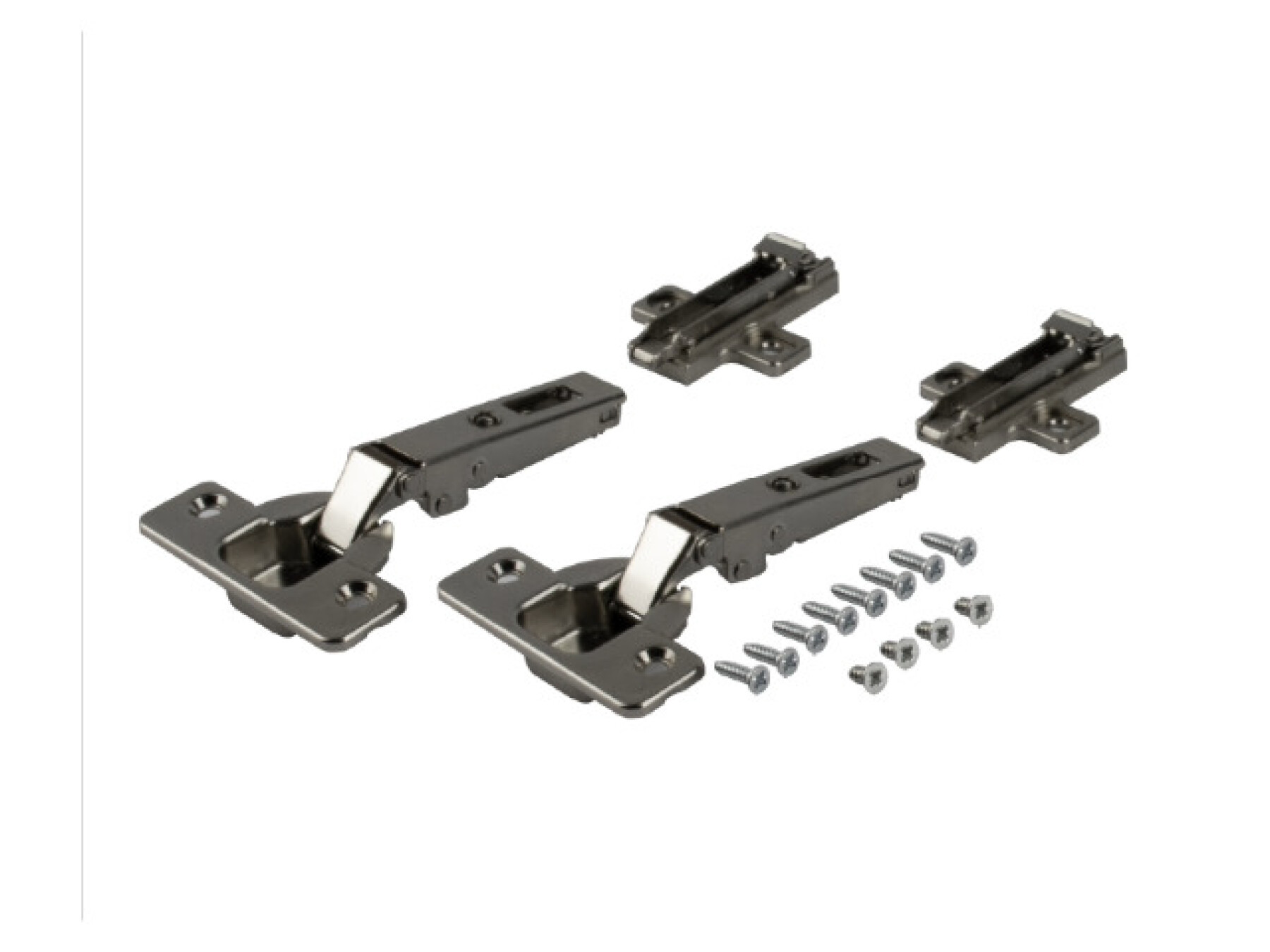

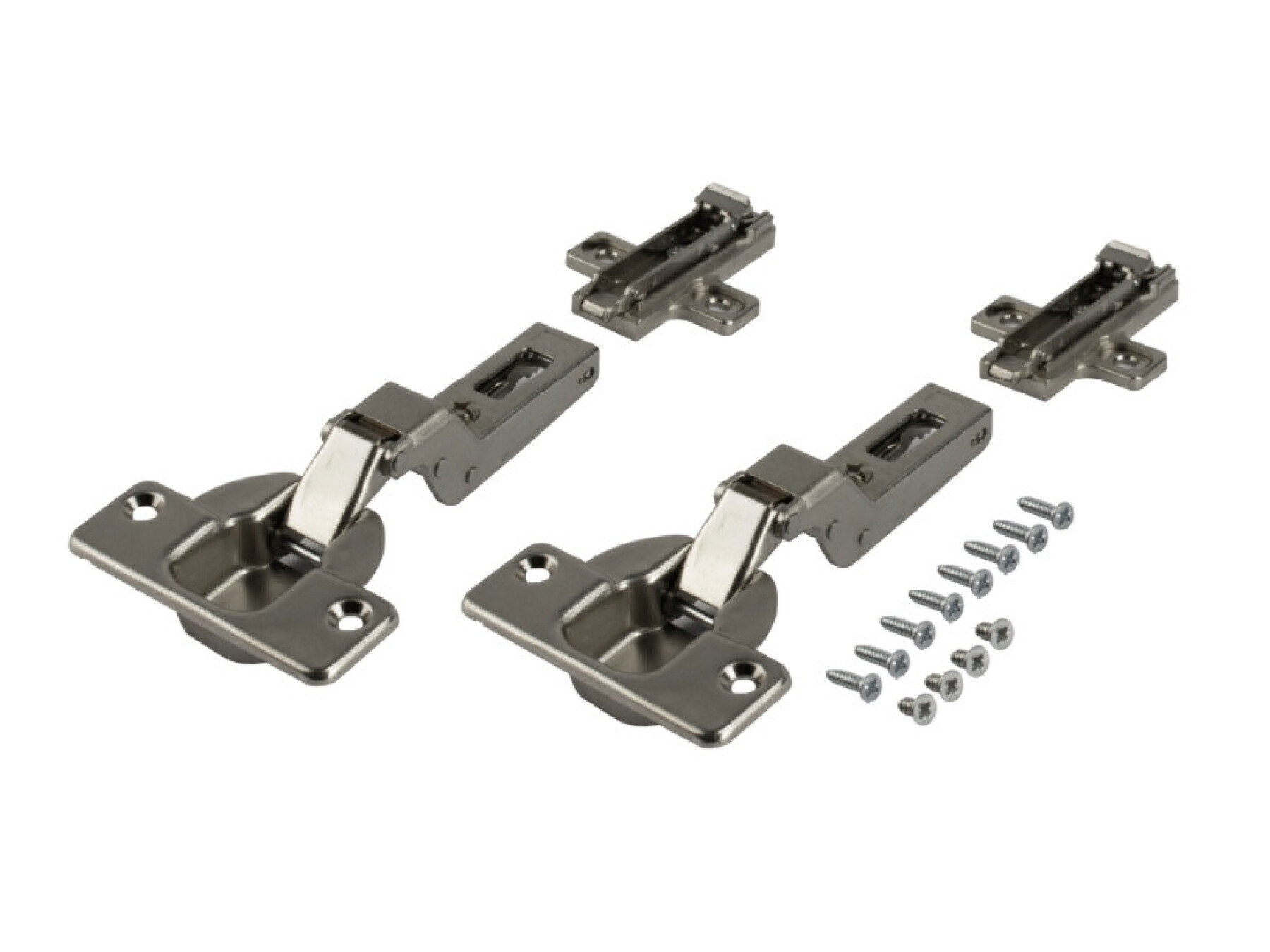

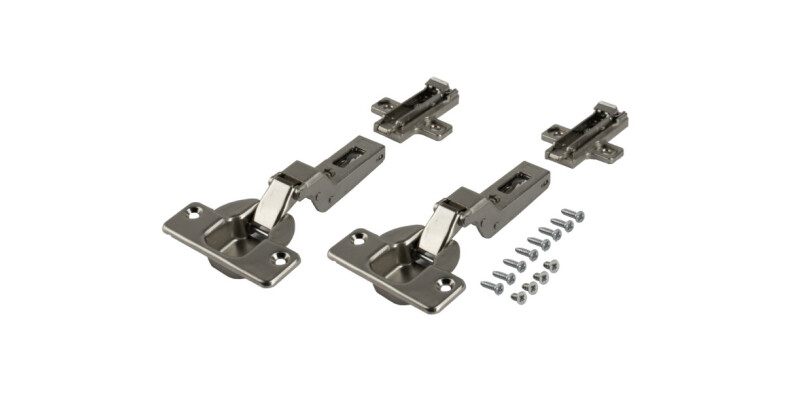

35 mm cup set consists of 2 x 35 mm zinc clip on hinges, 2 x 3 mm mounting base plates, 2 x 3 mm hinge base spacers, Assembly hardware
40 mm cup set consists of 2 x 40 mm zinc clip on hinges, 2 x 3 mm mounting base plates, 2 x 3 mm hinge base spacers, Assembly hardware
| Door height mm | Required hinges | Required sets |
|---|---|---|
| 915–1193 | 3 | 2 |
| 1194–1498 | 4 | 2 |
| 1499–1803 | 5 | 3 |
| 1804–2300 | 6 | 3 |

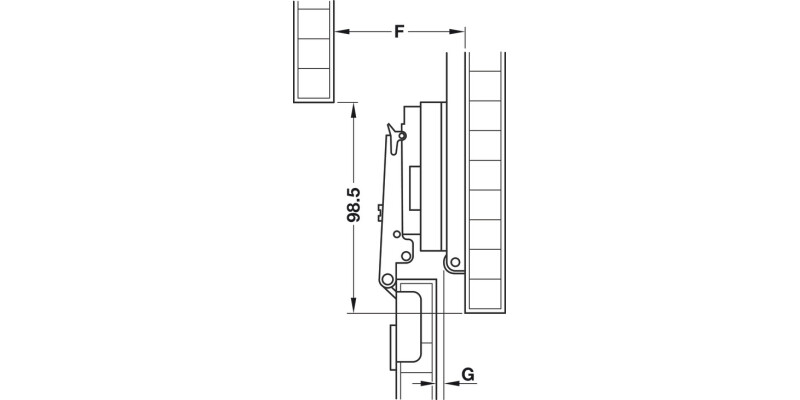

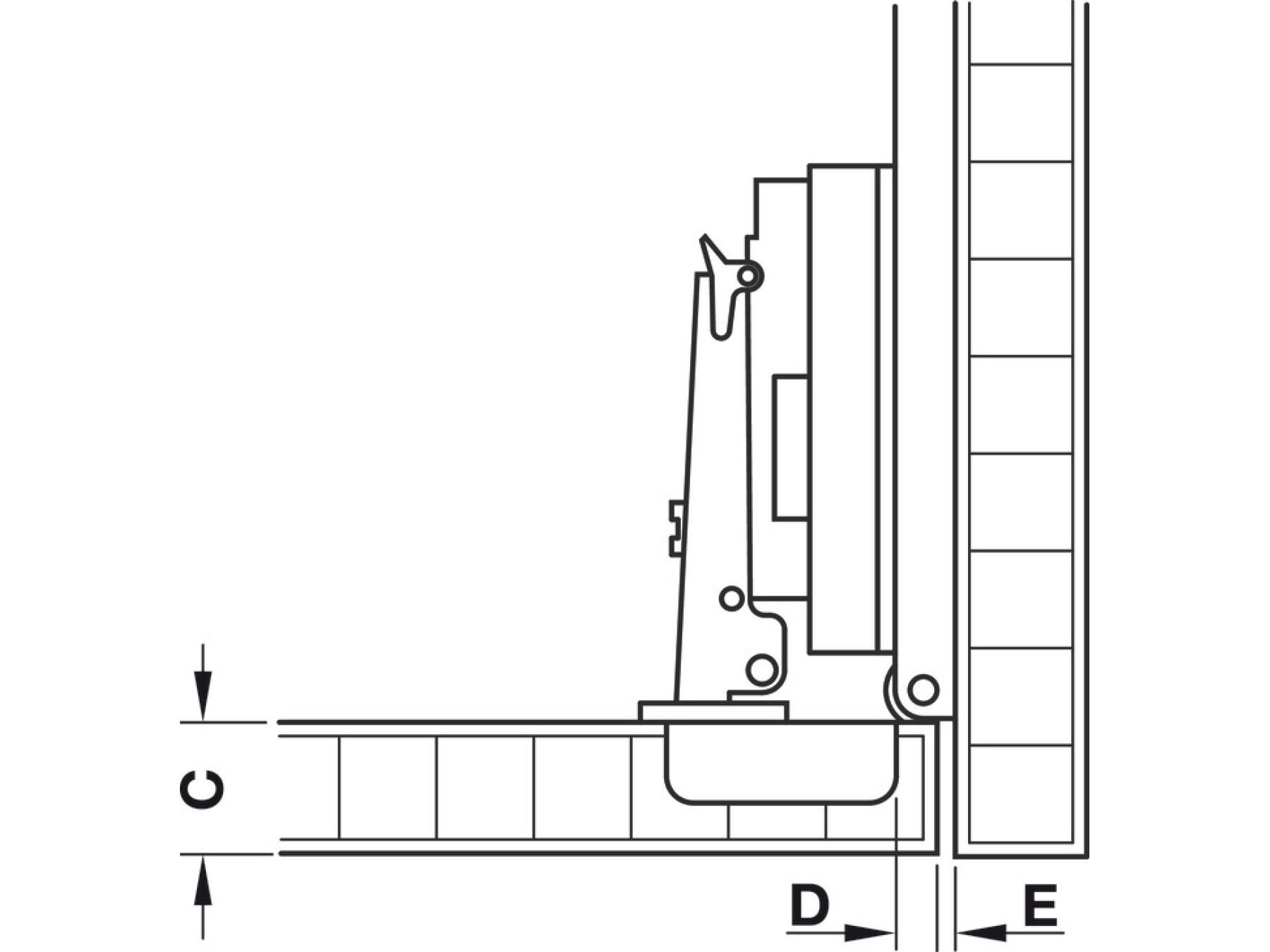

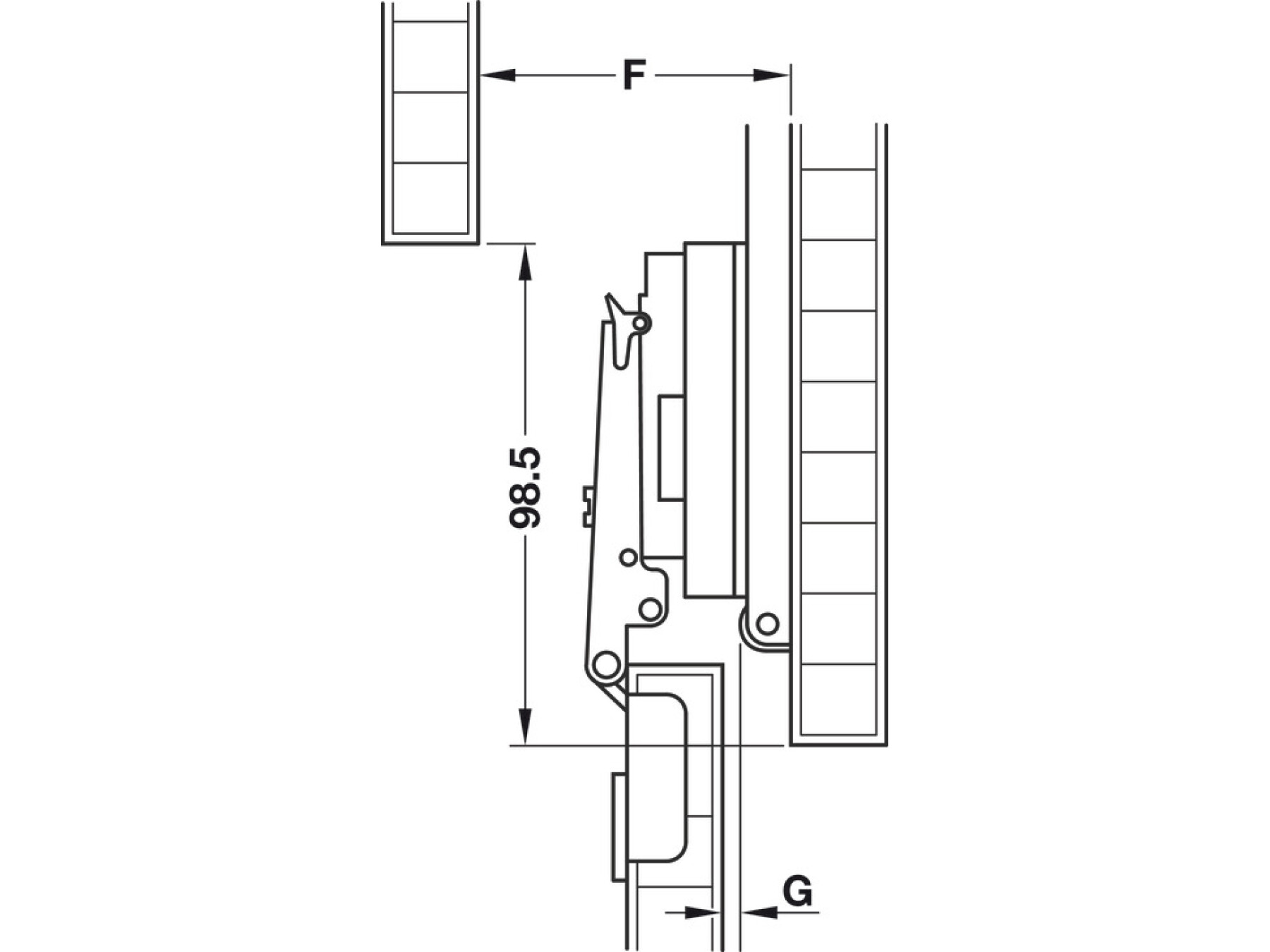

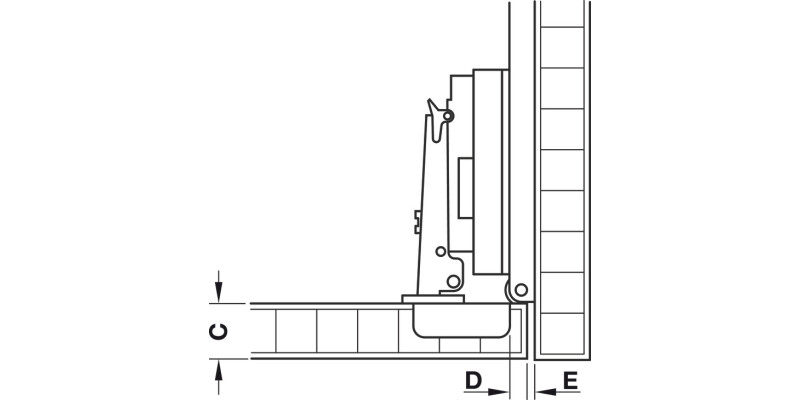

| Dim. C mm | Dim D mm | Dim. E mm | Dim. F mm | Dim. G mm |
|---|---|---|---|---|
| 19 | 8 | 2.3 | 51 | 1.4 |
| 19 | 9 | 1.8 | 51 | 0.3 |
| 19 | 15 | 2.3 | 60 | 14.4 |
| 21 | 15 | 2.3 | 60 | 12.8 |
| 22 | 15 | 2.3 | 60 | 11.2 |
| 24 | 15 | 2.3 | 60 | 9.6 |
| 25 | 15 | 2.3 | 60 | 8.0 |
| 27 | 15 | 2.3 | 60 | 6.4 |
| 29 | 15 | 2.3 | 60 | 4.8 |
| 30 | 15 | 2.3 | 60 | 3.2 |
| 32 | 15 | 2.3 | 60 | 1.6 |
Please note - Hinges and plates are bright zinc plated
Specifications
Area of application
For wooden flaps
Installation
For screwing on
Order reference
Hinge carrier strips and pivot sliding door runners to be ordered separately
