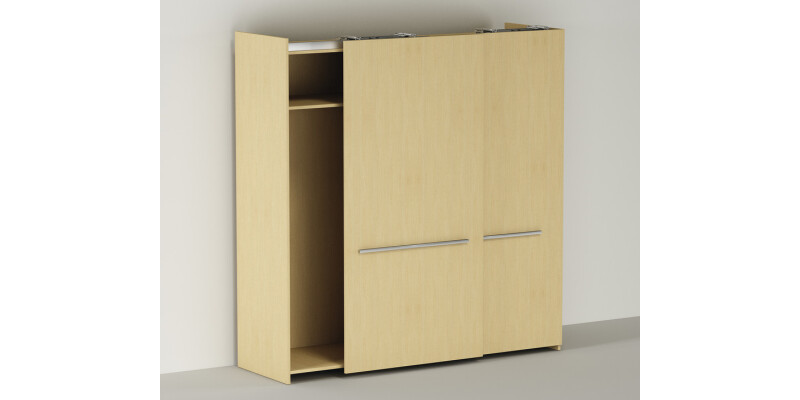

Eku Frontino 40 FS Comp FitSet 2Dr S

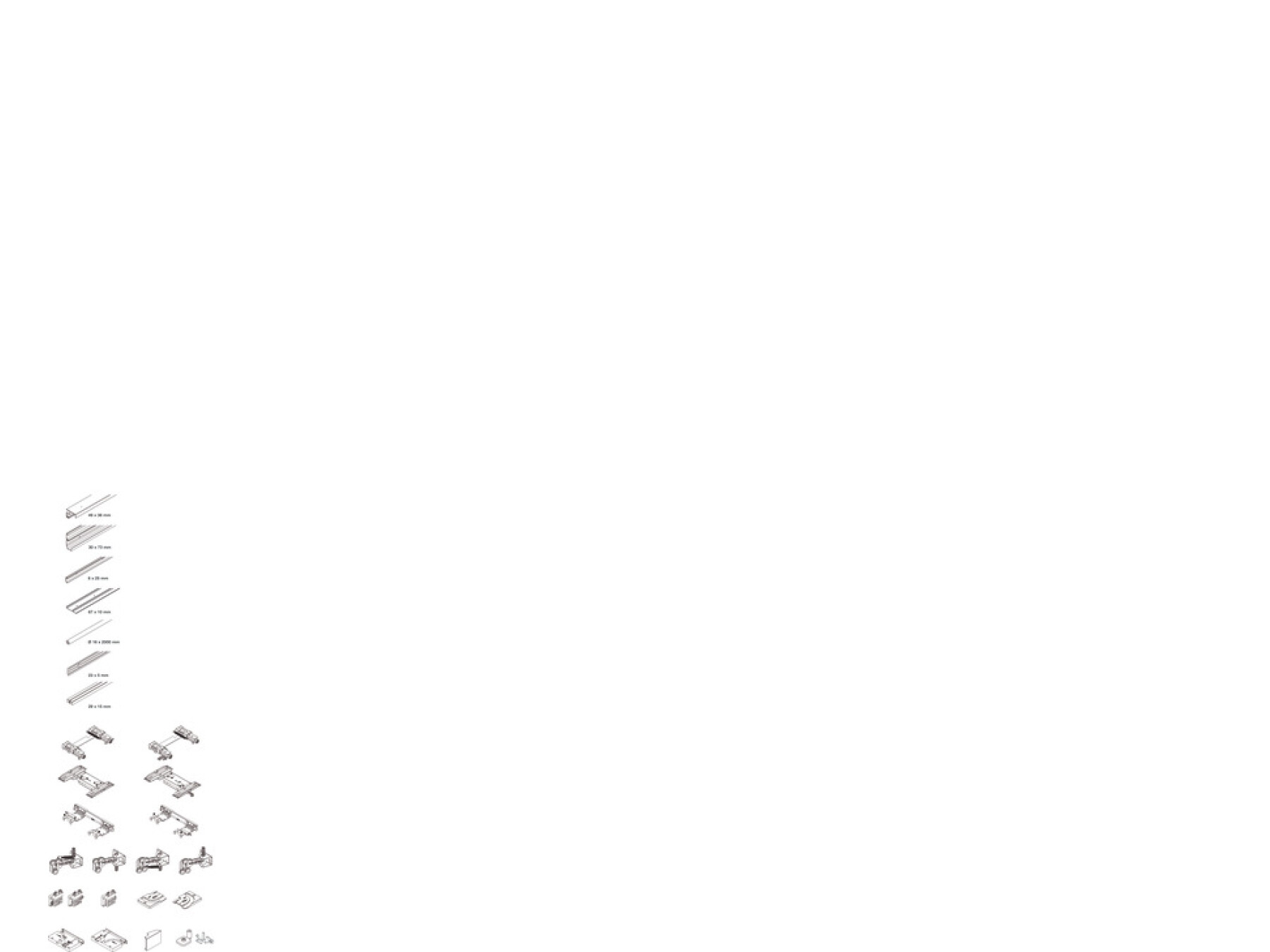

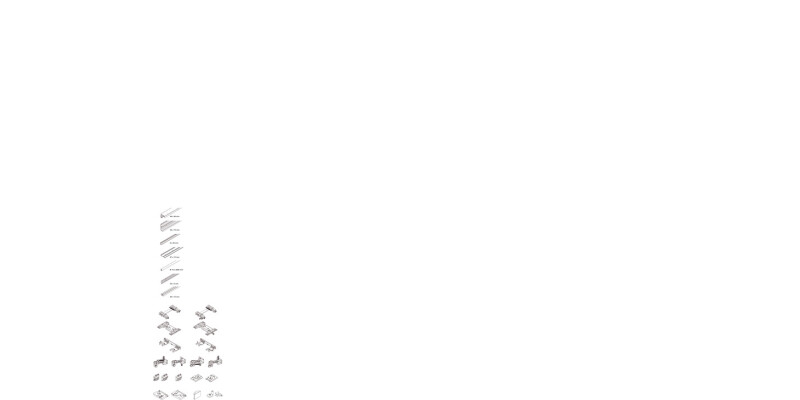

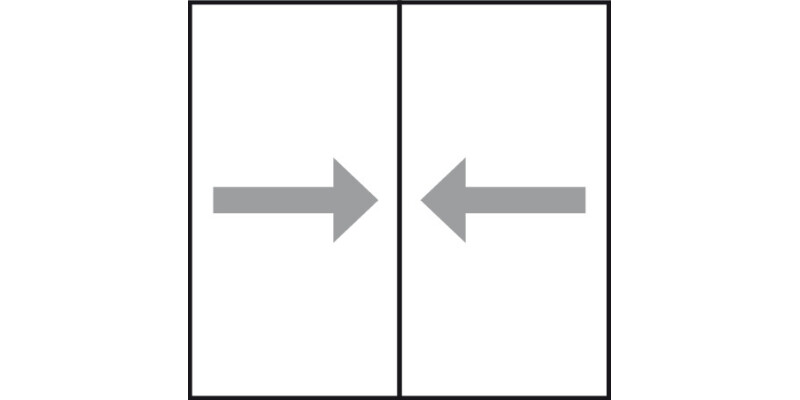

Complete set for 2 doors includes:
Top track front, anodised aluminium
Top track back, anodised aluminium
2x Guide tracks, screw fixing, aluminium
1x Guide profile, plastic
2x Translation profile, anodised aluminium
2x Guide fixation profiles, aluminium
1x Guide track, screw fixing, aluminium
1 pair x Running gear, left and right
1 pair x Adjustment lever unit, left and right
1 pair x Guide uniit left and right
1 pair x Guide, left and right
1 pair x Guide, left and right
1 pair x Front fixation with adjustment, plastic, left and right
2x Front Fixations, plastic
1 pair x Top guide curve, left and right, plastic
1 pair x Bottom pair curve, left and right, plastic
2x Guide cover, plastic
2x Stoppers to guide track
Track stopped system with soft closing mechanism integrated in running equipment

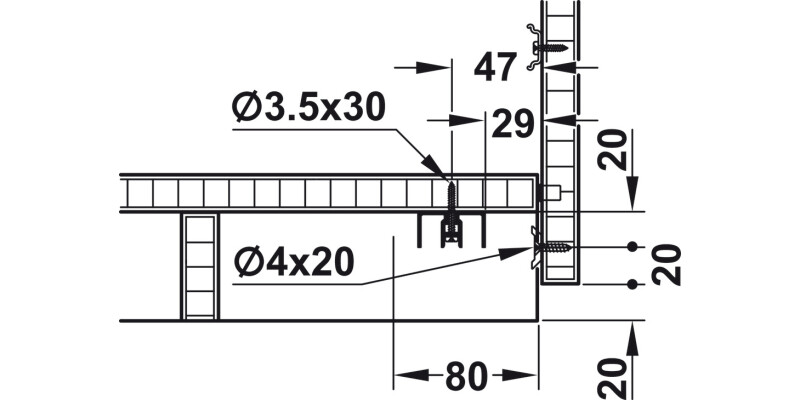

Fixings and installation instructions

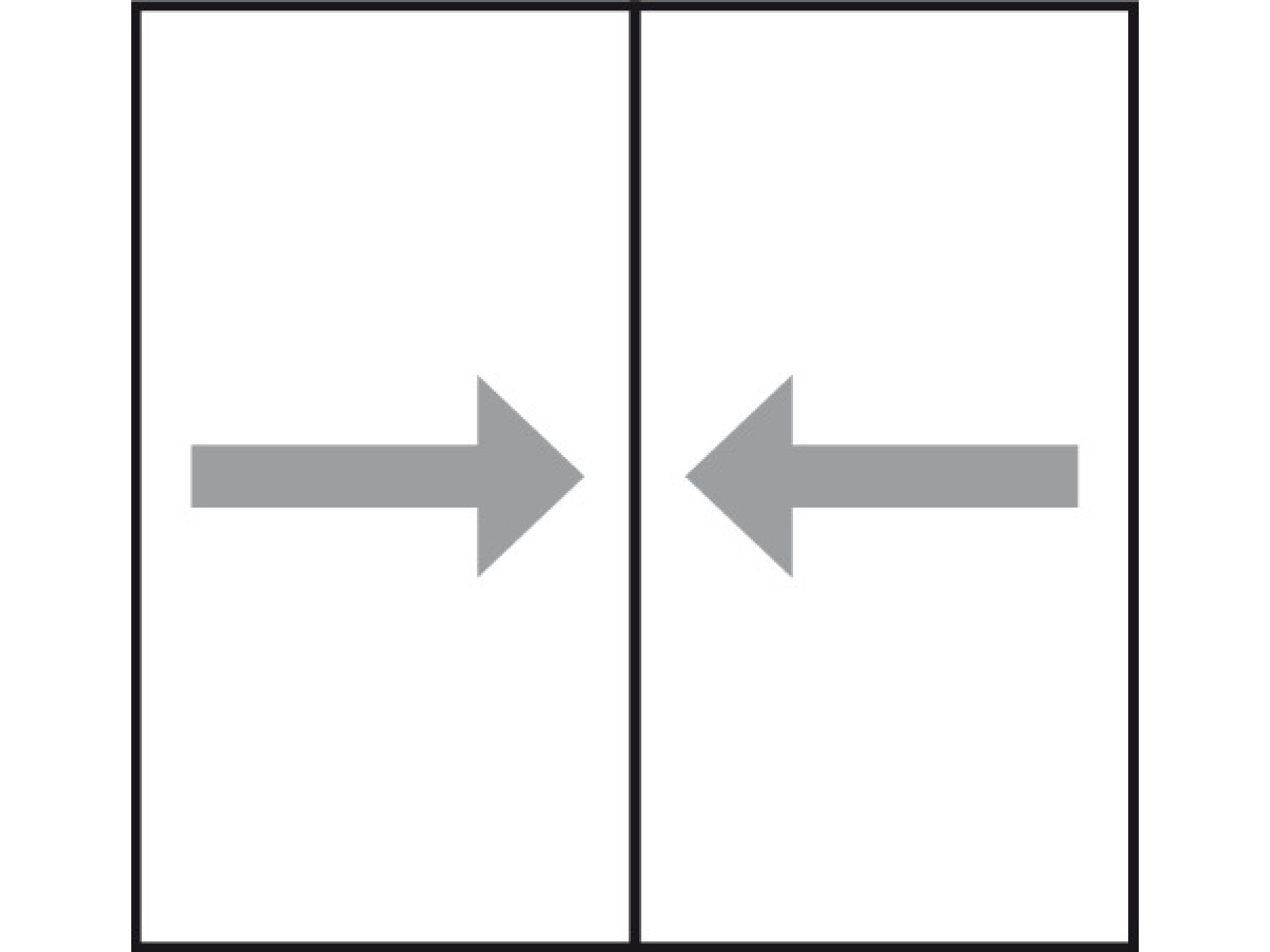

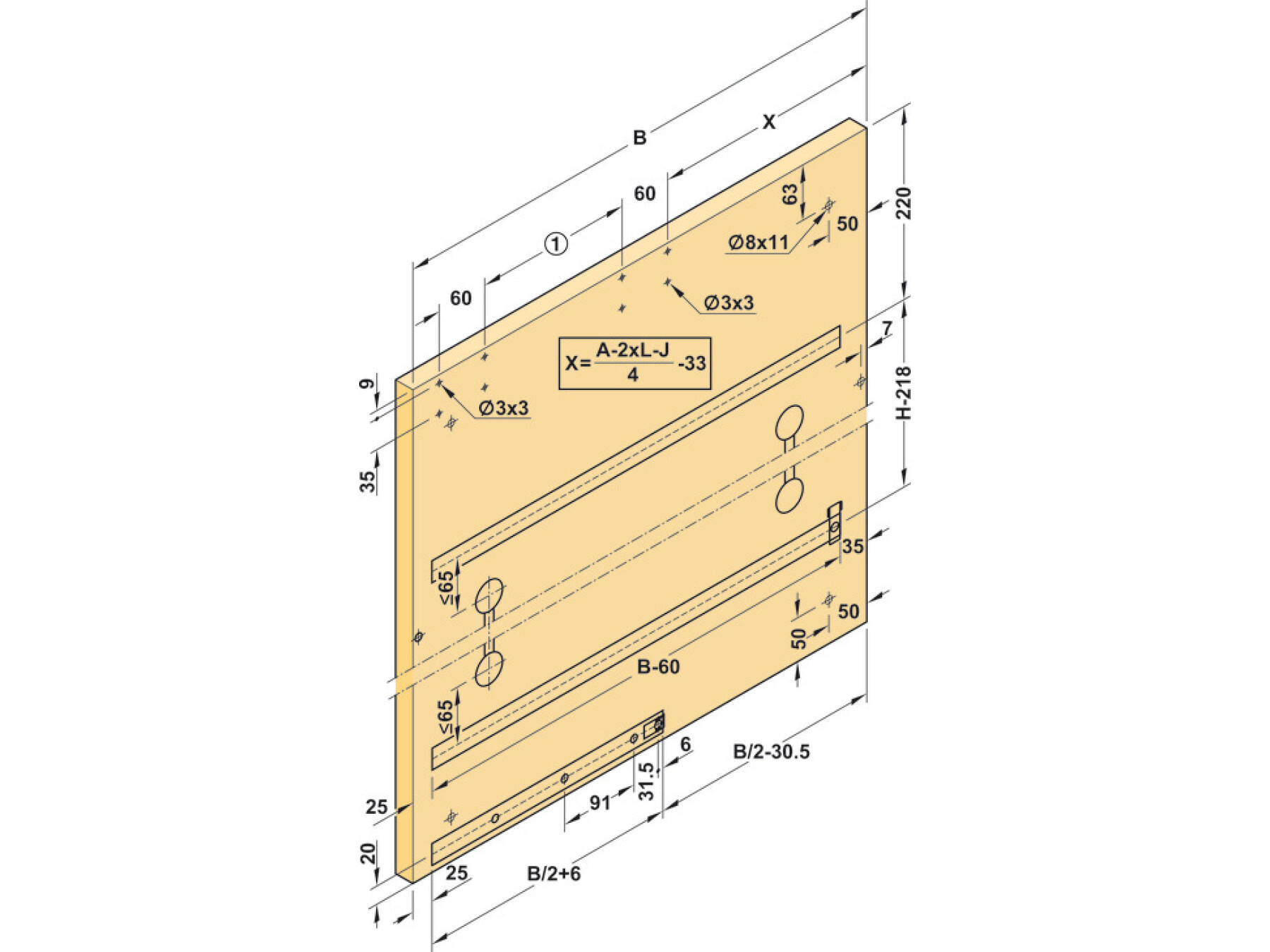

Both doors must have identical dimensions.
The dimensions specified in the order table must be adhered to.

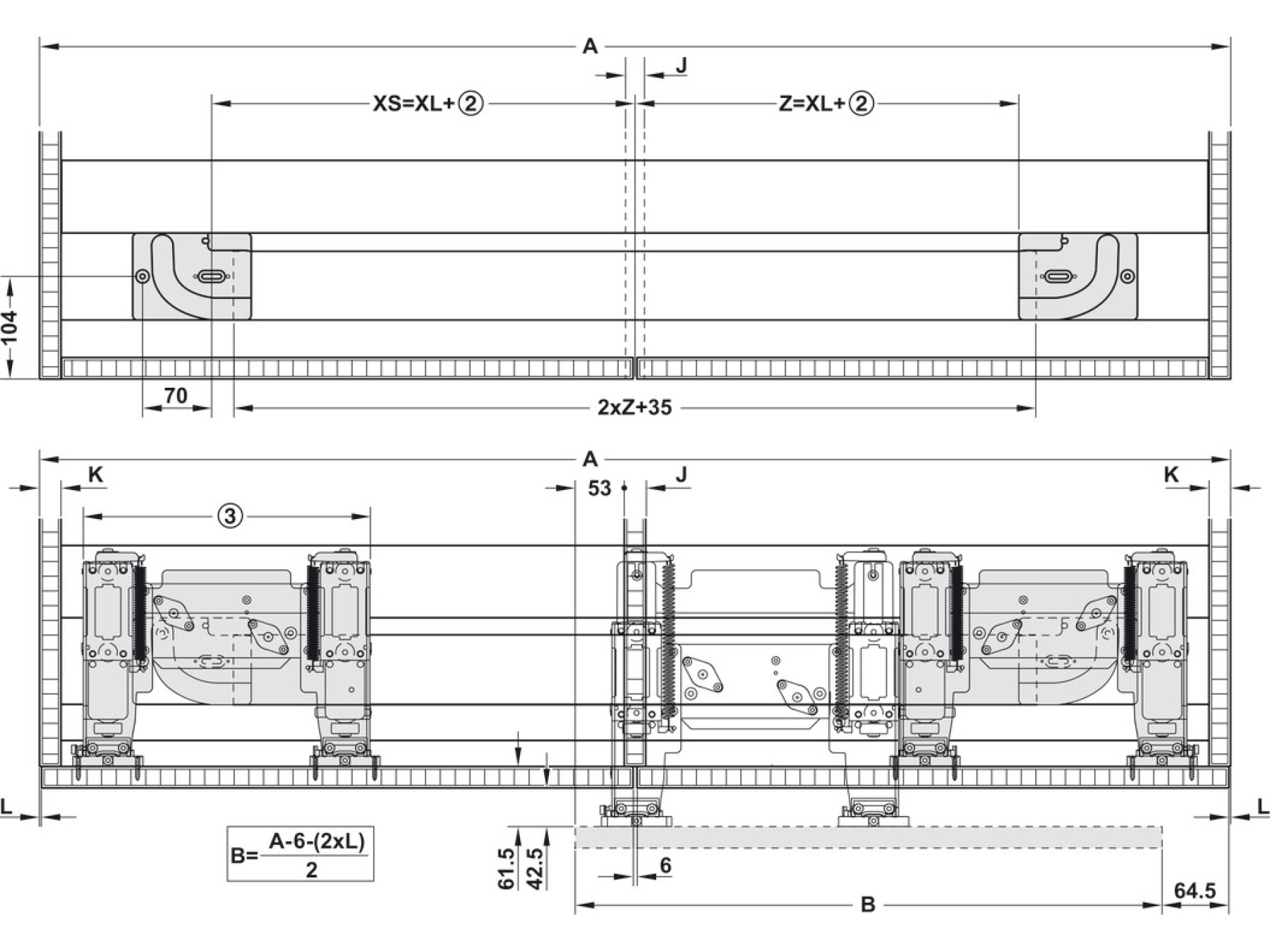

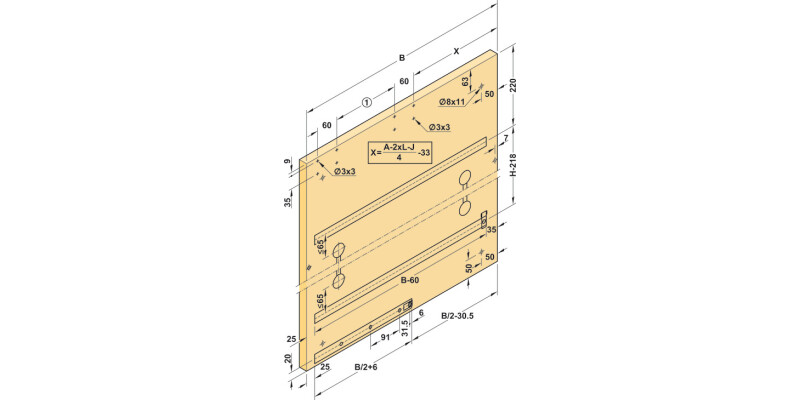

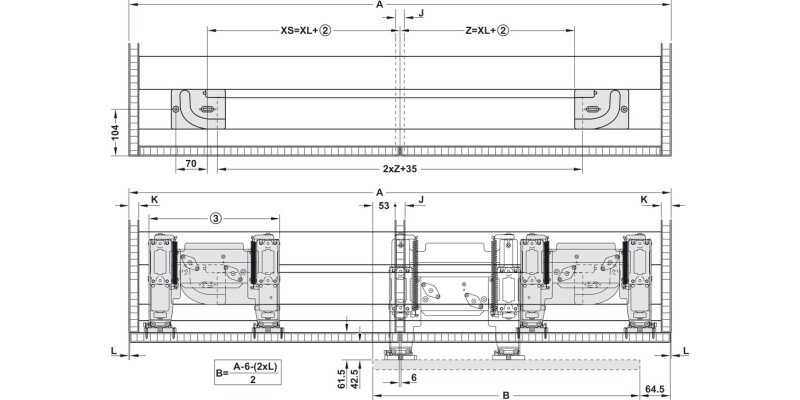

The door width specified in the ordering table was calculated with door return at side L = 3 mm.
