Eku Clipo 16HM IS FitSet 1Dr

Part Number: 405.82.220
Top hung system, For 1 door
Price:
£50.83
Per Item
VAT excluded

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide... Read More

Product Information

Product Details

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide an even softer sliding experience Hawa have re-invented the roller technology for Hawa-Clipo 16
Soft running - Optimised roller geometry and new high-performance plastic
Extremely quiet - Minimum running noise thanks to low rolling resistance
Durable - Long lasting thanks to new high-performance plastic (quality tested in accordance with DIN-EN 15706 level 3, highest class)

Supplied with

Fitting set for one door consists of 2x Housing, anthracite plastic, 2x Running gear, anthracite plastic, 2x Track stopper, grey plastic, 1x Bottom guide, anthracite plastic and fixings

Specifications

Number of door leaves per set

1.00

Soft closing mechanism

With clip-in door stopper

For door thickness

≤19 mm

For door width

≤1,000 mm

For door weight

≤16 kg

Running position

Top

Number of rollers

4.00

Height adjustment

-1 – 2 mm

Running gear guided by

Friction bearing

For door material

Aluminium frame

Height adjustable

Cabinet version

with narrow doors

Area of application

Inset cabinet doors

For door height

≤1,400 mm

Door stopper

Top clip-in door stopper, for sliding into running track

Material/finish

PlasticRollers: PlasticAxis: Steel

Adjustment facility

Height adjustment: -1 – 2 mm, Height adjustment +2/-1 mm

Installation

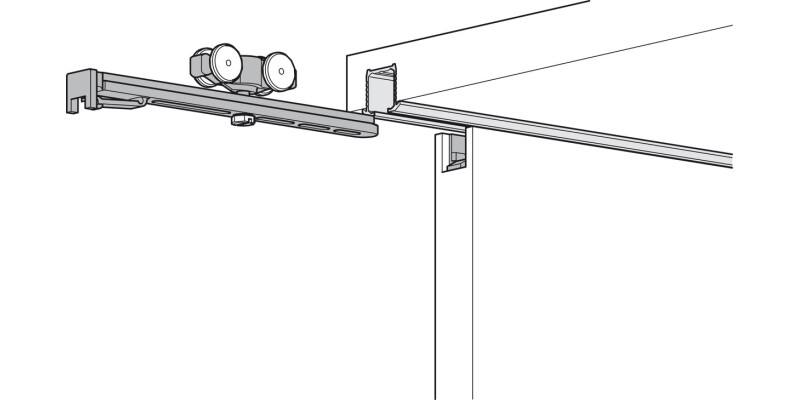

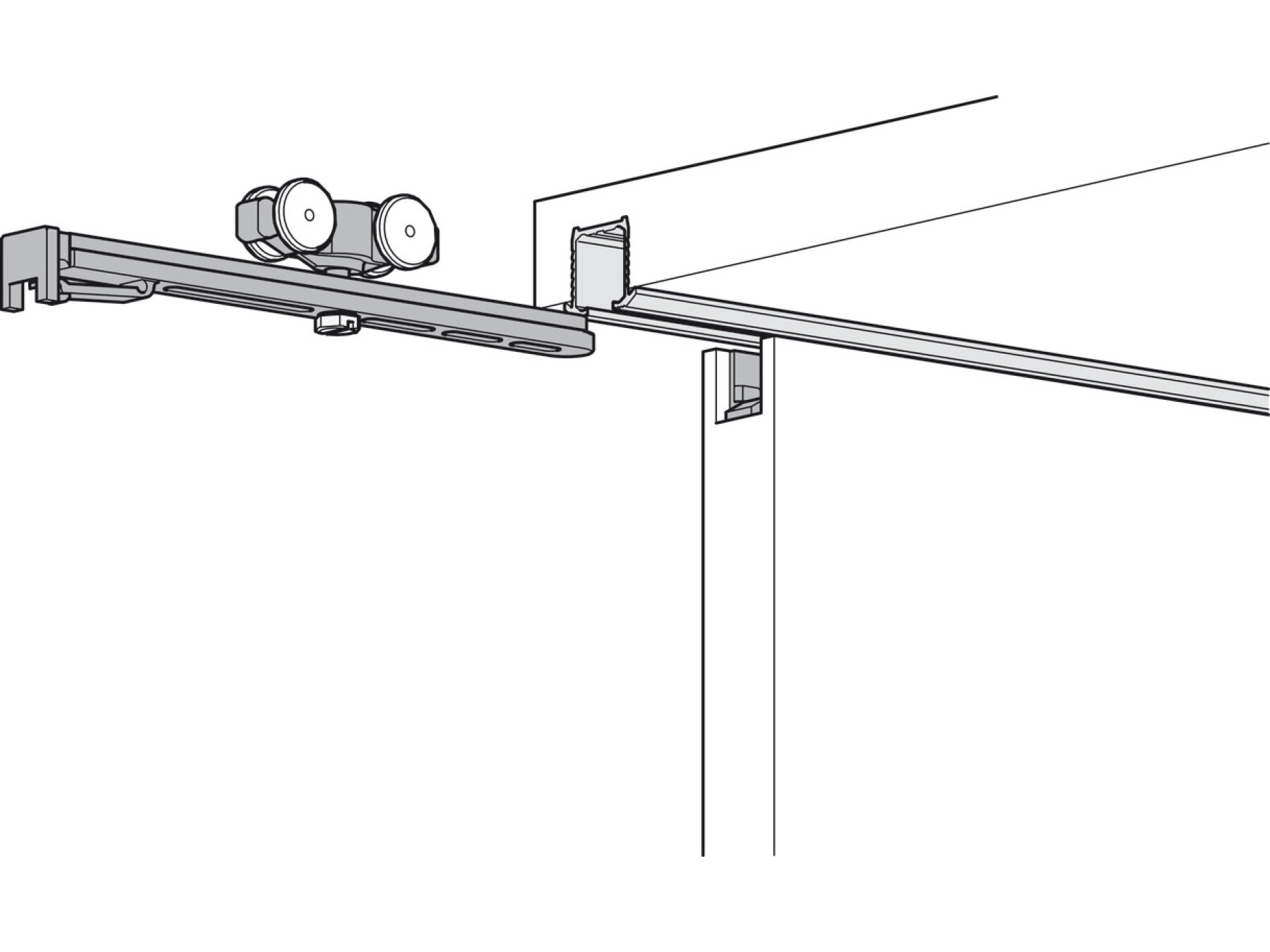

Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

Set

Set without tracks

Type of opening

linear

Number of door wings in a system max.

1 to 2

Order reference

Tracks and accessories to be ordered separately
