Eku Clipo 16H MS FitSet 2Dr

Part Number: 405.82.118

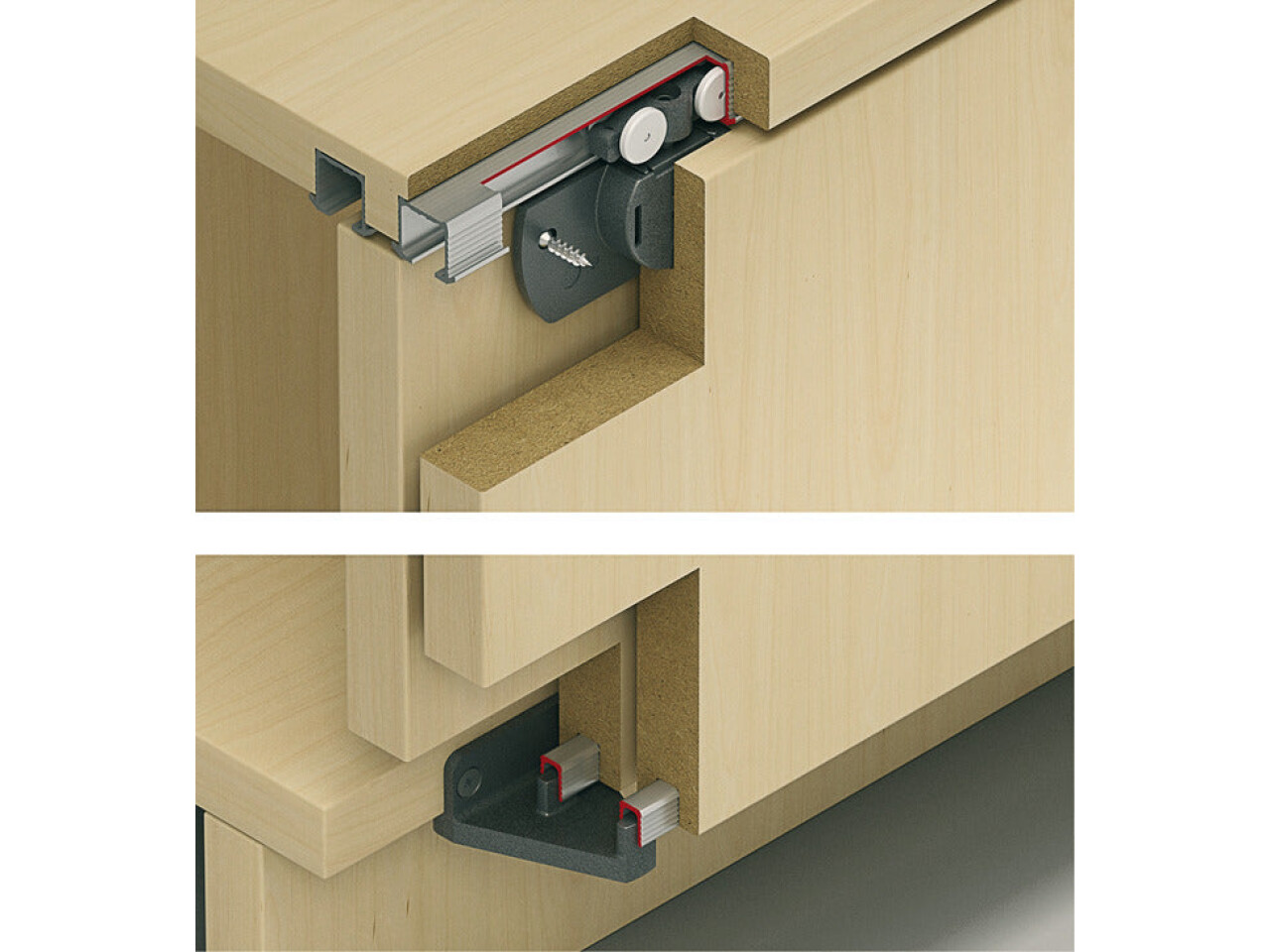

Top hung system, For 2 doors
Price:
£149.41
Per Item
VAT excluded

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide... Read More

Product Information

Product Details

The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide an even softer sliding experience Hawa have re-invented the roller technology for Hawa-Clipo 16
Soft running - Optimised roller geometry and new high-performance plastic
Extremely quiet - Minimum running noise thanks to low rolling resistance
Durable - Long lasting thanks to new high-performance plastic (quality tested in accordance with DIN-EN 15706 level 3, highest class)

Supplied with

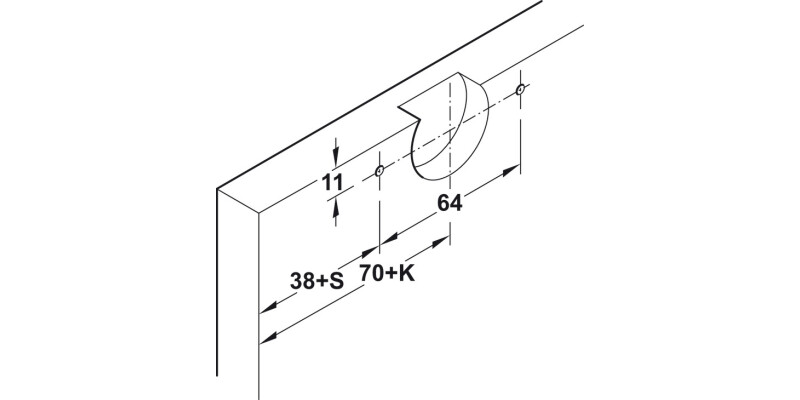

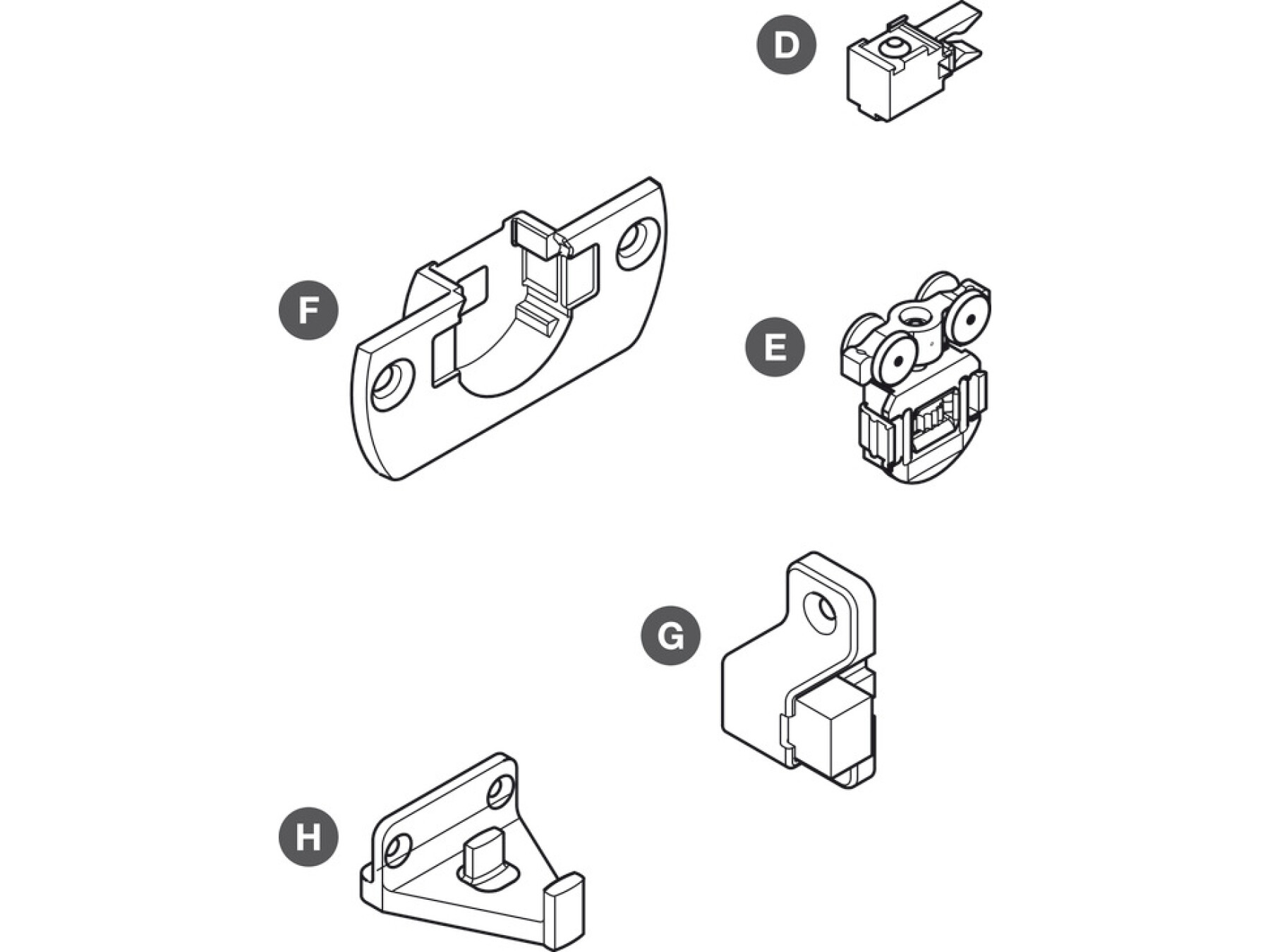

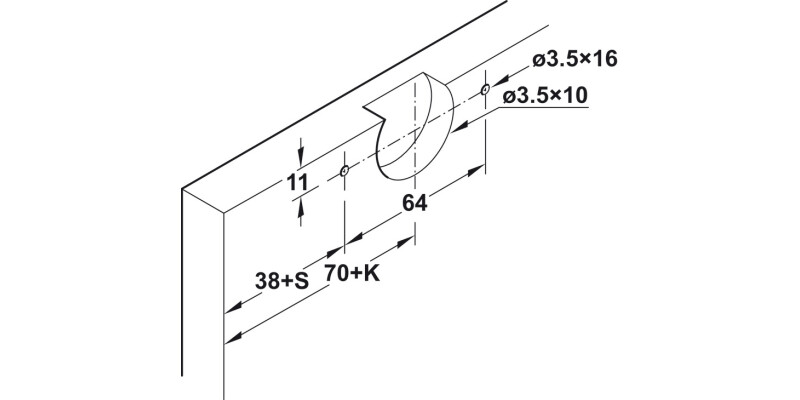

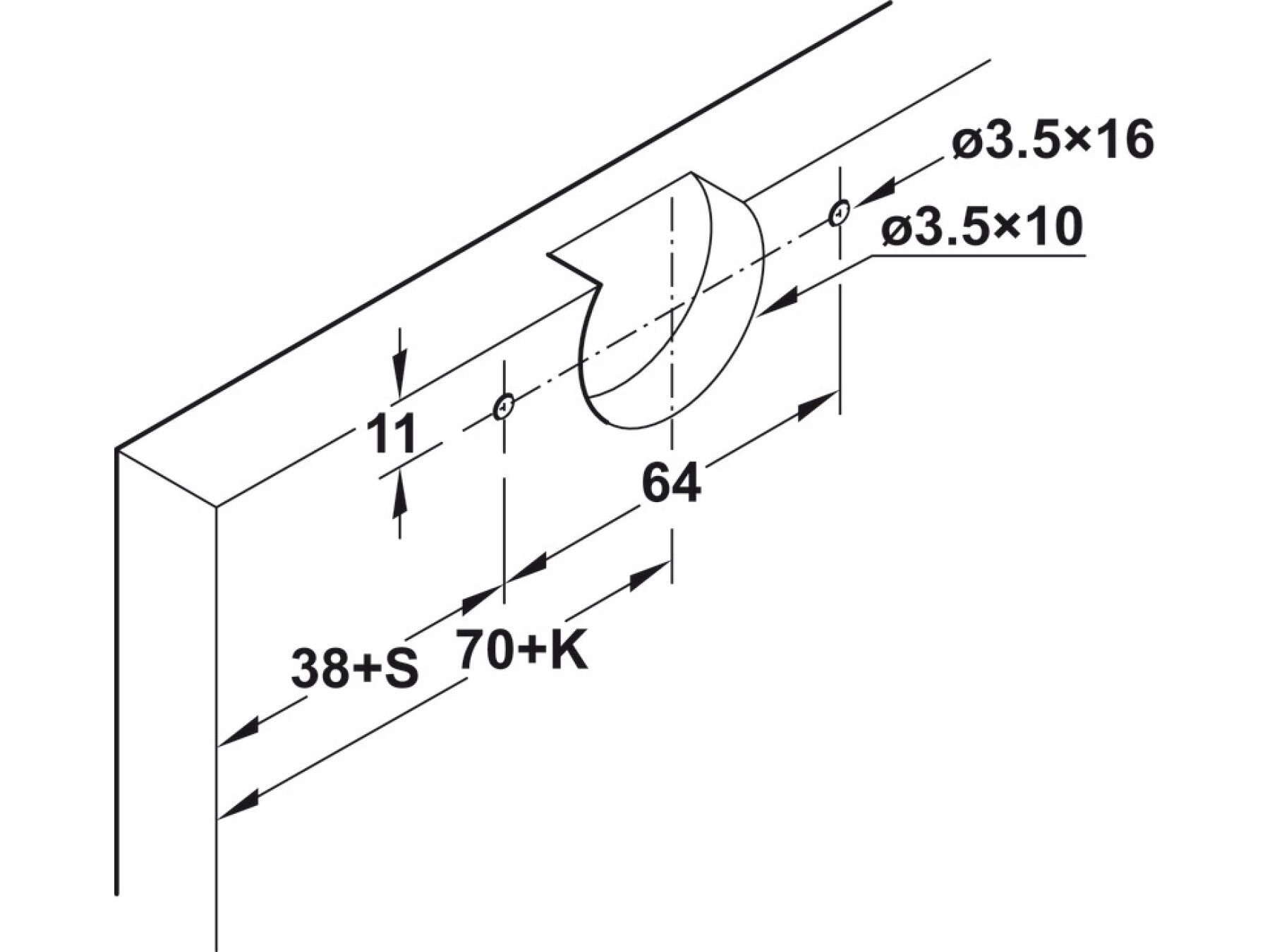

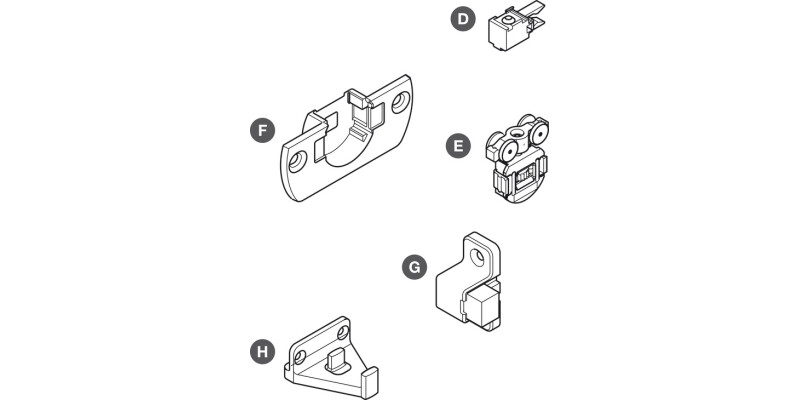

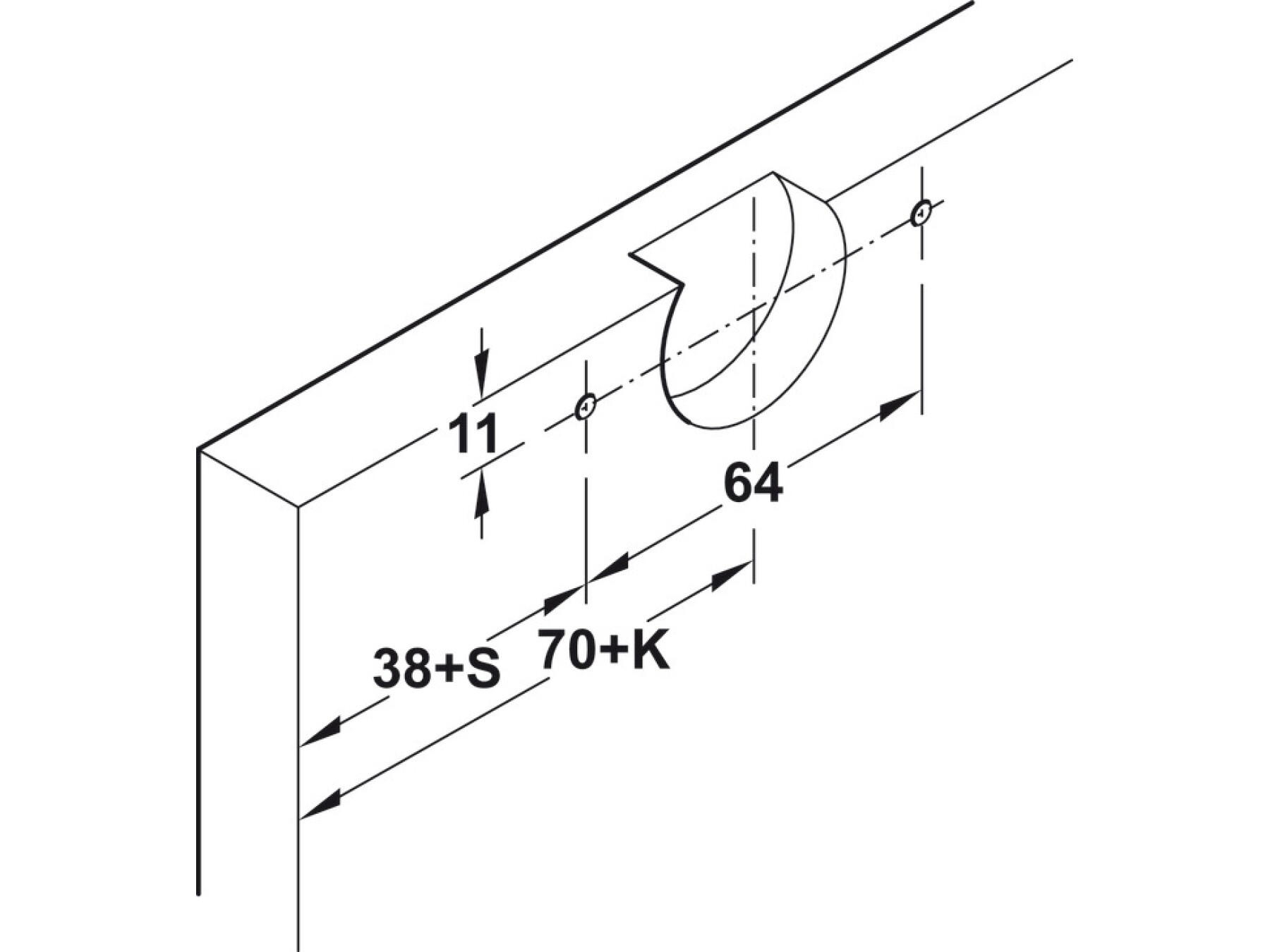

Fitting set includes 2 x Track stopper, for top track, grey plastic, 4 x Running gear, for sliding into housing, height adjustable +2/-1 mm, anthracite plastic, 4 x Housing, for groove mounting in top edge of door, screw fixing, anthracite plastic, 1 x Door buffer, screw fixing, grey plastic, 1 x Bottom guide, press fit, anthracite plastic and fixings

Specifications

Number of door leaves per set

2.00

Soft closing mechanism

With clip-in door stopper

For door thickness

16 – 19 mm

For door width

≤1,000 mm

For door weight

≤16 kg

Running position

Top

Number of rollers

2.00

Height adjustment

-1 – 2 mm

Running gear guided by

Friction bearing

For door material

Wood

Height adjustable

Cabinet version

with thin cabinet top panels

Area of application

Mixfront cabinet doors

For door height

≤1,400 mm

Door stopper

Top clip-in door stopper, for sliding into single running track

Material/finish

Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

Adjustment facility

Height adjustment: -1 – 2 mm, Height adjustment +2/-1 mm

Door adjustment via

adjusting wheel

Installation

Guide for screw fixing, Screw-on housing, Running gear without tools (quick fixing system)

Set

Set without tracks

Type of opening

linear

Number of door wings in a system max.

2

Order reference

Tracks and accessories to be ordered separately.
