Slido Classic 55IF FitSet 2Dr

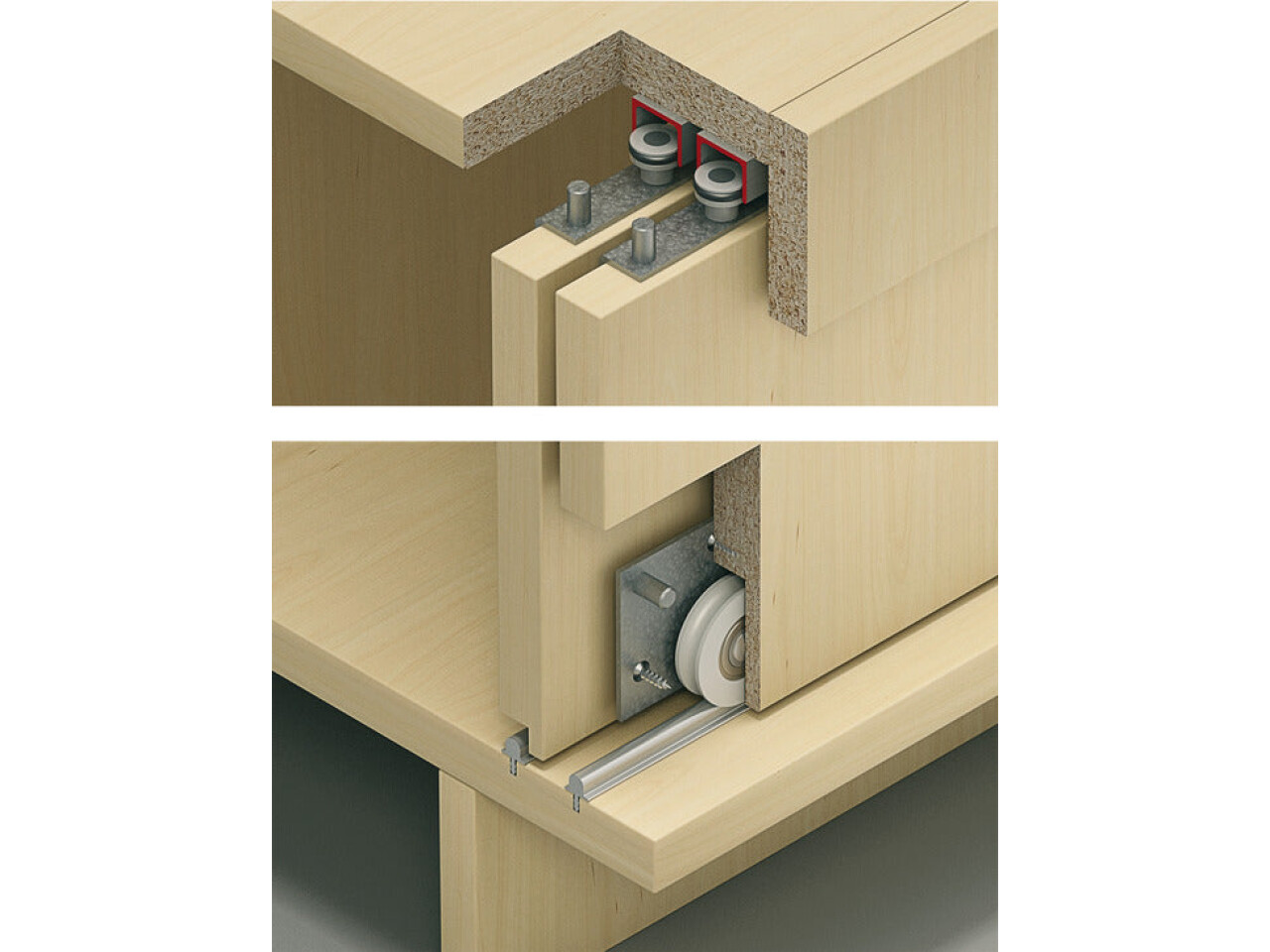

Bottom rolling sliding system for timber door applicationsVery good running properties due to the large guide rollersBespoke door thicknesses possible when guide tracks run separatelyRunning gear: Single roller, bottom rollingRunning gear guided by: Ball bearing roller, plastic, steel axle
- Application: Inset cabinet doors
- Installation: Running gear and guides: Screw fixing
- Adjustment facility: Height ±2 mm
- Door weight: Max. 55 kg
- Door thickness: Min. 16 mm
- Guarantee: 10 years
- Material: Steel/Aluminium
- Note: Planofit door straightening system must be used to add rigidity to wooden doors, must be ordered separatelyFitting sets with height adjustment each contain drilling diagrams with and without height adjustmentThe middle door should always be drilled on the left hand side for height adjustmentThe drilling for the other doors is always on the edge of the side panel

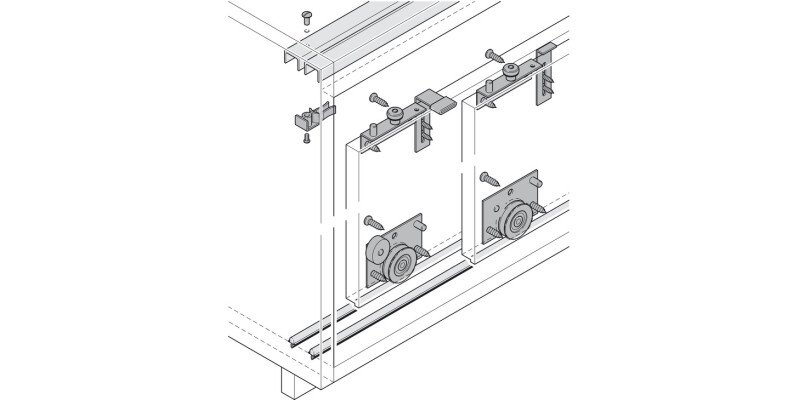

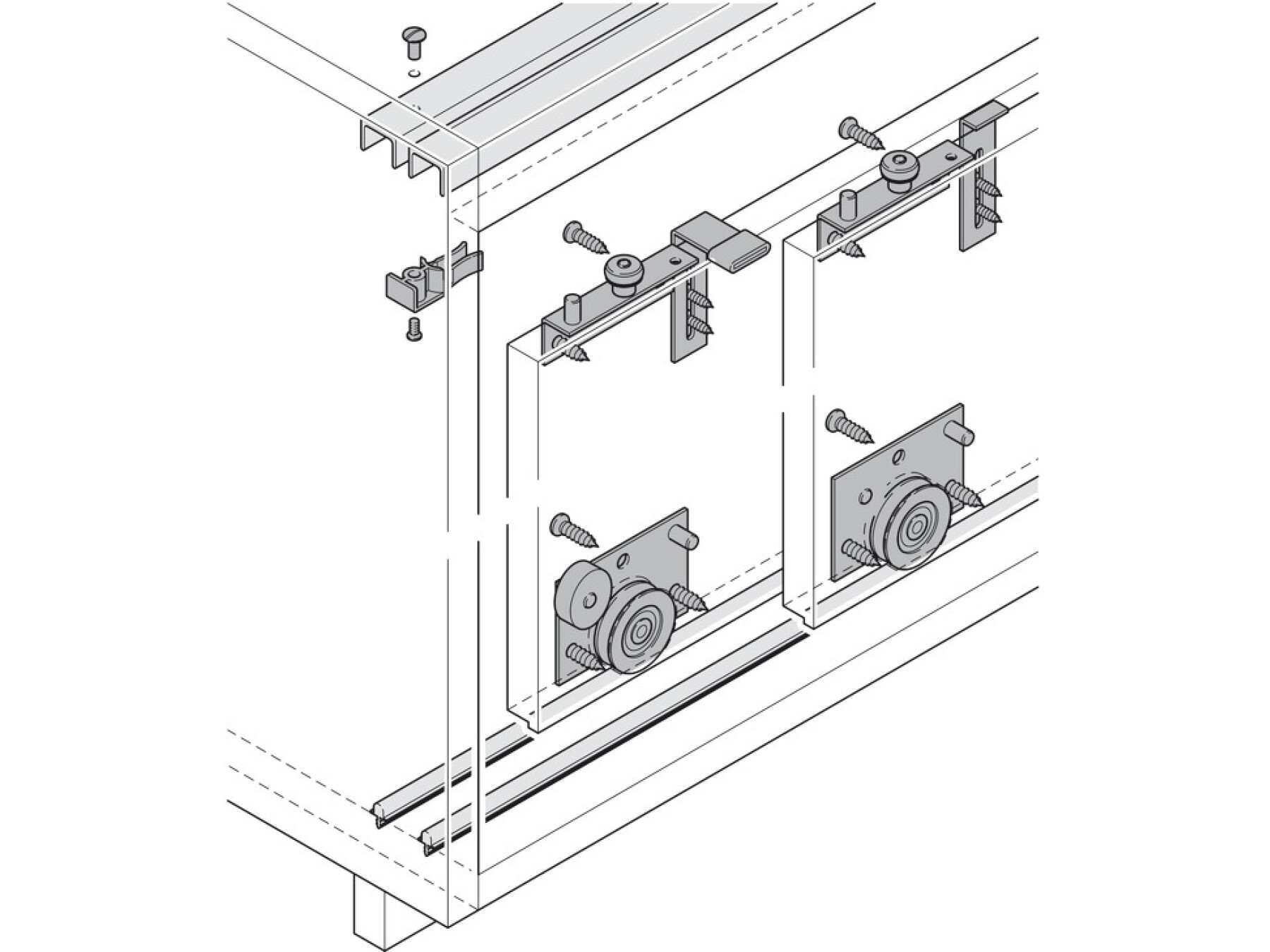

- Supplied with: 4x Running gear2x Height adjustment facilities2x Buffers4x Anti-derailment devices (1 for rear door/3 for front door)4x Guides1x Door stopper
- Order reference: Tracks, channels and fixing materials to be ordered separately
- Warranty information: This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
