PS48.1 Fitting Set 18-28mm Internal Door
Part Number: 400.50.560
For inner door, door thickness 18-28 mm
Price:
£46.88
Per Item
High quality smooth running system for large wardrobe and cabinet doors with the benefit of Easy-line soft close... Read More
Product Information
Product Details
High quality smooth running system for large wardrobe and cabinet doors with the benefit of Easy-line soft close devices for soft closing in both directions available to order separately
Order reference
Track set and soft closing sets to be ordered separately
Also available:
Fitting sets for door thickness up to 53 mm
Electric version
Please contact for further information

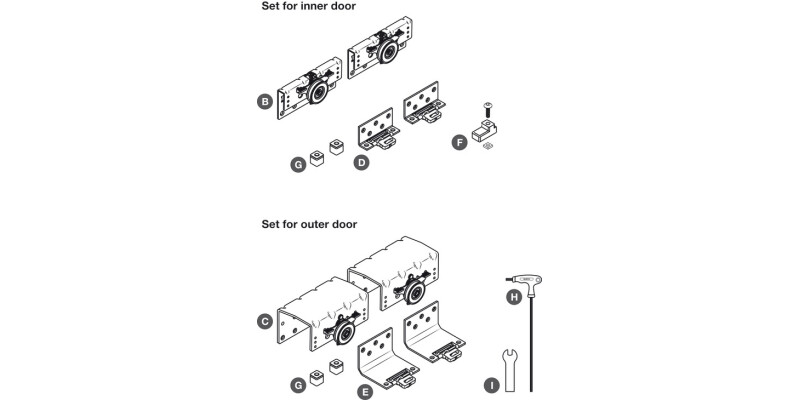

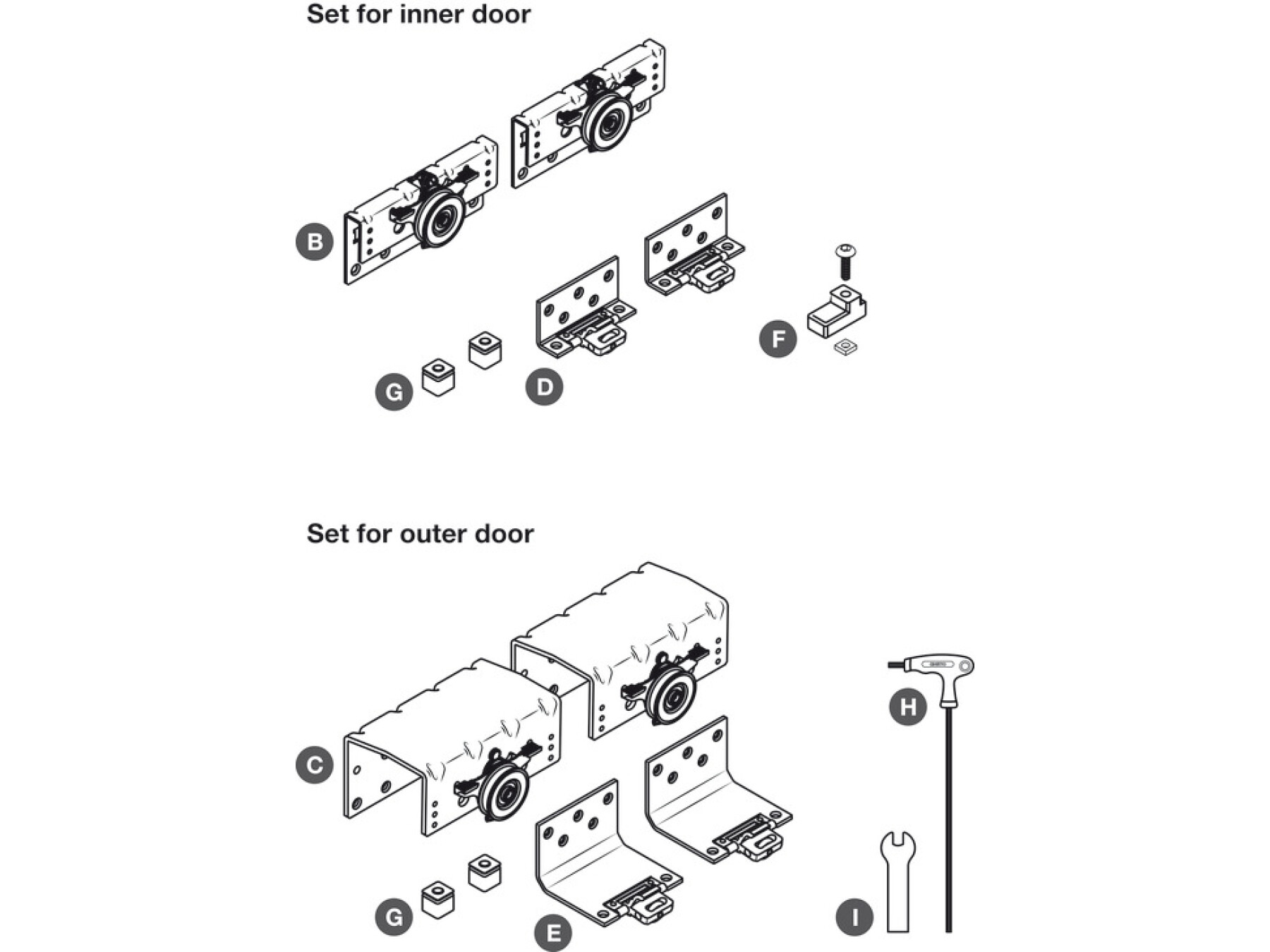

Supplied with
1 pair x Top guide, inner door
1 pair x Bottom guide, inner door
1x Handle spacer
1 pair x Bottom lock
1x T shape adjusting key
1x Fork adjusting key
Fitting instructions
We recommend using Planofit door straighteners on doors above 900 mm wide and 2000 mm high
Specifications
Soft closing mechanism
With soft and self closing mechanism on both sides
For door width
≥760 mm
For door weight
≤80 kg
Height adjustment
-3 – 3 mm
Cabinet version
wardrobes
Area of application
Overlay cabinet and wardrobe doors
Adjustment facility
Height adjustment: -3 – 3 mm
Set
Set without tracks
