Part No: 911.68.327
Electric Release-Rim Mortice Pattern 12V
£25.06
(excl. VAT)
PS40 Complete FitSet 2Dr 16-55mm
Part Number: 400.50.016
Top hung system, For door thickness 16-55 mm
Price:
£1,109.51
Per Item
Flexible sliding door system for a pair of large flush wardrobe doorsEach panel slides in front of the otherSoft... Read More
Product Information
Product Details
Flexible sliding door system for a pair of large flush wardrobe doors
Each panel slides in front of the other
Soft closing in both directions
Guide rails with self activating anti-derailment can be cut to size
With - 4/ + 6 mm height adjustment
Minimum height required above doors 24.5 mm
Flexible sliding door system for a pair of large flush wardrobe doors
Each panel slides in front of the other
Also available for a 3 door application, door width 1320-1800 mm. Please contact us for further information
Supplied with

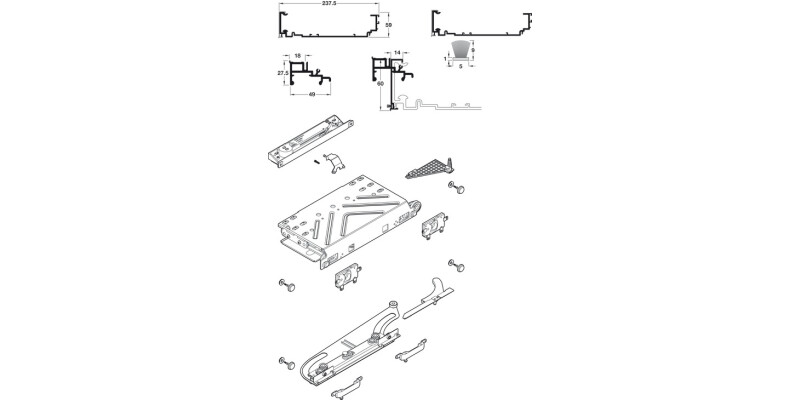

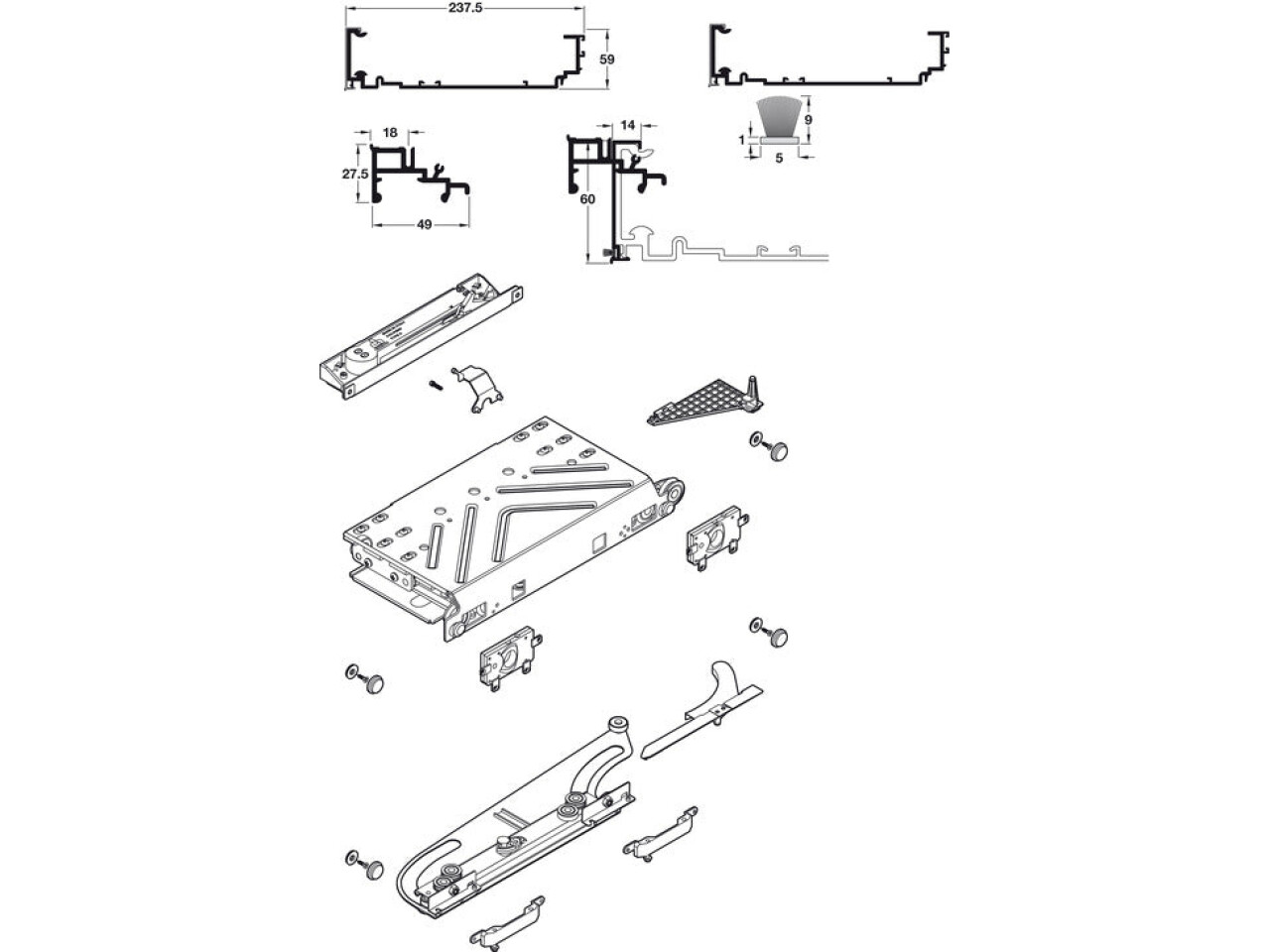

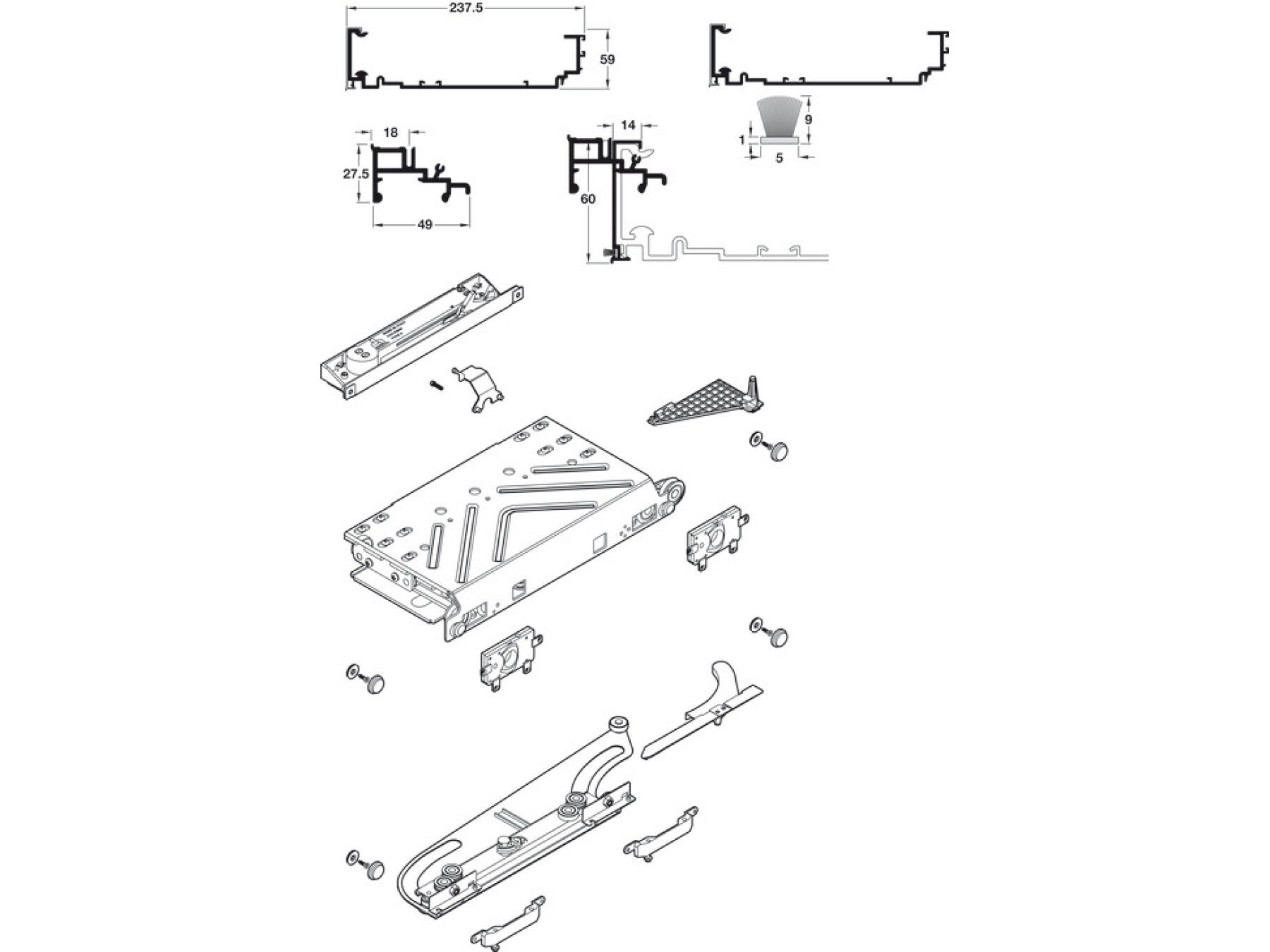

Set consists of 1 x 400.50.763 PS40.1 top guide rail, 1 x 400.50.965 PS40.1 bottom guide rail, 1 x 400.50.008 PS40.1 fitting set for left hand door, 1 x 400.50.001 PS40.1 fitting set for right hand door, 1 x 400.50.764 PS40.1 cover profile, 1 x 400.50.500 PS40.1 dust brush profile
Specifications
Number of door leaves per set
2.00
Soft closing mechanism
With soft closing mechanism
For door thickness
16 – 55 mm
For door width
934 – 1,800 mm
For door weight
≤60 kg
Running position
Top
Cabinet version
wardrobes
Area of application
Flush wardrobe doors
Material/finish
AluminiumPlasticZinc alloy
Adjustment facility
Height adjustment -4/+6 mm
For cabinet depth
≥300 mm
Set
Set with tracks
Type of opening
flush
Order reference
Spare upper and lower rail hooks are available separately
